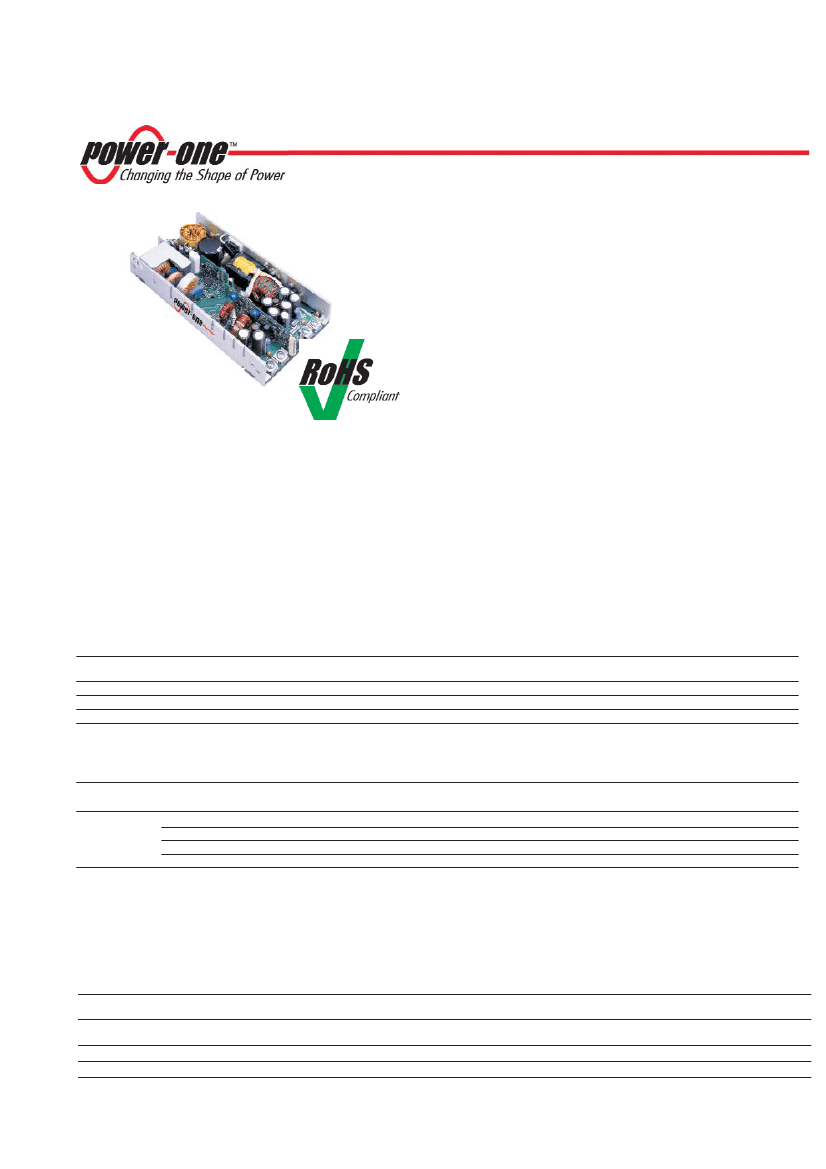

MPU200/MDU200 Series Data Sheet
Features
•
•
•
•
•
•
•
•
•
RoHS lead free solder and lead solder exempted products
are available
Power Factor Correction (PFC) meets EN61000-3-2
Same size, airflow, and construction as MPU150/MDU150
with over 33% more power
Single-wire current sense on quad model outputs V1 and V2
Remote sense on quad model outputs V1 and V2
Current share and N+1 redundancy (standard on all models)
Overtemperature, overload, and overvoltage protection
Available with SAE mountings
MDU200 models have 48VDC input
Description
The MPU200/MDU200 Series is based upon the proven architecture of the MPU150/MDU150 product line. The MPU products
incorporate Power Factor Correction (PFC) with a low-profile package designed to meet 1U height constraints. In this series, 200W
of continuous output power is provided with single or multiple output units suited for distributed power or central power applications.
The series provides high current +3.3V and +5V on a single platform to support mixed-mode, high-speed digital circuitry.
Power-One's dual-converter architecture combines high reliability with exceptional regulation. All multiple-output models feature
remote sense on outputs V1 and V2 to provide independent compensation of output cable losses.
Other standard features include independent current sharing on V1 and V2 quad-model outputs, thermal shutdown, and remote
inhibit. Airflow of 300 linear feet per minute (LFM) is required to deliver the full power density of greater than 4.0 watts per cubic inch.
The MDU200 Series provides the same benefits as the MPU200 Series, with a nominal 48 volt DC input.
AC Input, Single-Output Model Selection
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
MAXIMUM OUTPUT
CURRENT (NOTE 2)
200W/225W PK WITH 300 LFM FORCED-AIR COOLING
(NOTE 1)
PEAK OUTPUT
LINE
CURRENT (NOTE 2) REGULATION
LOAD
REGULATION
RIPPLE & NOISE
%p-p (NOTE 3)
INITIAL SETTING
ACCURACY
MPU200-1012
MPU200-1024
MPU200-1048
12V
24V
48V
11.6V to 16V
22.8V to 29.2V
45V to 56V
17.0A
8.35A
4.2A
19.0A
9.4A
4.7A
0.1%
0.1%
0.1%
1%
1%
1%
1%
1%
1%
11.97V to 12.03V
23.95V to 24.05V
47.9V to 48.1V
AC Input, Multiple-Output Model Selection
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
MAXIMUM OUTPUT
CURRENT (NOTE 2)
200W WITH 300 LFM FORCED-AIR COOLING
(NOTE 1)
ISOLATED V3 AND V4 CAN BE USED AS POSITIVE OR NEGATIVE OUTPUTS
MODEL
LINE
REGULATION
LOAD
REGULATION
RIPPLE & NOISE
%Pk-Pk (NOTE 3)
INITIAL SETTING
ACCURACY
+5V
5.0V to 5.5V
30A (Note 4)
0.4%
1%
+3.3V
3.15V to 3.60V
15A (Note 4)
0.6%
1.5%
MPU200-4530
12V
10.8V to 13.2V
8A (Note 5)
0.4%
10%
12V
10.8V to 13.2V
4A (Note 5)
0.4%
10%
NOTES:
1) This product is not rated for convection applications.
2) Output currents ratings are expressed with 300 LFM forced air.
3) Maximum peak-to-peak noise expressed as a percentage of output voltage, 20 MHz bandwidth.
4) Total current for V1 and V2 is not to exceed 35A.
5) Total power on V3 and V4 is not to exceed 100W.
1%
1.5%
1%
1%
4.98V to 5.02V
3.28V to 3.32V
11.94V to 12.06V
11.60V to 12.40V
Ordering Information:
OPTIONS
SUFFIXES TO ADD TO PART NUMBER
Metric Mounting
Isolation Diode
Add “M” as a suffix to the model number to order chassis with
M3 x 0.7 mounting inserts. Consult factory for availability.
Offered on single-output models. Add “D” to the part number suffix if an isolation diode is needed.
Consult factory for availability.
RoHS lead solder exemption
RoHS compliant for all 6 substances
No RoHS suffix character required.
Add “G” as the last character of the part number.
JUL 14, 2006 revised to JUL 24, 2006
Page 1 of 6
www.power-one.com
MPU200/MDU200 Series Data Sheet
DC Input, Single Output Model Selection
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
200W WITH 300 LFM FORCED-AIR COOLING
(NOTE 1)
LINE
REGULATION
LOAD
REGULATION
RIPPLE & NOISE
%Pk-Pk (NOTE 3)
INITIAL SETTING
ACCURACY
MAXIMUM OUTPUT
PEAK OUTPUT
CURRENT (NOTE 2) CURRENT (NOTE 2)
MDU200-1012G
MDU200-1024G
(NOTE 4)
MDU200-1048G
12V
24V
48V
11.6V to 16V
22.8V to 29.2V
45V to 56V
17.0A
8.35A
4.2A
19.0A
9.4A
4.7A
0.1%
0.1%
0.1%
1%
1%
1%
1%
1%
1%
11.97V to 12.03V
23.95V to 24.05V
47.9V to 48.1V
Isolation Diode Option - Offered on single-output models. Add “D” at the end of the part number if an isolation diode is needed.
MPU200 Input Specifications
PARAMETER
Input Voltage - AC
Input Frequency
Hold-up Time
Input Current
Input Protection
Inrush Surge Current
Power Factor
Operating Frequency
CONDITIONS/DESCRIPTION
Continuous input range.
AC input.
After last AC line peak at 200 watts
85 VAC at full rated load.
Non-user serviceable internally located AC input line fuse.
Internally limited by thermistor. Vin = 230 VAC, one cycle, 25°C.
Per EN61000-3-2.
Switching frequency of main output transformer.
Switching frequency of secondary transformer.
Switching frequency of Power Factor Correction circuit.
MIN
85
47
15
NOM
MAX
264
63
4.0
35
0.95
100
65
60
120
90
UNITS
VAC
Hz
ms
ARMS
APK
W/VA
kHz
MDU200 Input Specifications
PARAMETER
Input Voltage - DC
Brown Out Protection
Hold-up Time
Input Current
Input Protection
Inrush Surge Current
Operating Frequency
CONDITIONS/DESCRIPTION
Continuous input range.
Lowest DC input voltage that regulation is maintained with full rated loads.
At 200 watts, over DC input range.
36 VDC at full rated load.
Non-user serviceable internally located AC input line fuse.
Consult factory.
Switching frequency of main output transformer.
Switching frequency of secondary transformer.
MIN
36
34
15
NOM
MAX
75
UNITS
VDC
VDC
ms
ARMS
8.35
100
70
kHz
NOTES:1)
This product is not rated for convection applications.
2) Output currents ratings are expressed with 300 LFM forced air.
3) Maximum peak-to-peak noise expressed as a percentage of output voltage, 20 MHz bandwidth.
4) Derating is required on output voltages above 27VDC. Consult factory.
JUL 14, 2006 revised to JUL 24, 2006
Page 2 of 6
www.power-one.com
MPU200/MDU200 Series Data Sheet
Output Specifications
PARAMETER
Efficiency
Minimum Load, V1
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
Full Rated Load, 110 VAC (MPU) or 48VDC (MDU).
Varies with distribution of loads among outputs.
65
75
Minimum load required to maintain regulation on,
V2 at maximum load.
Quad output model V1
3
Minimum load required on single output models.
Single output models V1
0
Minimum load required to maintain regulation on
Quad output model V3
0.3
V4 at maximum load.
Full load, 20 MHz bandwidth.
See Model Selection Charts
Output voltage overshoot/undershoot at turn-on.
5
Varies by output. Total regulation includes: line changes over the specified.
See Model Selection Charts
input range, changes in load starting at 20% load and changing to 100% load.
Recovery time, to within 1% of initial set point due to a 50-100% load change,
500
5% max. deviation.
Time required for initial output voltage stabilization.
2
Time required for output voltage to rise from 10% to 90%.
MPU200
50
MDU200
80
UNITS
%
A
A
%
Minimum Load, V3
Ripple and Noise
Overshoot / Undershoot
Regulation
Transient Response
Turn-on Delay
Turn-on Rise Time
μs
s
ms
Interface Signals and Internal Protection
PARAMETER
Overvoltage Protection
CONDITIONS/DESCRIPTION
Latch style overvoltage protection.
MIN
NOM
MAX
4.2
6.4
19
20.5
38.0
62.7
UNITS
MPU200-4530 3.3V output
3.8
MPU200-4530 5V output
6.0
MPU200-4530 12V output
14
MDU200/MPU200-1012 V1 17.0
MDU200/MPU200-1024 V1 32.0
MDU200/MPU200-1048 V1 58.0
Fully protected against output overload and short circuit. Automatic recovery upon removal of overload condition.
System shutdown due to excessive internal temperature, automatic reset.
TTL compatible signal available for V1. Internal pull-up resistor is 475 .
3.3V
Signal is high when output is above the specified limits. Signal shall
5V
remain low for 20 milliseconds following loss of Output Good.
MDU200/MPU200-1012 12V
MDU200/MPU200-1024 24V
MDU200/MPU200-1048 48V
TTL compatible logic signal. Time before regulation dropout due to loss of input
power. May be used as independent PSOK signal in redundant applications.
Accuracy of shared current with up to 6 parallel units. Single wire current share
on V1 and V2 with return via -Sense return.
Available on V1 and V2. Total voltage compensation for cable losses with
respect to the main output.
Output voltage is inhibited by application of an external high (5V) signal.
3.16
4.75
10.5
21.5
43.0
5
10
500
V
Overload Protection
Overtemperature Protection
Output Good Signal
(Transision from
Low to High)
3.25
4.95
11.9
23.5
47.0
V
Input Power Fail Warning
Current Share
Remote Sense
Inhibit
ms
%
mV
JUL 14, 2006 revised to JUL 24, 2006
Page 3 of 6
www.power-one.com
MPU200/MDU200 Series Data Sheet
Safety, Regulatory, and EMI Specifications
PARAMETER
Agency Approvals
Dielectric Withstand Voltage
Electromagnetic Interference
ESD Susceptibility
Radiated Susceptibility
EFT/Burst
Input Transient Protection
CONDITIONS/DESCRIPTION
UL60950,CSA 22.2 NO. 60950, and EN60950-1 (TÜV).
Input to output per EN60950.
FCC CFR title 47 Part 15 Sub-Part B - Conducted.
EN55022 / CISPR 22 Conducted.
Per EN61000-4-2, level 4.
Per EN61000-4-3, level 3.
Per EN61000-4-4, level 3.
Per EN61000-4-5, class 3.
MIN
(Approved)
MPU200
MDU200
2600
1414
B
B
8
10
±2
1
2
0.5
0.5
10
MPU200 Quad Output Model
MPU200 Single Output Models
MDU200 at 72 VDC
(Not required by EN60950)
2.2
1.7
N/A
VDC
Class
kV
V/M
kV
kV
MV
mA
NOM
MAX
UNITS
MPU200:
MPU200:
MDU200:
MDU200:
Line to Line
Line to Ground
Line to Line
Line to Ground
Insulation Resistance
Leakage Current
Input to output.
Per EN60950.
Environmental Specifications
PARAMETER
Altitude
Operating Temperature
Derate linearly above 50°C by 2.5% per °C.
Storage Temperature
Temperature Coefficient
Relative Humidity
Shock
Vibration
0°C to 70°C (after 15 minute warm-up).
Non-Condensing.
Peak acceleration.
Random vibration, 10Hz to 2kHz, 3 axis.
CONDITIONS/DESCRIPTION
Operating.
Non-Operating.
At 100% load
At 50% load
MIN
NOM
MAX
10k
40k
50
70
85
±0.05
95
20
6
UNITS
ASL Ft.
ASL Ft.
°C
°C
°C
%/°C
%RH
G
PK
G
RMS
0
0
-55
±0.02
5
Options
DESCRIPTION
Metric Mounting
Isolation Diode
NOTES
Add “M” as a suffix to the model number to order chassis with
M3 x 0.7 mounting inserts. Consult factory for availability.
Offered on single-output models. Add “D” to the part number suffix if an isolation diode is needed. Consult factory for
availability.
JUL 14, 2006 revised to JUL 24, 2006
Page 4 of 6
www.power-one.com
MPU200/MDU200 Series Data Sheet

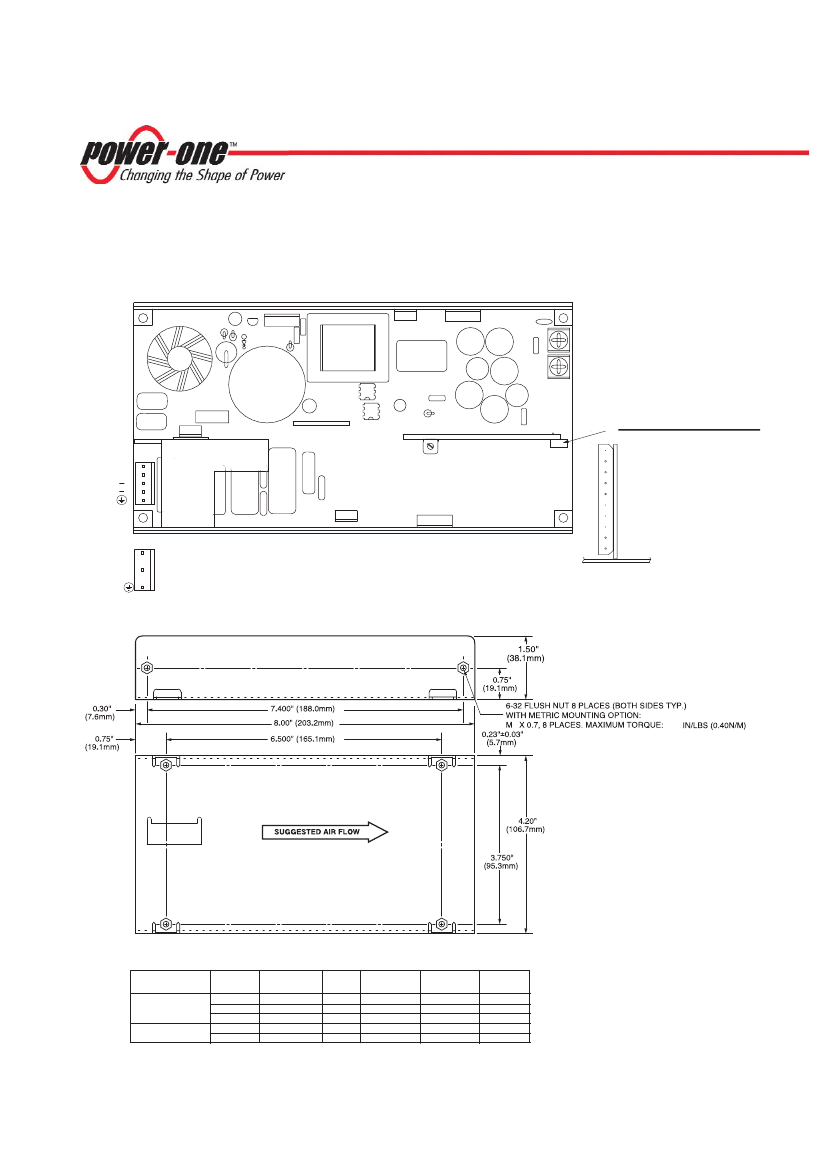

Overall Size: 8.00" x 4.20" x 1.50" (203.2mm x 106.7mm x 38.1mm) Weight: 2.0 lb (0.89 kg)
SINGLE OUTPUT
OUTPUTS:
8-32 SCREW
CONNECTIONS
(4PL)
+V1
RTN
INTERFACE CONNECTIONS (J300)
MDU200
DC
INPUT
J1
+
5
+
4
3
2
1
V1,V.
ADJ.
S
PIN
10. +S, V1
9. -S, V1
8. CURRENT SHARE, V1
7. NO CONNECTION
6. NO CONNECTION
5. NO CONNECTION
4. OUTPUT GOOD, V1
3. POWER FAIL WARNING
2. INHIBIT
1. SIGNAL GROUND
MPU200 J1
AC
L 1
INPUT
N 3
5
MOLEX SERIES 5268-NA, P/N: 22-05-7105, PINS
ON 2.50mm CENTERS.
MATES WITH MOLEX:
HOUSING SERIES 5264-N, P/N: 50-37-5103 (&)
PINS SERIES 5263, P/N: 80-70-1040 (LOOSE)
3
TBD
NOTE:
MAX. LEAD PROTRUSION IS 0.0625" (1.588mm)
ON THE FOUR BOTTOM MOUNTING HOLES.
MAX. LEAD PROTRUSION OF 0.25" (6.25mm)
IS ACCEPTABLE ON THE FOUR SIDE MOUNTING
HOLES.
CONNECTOR
J1
J300
MOLEX
SERIES
41695
41695
2139
5264-N
PIN
PINS
PINS
WIRE
SERIES (LOOSE)
(CHAIN)
GAUGE
09-50-8051
6838 08-50-0189 08-50-0187 18-20AWG
09-50-8051
2478 08-50-0106 08-50-0105 18-20AWG
09-50-3051
2478 08-50-0106 08-50-0105 18-20AWG
HOUSING
50-37-5103
5263
08-70-1040 08-70-1039 22-28AWG
CHASSIS: 0.063" (1.6mm) ALUMINUM ALLOY,
WITH CLEAR FINISH
JUL 14, 2006 revised to JUL 24, 2006
Page 5 of 6
www.power-one.com
京公网安备 11010802033920号
EEWORLD
