MDU-3F-30 datasheet, PDF - EEWORLD Datasheet

MDU-3F-30: DescriptionMultiple Digital Delay Units; Categorylogic logic; File Size129KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

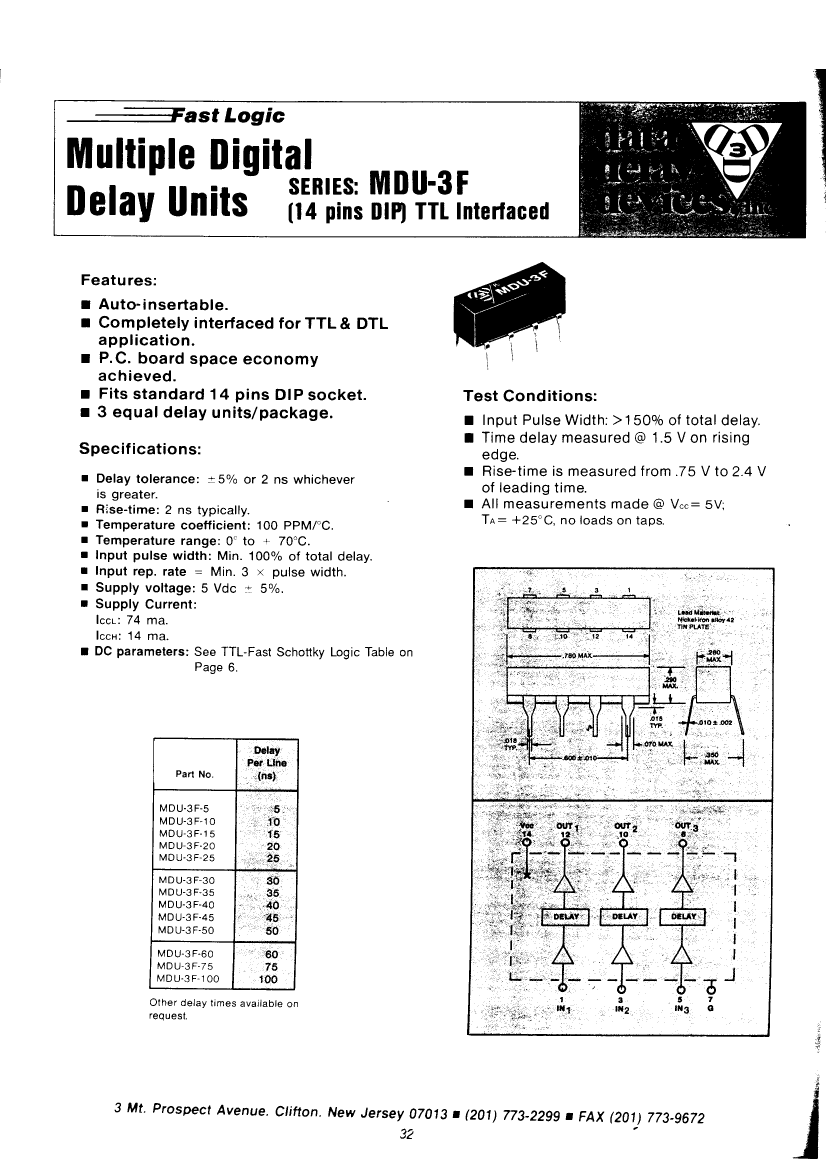

MDU-3F-30 Overview

Multiple Digital Delay Units

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP-14/8
Contacts	14/8
Reach Compliance Code	compliant
Other features	TESTED WITH NO LOAD CONDITIONS
series	F
Input frequency maximum value (fmax)	11.1111 MHz
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	19.304 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	3
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	74 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	30 ns
Certification status	Not Qualified
Maximum seat height	7.747 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	30 ns
width	7.62 mm
Base Number Matches	1
