AT27BV010-70JIT/R datasheet, PDF

AT27BV010-70JIT/R: DescriptionOTP ROM, 128KX8, 70ns, CMOS, PQCC32; Categorystorage storage; File Size239KB，9 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

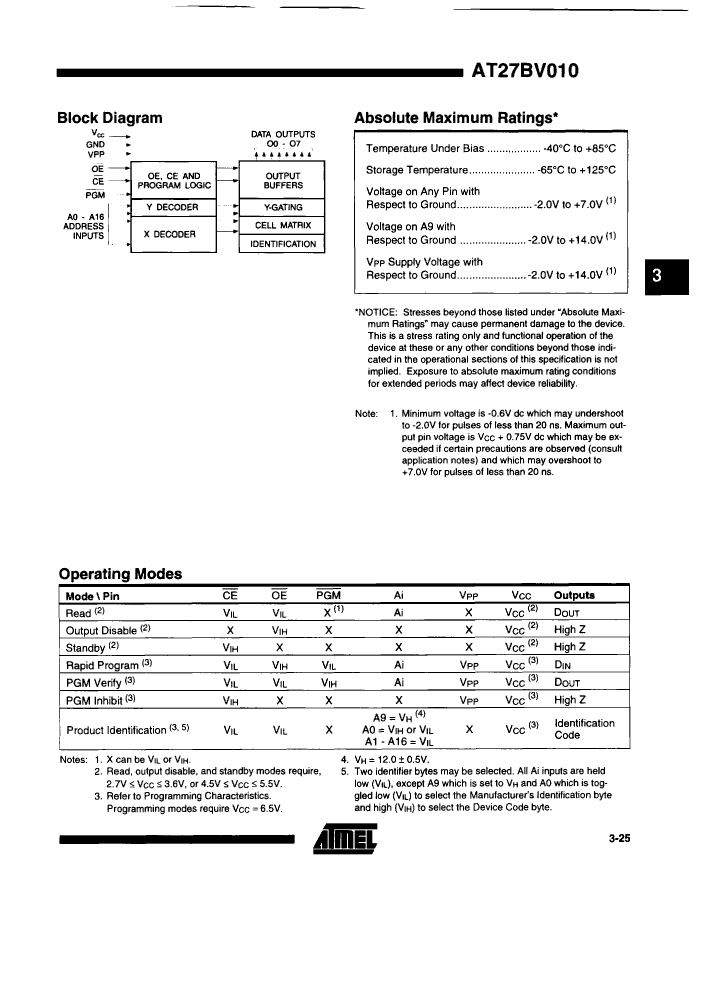

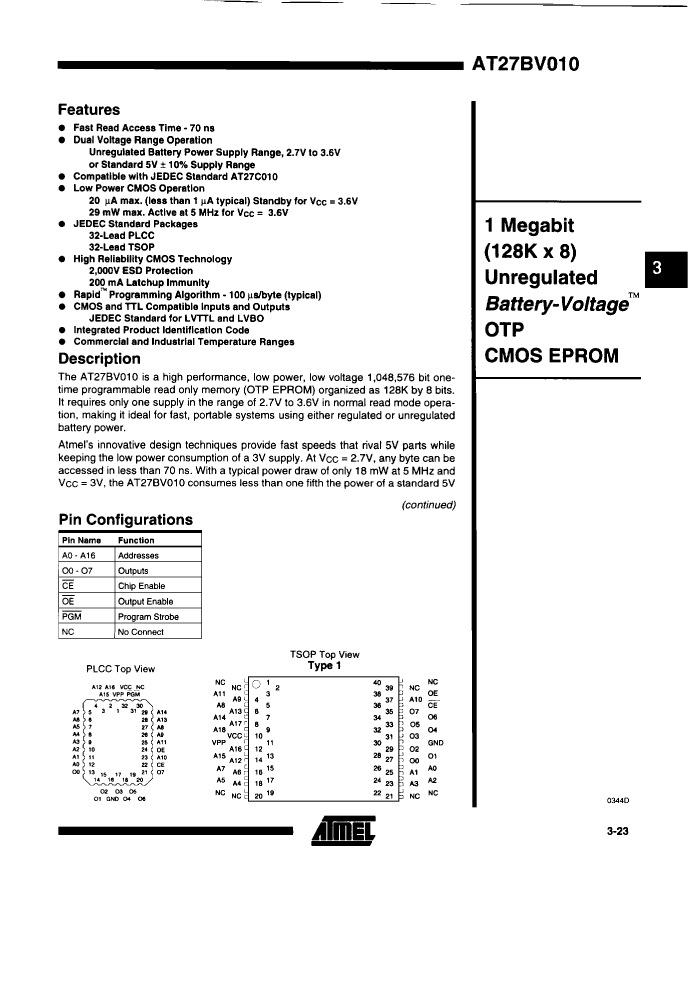

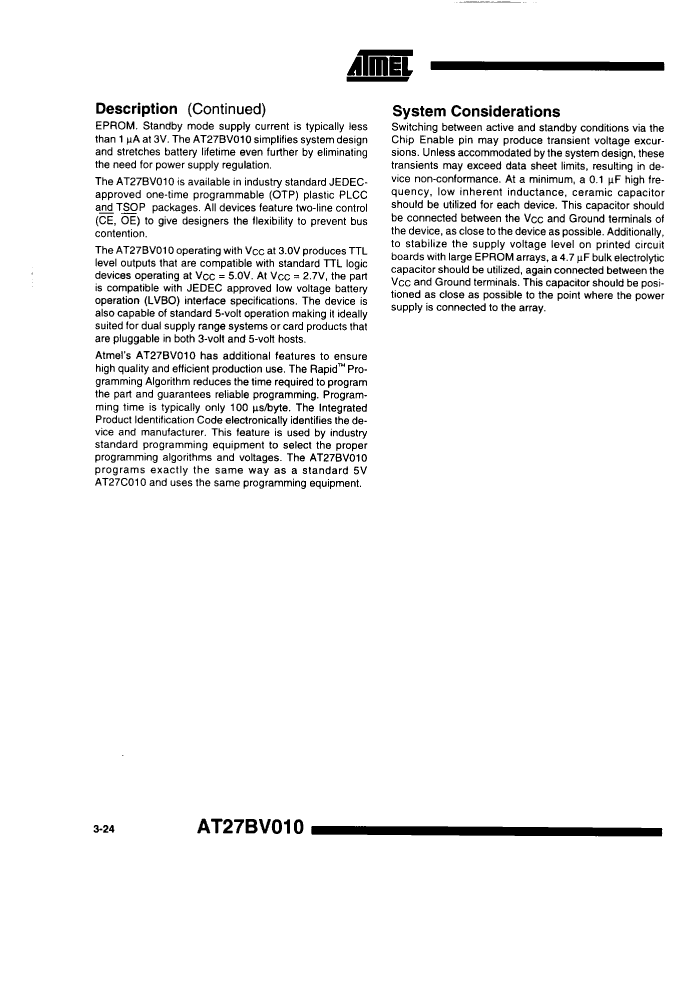

AT27BV010-70JIT/R Overview

OTP ROM, 128KX8, 70ns, CMOS, PQCC32

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ,
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N

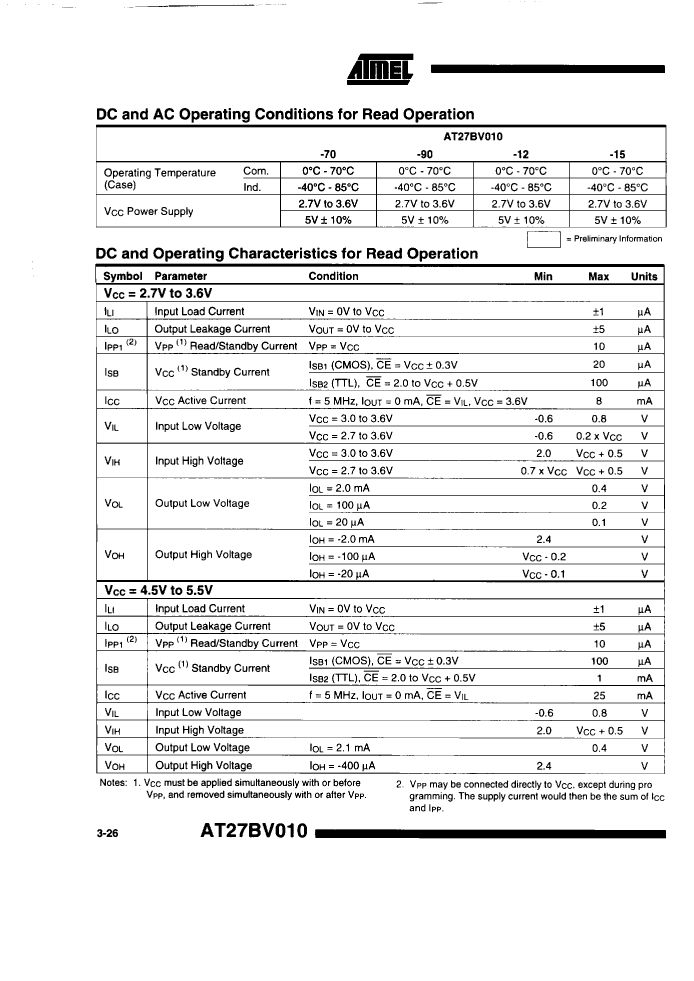

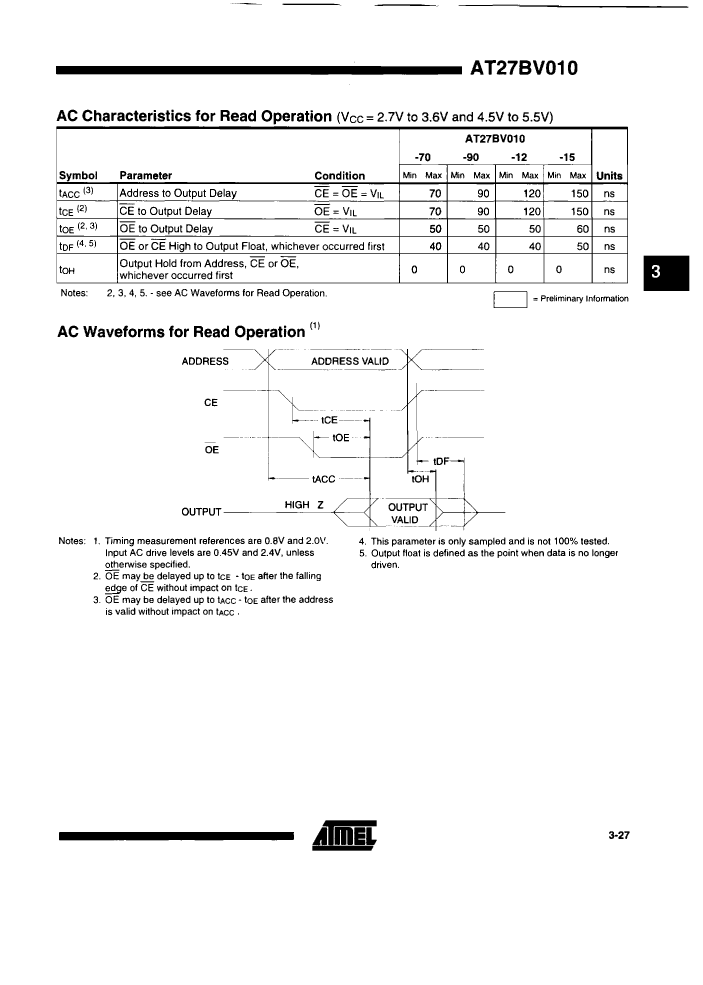

Maximum access time	70 ns
Other features	UNREGULATED BATTERY POWER SUPPLY RANGE
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
length	13.97 mm
memory density	1048576 bit
Memory IC Type	OTP ROM
memory width	8
Humidity sensitivity level	2
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	3.55 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.43 mm
Base Number Matches	1

	AT27BV010-70JIT/R	AT27BV010-70JCT/R
Description	OTP ROM, 128KX8, 70ns, CMOS, PQCC32	OTP ROM, 128KX8, 70ns, CMOS, PQCC32
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCJ,	QCCJ,
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum access time	70 ns	70 ns
Other features	UNREGULATED BATTERY POWER SUPPLY RANGE	UNREGULATED BATTERY POWER SUPPLY RANGE
JESD-30 code	R-PQCC-J32	R-PQCC-J32
JESD-609 code	e0	e0
length	13.97 mm	13.97 mm
memory density	1048576 bit	1048576 bit
Memory IC Type	OTP ROM	OTP ROM
memory width	8	8
Humidity sensitivity level	2	2
Number of functions	1	1
Number of terminals	32	32
word count	131072 words	131072 words
character code	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C
organize	128KX8	128KX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Package shape	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.55 mm	3.55 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
width	11.43 mm	11.43 mm
