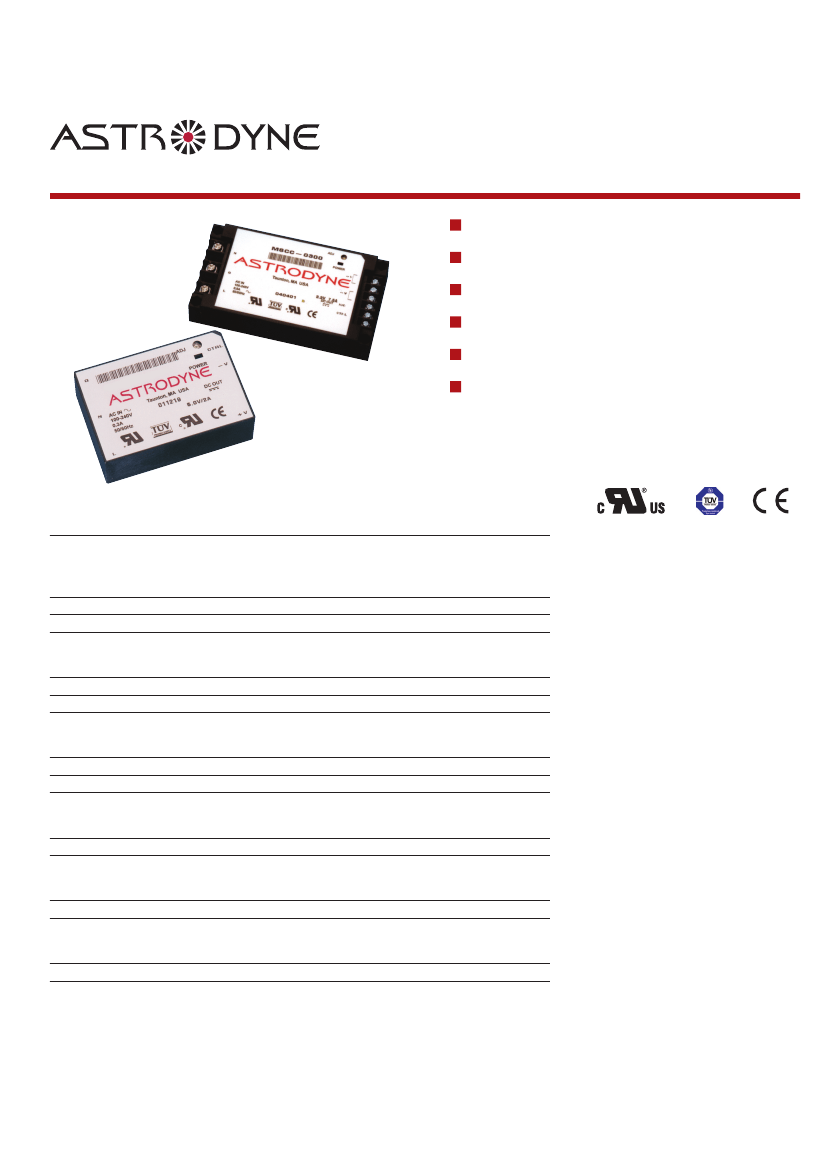

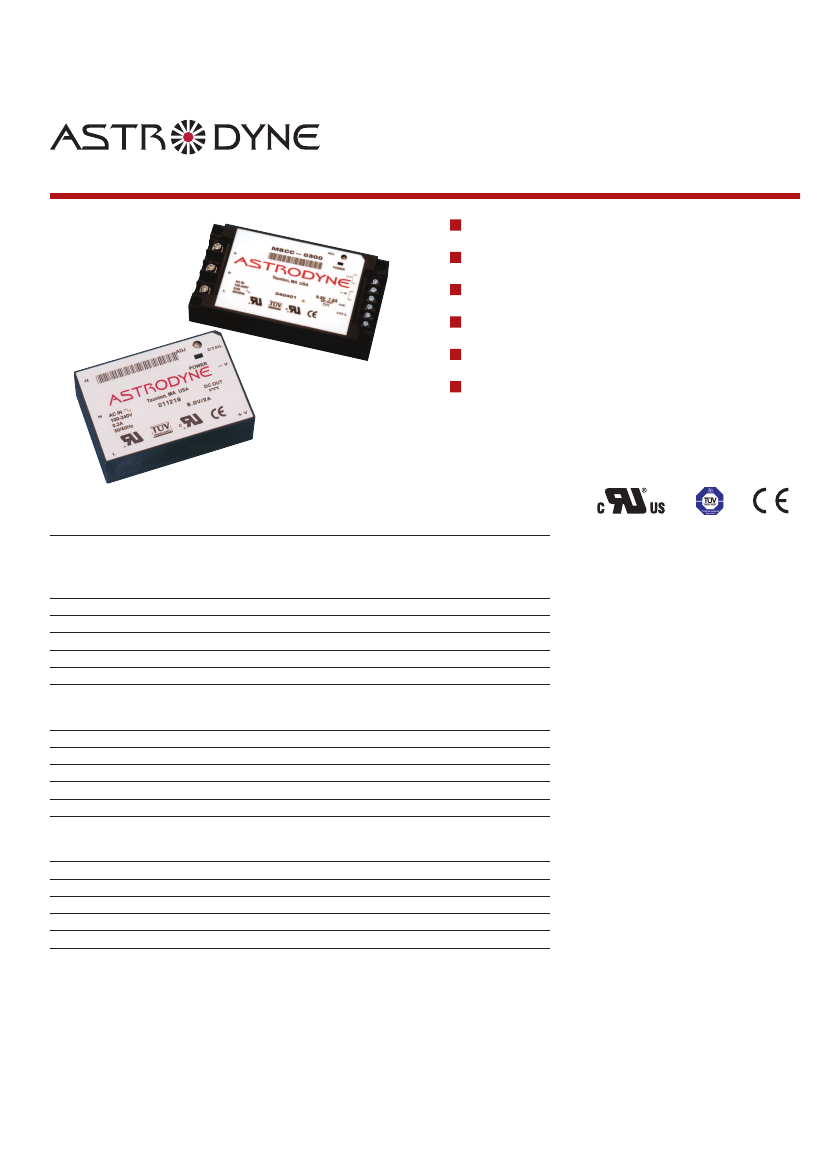

1 0 W M e di c al G rad e Ultraminiatur e Switchi ng P ower S uppl ies
MMA-10
series
Single / Dual / Triple Outputs
Universal 85VAC to 265VAC Input
3.3VDC to 24VDC Outputs
4,000VAC Input to Output Isolation
PCB and Chassis Mount Packages
Full Safety Approvals
PCB 2.56”L x 1.77”W x 0.83”H
Chassis 3.77”L x 2.16”W x 1.0”H
Model Number
Output Voltage
Output Amps
Output Watts
SINGLE OUTPUT - PCB Mount
MSMA-0100
3.3 VDC
MSMA-0101
5 VDC
MSMA-0104
9 VDC
MSMA-0102
12 VDC
MSMA-0103
15 VDC
MSMA-0105
24 VDC
SINGLE OUTPUT - Chassis Mount
MSMC-0100
3.3 VDC
MSMC-0101
5 VDC
MSMC-0104
9 VDC
MSMC-0102
12 VDC
MSMC-0103
15 VDC
MSMC-0105
24 VDC
SINGLE OUTPUT - DIN Rail Mount
MSMC-0100/DRL
3.3 VDC
MSMC-0101/DRL
5 VDC
MSMC-0104/DRL
9 VDC
MSMC-0102/DRL
12 VDC
MSMC-0103/DRL
15 VDC
MSMC-0105/DRL
24 VDC
Fully Approved
UL/CSA22.2 2601 File# E167432
EN60601-1 File# B021022749033
2.5
2
1.1
0.85
0.67
0.42
2.5
2
1.1
0.85
0.67
0.42
2.5
2
1.1
0.85
0.67
0.42
8W
10W
10W
10W
10W
10W
8W
10W
10W
10W
10W
10W
8W
10W
10W
10W
10W
10W
WWW.ASTRODYNE.COM
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W M e di c al G rad e Ultraminiatur e Switchi ng P ower S uppl ies
MMA-10
series
Single / Dual / Triple Outputs
Universal 85VAC to 265VAC Input
3.3VDC to 24VDC Outputs
4,000VAC Input to Output Isolation
PCB and Chassis Mount Packages
Full Safety Approvals
PCB 2.56”L x 1.77”W x 0.83”H
Chassis 3.77”L x 2.16”W x 1.0”H
Model Number
Output Voltage
Output Amps
Output Watts
DUAL OUTPUT - PCB Mount
MDMA-0106
+/-12 VDC
MDMA-0107
+/-15 VDC
MDMA-0108
+5/12 VDC
DUAL OUTPUT - Chassis Mount
MDMC-0106
+/-12 VDC
MDMC-0107
+/-15 VDC
MDMC-0108
+5/12 VDC
DUAL OUTPUT - DIN Rail Mount
MDMC-0106/DRL
+/-12 VDC
MDMC-0107/DRL
+/-15 VDC
MDMC-0108/DRL
+5/12 VDC
TRIPLE OUTPUT - PCB Mount
MTMA-0109
+5,+/-12 VDC
MTMA-0111
+5,+/-15 VDC
TRIPLE OUTPUT - Chassis Mount
MTMC-0109
+5,+/-12 VDC
MTMC-0111
+5,+/-15 VDC
TRIPLE OUTPUT - DIN Rail Mount
MTMC-0109/DRL
+5,+/-12 VDC
MTMC-0111/DRL
+5,+/-15 VDC
Fully Approved
UL/CSA22.2 2601 File# E167432
EN60601-1 File# B021022749033
+/-0.42
+/-0.34
1/0.42
+/-0.42
+/-0.34
1/0.42
+/-0.42
+/-0.34
1/0.42
1.5,0.1/0.1
1.4,0.1/0.1
1.5,0.1/0.1
1.4,0.1/0.1
1.5,0.1/0.1
1.4,0.1/0.1
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
WWW.ASTRODYNE.COM
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W M e di c al G rad e Ultraminiatur e Switchi ng P ower S uppl ies
INPUT SPECIFICATIONS
Input Voltage, Nominal
Input Frequency
Inrush Current
85-265VAC
Nominal: 100-240VAC
47-440 Hz, 50-60Hz Nom.
20A @ 100VAC, typ
40A @ 200VAC, typ
MMA-10
Open Collector
Logic “1”/Open=ON
Logic “0”/GND=OFF
4000VAC
1000VAC
2500VAC
140 Khz, fixed
75 - 80%, typ
series
GENERAL SPECIFICATIONS
On/Off Control
OUTPUT SPECIFICATIONS
Output Voltage/Current
Initial Accuracy
Voltage Adjust
Load Regulation
Line Regulation
Temperature Coefficient
Ripple/Noise(20Mhz BW)
Overvoltage Protection
Hold Up Time
Short Circuit Protection
Current Limit
See Specific Model
+/-1%, adjustable
+/-6%, typ
+/-0.3%, typ
+/-0.3%, typ
+/-0.03%/°C
150mV Pk-Pk, typ
Clamp, 130-150%
*
30mS, typ
Continuous, self-recovering
*
130% typ,Self-Reset Foldback
Input-Out Isolation
Output-Ground Isolation
Input-Ground Isolation
Operating Frequency
Efficiency (@ Full Load)
ENVIRONMENTAL SPECIFICATIONS
Oper. Temperature
Relative Humidity
Storage Temperature
MTBF, Single/Multi Output
0 to +50°C FL See Derate
*
(Free-air Convection)
0-95%, Non-Condensing
-25 to +71°C
*
180,000 Hrs/110,000 Hrs
Mil Std 217, 25°C
PHYSICAL SPECIFICATIONS
Case Material
Construction
Weight
Rynite, 94V-0 Rated
Encapsulated, Soft Pot
PCB / CHA
4.6 oz (128g) / 8.5 oz (238g)
All specifications are typical at nominal input, full load, and 25DegC unless
otherwise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.ASTRODYNE.COM
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W M e di c al G rad e Ultraminiatur e Switchi ng P ower S uppl ies

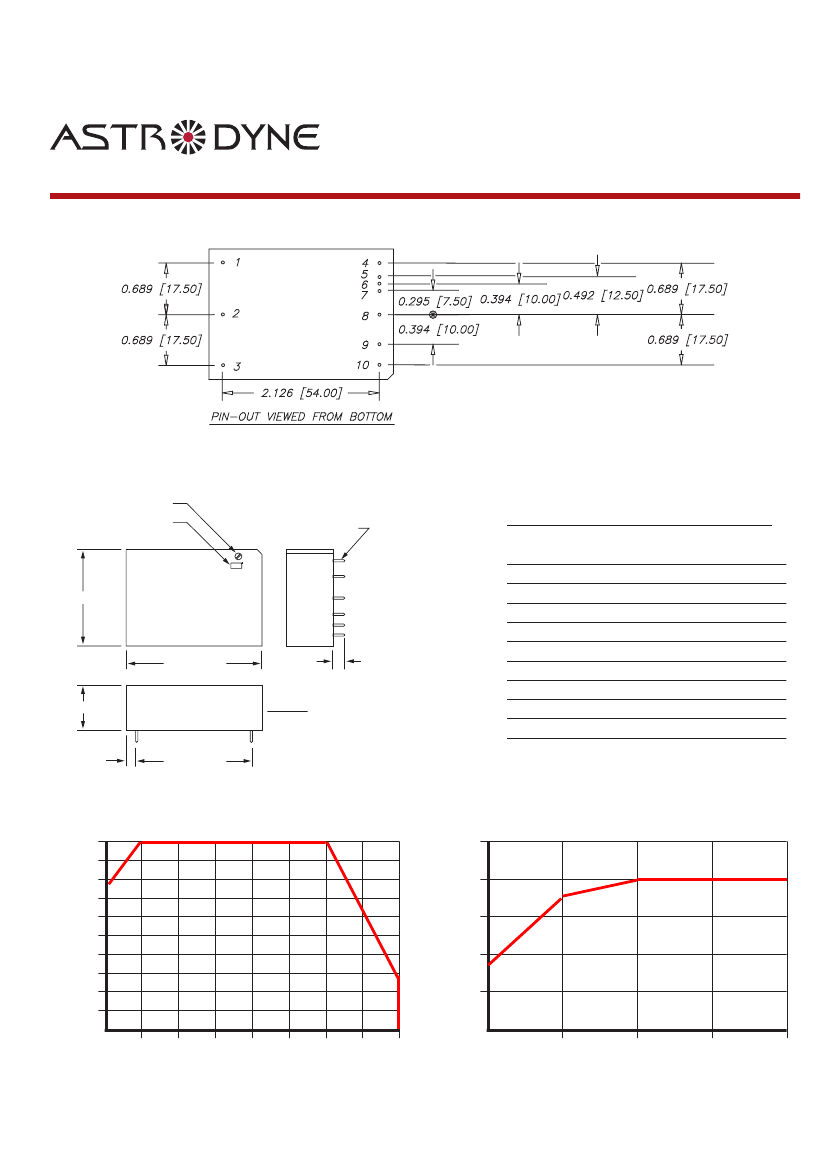

MECHANICAL DIMENSIONS - PCB MOUNT
MMA-10
series
Adjustment Pot
Power “Good” Indicator
0.040 [1.02] DIA. TYP.
Model
Type / Pin#
1
2
3
4
5
2.56 [65.0]
0.20 [5.1]
Dual
Single
AC HI
AC LO
GND
No Pin
No Pin
+Vout
No Pin
No Pin
-Vout
Ctrl
Matched
AC HI
AC LO
GND
No Pin
No Pin
+Vout
No Pin
Out Com
-Vout
Ctrl
Dual
5/12V
AC HI
AC LO
GND
No Pin
No Pin
12Vout
No Pin
+5Vout
Ctrl
Triple
AC HI
AC LO
GND
+Vout
+/-Com
No Pin
-Vout
+5Vout
Ctrl
1.77 [45.0]
6
7
8
.XX ± 0.01 [0.25]
.XXX ± 0.005 [0.13]
0.83 [21.0]
Tolerance:
9
10
Out Com 5V Ret
Dimensions shown in inch [mm]
0.22 [5.5]
2.126 [54.0]
PERFORMANCE CURVES
100
90
80
80
90
Output Current, %
60
50
40
30
20
10
0
-10
0
10
20
30
40
50
60
70
Typical Efficiency, %
70
70
60
50
40
10
25
50
75
100
Ambient Temp., DegC
% of Full Load
WWW.ASTRODYNE.COM
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W M e di c al G rad e Ultraminiatur e Switchi ng P ower S uppl ies
MECHANICAL DIMENSIONS - CHASSIS MOUNT
ADJUSTMENT POT
POWER “GOOD” INDICATOR
MMA-10
#3-48 SCREW
(6 PLACES)
series
#3-48 SCREW
(3 PLACES)
2.16 [54.9]
1.780 [45.21]
0.50 [12.7] TYP.
(2 PLACES)
4
1
2
3
5
6
7
8
9
0.25 [6.4] TYP. (5 PLACES)
0.19 [4.8]
0.17 [4.3]
TOLERANCE: .XX
.XXX
±0.01 [0.25]
±0.005 [0.13]
3.430 [87.12]
3.77 [95.8]
0.130 [3.30] DIA. TYP.
(2 PLACES)
ACCEPTS #4 SCREW & NUT
DIMENSIONS SHOWN IN INCH [MM]
1.00 [25.4]
MECHANICAL DIMENSIONS - DIN RAIL
0.350 [8.89]
Model
Type / Pin#
1
2
3
4
5
6
7
8
9
Single
AC LO
GND
AC HI
Ctrl
-Vout
-Vout
+Vout
+Vout
N/C
Match
Dual
AC LO
GND
AC HI
Ctrl
-Vout
Com
Com
+Vout
N/C
Unmatch
Dual
AC LO
GND
AC HI
Ctrl
Com
Com
+5Vout
+12Vout
N/C
Triple
AC LO
GND
AC HI
Ctrl
+5 Ret
+5Vout
-Vout
+/- Com
+Vout
DIN Rail mounting kit available for Chassis-mount modules, specify part #
M-DRL-01. Kit includes mounting plate, DIN Rail cliip and assembly hardware.
0.100 [2.54]
WWW.ASTRODYNE.COM
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
