AS2937U-5.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AS2937U-5.0

AS2937U-5.0: DescriptionFixed Positive LDO Regulator, 5V, 1V Dropout, PSFM3, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size92KB，3 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

AS2937U-5.0 Overview

Fixed Positive LDO Regulator, 5V, 1V Dropout, PSFM3, TO-220, 3 PIN

AS2937U-5.0 Parametric

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum drop-back voltage 1	1 V
Maximum input voltage	26 V
Minimum input voltage	6.25 V
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Maximum output current 1	0.5 A
Maximum output voltage 1	5.25 V
Minimum output voltage 1	4.75 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

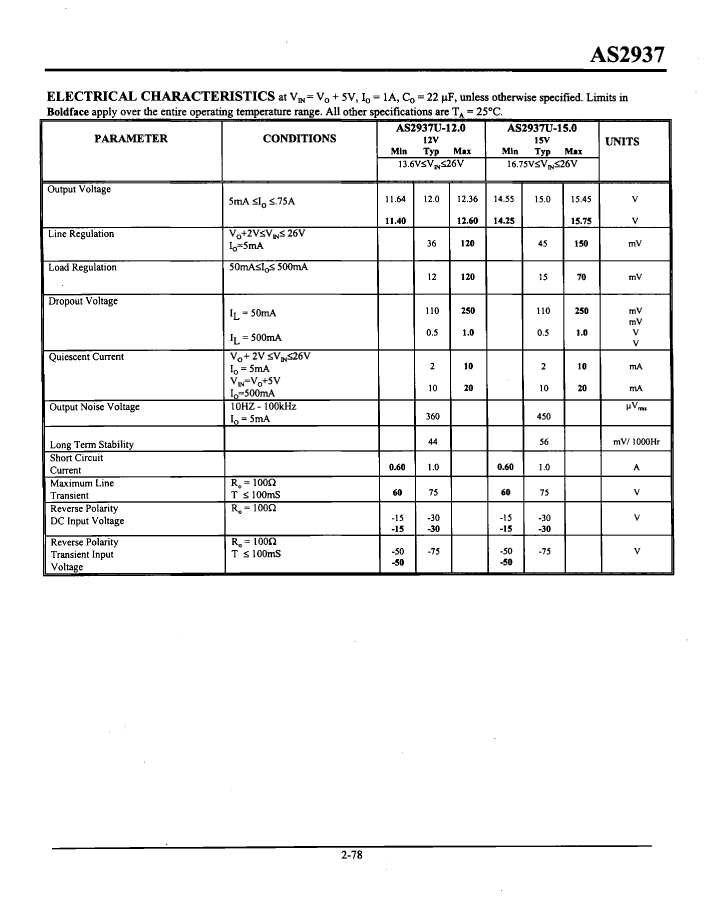

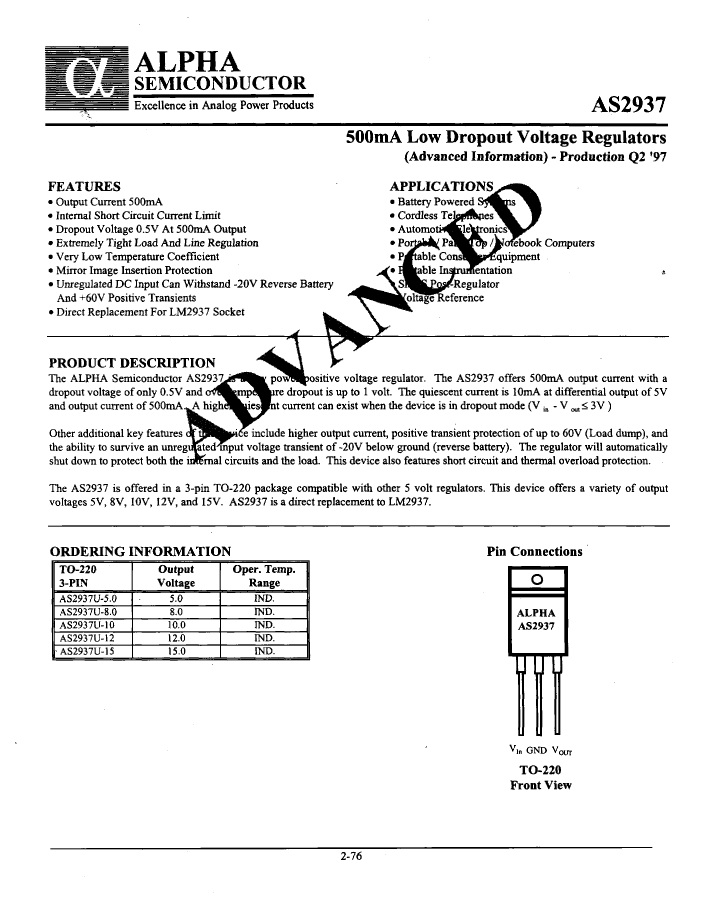

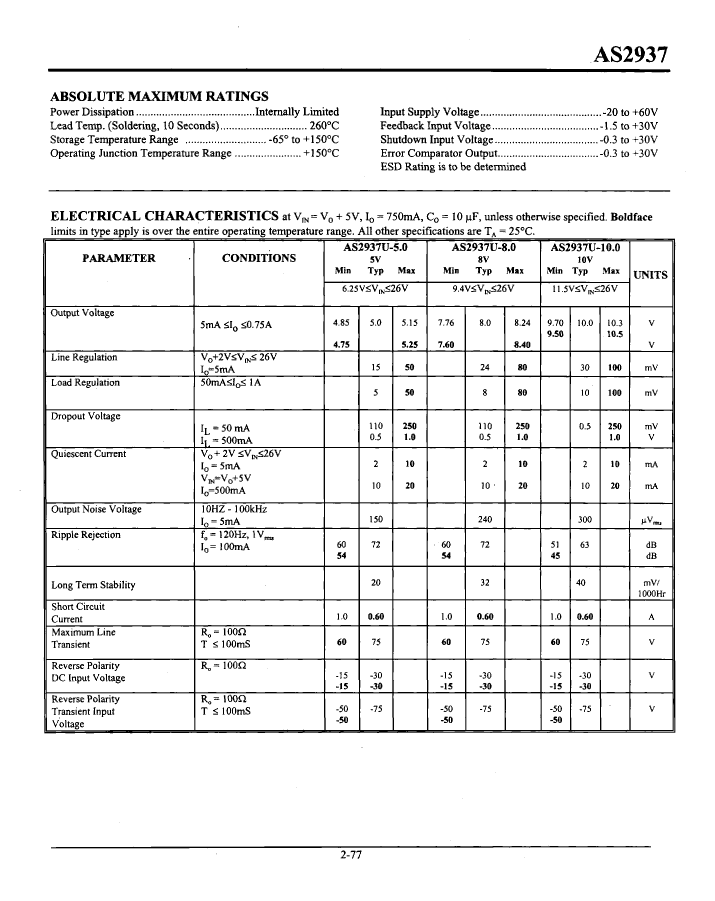

Preview

Download Datasheet

View All

AS2937U-5.0 Related Products

	AS2937U-5.0	AS2937U-10	AS2937U-12	AS2937U-15	AS2937U-8.0
Description	Fixed Positive LDO Regulator, 5V, 1V Dropout, PSFM3, TO-220, 3 PIN	Fixed Positive LDO Regulator, 10V, 1V Dropout, PSFM3, TO-220, 3 PIN	Fixed Positive LDO Regulator, 12V, 1V Dropout, PSFM3, TO-220, 3 PIN	Fixed Positive LDO Regulator, 15V, 1V Dropout, PSFM3, TO-220, 3 PIN	Fixed Positive LDO Regulator, 8V, 1V Dropout, PSFM3, TO-220, 3 PIN
Parts packaging code	SFM	SFM	SFM	SFM	SFM
package instruction	,	,	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN
Contacts	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N
Maximum drop-back voltage 1	1 V	1 V	1 V	1 V	1 V
Maximum input voltage	26 V	26 V	26 V	26 V	26 V
Minimum input voltage	6.25 V	11.5 V	13.6 V	16.75 V	9.4 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of functions	1	1	1	1	1
Number of terminals	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Maximum output voltage 1	5.25 V	10.5 V	12.6 V	15.75 V	8.4 V
Minimum output voltage 1	4.75 V	9.5 V	11.4 V	14.25 V	7.6 V
Nominal output voltage 1	5 V	10 V	12 V	15 V	8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1
