IMST801-G20M datasheet, PDF - EEWORLD Datasheet

IMST801-G20M: DescriptionRISC Microprocessor, 32-Bit, 20MHz, CMOS, CPGA100,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，62 Pages; ManufacturerInmos Corporation

Download Datasheet Parametric Compare View All

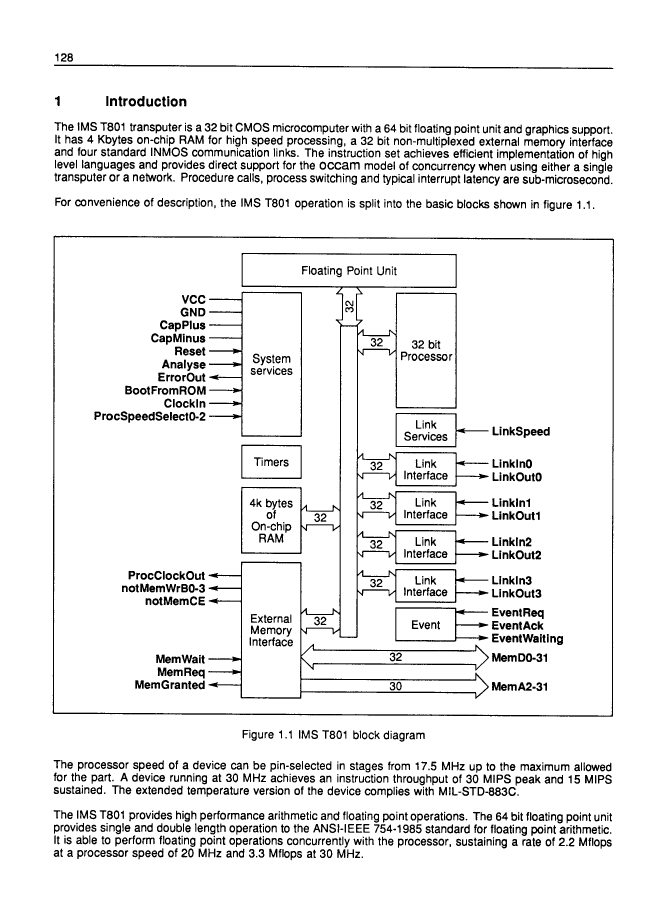

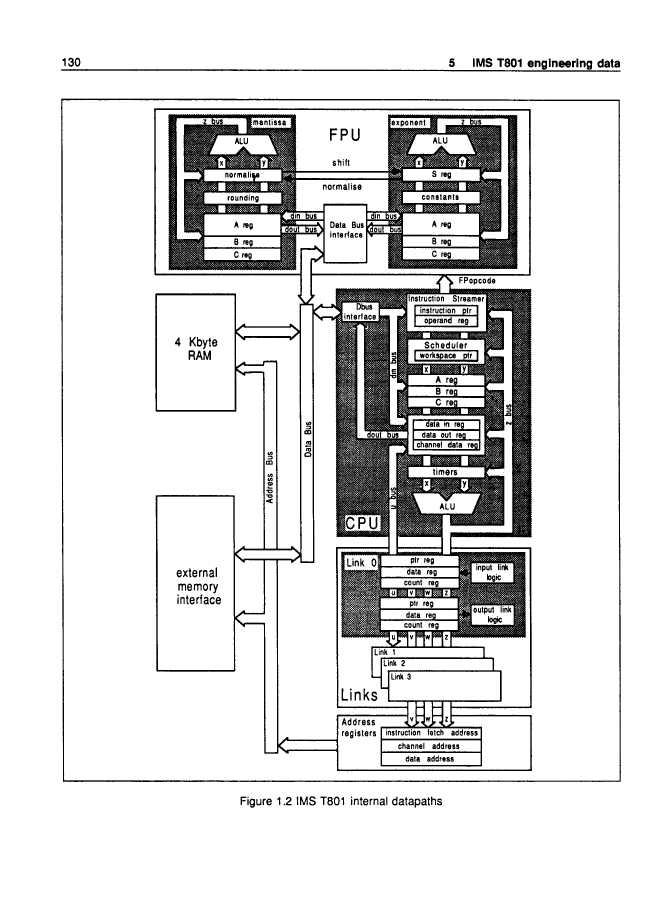

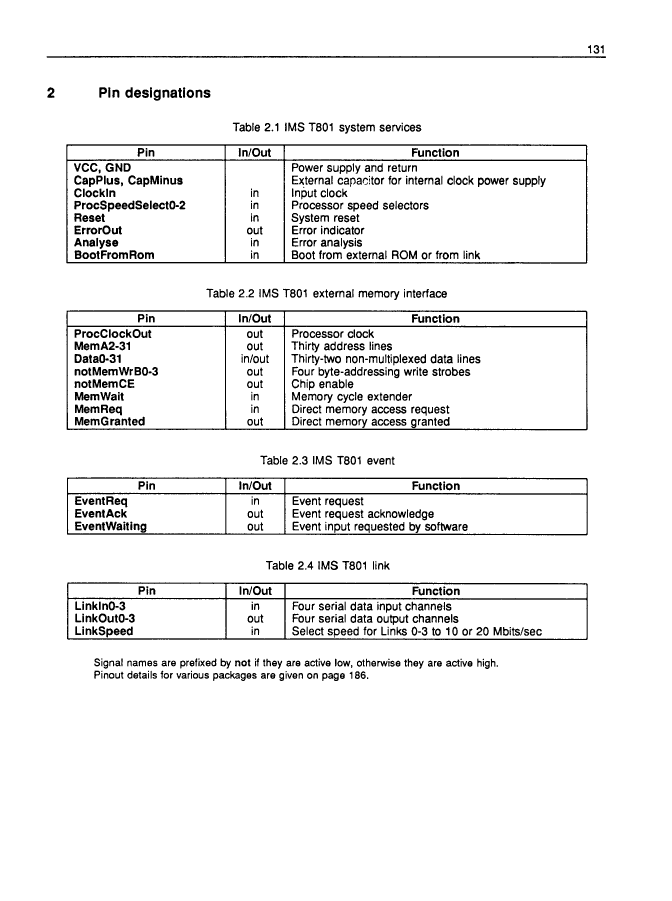

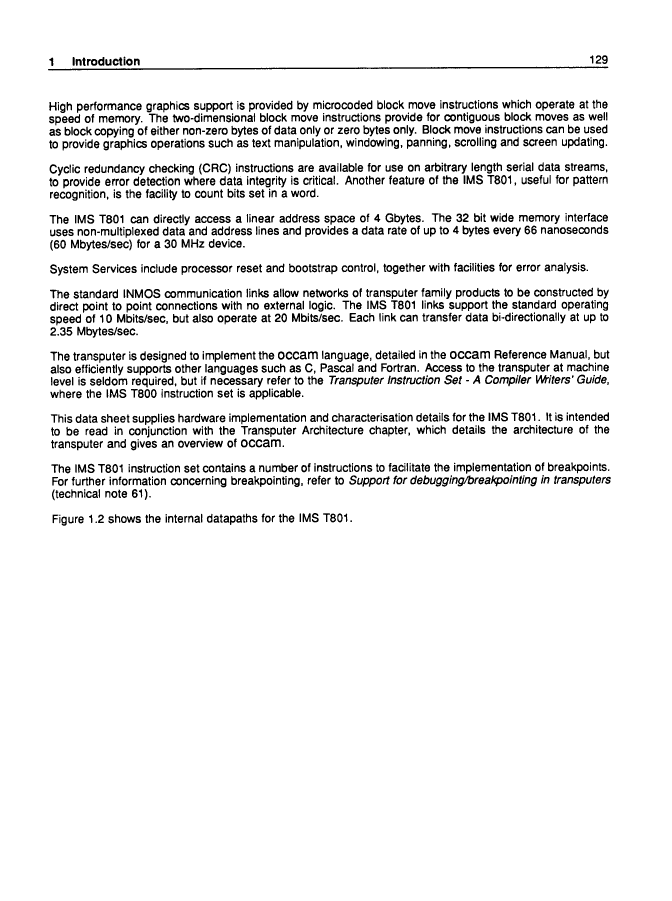

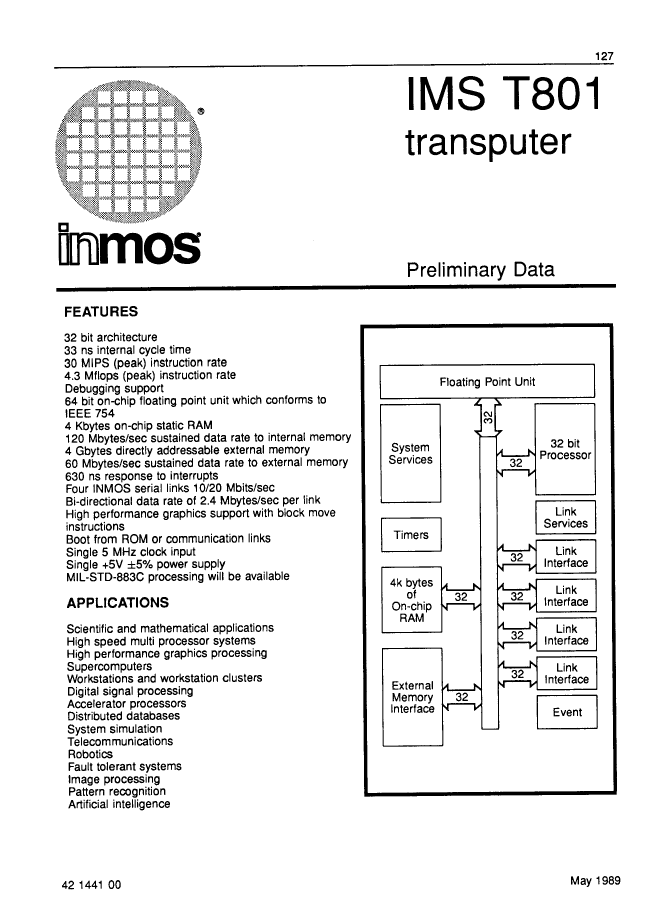

IMST801-G20M Overview

RISC Microprocessor, 32-Bit, 20MHz, CMOS, CPGA100,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Is Samacsys	N
bit size	32
JESD-30 code	S-XPGA-P100
JESD-609 code	e0
Number of terminals	100
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA100,10X10
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
speed	20 MHz
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

	IMST801-G20M	IMST801-G20S	IMST801-G25S	IMST801-G30S
Description	RISC Microprocessor, 32-Bit, 20MHz, CMOS, CPGA100,	RISC Microprocessor, 32-Bit, 20MHz, CMOS, CPGA100,	RISC Microprocessor, 32-Bit, 25MHz, CMOS, CPGA100,	RISC Microprocessor, 32-Bit, 30MHz, CMOS, CPGA100,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknow	unknow	unknow
bit size	32	32	32	32
JESD-30 code	S-XPGA-P100	S-XPGA-P100	S-XPGA-P100	S-XPGA-P100
JESD-609 code	e0	e0	e0	e0
Number of terminals	100	100	100	100
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA100,10X10	PGA100,10X10	PGA100,10X10	PGA100,10X10
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	20 MHz	20 MHz	25 MHz	30 MHz
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Maker	-	Inmos Corporation	Inmos Corporation	Inmos Corporation
