554-5221-411: DescriptionPushbutton Switch, DPDT, Momentary, 7A, 30VDC, Solder Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size50KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

554-5221-411 Overview

Pushbutton Switch, DPDT, Momentary, 7A, 30VDC, Solder Terminal, Panel Mount

554-5221-411 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	24.61 mm
body height	52.83 mm
Body length or diameter	24.61 mm
Contact (AC) maximum rated R load	7A@125VAC
Maximum contact current (AC)	7 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated R load	7A@30VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Manufacturer's serial number	554
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

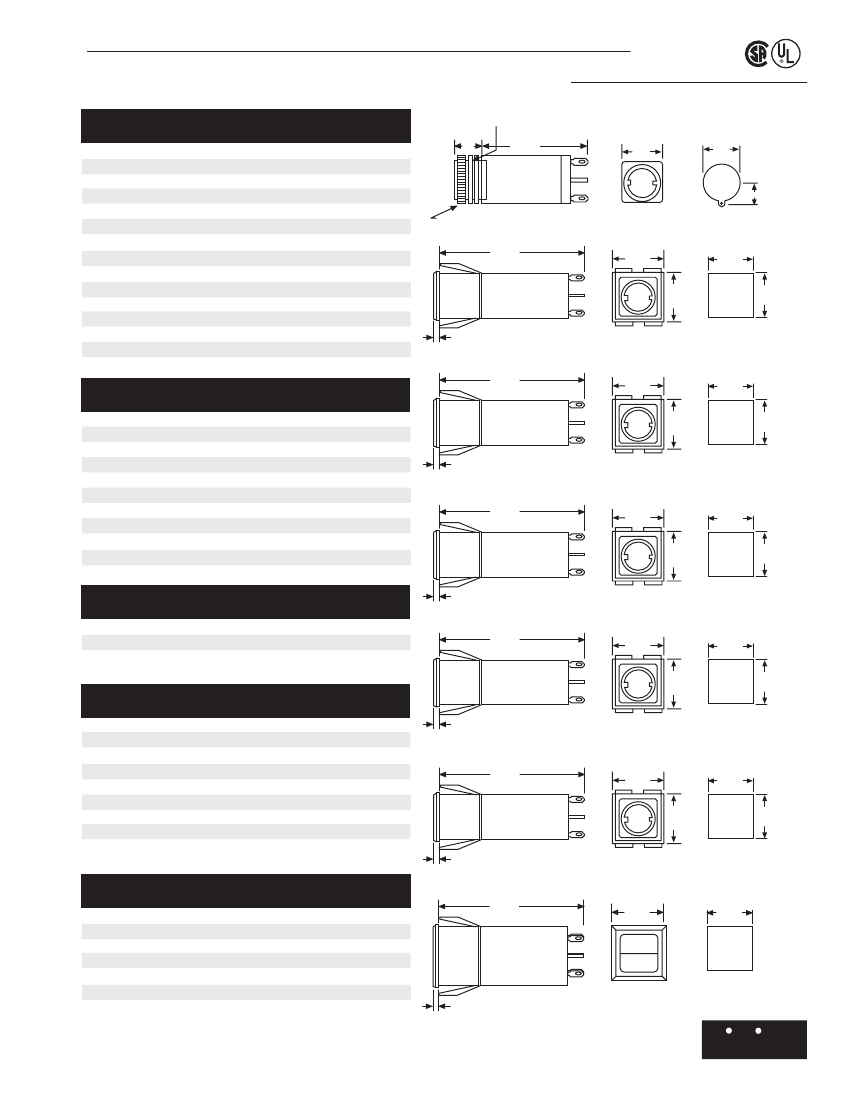

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

554 SERIES SINGLE AND DUAL LAMP SWITCHES

MOMENTARY ACTION 0.5 TO 7 AMP , 30VDC OR 125VAC (MAX)

Caps Ordered Separately

See Page 27.

FRONT

VIEW

15.88

[.625]

SQ.

SIDE VIEW

6.78

[.267]

12.70 [.500] 32 UNS - 2A THD.

37.85

[1.490]

MAX

PART NO.

554-1121

554-1121-111

554-1121-211

554-1121-311

554-1121-411

554-1121-511

554-1221

554-1221-111

554-1221-211

554-1221-311

554-1221-411

554-1221-511

554-5121-411

554-5221-411

ACCEPTS

CAP SIZE

ALL

1/2" SQ.

5/8" SQ.

5/8" X 3/4"

3/4" SQ.

3/4" X 1"

ALL

1/2" SQ.

5/8" SQ.

5/8" X 3/4"

3/4" SQ.

3/4" X 1"

DUAL LAMP

CONTACT

CIRCUIT

SPDT

DPDT

SPDT

DPDT

MOUNTING

HOLE

12.70

±.005

[.500±..13

FIG

1

2

3

4

5

6

1

2

3

4

5

6

7

REAR PANEL MOUNT

KNURLED FLANGE NUT 2.39 [.094]

X 12.93 [.509] MAX O.D.

52.83

[2.080]

MAX

FIG 1

18.52

[.729]

Uses:

T-1 3/4

6.73±.05

MIDGET

.265±.002

FLANGE

BASE

INCANDESCENT

LAMP

16.26

[.640]

18.52

[.729]

16.26

[.640]]

1.78

[.070]

52.83

[2.080]

MAX

FIG 2

21.44

[.844]

19.18

[.755]

MOMENTARY ACTION .015 TO 1 AMP , 30 VDC OR 125VAC (MAX)

PART NO.

554-2121

554-2121-211

554-2121-411

554-2221

554-2221-111

554-2221-211

554-2221-311

554-2221-411

554-2221-511

554-6221-411

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" SQ.

ALL

1/2" SQ.

5/8" SQ.

5/8" X 3/4"

3/4" SQ.

3/4" X 1"

DUAL LAMP

CONTACT

CIRCUIT

SPDT

DPDT

FIG

1

3

5

1

2

3

4

5

6

7

21.44

[.844]

19.18

[.755]

1.78

[.070]

52.83

[2.080]

MAX

FIG 3

24.61

[.969]

22.35

[.880]

21.44

[.844]

19.18

[.755]

MOMENTARY ACTION, 1 TO 50 mA, 30VDC (MAX)

PART NO.

554-3121

554-3221

554-3221-211

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

CONTACT

CIRCUIT

SPDT

DPDT

FIG

1

2

1.78

[.070]

52.83

[2.080]

MAX

FIG 4

24.61

[.969]

22.35

[.880]

ALTERNATE ACTION 0.5 TO 7 AMP, 30VDC OR 125 VAC (MAX)

PART NO.

554-1131-211

554-1131-411

554-1131-511

554-1231

554-1231-111

554-1231-211

554-1231-311

554-1231-411

554-1231-511

ACCEPTS

CAP SIZE

5/8" SQ.

3/4" SQ.

3/4" X 1"

ALL

1/2" SQ.

5/8" SQ.

5/8" X 3/4"

3/4" SQ.

3/4" X 1"

CONTACT

CIRCUIT

SPDT

DPDT

24.61

[.969]

22.35

[.880]

FIG

3

5

6

1

2

3

4

5

6

1.78

[.070]

52.83

[2.080]

MAX

FIG 5

30.45

[1.199]

28.19

[1.110]

24.36

[.959]

22.10

[.870]

ALTERNATE ACTION, .015 TO 1 AMP, 30VDC OR 125VAC (MAX)

PART NO.

554-2231-111

554-2231-211

554-2231-311

554-2231-411

554-2231-511

554-6231-411

ACCEPTS

CAP SIZE

1/2" SQ.

5/8" SQ.

5/8" X 3/4"

3/4" SQ.

3/4" X 1"

DUAL LAMP

CONTACT

CIRCUIT

DPDT

1.78

[.070]

FIG 6

52.83

[2.080]

MAX

24.61

[.969]

SQ.

22.35±.13

[.880±.005]

SQ.

FIG

2

3

4

5

6

7

1.78

[.070]

Material & Finish: All plastic switch components made from 94V-0 Material

Neon and incandescent lamp information on Pages 35 and 36.

Dimensions in mm [inches]

FIG 7

25

23

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com

554-5221-411 Related Products

	554-5221-411	554-5121-411	P-0502K1290DGWI	554-6231-411
Description	Pushbutton Switch, DPDT, Momentary, 7A, 30VDC, Solder Terminal, Panel Mount	Pushbutton Switch, SPDT, Momentary, 7A, 30VDC, Solder Terminal, Panel Mount	Fixed Resistor, Thin Film, 0.1W, 129ohm, 75V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0502, CHIP	Pushbutton Switch, DPDT, Alternate, 1A, 30VDC, Solder Terminal, Panel Mount
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Installation features	PANEL MOUNT	PANEL MOUNT	SURFACE MOUNT	PANEL MOUNT
surface mount	NO	NO	YES	NO
body width	24.61 mm	24.61 mm	-	24.61 mm
body height	52.83 mm	52.83 mm	-	52.83 mm
Body length or diameter	24.61 mm	24.61 mm	-	24.61 mm
Contact (AC) maximum rated R load	7A@125VAC	7A@125VAC	-	1A@125VAC
Maximum contact current (AC)	7 A	7 A	-	1 A
Maximum contact current (DC)	7 A	7 A	-	1 A
Contact (DC) maximum rated R load	7A@30VDC	7A@30VDC	-	1A@30VDC
Maximum contact voltage (AC)	125 V	125 V	-	125 V
Maximum contact voltage (DC)	30 V	30 V	-	30 V
Manufacturer's serial number	554	554	-	554
Switch action	MOMENTARY	MOMENTARY	-	ALTERNATE
switch function	DPDT	SPDT	-	DPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	-	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	-	SOLDER
