DWA 045120, DWA 045150
www.vishay.com
Vishay Draloric

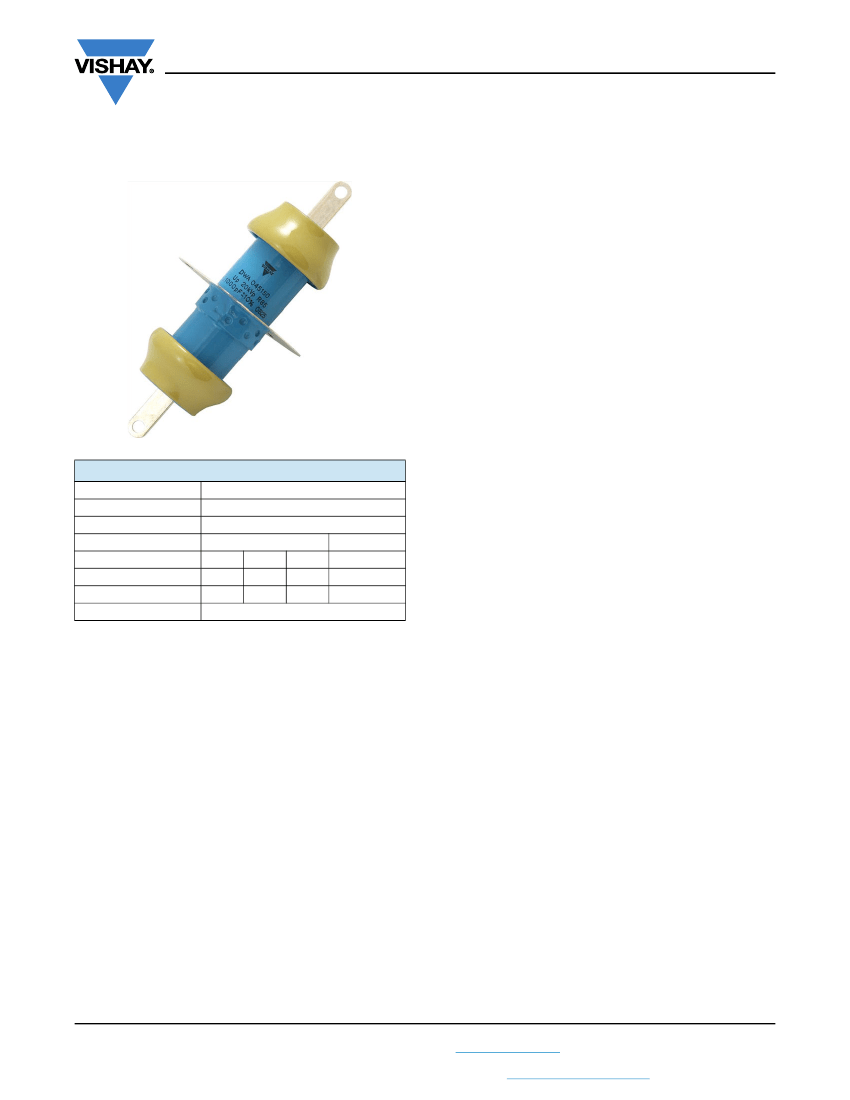

RF Power Feed-Through Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• Geometry minimizes inductance
• Wide range of capacitance values
• High feed-through currents
APPLICATIONS
Filtering purposes in industrial and medical RF power
equipment, where high voltages and high feed-through
currents are required.
CAPACITANCE RANGE
400 pF to 2.5 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
CERAMIC DIELECTRICS
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
800
2500
8000
DWA 045120
10 000 13 000
600
1500
400
1200
VALUE
1
R42, R85
DWA 045150
16 000
500
1200
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
RATED VOLTAGE
• 8 kV
p
• 10 kV
p
• 13 kV
p
• 16 kV
p
Screw terminal
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
made from copper / brass, silver plated.
For higher feed-through current, an additional feed-through
conductor must be provided.
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
DISSIPATION FACTOR
Max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
FINISH
Capacitor body completely protective lacquered.
The contoured insulating rims are additionally glazed.
INSULATION RESISTANCE
Min. 10 000 M (at 25 °C)
OPERATING TEMPERATURE RANGE
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo
-55 °C to +100 °C
Revision: 04-Sep-15
Document Number: 22151
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DWA 045120, DWA 045150
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
FEED-THROUGH
CURRENT
(2)
(A)

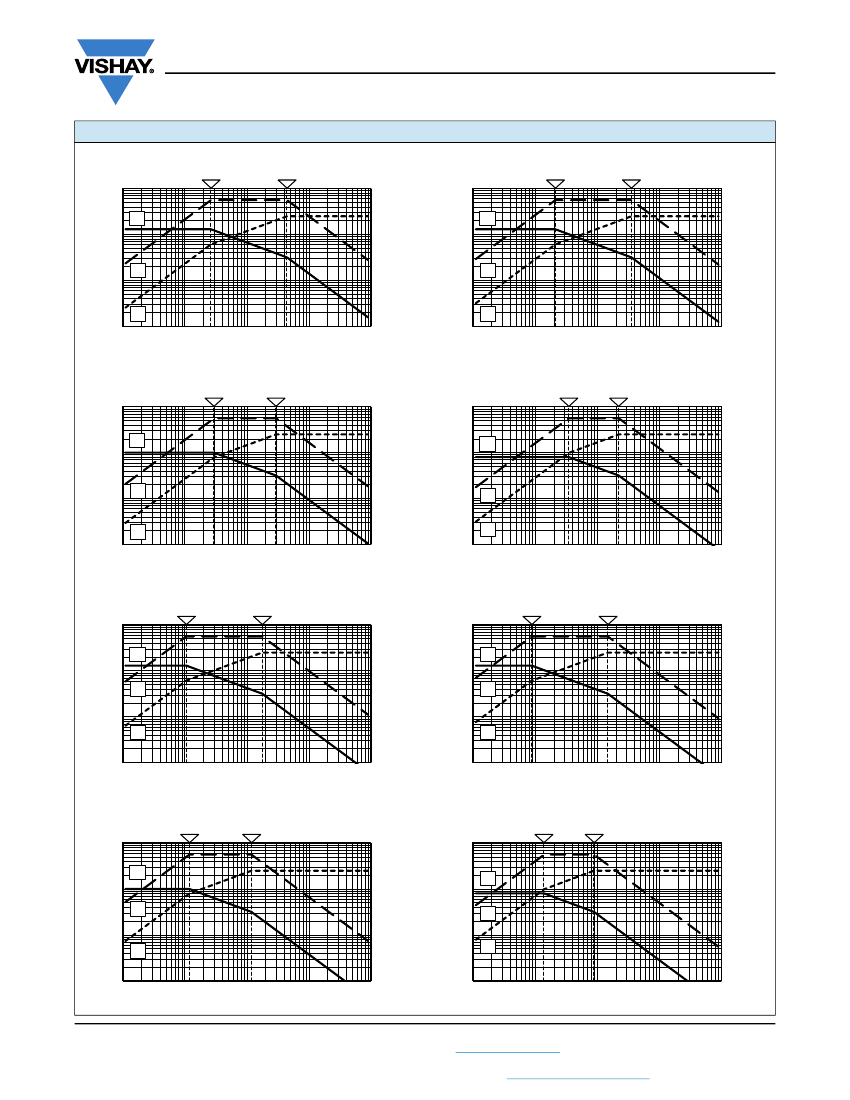

SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE DWA 045120
DWA45120WH401##BH1
DWA45120WH501##BH1
DWA45120BH601##BH1
DWA45120BP801##BH1
DWA45120WH102##BJ1
DWA45120WH122##BJ1
DWA45120BH152##BJ1
DWA45120BP202##BJ1
DWA45120BP252##BJ1
TYPE DWA 045150
DWA45150WL501##BH1
DWA45150WL122##BJ1
R42
R85
500
1200
16.0
30.0
10.0
10.0
R85
R42
400
500
600
800
1000
1200
1500
2000
2500
13.0
10.0
8.0
13.0
10.0
8.0
56.0
25.0
10.0
CERAMIC
Notes
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C
(2)
DC or low frequency RMS current (< 20 kHz)
DIMENSIONS
in millimeters (inches)
Ø 5.2 ± 0.2
(0.205 ± 0.008 Dia.)
Ø 120.0 ± 0.5
(4.724 ± 0.020 Dia.)
0.8
(0.031)
Ø 110.0 ± 0.5
(4.331 ± 0.020 Dia.)
Ø 65 (2.65 Dia.)
=
Ø 45
(1.77 Dia.)
=
12.0 x 0.7
(0.472 x 0.028)
20 - 1
(0.79 - 0.04)
Ø 6.0 + 0.3
(0.236 + 0.012 Dia.)
60°
DWA 045120: 120 (4.72)
DWA 045150: 150 (5.91)
MOUNTING GUIDELINES
• The connection to one electrode must be flexible in order to prevent the generation of physical force which could damage the
capacitor elements. Such forces are often generated by the dimensional differences resulting from the normal physical
tolerances of these components.
• The capacitor elements must not be used as a mechanical support for other devices or components.
Revision: 04-Sep-15
Document Number: 22151
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
