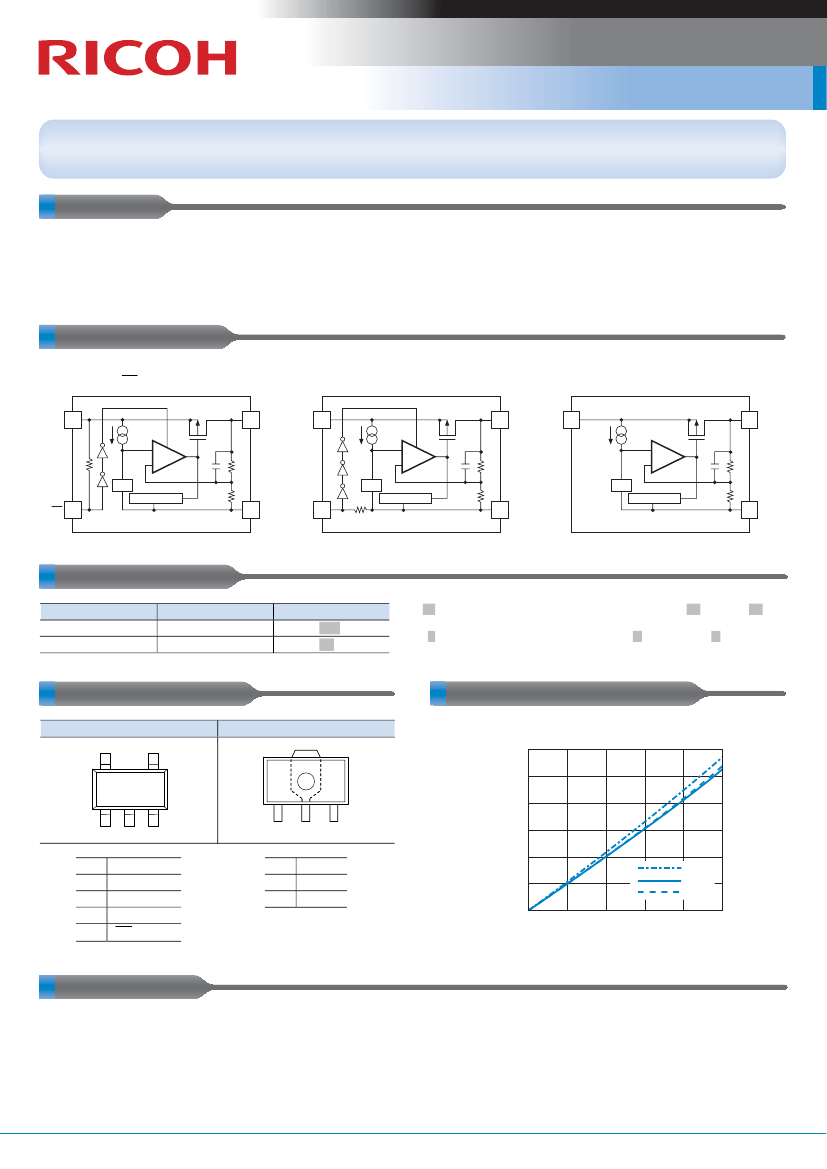

Rx5RZ Series
100mA LDO
The Rx5RZ Series are CMOS-based LDO regulators featuring 100mA output. The input voltage (V
IN
) can be set up to Max. 8V (absolute
maximum rating at 9V) and output voltage (V
OUT
) up to 6V. The SOT-23-5 package allows the user to select the polarity of the CE pin.
The SOT-89 package does not include the CE pin.
FEATURES
•
Supply Current (I
SS
) ························Typ. 20μA (V
IN
=SET V
OUT
+1V)
•
Standby Current (I
standby
) ·················Typ. 0.1μA (Same as above, in standby)
•
Dropout Voltage (V
DIF
) ····················Typ. 0.2V (I
OUT
=60mA)
•
Ripple Rejection (RR)·····················Typ. 55dB (f=1kHz)
•
Input Voltage Range (V
IN
) ···············Max. 8.0V
•
Output Voltage Range (V
OUT
)··········2.0V to 6.0V (internally fixed)
•
Output Voltage Accuracy ················± 2%
•
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
•
Line Regulation·······························Typ. 0.05%/V
•
Fold-back Protection Circuit············Current limit Typ. 50mA
•
Packages ········································SOT-23-5, SOT-89
BLOCK DIAGRAMS
RN5RZxxA
(
CE
pin"L" active)
V
DD
2
–
+
Vref
Current Limit
CE 5
1 GND
CE 5
Vref
Current Limit
1 GND
3 V
OUT
V
DD
2
–
+
Vref
Current Limit
1 GND
RN5RZxxB
(CE pin "H" active)
3 V
OUT
V
DD
2
RH5RZxxC
(Without CE pin, SOT-89)
3 V
OUT
–
+
SELECTION GUIDES
Package
SOT-23-5
SOT-89
Quantity per Reel
Part No.
3,000 pcs
RN5RZ.xx∗ A-TR-F
1,000 pcs
RH5RZ.xx CA-T1-F
.xx.
: Specify the output voltage within the range 2.0V (.20.) to 6.0V (.60.)
in 0.1V steps.
.∗
: Select the polarity of the CE pin from (.A.)"L" active or (.B.)"H" active.
PACKAGES (Top View)
SOT-23-5
5
4
TYPICAL CHARACTERISTIC
SOT-89
Rx5RZ30x
0.30
Dropout Voltage vs. Output Current
Dropout Voltage V
DIF
(V)
0.25
0.20
0.15
0.10
0.05
0
1
2
3
1
2
3
1
2
3
4
5
GND
V
DD
V
OUT
NC
CE
or CE
1
2
3
GND
V
DD
V
OUT
85°C
25°C
-40°C
0
20
40
60
80
100
Output Current I
OUT
(mA)
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
No.EK-039-091101
CMOS LDO Regulator
