Data Sheet
40 Channel Mux/Demux with 100GHz Channels
Bookham offers a high performance 40 channel multiplexer or
demultiplexer solution for 100 GHz channels. This product
uses Bookham proprietary Advanced Energetic Deposition
(AED) thin film technology for superior performance.
The Bookham 40 channel solutions offer an ideal combination
of fully passive operation, low loss, compact size, and wide
channel pass bands. The Bookham thin film technology
provides a completely passive, flat-topped pass band design
that allows for less stringent control of the laser wavelength
over the system lifetime as well as a wider pass band than
AWG technology for better filter shape through cascading
architectures. Typical loss of 4dB is achieved in the uniform
loss version of the product. Matched mux-demux pairs are
offered with typical back-to-back insertion loss of 5dB. The
135x81x22mm size allows this part to be used in compact
assemblies. Ribbon connector options are available for easy
interconnection to the rest of the system.
Features:
• Passive operation
• Flat pass band design
• 27.5 GHz clear pass band
• Low loss (<4.8dB)
• High adjacent channel isolation
• -5 to 70°C operating temperature
• Compact Size (135x81x22mm)
• Telcordia GR-1221 qualified
• RoHS compliant
Options:
• Ribbon connectors
• Uniform loss or matched mux/demux loss
• Optical monitor ports
• 192.0 or 192.1THz start frequency
• Rack mount or LGX enclosure
Applications:
• Metro and long-haul mux/demux
• OADM nodes
• Subsystem building block

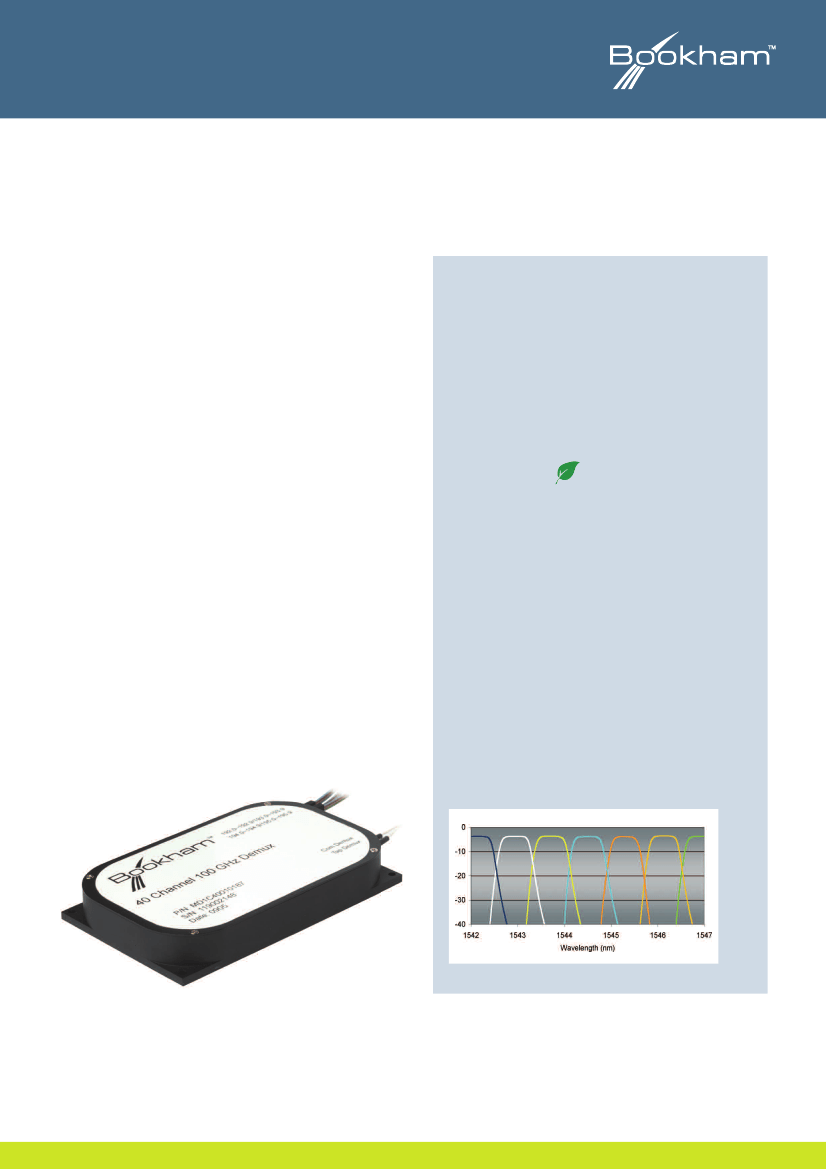

Example Performance:
1
Data Sheet
40 Channel Mux/Demux; 100GHz Channels
Specifications (valid over operating temperature)
Parameter
Channel Number
Channel Spacing
Channel Frequencies
Passband Region
Insertion Loss
a
IL Variation
Channel to Channel Variation
b
Isolation
Passband
Passbands
Passband
Adj Ch
Non-Adj Ch
5% Tap Insertion Loss
Return Loss
Polarization Dependant Loss
Polarization Mode Dispersion
Power Handling
Operating Temperature
Storage Temperature
Fiber Length
Dimensions
Fiber Type
Connector Type
a
Losses include connectors.
b
Uniform loss version.
Region
Measure from => to
Specification
40
100
Unit
GHz
THz
GHz
Max
Max
Max
Min
Min
Max
Min
Max
Max
Min
°C
°C
m
mm
dB
dB
dB
dB
dB
dB
dB
dB
dB
mW
option 20
option 21
192.0 to 195.9
192.1 to 196.0
ITU ± 13.75
Common => Ports 1-40
Common => Ports 1-40
Common => Ports 1-40
Common => Ports 1-40
Common => Ports 1-40
Common => Tap
Common => Ports 1-40
Common => Ports 1-40
Common => Ports 1-40
All Ports
4.8
0.5
1.5
25
40
13
45
0.25
0.15
300
-5 to 70
-40 to 85
1.0 + 0.1
135x81x22
900µm TB/ribbon
options available

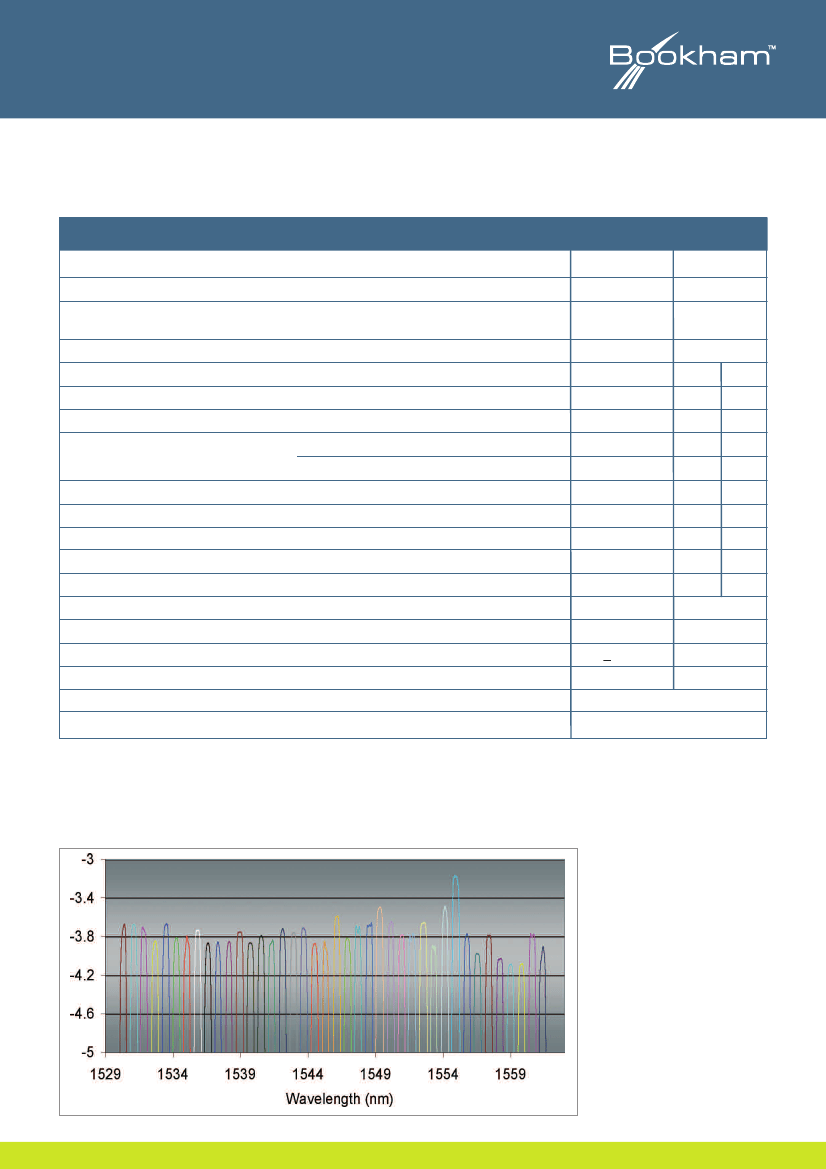

Example Performance
Typical channel-to-channel loss uniformity
2
Data Sheet
RoHS Compliance
Bookham is fully committed to environment
protection and sustainable development and
has set in place a comprehensive program
for removing polluting and hazardous
substances from all of its products.
The relevant evidence of RoHS compliance
is held as part of our controlled
documentation for each of our compliant
products. RoHS compliance parts are
available to order, please refer to the ordering
information section for further details.
Ordering Information:
40ch Multiplexer part numbers:
MM1C40200291 (192.0 TO 195.9THz)
MM1C40210291 (192.1 TO 196.0THz)
40ch Demultiplexer part numbers:
MD1C40200291 (192.0 TO 195.9THz)
MD1C40210291 (192.1 TO 196.0THz)
