BFY450
HiRel
NPN Silicon RF Transistor
4
HiRel
Discrete and Microwave Semiconductor
For Medium Power Amplifiers
Compression Point P
-1dB
=19dBm 1.8 GHz
Max. Available Gain G
ma
= 16dB at 1.8 GHz
Hermetically sealed microwave package
Transition Frequency
f
T = 20 GHz
SIEGET 25-Line
Infineon Technologies Grounded Emitter Transistor-
25
GHz fT-Line
Space Qualified
ESA/SCC Detail Spec. No.: 5611/008
Type Variant No. 03
3
1
2
ESD: Electrostatic discharge
sensitive device,
observe handling precautions!
Type
Marking
Ordering Code
Pin Configuration
1
2
E
3
B
4
E
Package
BFY450 (ql)
-
see below
C
Micro-X
(ql) Quality Level:
P: Professional Quality
ES: ESA Space Quality
(see order instructions for ordering example)
IFAG PMM RFS D HIR
1 of 4
V3, June 2016
BFY450
Maximum Ratings
Parameter
Collector-emitter voltage
Collector-base voltage
Emitter-base voltage
Collector current
Base current
Total power dissipation,
1), 2)
T
S
110°C
Junction temperature
Operating temperature range
Storage temperature range
Thermal Resistance
Junction-soldering point
2)
R
th JS
<
145
K/W
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
B
P
tot
T
j
T
op
T
stg
Values
4.5
15
1.5
100
10
450
175
-65...+175
-65...+175
Unit
V
V
V
mA
mA
mW
C
C
C
Notes.:
1) At T
S
= + 110 °C. For T
S
> + 110 °C derating is required.
2) T
S
is measured on the collector lead at the soldering point to the pcb.
Electrical Characteristics
at T
A
=25°C; unless otherwise specified
Parameter
Symbol
min.
DC Characteristics
Collector-base cutoff current
V
CB
= 5 V, I
E
= 0
Collector-emitter cutoff current
1.)
V
CE
= 4.5 V, I
B
= 1.0µA
Emitter-base cuttoff current
V
EB
= 1.5 V, I
C
= 0
DC current gain
I
C
= 20 mA, V
CE
= 1 V
Notes:
1.) This Test assures V(BR)
CE0
> 4.5V
h
FE
50
90
150
-
I
EBO
-
-
I
CEX
-
-
200
(t.b.d.)
50
A
µA
I
CBO
-
-
100
nA
Values
typ.
max.
Unit
IFAG PMM RFS D HIR
2 of 4
V3, June 2016
BFY450

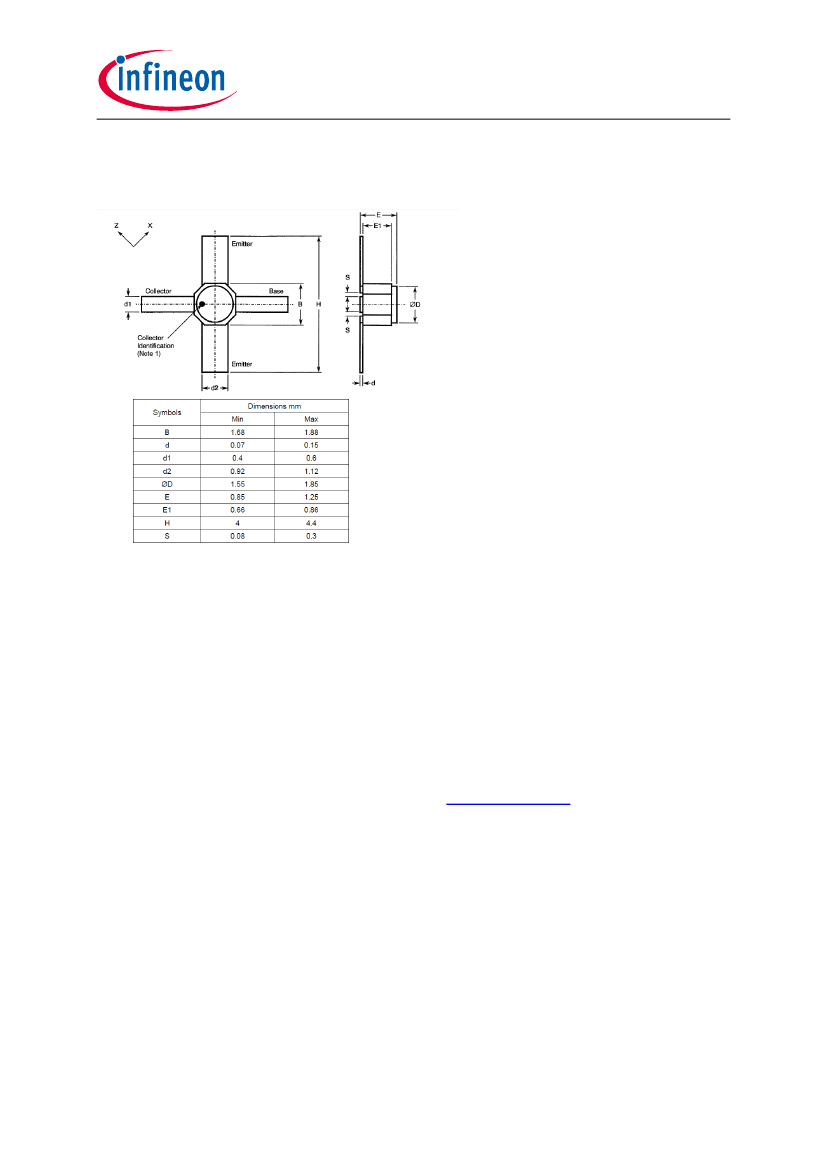

Micro-X Package
Edition 2016-06
Published by
Infineon Technologies AG
85579 Neubiberg, Germany
© Infineon Technologies AG 2016
