MCR310-8G

Description
10 A, 800 V, SCR, TO-220AB
CategoryAnalog mixed-signal IC    Trigger device
File Size47KB,3 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

MCR310-8G Overview

10 A, 800 V, SCR, TO-220AB

MCR310-8G Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Manufacturer packaging codeCASE 221A-07
Reach Compliance Codecompli
Shell connectionANODE
ConfigurationSINGLE
Maximum DC gate trigger current0.2 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current6 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Maximum leakage current0.5 mA
On-state non-repetitive peak current100 A
Number of components1
Number of terminals3
Maximum on-state current10000 A
Maximum operating temperature110 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum rms on-state current10 A
Off-state repetitive peak voltage600 V
Repeated peak reverse voltage600 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature40
Trigger device typeSCR

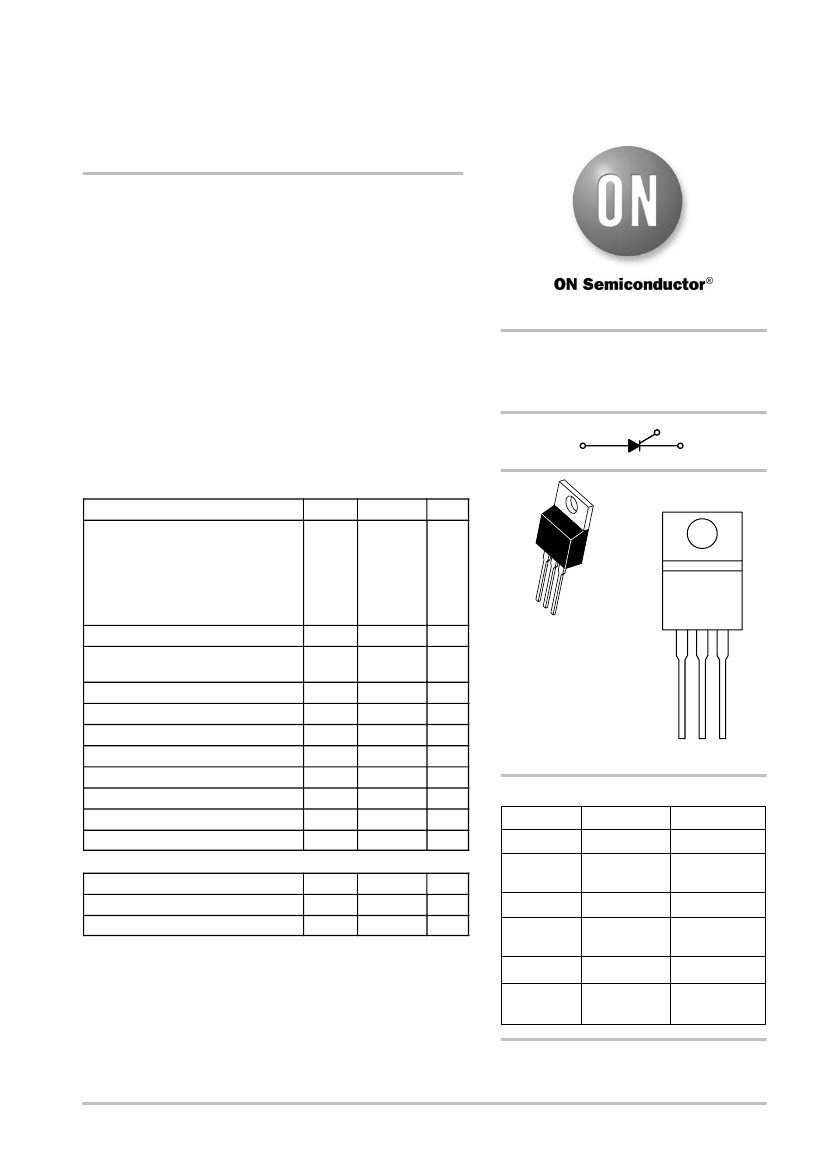

MCR310 Series
Preferred Device
Silicon Controlled Rectifiers
Reverse Blocking Triode Thyristors
Designed for industrial and consumer applications such as
temperature, light and speed control; process and remote controls;
warning systems; capacitive discharge circuits and MPU interface.
Center Gate Geometry for Uniform Current Density
All Diffused and Glass-Passivated Junctions for Parameter Uniformity
and Stability
Small, Rugged, Thermowatt Construction for Low Thermal
Resistance, High Heat Dissipation and Durability
Low Trigger Currents, 200
mA
Maximum for Direct Driving from
Integrated Circuits
Pb−Free Packages are Available
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise noted.)
Rating
Peak Repetitive Forward and Reverse
Blocking Voltage
(1)
(T
J
= −40 to 110°C)
(1/2 Sine Wave, R
GK
= 1 kΩ)
MCR310-6
MCR310-8
MCR310-10
On-State RMS Current (T
C
= 75°C)
Peak Non-repetitive Surge Current
(1/2 Cycle, 60 Hz, T
J
= −40 to 110°C)
Circuit Fusing (t = 8.3 ms)
Peak Gate Voltage (t
p
10
ms)
Peak Gate Current (t
p
10
ms)
Peak Gate Power (t
p
10
ms)
Average Gate Power
Operating Junction Temperature Range
Storage Temperature Range
Mounting Torque
Symbol
V
DRM
or
V
RRM
400
600
800
I
T(RMS)
I
TSM
I
2
t
V
GM
I
GM
P
GM
P
G(AV)
T
J
T
stg
10
100
40
±5
1
5
0.75
−40 to +110
−40 to +150
8
Amps
Amps
A
2
s
Volts
Amp
Watts
Watt
°C
°C
in.-lb.
Value
Unit
Volts
4
http://onsemi.com
SCRs
10 AMPERES RMS
400 thru 800 VOLTS
G
A
C
MARKING
DIAGRAM
1
MCR310−xG
AYWW
2
3
TO−220AB
CASE 221A
STYLE 3
x
A
Y
WW
G
= 6, 8 or 10
= Assembly Location
= Year
= Work Week
= Pb−Free Package
ORDERING INFORMATION
Device
MCR310−6
MCR310−6G
Package
TO220AB
TO220AB
(Pb−Free)
TO220AB
TO220AB
(Pb−Free)
TO220AB
TO220AB
(Pb−Free)
Shipping
500/Box
500/Box
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
Symbol
R
θJC
R
θJA
Max
2.2
60
Unit
°C/W
°C/W
MCR310−8
MCR310−8G
500/Box
500/Box
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
(1) V
DRM
and V
RRM
for all types can be applied on a continuous basis. Ratings
apply for zero or negative gate voltage; however, positive gate voltage shall
not be applied concurrent with negative potential on the anode. Blocking
voltages shall not be tested with a constant current source such that the
voltage ratings of the devices are exceeded.
MCR310−10
MCR310−10G
500/Box
500/Box
Preferred
devices are recommended choices for future use
and best overall value.
©
Semiconductor Components Industries, LLC, 2007
1
March, 2007 − Rev. 3
Publication Order Number:
MCR310/D

MCR310-8G Related Products

MCR310-8G MCR310-10 MCR310-6G MCR310 MCR310-8 MCR310-6 MCR310-10G
Description 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB 10 A, 800 V, SCR, TO-220AB
Shell connection ANODE ANODE ANODE ANODE ANODE ANODE ANODE
Number of components 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3
Off-state repetitive peak voltage 600 V 800 V 400 V 800 V 600 V 400 V 800 V
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Is it lead-free? Lead free Contains lead Lead free - Contains lead Contains lead Lead free
Is it Rohs certified? conform to incompatible conform to - incompatible incompatible conform to
Maker ON Semiconductor ON Semiconductor ON Semiconductor - ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code TO-220AB TO-220AB TO-220AB - TO-220AB TO-220AB TO-220AB
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 - CASE 221A-07, 3 PIN FLANGE MOUNT, R-PSFM-T3 LEAD FREE, CASE 221A-07, 3 PIN
Contacts 3 3 3 - 3 3 3
Manufacturer packaging code CASE 221A-07 CASE 221A-07 CASE 221A-07 - CASE 221A-07 CASE 221A-07 221A-07
Reach Compliance Code compli _compli compli - compli _compli _compli
Configuration SINGLE SINGLE SINGLE - SINGLE SINGLE SINGLE
Maximum DC gate trigger current 0.2 mA 0.2 mA 0.2 mA - 0.2 mA 0.2 mA 0.2 mA
Maximum DC gate trigger voltage 1.5 V 1.5 V 1.5 V - 1.5 V 1.5 V 1.5 V
Maximum holding current 6 mA 6 mA 6 mA - 6 mA 6 mA 6 mA
JEDEC-95 code TO-220AB TO-220AB TO-220AB - TO-220AB TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 - R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
JESD-609 code e3 e0 e3 - e0 e0 e3
Maximum leakage current 0.5 mA 0.5 mA 0.5 mA - 0.5 mA 0.5 mA 0.5 mA
On-state non-repetitive peak current 100 A 100 A 100 A - 100 A 100 A 100 A
Maximum on-state current 10000 A 10000 A 10000 A - 10000 A 10000 A 10000 A
Maximum operating temperature 110 °C 110 °C 110 °C - 110 °C 110 °C 110 °C
Minimum operating temperature -40 °C -40 °C -40 °C - -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) 260 NOT SPECIFIED 260 - NOT SPECIFIED 225 260
Certification status Not Qualified Not Qualified Not Qualified - Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 10 A 10 A 10 A - 10 A 10 A 10 A
Repeated peak reverse voltage 600 V 800 V 400 V - 600 V 400 V 800 V
surface mount NO NO NO - NO NO NO
Terminal surface Matte Tin (Sn) Tin/Lead (Sn/Pb) Matte Tin (Sn) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin (Sn)
Maximum time at peak reflow temperature 40 NOT SPECIFIED 40 - NOT SPECIFIED NOT SPECIFIED 40
Trigger device type SCR SCR SCR - SCR SCR SCR
