50PX2503LFH: DescriptionGeneral Purpose Inductor, 250uH, 15%, 1 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size339KB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

50PX2503LFH Overview

General Purpose Inductor, 250uH, 15%, 1 Element, ROHS COMPLIANT

50PX2503LFH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.2 Ω
Nominal inductance(L)	250 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Manufacturer's serial number	PXLF
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
self resonant frequency	1.5 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

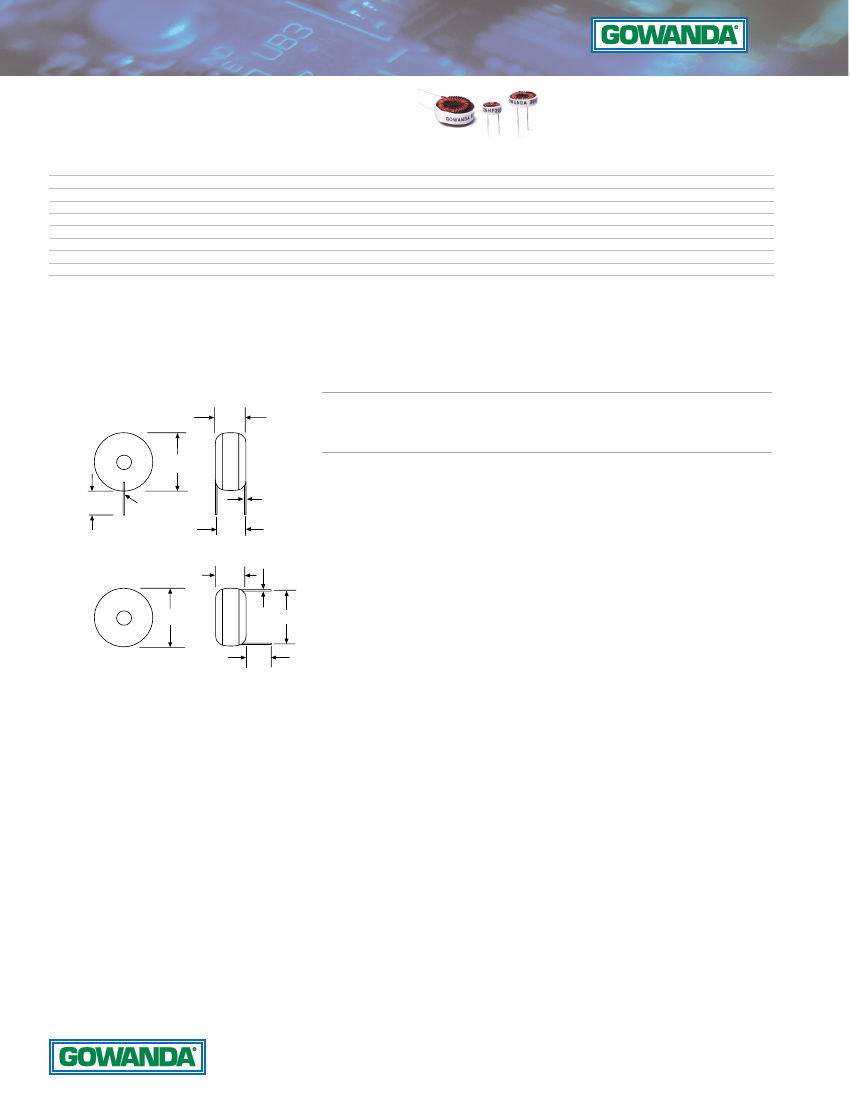

POWER INDUCTORS - THRU HOLE

POWER INDUCTORS - LEADED

PXLF

PART

NUMBER

RoHS Toroidal Power Inductors

L µH

@ 1kHz

± 15%

CURRENT INC. I

RATING* ADC**

∆L

10%

ADC

INC. I

ADC**

∆L

20%

DCR

OHMS

MAX.

SRF

MHz

MIN.

A

DIM

NOM.

B

DIM

NOM.

C

DIM

NOM.

D

DIM

NOM.

E

DIM

NOM.

F

DIM

NOM.

50PX7502LF

50PX8002LF

50PX9002LF

50PX1003LF

50PX2203LF

50PX2503LF

50PX3303LF

50PX4703LF

75

80

90

100

220

250

330

470

2.830

2.310

2.190

2.000

1.630

1.550

1.270

1.100

.500

.900

1.000

.800

.400

.500

.400

.300

.80

1.50

1.30

.80

.70

.50

.06

.09

.10

.12

.18

.20

.30

.40

4.0

3.0

1.5

1.0

.620 (15.75)

.340 (8.64)

.300 (7.62

.300 (7.62)

.500 (12.70)

.025 (0.64)

.020 (0.51)

.018 (0.46)

.016 (0.41)

.014 (0.36)

.620 (15.75)

Vertical

Configuration

Add suffix "V"

to part number

B

NOTES:

• Operating temperature -55°C to +130°C

*Rated current is based on a 40°C temperature rise at an ambient temperature of 90°C.

**Incremental current is the approximate value that will cause a percentage drop in inductance as indicated in the table.

PACkAGING SPECS:

Bulk only.

A

D

E

Stripped and tinned to

within .062 of coil body.

C

Horizontal

Configuration

Add suffix "H"

to part number

E

B

A

F

D

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

84

www.gowanda.com
