CC1F-T1A250.000MHZ10.0PF+/-100PPMTBQS: DescriptionParallel - Fundamental Quartz Crystal, 250MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size225KB，2 Pages; ManufacturerMicro Crystal; Websitehttp://www.microcrystal.com; Environmental Compliance

Download Datasheet Parametric View All

CC1F-T1A250.000MHZ10.0PF+/-100PPMTBQS Overview

Parallel - Fundamental Quartz Crystal, 250MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN

CC1F-T1A250.000MHZ10.0PF+/-100PPMTBQS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TAPE AND REEL; TRAY
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	100 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	250 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L8.0XB3.7XH1.75 (mm)/L0.315XB0.146XH0.069 (inch)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

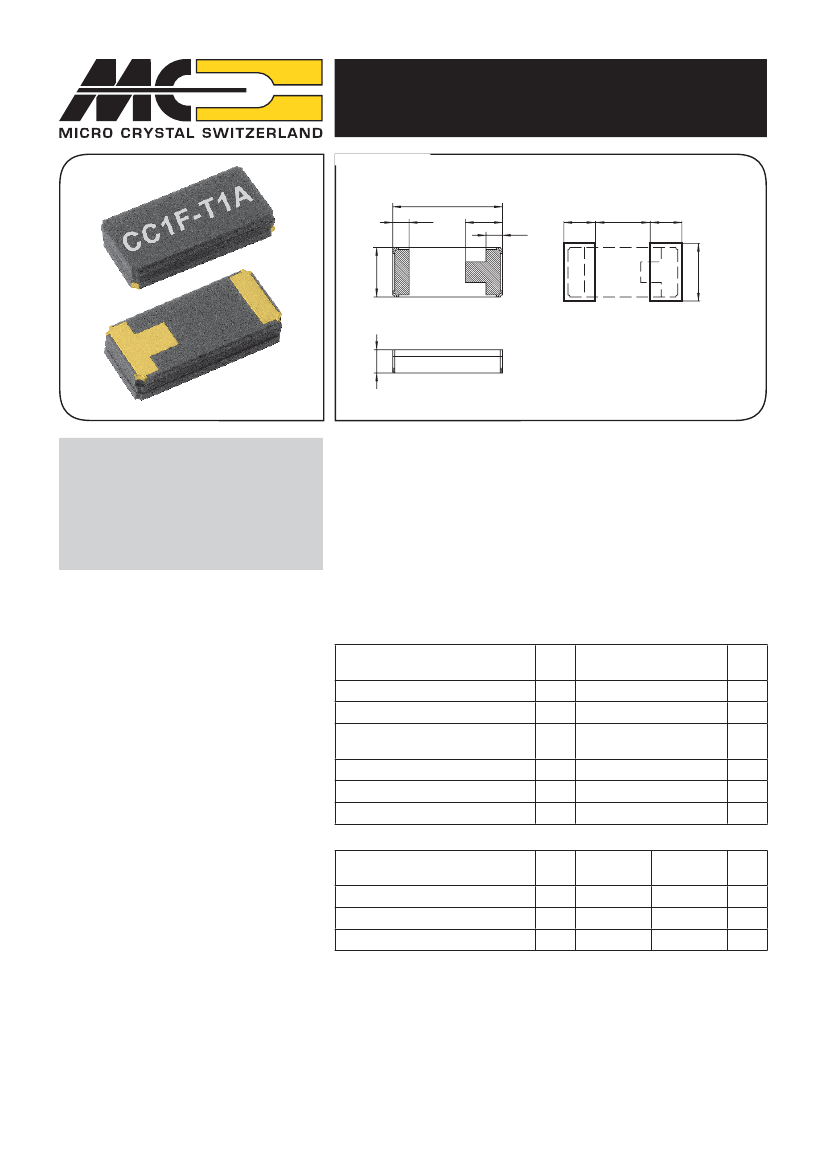

CC1F-T1A

Inverted Mesa AT Crystal 30 MHz – 250 MHz

DIMENSIONS

Package:

Recommended Solder Pad:

8,0

1,2

2,7

1,2

2,3

4,0

2,3

3,7

max.1,75

100% leadfree, RoHS - compliant

Small SMT ceramic package

Package height 1.75 mm

Fundamental mode frequencies

SMD-package in Tape and Reel

Ind. and Ext. temperature ranges

High stability

Low aging

High shock and vibration resistance

DESCRIPTION:

All dimensions in mm typical

This SMD ceramic package has been specially designed for small

industrial, telecom and VCXO applications. All frequencies are generated

in fundamental mode.

The crystals are supplied in special trays (100 crystals per tray).

For pick-and-place equipment, the parts are available in 16 mm tapes:

7” (178 mm) reel with 1’000 crystals

13” (330 mm) reel with 4’000 crystals

ELECTRICAL CHARACTERISTICS

AT 25

o

C:

Frequency Range

Load capacitance

Frequency tolerance at 25°C

Frequency versus temperature

–40°C to +85°C

Drive level max.

Insulation resistance min.

Aging

ﬁ

rst year max.

1)

2)

F

L

C

L

ΔF/F

0

P

R

i

ΔF/F

30–250

10.0 /

∞

+/-50

+/-30

100

500

+/-3

4,2

MHz

pF

ppm

μW

MΩ

ppm

Frequency Example

Series resistance typ./max.

Motional capacitance typ.

Static capacitance typ.

3)

F

L

R

S

C

1

C

0

50.000

15 / 50

5.6

2.0

155.520

15 / 35

5.6

2.9

MHz

Ω

fF

pF

1) Other load capacitances on request.

2) Tighter and wider frequency tolerances on request.

3) Values for other frequencies consult factory.
