HB56D472EJ-6AC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HB56D472EJ-6AC

HB56D472EJ-6AC: DescriptionFast Page DRAM Module, 4MX72, 60ns, CMOS, DIMM-168; Categorystorage storage; File Size247KB，12 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HB56D472EJ-6AC Overview

Fast Page DRAM Module, 4MX72, 60ns, CMOS, DIMM-168

HB56D472EJ-6AC Parametric

Parameter Name	Attribute value
Parts packaging code	DIMM
package instruction	,
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	60 ns
Other features	CAS BEFORE RAS REFRESH
Spare memory width	36
JESD-30 code	R-XDMA-N168
memory density	301989888 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
Base Number Matches	1

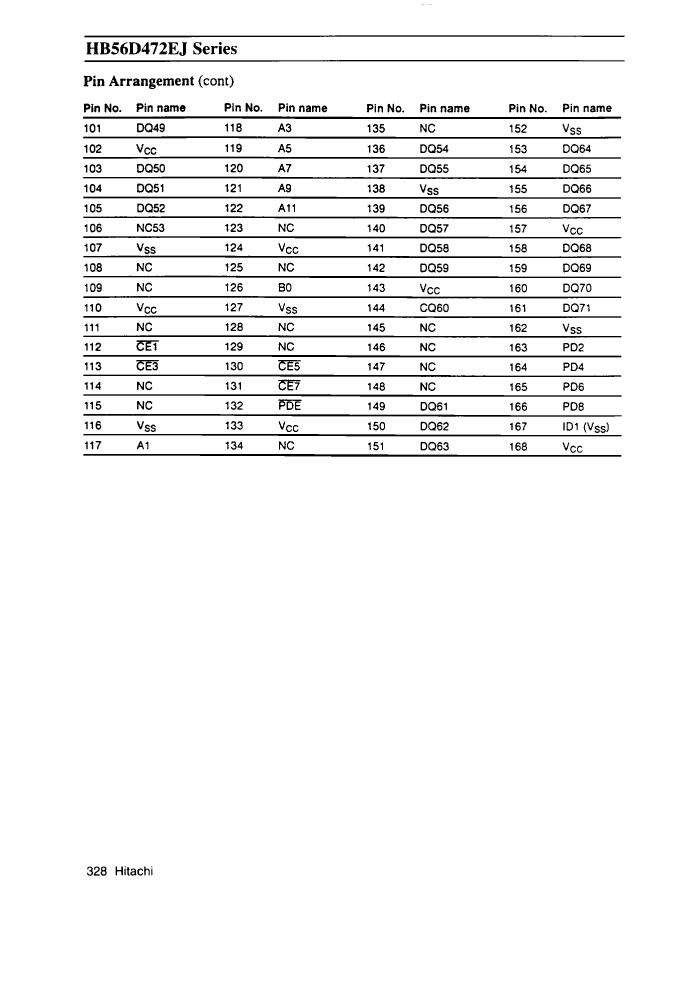

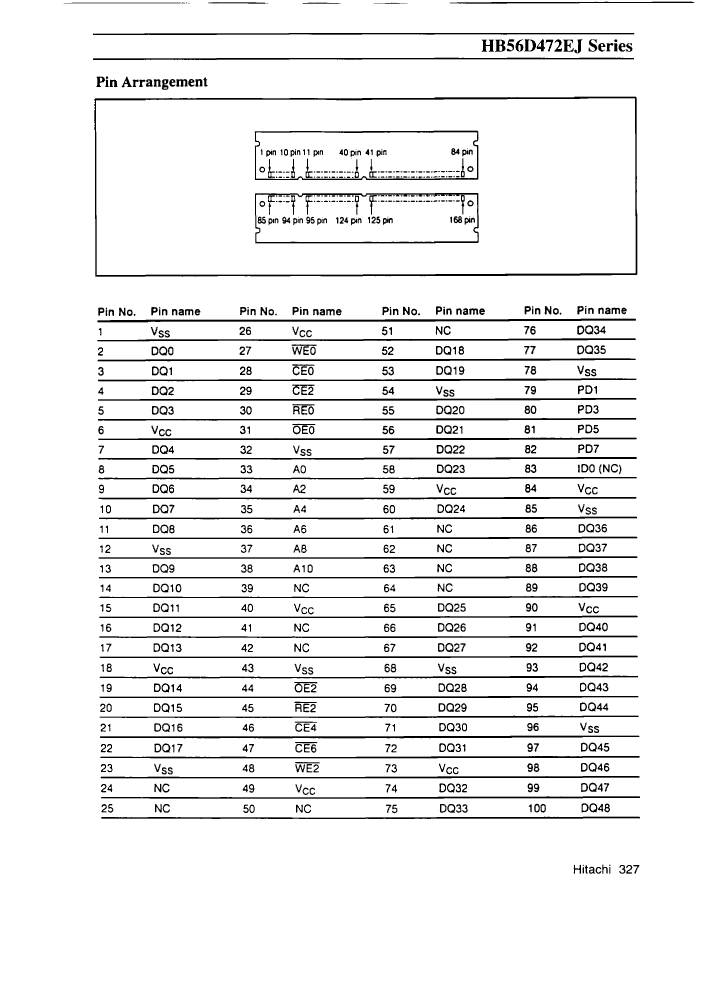

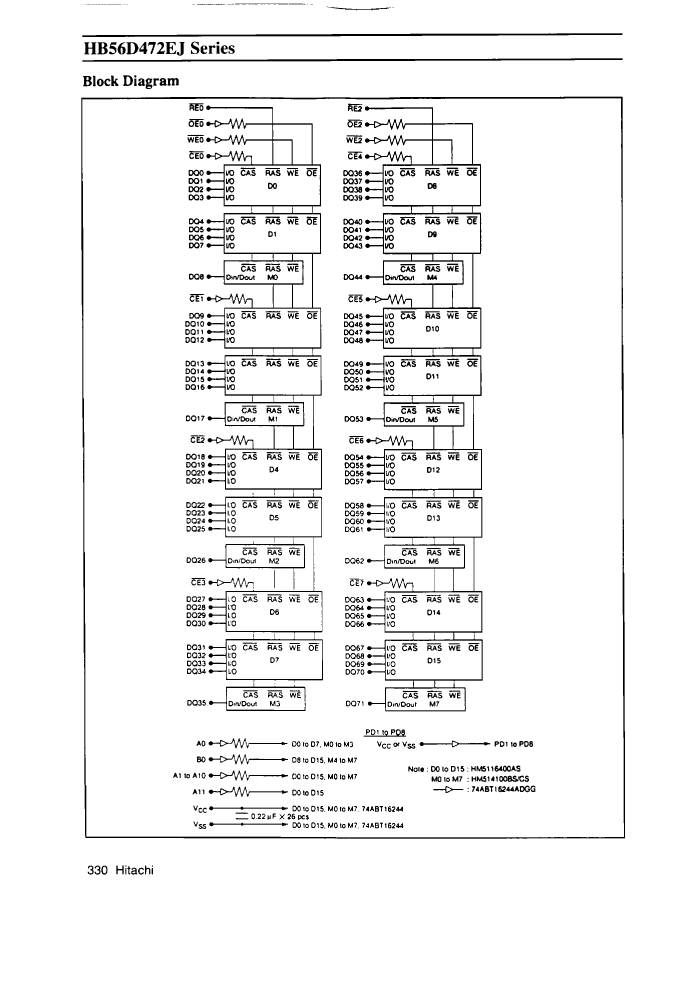

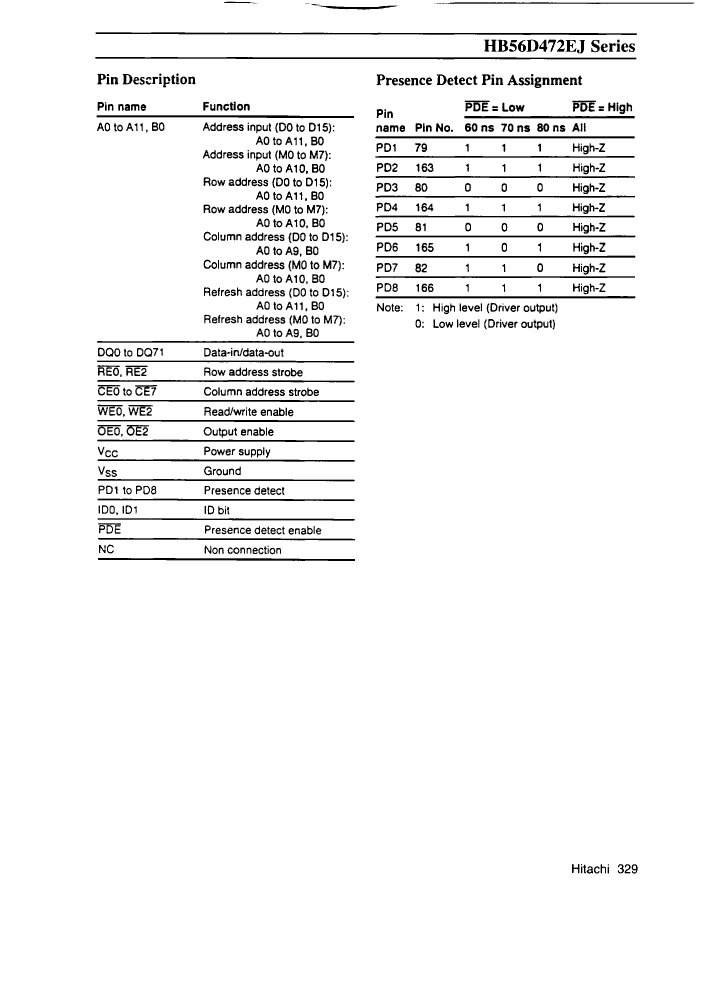

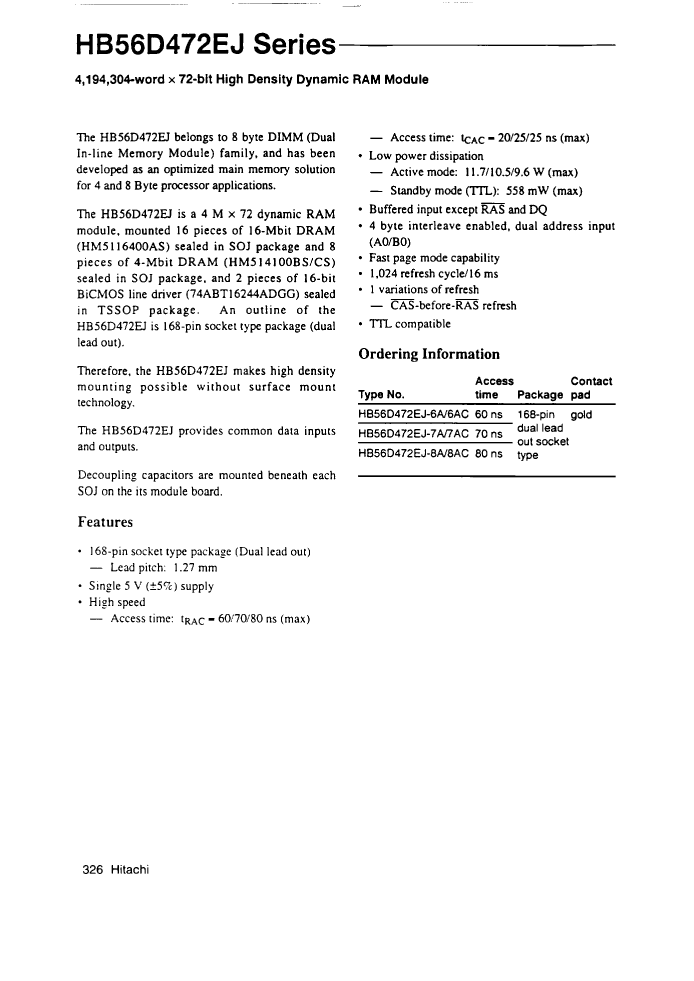

Preview

Download Datasheet

View All

HB56D472EJ-6AC Related Products

	HB56D472EJ-6AC	HB56D472EJ-8A	HB56D472EJ-8AC	HB56D472EJ-7AC	HB56D472EJ-6A	HB56D472EJ-7A
Description	Fast Page DRAM Module, 4MX72, 60ns, CMOS, DIMM-168	Fast Page DRAM Module, 4MX72, 80ns, CMOS, DIMM-168	Fast Page DRAM Module, 4MX72, 80ns, CMOS, DIMM-168	Fast Page DRAM Module, 4MX72, 70ns, CMOS, DIMM-168	Fast Page DRAM Module, 4MX72, 60ns, CMOS, DIMM-168	Fast Page DRAM Module, 4MX72, 70ns, CMOS, DIMM-168
Parts packaging code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Contacts	168	168	168	168	168	168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	80 ns	80 ns	70 ns	60 ns	70 ns
Other features	CAS BEFORE RAS REFRESH	CAS BEFORE RAS REFRESH	CAS BEFORE RAS REFRESH	CAS BEFORE RAS REFRESH	CAS BEFORE RAS REFRESH	CAS BEFORE RAS REFRESH
Spare memory width	36	36	36	36	36	36
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	301989888 bit	301989888 bit	301989888 bit	301989888 bit	301989888 bit	301989888 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	72	72	72	72	72	72
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	168	168	168	168	168	168
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX72	4MX72	4MX72	4MX72	4MX72	4MX72
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
