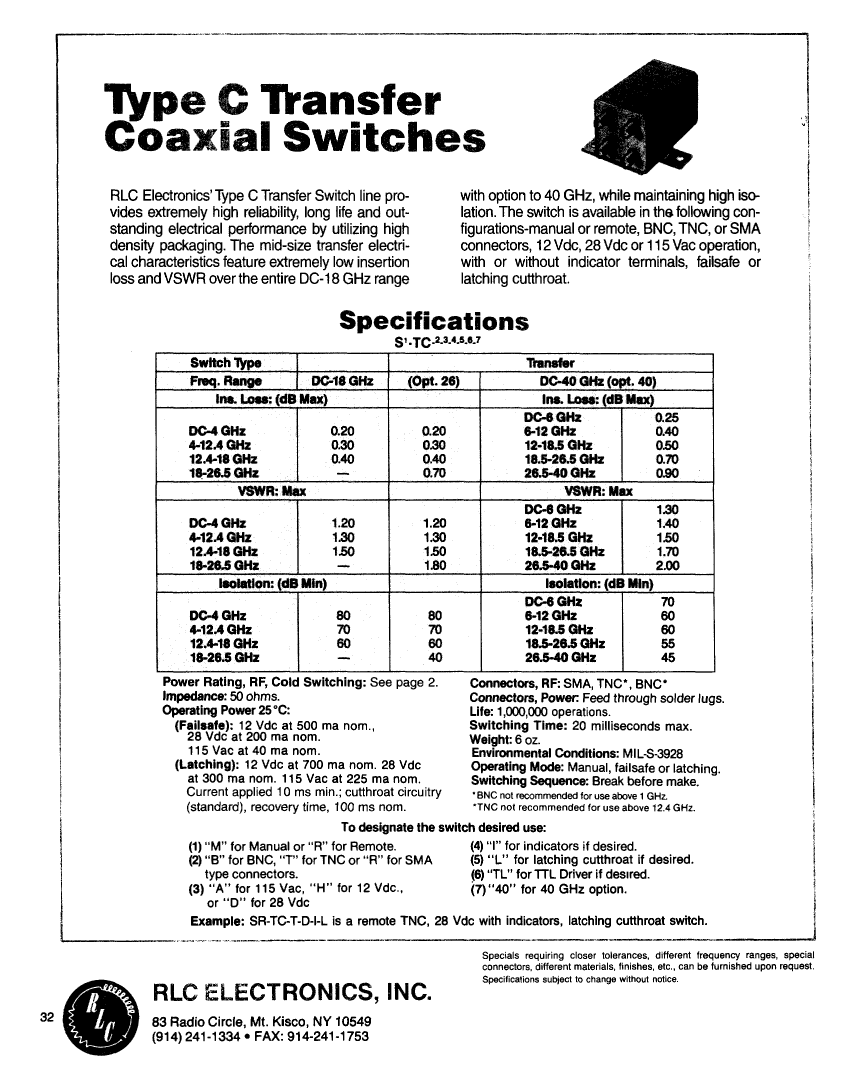

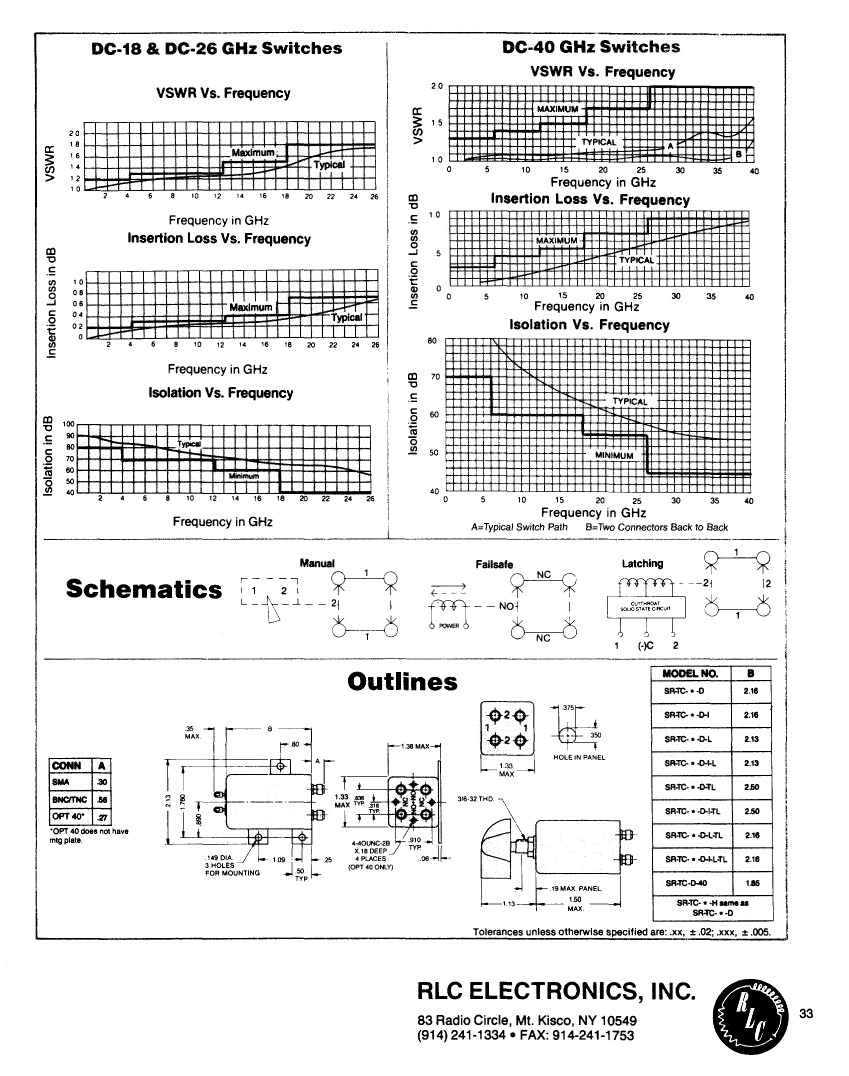

SM-TC-R-A-TL

Description
RF Coaxial Relay, SPDT, Failsafe, 4600mW (Coil), 18000MHz, AC Input, AC Output, Panel Mount
CategoryMechanical and electronic products    relay
File Size226KB,2 Pages
ManufacturerReliable Capacitors Inc
Download Datasheet Parametric View All

SM-TC-R-A-TL Overview

RF Coaxial Relay, SPDT, Failsafe, 4600mW (Coil), 18000MHz, AC Input, AC Output, Panel Mount

SM-TC-R-A-TL Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresSMA,BUILT-IN TTL DRIVER
body width33.78 mm
body height38.1 mm
Body length or diameter33.78 mm
Characteristic impedance50 Ω
Coil current (AC) maximum value0.04 A
Coil power4600 mW
Maximum coil voltage (AC)115 V
Coil/Input Power TypeAC
Contact/Output Power TypeAC
Electrical life1000000 Cycle(s)
Maximum insertion loss0.4 dB
Maximum isolation60 dB
Manufacturer's serial numberSM
Installation featuresPANEL MOUNT
Maximum operating frequency18000 MHz
Minimum operating frequency
physical size33.78mm X 33.78mm X 38.1mm
Relay actionFAILSAFE
Relay functionSPDT
Relay typeRF COAXIAL RELAY
surface mountNO
switching time20 ms
Termination typeCONNECTOR
voltage standing wave ratio1.5
Base Number Matches1
