TC74HC4538AF(EL): DescriptionIC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator; Categorylogic logic; File Size218KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4538AF(EL) Overview

IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator

TC74HC4538AF(EL) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.3
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

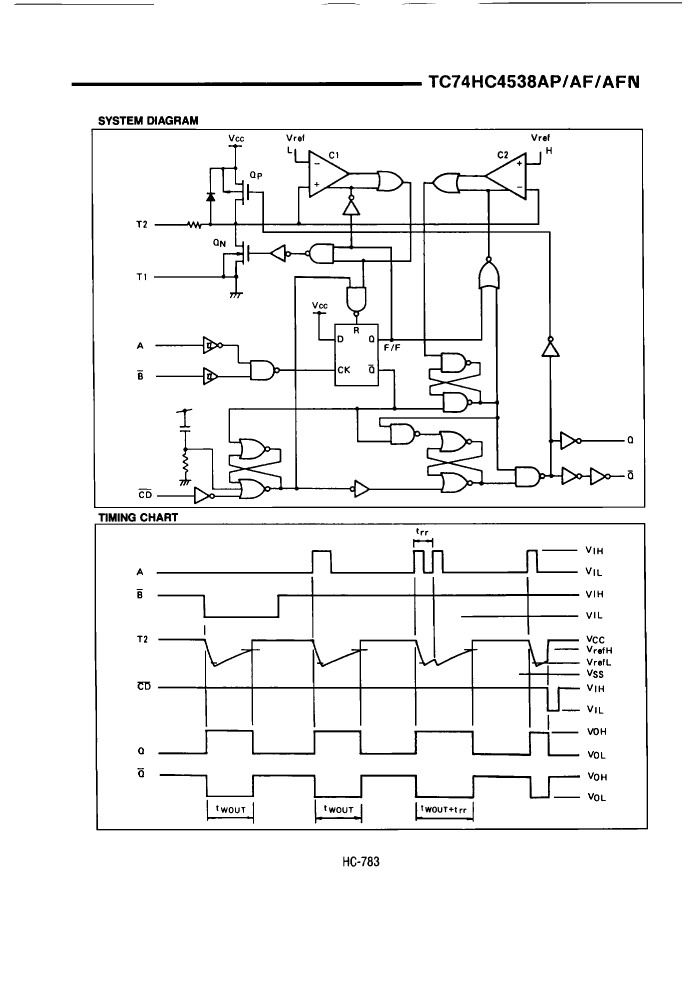

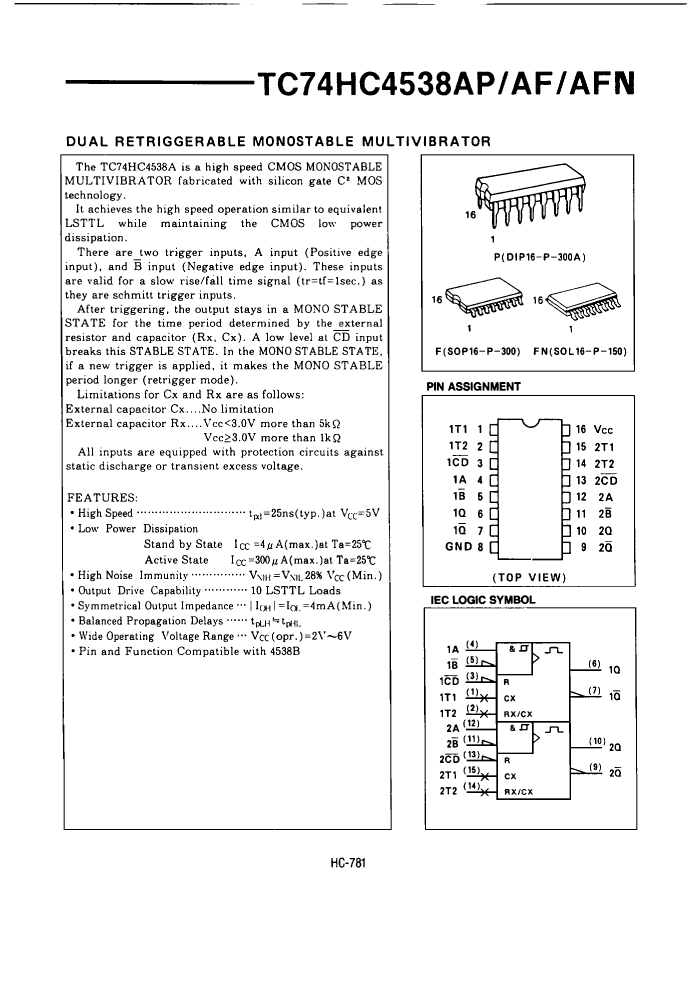

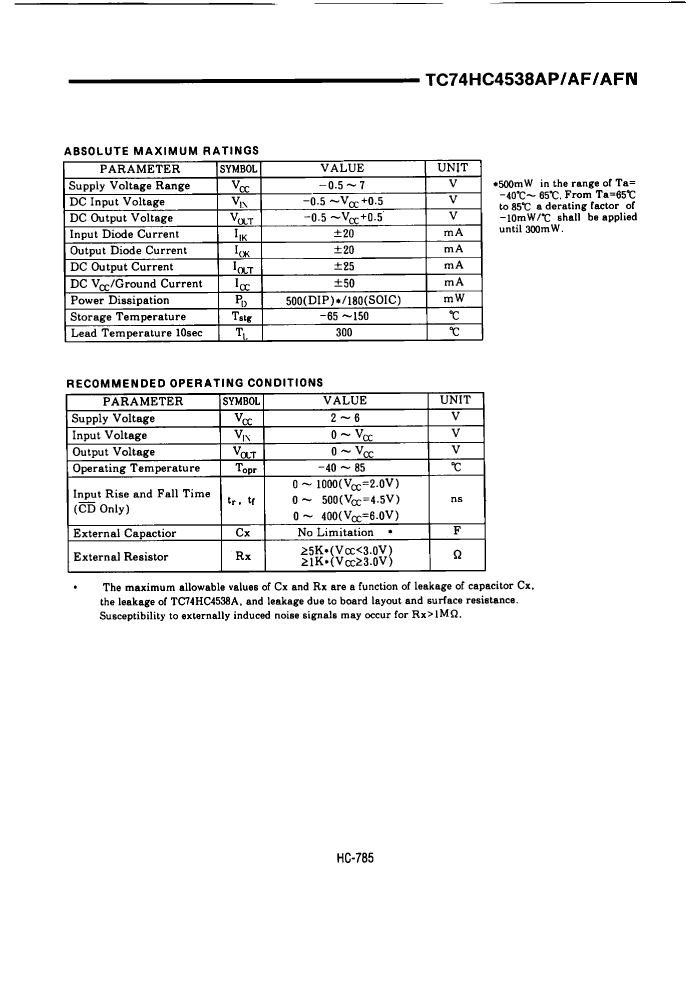

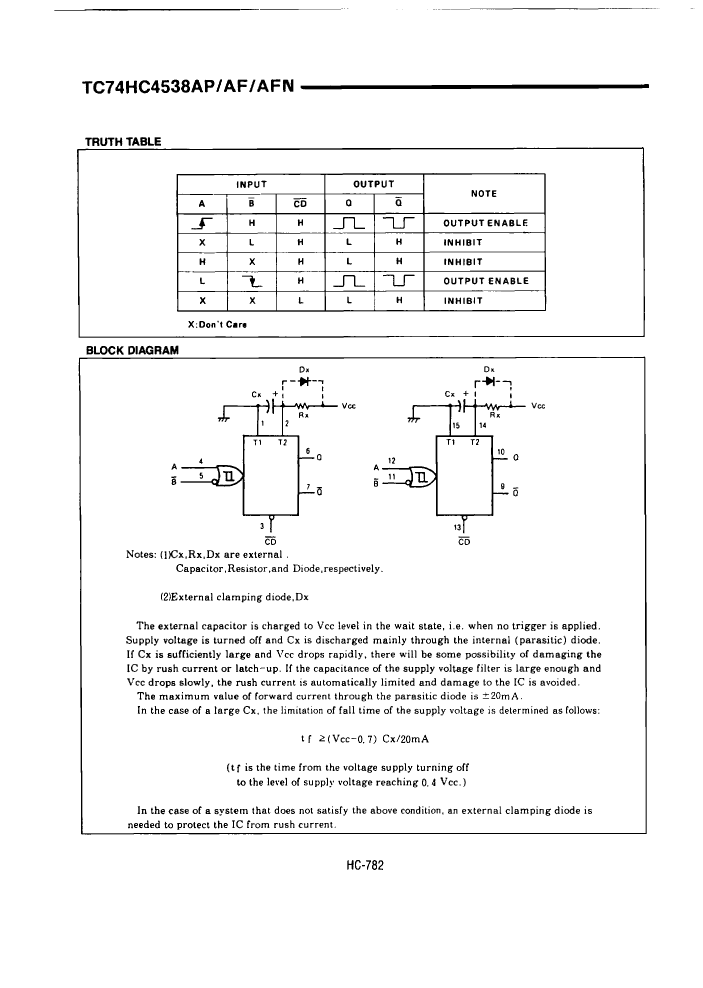

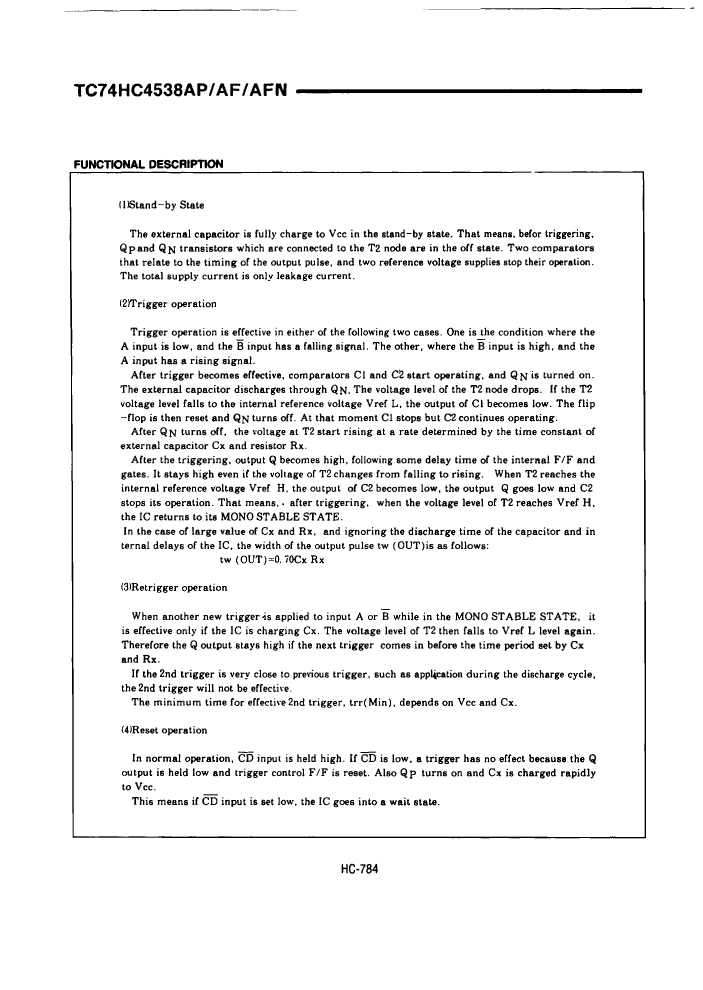

Preview

Download Datasheet

View All

TC74HC4538AF(EL) Related Products

	TC74HC4538AF(EL)	TC74HC4538AF(TP2)	TC74HC4538AF(TP1)	TC74HC4538AFN(ELP)	TC74HC4538AFN(TP2)	TC74HC4538AFN(TP1)
Description	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Prescaler/Multivibrator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP, SOP16,.3	0.300 INCH, PLASTIC, SOIC-16	SOP,	SOP,	SOP,	SOP,
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is Samacsys	N	N	N	N	N	-
Base Number Matches	1	1	1	1	1	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Other features	-	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE
series	-	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
length	-	10.3 mm	10.3 mm	9.9 mm	9.9 mm	9.9 mm
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF	50 pF
Number of data/clock inputs	-	2	2	2	2	2
Number of functions	-	2	2	2	2	2
Output polarity	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Peak Reflow Temperature (Celsius)	-	240	240	240	240	240
propagation delay (tpd)	-	63 ns	63 ns	63 ns	63 ns	63 ns
Maximum seat height	-	1.9 mm	1.9 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	-	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	5.3 mm	5.3 mm	3.9 mm	3.9 mm	3.9 mm
