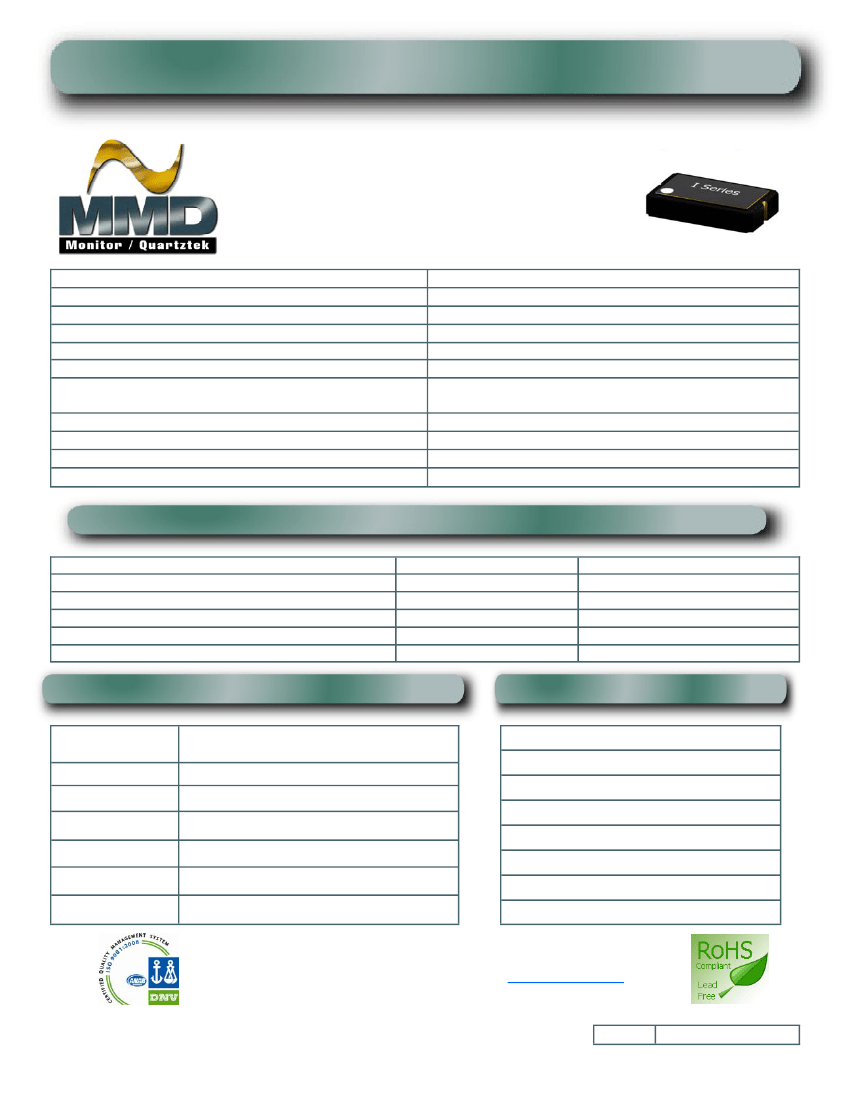

I Series Crystal
6.0mm x 3.5 mm 2 Pads Ceramic Package
Tight Tolerance and Stability
Wide Frequency Range
Tape and Reel Packaging
Frequency Range
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
Mode of Operation
Drive Level
Insulation Resistance
10.000MHZ to 80.000MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5ppm per year max
7pF max
20pF Standard
(See Part Number Guide for Options)
See ESR Chart
Fundamental / 3
rd
OT
100µW max
500 M ohms min at 100VDC ±15VDC
ESR Chart
Frequency Range
10.000MHZ to 10.999MHZ
11.000MHZ to 11.999MHZ
12.000MHZ to 15.999MHZ
16.000MHZ to 39.999MHZ
40.000MHZ to 80.000MHZ
ESR (Ohms)
100 max
80 max
60 max
40 max
70 max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
Fund / AT
3
rd
OT/ AT
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
09/01/10 G
Pg 1 of 2

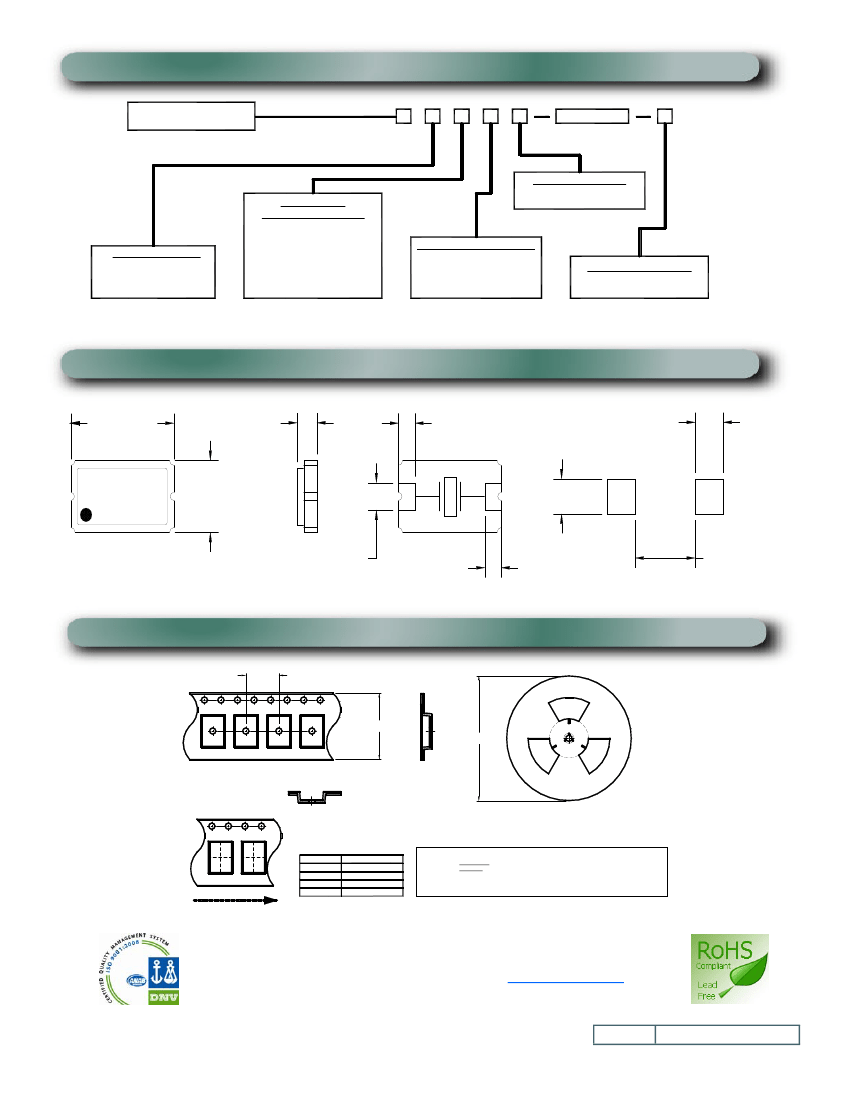

Part Number Guide
6mm X 3.5mm x 1.2mm
2 Pads
I
Frequency
Load Capacitance
S = Series
20 = 20pF (Standard)
XX = XXpF (8pF to 50pF)
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
C = ±15 ppm / ±30 ppm
D = ±10 ppm / ±15 ppm
E = ±50 ppm / ±50 ppm
F = ±30 ppm / ±30 ppm
Mode of Operation
1 = Fundamental
3 = 3rd Overtone
Operating Temperature
A = 0°C to +70°C
B = -20°C to +70°C
C = -40°C to +85°C **
D = -10°C to +60°C
Value Added Options
Blank = No Added Options
T = Tape and Reel
* Please consult with MMD sales department for any other parameters or options.
** Not all Frequency Tolerance/Stability options available at this temperature range.
Mechanical Details
6.20 [.244]
MAX
1.20 [.047]
MAX
1.00 [.039]
1.70 [.067]
MXX.XXX
SYMCCL
3.70 [.146]
MAX
1.80 [.071]
1.40 [.055]
Dimension in Brackets are in Inches
1.00 [.039]
Suggested
Land Pattern
3.60 [.142]
Tape & Reel
PITCH
TAPE WIDTH
REEL DIA
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
8.00 [.315]
12.00 [.472]
180[7 IN]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters.
3. Tolerances are ±0.10 [.004] mm unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
