ADA4851-1ART-R2 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> ADA4851-1ART-R2

Preview

ADA4851-1ART-R2: DescriptionADA4851-1ART-R2 amplifier basic information: ADA4851-1ART-R2 is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are MO-178AB, SOT-23, 6 PIN ADA4851-1ART-R2 amplifier core information: The minimum operating temperature of the ADA4851-1ART-R2 is -40 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of ADA4851-1ART-R2 is 250 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ADA4851-1ART-R2 gain becomes 0.707 times the low-frequency gain is 175000 kHz. The power of the ADA4851-1ART-R2 is NO. Its programmable power is NO. The nominal supply voltage of the ADA4851-1ART-R2 is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of ADA4851-1ART-R2 is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of ADA4851-1ART-R2: The width of ADA4851-1ART-R2 is: 1.6 mm and the length is 2.9 mm. ADA4851-1ART-R2 has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6 ADA4851-1ART-R2 amplifier additional information: ADA4851-1ART-R2 adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of ADA4851-1ART-R2 is: YES. Its temperature grade is: AUTOMOTIVE. It is not a micropower amplifier. ADA4851-1ART-R2 is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G6. The corresponding JESD-609 code is: e0. The packaging code of ADA4851-1ART-R2 is: LSSOP. The materials of ADA4851-1ART-R2 package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ADA4851-1ART-R2 package pins are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING. The maximum seat height is 1.45 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size174KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com; Alternative parts：ADA4851-1ART-R2

Download Datasheet Parametric Compare View All

ADA4851-1ART-R2 Overview

ADA4851-1ART-R2 amplifier basic information:

ADA4851-1ART-R2 is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are MO-178AB, SOT-23, 6 PIN

ADA4851-1ART-R2 amplifier core information:

The minimum operating temperature of the ADA4851-1ART-R2 is -40 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of ADA4851-1ART-R2 is 250 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ADA4851-1ART-R2 gain becomes 0.707 times the low-frequency gain is 175000 kHz. The power of the ADA4851-1ART-R2 is NO. Its programmable power is NO.

The nominal supply voltage of the ADA4851-1ART-R2 is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of ADA4851-1ART-R2 is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of ADA4851-1ART-R2:

The width of ADA4851-1ART-R2 is: 1.6 mm and the length is 2.9 mm. ADA4851-1ART-R2 has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6

ADA4851-1ART-R2 amplifier additional information:

ADA4851-1ART-R2 adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of ADA4851-1ART-R2 is: YES. Its temperature grade is: AUTOMOTIVE.

It is not a micropower amplifier. ADA4851-1ART-R2 is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G6. The corresponding JESD-609 code is: e0.

The packaging code of ADA4851-1ART-R2 is: LSSOP. The materials of ADA4851-1ART-R2 package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ADA4851-1ART-R2 package pins are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING.

The maximum seat height is 1.45 mm.

ADA4851-1ART-R2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	MO-178AB, SOT-23, 6 PIN
Contacts	6
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
length	2.9 mm
low-bias	NO
low-dissonance	NO
micropower	NO
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	NO
power supply	3/10 V
Programmable power	NO
Certification status	Not Qualified
Maximum seat height	1.45 mm
Nominal slew rate	250 V/us
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	175000 kHz
broadband	YES
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

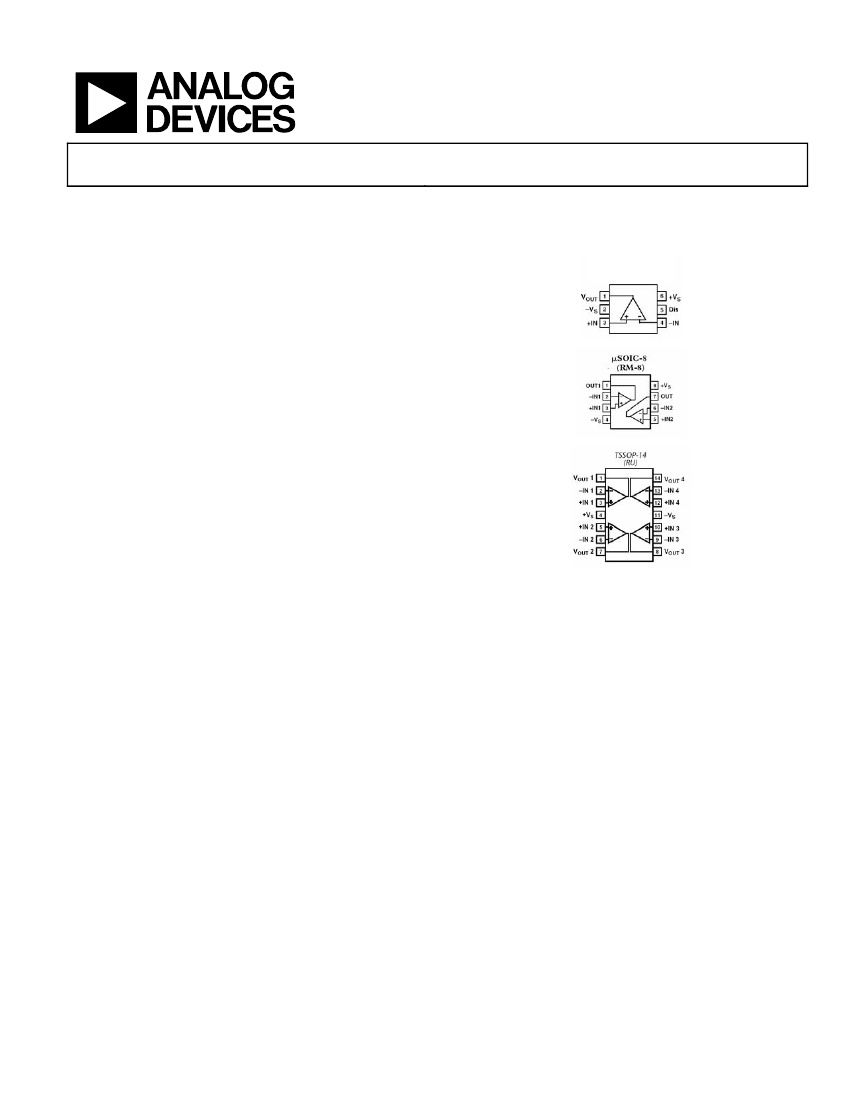

Preliminary Technical Data

FEATURES

High-Speed

175MHz –3dB Bandwidth

250V/us Slew Rate

25ns Settling time to 0.5%

Wide Supply Range: 2.7-10V

Rail-to-Rail Output

Low power: 3mA/Amplifier

0.1dB Flatness: 15MHz

Differential Gain: 0.05%

Differential Phase: 0.05°

Low input-referred noise: 10 nV/√Hz typical

Low Voltage Offsett: 5mV

High Output Current:50mA

Output Disable

Available in space-saving packages

SOT23-6,

µSOIC-8

and TSSOP-14

Low Cost, High-Speed

Rail-to-Rail Output Op-Amp

ADA4851

FUNCTIONAL BLOCK DIAGRAM

SOT-23-6

(RT-6)

APPLICATIONS

Consumer Video

Professional Video

Video Switchers

Active Filters

PRODUCT OVERVIEW

The ADA4851-1 (Single), ADA4851-2 (Dual) and ADA4851-

4(Quad) are low cost, high speed, voltage feedback rail-to-rail

output op-amps. Despite the low cost, this family of amplifiers

has 175MHz Bandwidth, 250V/us slew rate, and can settle

within 25ns to 0.1% using only 3mA/amplifer of quiescent

current.

This family of amplifiers provides the user with true single

supply capability, allowing the signal levels on the input to

extend 200mV below negative rail and 1V within positive rail.

On the output the amplifier can swing within 50mV of the

either rail.

With 0.1dB flatness out to 15MHz and Differential gain and

phase of 0.05% and 0.05° this family of amplifiers is ideal for

video applications.

Combining its low cost with performance, these amplifiers are

ideal in consumer applications.

Rev. PrA 7/30/2004

Information furnished by Analog Devices is believed to be accurate and reliable.

However, no responsibility is assumed by Analog Devices for its use, nor for any

infringements of patents or other rights of third parties that may result from its use.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective companies.

The ADA4851 also has high output current making them ideal

in driving video signals. The AD4851-1 contains a disable

feature that will lower the power of the amplifier and put the

output in high impedance mode which makes it possible for

muxing applications.

These amplifers are rated to work in the extended temprature

range (-40° to 125°C). The ADA4851-1 is available in SOT23-

6. The ADA4851-2 is available in

µSOIC

and the ADA4851-4

is available in TSSOP-14.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

www.analog.com

Tel: 781.329.4700

Fax: 781.326.8703

ADA4851-1ART-R2 Related Products

	ADA4851-1ART-R2	ADA4851-1ART-REEL7	ADA4851-1ART-REEL	ADA4851-4ARU-REEL7	ADA4851-4ARU-REEL	ADA4851-4ARU
Description	IC OP-AMP, 5000 uV OFFSET-MAX, PDSO6, MO-178AB, SOT-23, 6 PIN, Operational Amplifier	IC OP-AMP, 5000 uV OFFSET-MAX, PDSO6, MO-178AB, SOT-23, 6 PIN, Operational Amplifier	IC OP-AMP, 5000 uV OFFSET-MAX, PDSO6, MO-178AB, SOT-23, 6 PIN, Operational Amplifier	IC QUAD OP-AMP, 5000 uV OFFSET-MAX, PDSO14, MO-153AB, TSSOP-14, Operational Amplifier	IC QUAD OP-AMP, 5000 uV OFFSET-MAX, PDSO14, MO-153AB, TSSOP-14, Operational Amplifier	IC QUAD OP-AMP, 5000 uV OFFSET-MAX, PDSO14, MO-153AB, TSSOP-14, Operational Amplifier
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	TSSOP	TSSOP	TSSOP
package instruction	MO-178AB, SOT-23, 6 PIN	MO-178AB, SOT-23, 6 PIN	MO-178AB, SOT-23, 6 PIN	MO-153AB, TSSOP-14	MO-153AB, TSSOP-14	MO-153AB, TSSOP-14
Contacts	6	6	6	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0
length	2.9 mm	2.9 mm	2.9 mm	5 mm	5 mm	5 mm
low-bias	NO	NO	NO	NO	NO	NO
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	NO	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	4	4	4
Number of terminals	6	6	6	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	TSOP6,.11,37	TSOP6,.11,37	TSOP6,.11,37	TSSOP14,.25	TSSOP14,.25	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power	NO	NO	NO	NO	NO	NO
power supply	3/10 V	3/10 V	3/10 V	3/10 V	3/10 V	3/10 V
Programmable power	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	1.45 mm	1.45 mm	1.2 mm	1.2 mm	1.2 mm
Nominal slew rate	250 V/us	250 V/us	250 V/us	250 V/us	250 V/us	250 V/us
Supply voltage upper limit	6 V	6 V	6 V	6 V	6 V	6 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
broadband	YES	YES	YES	YES	YES	YES
width	1.6 mm	1.6 mm	1.6 mm	4.4 mm	4.4 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
