PU4514 datasheet, PDF - EEWORLD Datasheet

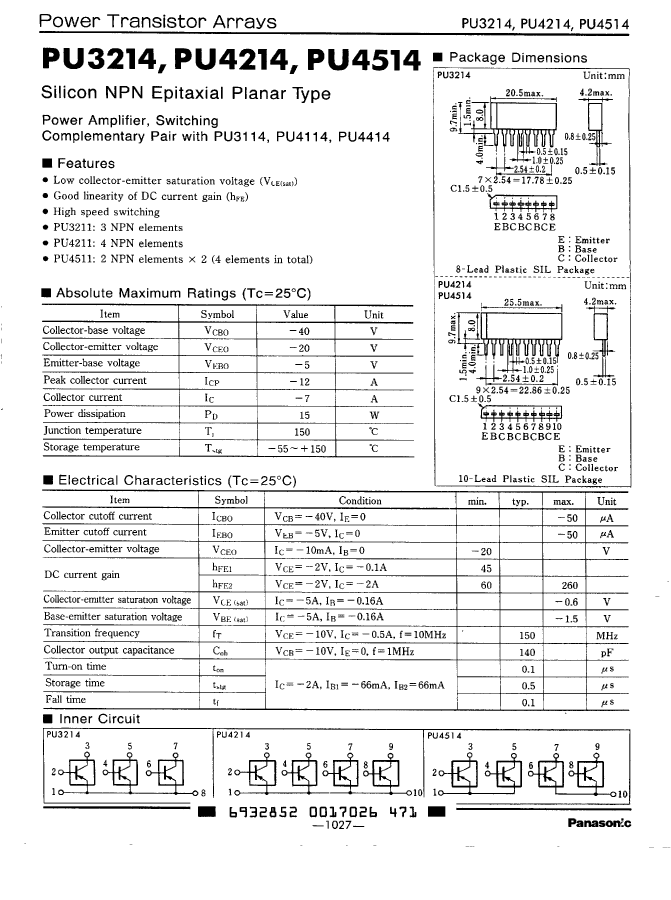

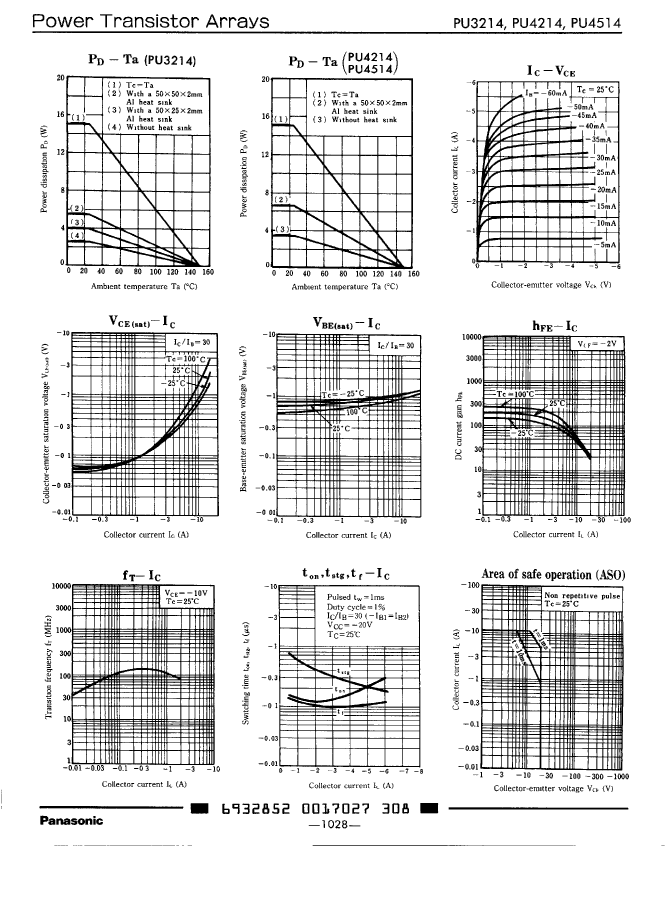

PU4514: DescriptionPower Bipolar Transistor, 7A I(C), 20V V(BR)CEO, 4-Element, PNP, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN; CategoryDiscrete semiconductor The transistor; File Size108KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

PU4514 Overview

Power Bipolar Transistor, 7A I(C), 20V V(BR)CEO, 4-Element, PNP, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T10
Contacts	10
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum collector current (IC)	7 A
Collector-emitter maximum voltage	20 V
Configuration	2 BANKS, COMMON EMITTER, 2 ELEMENTS
Minimum DC current gain (hFE)	60
JESD-30 code	R-PSIP-T10
Number of components	4
Number of terminals	10
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	PU4514	PU3214	PU4214
Description	Power Bipolar Transistor, 7A I(C), 20V V(BR)CEO, 4-Element, PNP, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN	Power Bipolar Transistor, 7A I(C), 20V V(BR)CEO, 3-Element, PNP, Silicon, Plastic/Epoxy, 8 Pin, PLASTIC, SIL, 8 PIN	Power Bipolar Transistor, 7A I(C), 20V V(BR)CEO, 4-Element, PNP, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN
package instruction	IN-LINE, R-PSIP-T10	IN-LINE, R-PSIP-T8	PLASTIC, SIL, 10 PIN
Contacts	10	8	10
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	7 A	7 A	7 A
Collector-emitter maximum voltage	20 V	20 V	20 V
Configuration	2 BANKS, COMMON EMITTER, 2 ELEMENTS	COMMON EMITTER, 3 ELEMENTS	COMMON EMITTER, 4 ELEMENTS
Minimum DC current gain (hFE)	60	60	60
JESD-30 code	R-PSIP-T10	R-PSIP-T8	R-PSIP-T10
Number of components	4	3	4
Number of terminals	10	8	10
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	150 MHz	150 MHz
Maker	-	Panasonic	Panasonic
