SPD6620SMTXV: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, HERMETIC SEALED, SM, 2 PIN; CategoryDiscrete semiconductor diode; File Size115KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SPD6620SMTXV Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, HERMETIC SEALED, SM, 2 PIN

SPD6620SMTXV Parametric

Parameter Name	Attribute value
package instruction	O-LELF-R2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	METALLURGICALLY BONDED
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LELF-R2
Maximum non-repetitive peak forward current	20 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1

Preview

Download Datasheet

View All

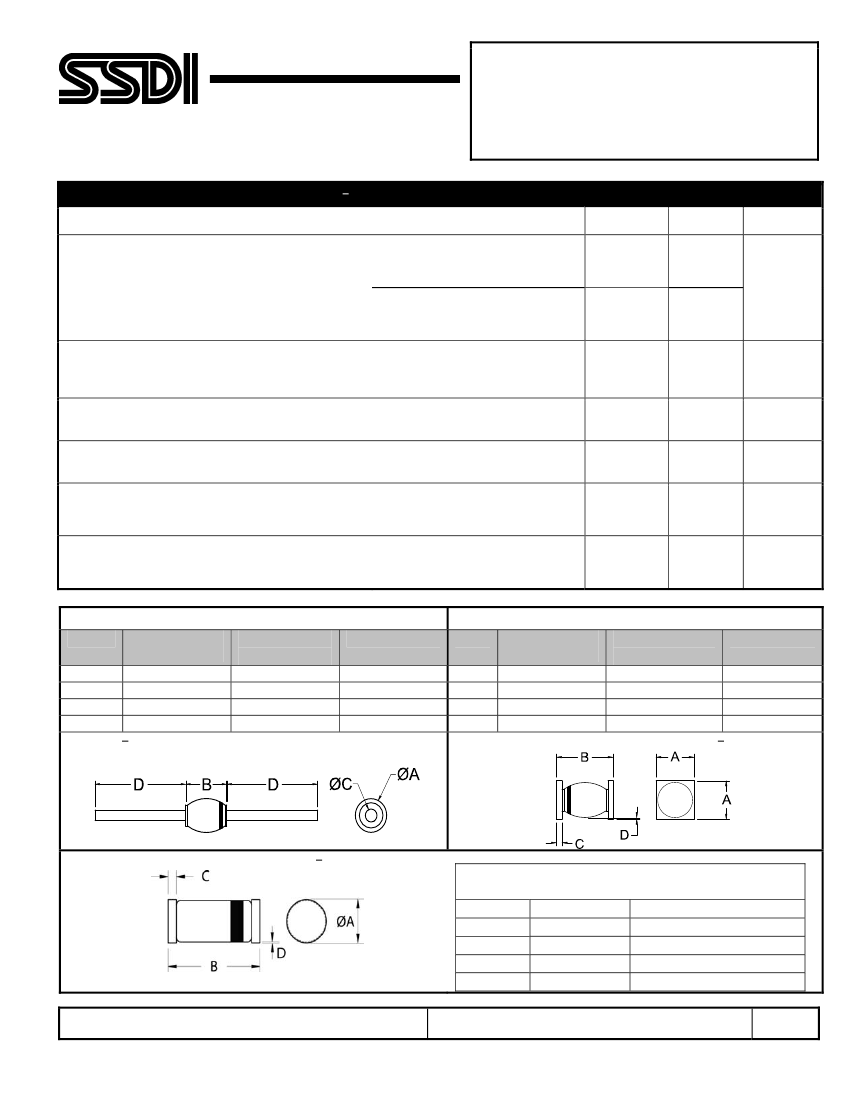

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

SPD6620 thru SPD6625

Series

1.5 - 2 AMP

ULTRA FAST RECOVERY RECTIFIER

200

─

1000 VOLTS

30 – 60 nsec

Designer’s Data Sheet

Part Number/Ordering Information

1/

SPD __ __ __

│

└

│ └

Screening

2/

│

__

= Not Screened

│

TX = TX Level

│

TXV = TXV

│

S = S Level

│

└

Package Type

__

= Axial Leaded

SMS = Surface Mount Square Tab

6/

SM = Surface Mount Round Tab

Family

6620 = 200V, 2A

6621 = 400V, 2A

6622 = 600V, 2A

6623 = 800V, 1.5A

6624 = 900V, 1.5A

6625 = 1000V, 1.5A

•

Ultra Fast Reverse Recovery Time 30-60 ns Max

4/

PIV to 1000 Volts (1200V Version Available)

Hermetically Sealed

Low Reverse Leakage Current

Rugged Single Chip Construction

For High Efficiency Applications

Available in Axial, Round Tab & Square Tab Versions

Metallurgically Bonded

2/

TX, TXV, and S-Level Screening Available

Ruggedized Replacement for 1N6620 thru 1N6625, US

FEATURES:

MAXIMUM RATINGS

3/

RATING

Peak Repetitive Reverse Voltage

And

DC Blocking Voltage

Average Rectified Forward Current

(Resistive Load, 60 Hz, Sine Wave, T

L

=

25°C)

SYMBOL

SPD6620

SPD6621

SPD6622

SPD6623

SPD6624

SPD6625

SPD6620 thru SPD6622

SPD6623 thru SPD6625

VALUE

200

400

600

800

900

1000

2

1.5

20

-65 to +175

38

20

SMS

UNIT

V

RRM

V

RWM

V

R

Volts

I

O

I

FSM

T

OP

and T

STG

R

θJL

R

θJE

Amps

°C

°C/W

SM

Peak Surge Current

5/

(8.3 msec Pulse, Half Sine Wave Superimposed on Io, allow junction to

reach equilibrium between pulses, T

C

= 25°C)

Operating & Storage Temperature

Thermal Resistance,

NOTES:

1/

For Ordering Information, Price, and Availability- Contact Factory.

2/

Screening Based on MIL-PRF-19500. Screening Flows Available on

Request.

3/

Unless Otherwise Specified, All Electrical Characteristics @25ºC.

4/

Recovery Conditions: I

F

= 0.5 Amp, I

R

= 1.0 Amp rec. to .25 Amp.

5/

SPD6625- I

FSM

= 15A

6/

SM Package Available for SPD6620 - SPD6622

Junction to Lead for Axial, L =.375"

Junction to End Tab

Axial Leaded

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RC0102F

DOC
