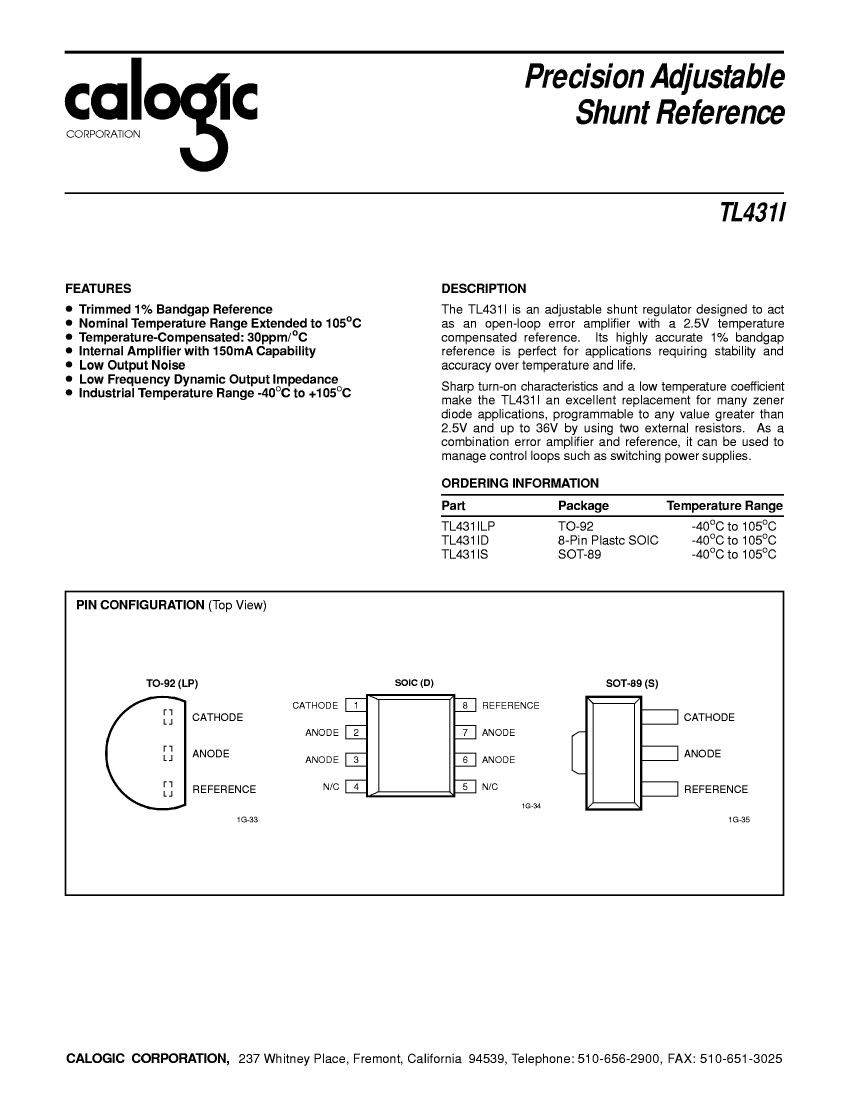

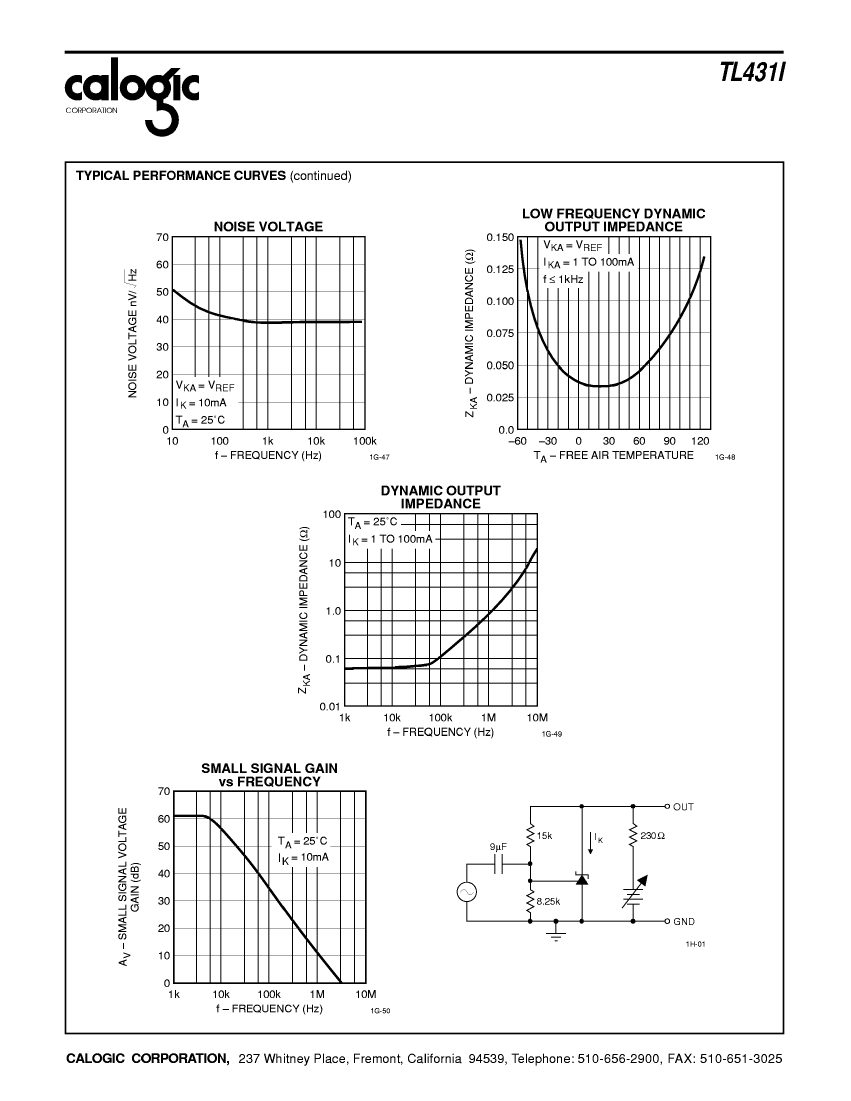

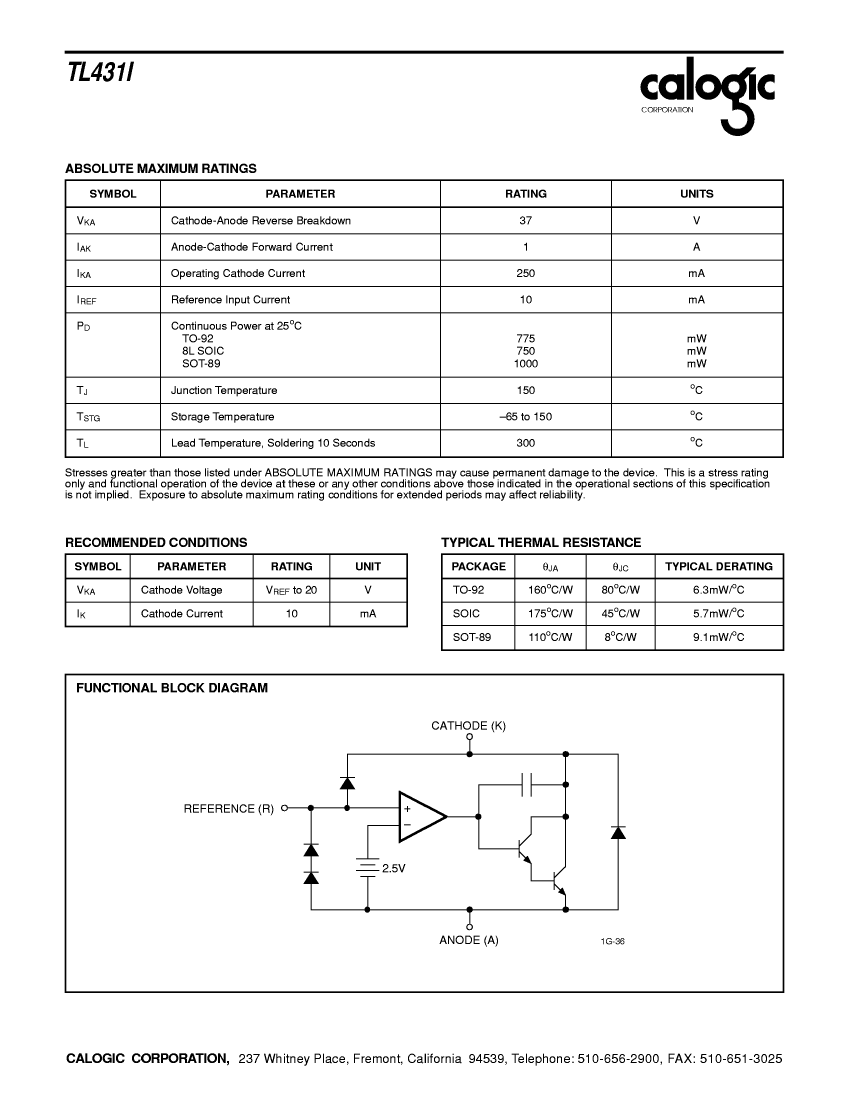

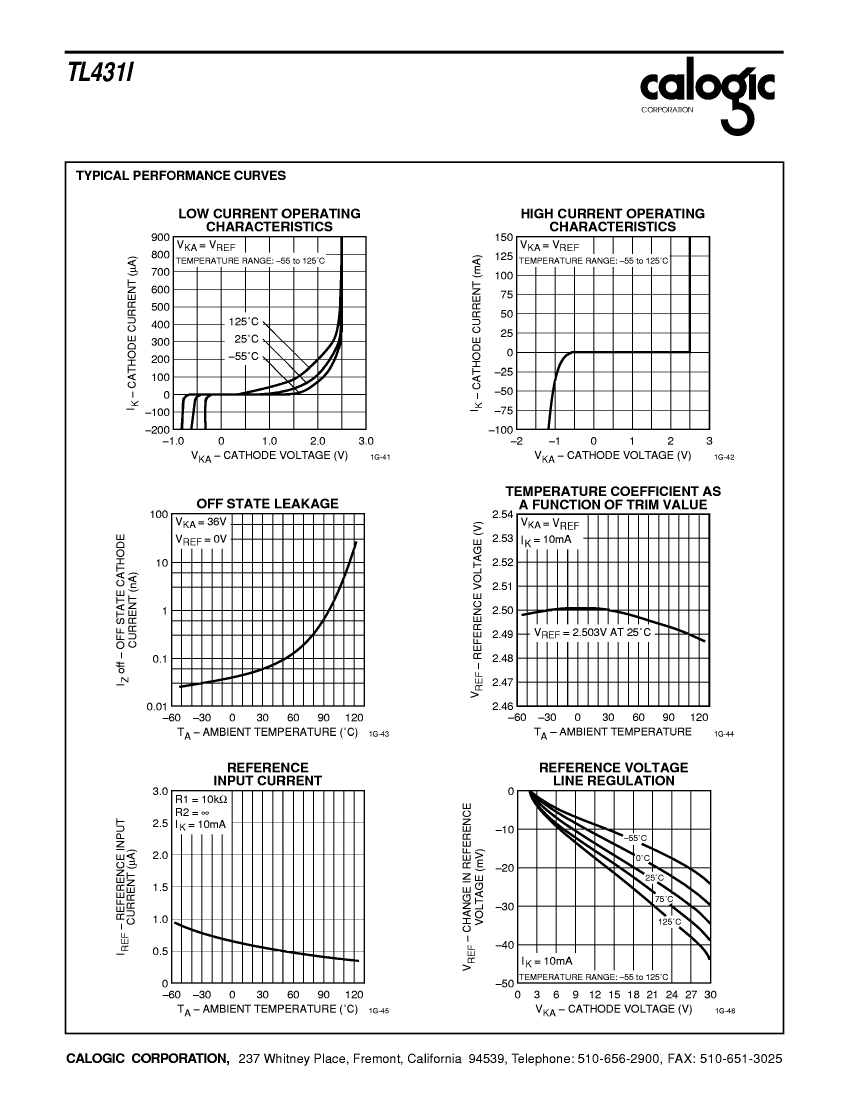

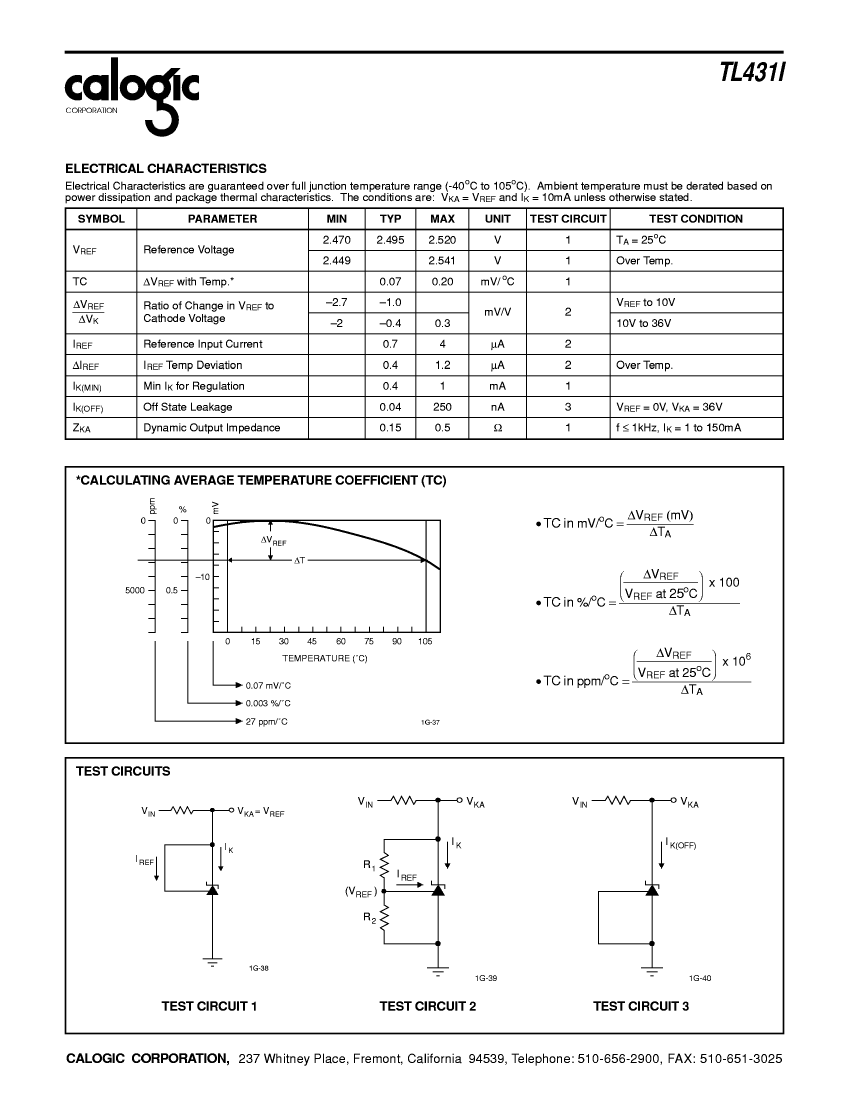

Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PDSO8, PLASTIC, SOIC-8
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | PROGRAMMABLE OUTPUT VOLTAGE RANGE OF 2.5V TO 36V |
| Analog Integrated Circuits - Other Types | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PDSO-G8 |
| length | 4.9 mm |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Maximum output voltage | 20 V |
| Minimum output voltage | 2.47 V |
| Nominal output voltage | 2.495 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| surface mount | YES |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Fine-tuning/adjustable output | YES |
| width | 3.9 mm |
| Base Number Matches | 1 |
| TL431ID | TL431IS | TL431ILP | |
|---|---|---|---|
| Description | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PDSO8, PLASTIC, SOIC-8 | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PSSO3, SOT-89, 3 PIN | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PBCY3, TO-92, 3 PIN |
| Parts packaging code | SOIC | SOT-89 | TO-92 |
| package instruction | SOP, | , | TO-92, 3 PIN |
| Contacts | 8 | 3 | 3 |
| Reach Compliance Code | compliant | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | PROGRAMMABLE OUTPUT VOLTAGE RANGE OF 2.5V TO 36V | PROGRAMMABLE OUTPUT VOLTAGE RANGE OF 2.5V TO 36V | PROGRAMMABLE OUTPUT VOLTAGE RANGE OF 2.5V TO 36V |
| Analog Integrated Circuits - Other Types | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PDSO-G8 | R-PSSO-F3 | O-PBCY-T3 |
| Number of functions | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 |
| Number of terminals | 8 | 3 | 3 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Maximum output voltage | 20 V | 20 V | 20 V |
| Minimum output voltage | 2.47 V | 2.47 V | 2.47 V |
| Nominal output voltage | 2.495 V | 2.495 V | 2.495 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | ROUND |
| Package form | SMALL OUTLINE | SMALL OUTLINE | CYLINDRICAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | NO |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | FLAT | THROUGH-HOLE |
| Terminal location | DUAL | SINGLE | BOTTOM |
| Fine-tuning/adjustable output | YES | YES | YES |
| length | 4.9 mm | 4.5 mm | - |
| encapsulated code | SOP | - | TO-92 |
| Maximum seat height | 1.75 mm | 1.6 mm | - |
| Terminal pitch | 1.27 mm | 1.5 mm | - |
| width | 3.9 mm | 2.445 mm | - |
| Maker | - | Calogic | Calogic |
| Part Number | Manufacturer | Description |
|---|---|---|
| TL431ILP | Texas Instruments(德州仪器) | V-Ref Adjustable 2.495V to 36V 100mA Automotive 3-Pin TO-92 Bulk |
