SPECIFICATIONS
Current rating:
Voltage rating:
Solder pin:
Body material:
Insulation resistance:
Withstanding:
Operating temperature:
12 amps
300VAC
1mm brass, tin plated
Polyamide66; UL94V-0
5,000megohm min. at 500VDC
2,000VAC min.
-55°C to +105°C
A
B
C
C
D
D
A=(No. of Pos. x 5.08) + 1.6
E
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Series
Style
Pitch
Positions
Color
CMTB
ME040
XXX
XX
GN
Terminal Vertical
381=3.81mm 02-24
GN=Green
block
closed end 500=5mm
plug-able 508=5.08mm
762=7.62mm
Date
08/10/99
08/10/99
08/10/99 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CMTB-ME040-508-XX-GN
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

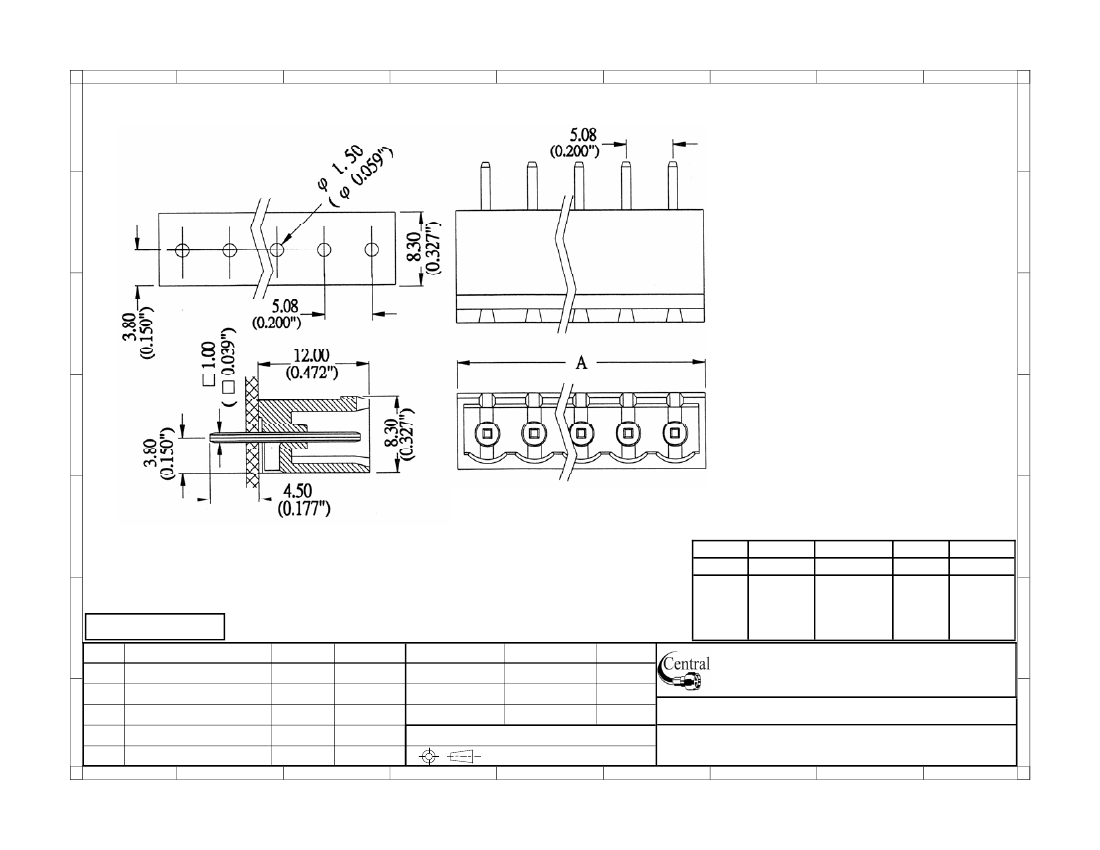

Description: Terminal block, vertical, closed end, plug-able
