ME040-50803: DescriptionStrip Terminal Block, 16A, 1 Row(s), 1 Deck(s),; CategoryThe connector terminals; File Size106KB，1 Pages; ManufacturerSPC Multicomp; Environmental Compliance

Download Datasheet Parametric Compare View All

ME040-50803 Overview

Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),

ME040-50803 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: UL 94V-0, POLYAMIDE66
Fastening method	CONNECTOR
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	16 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

mult comp

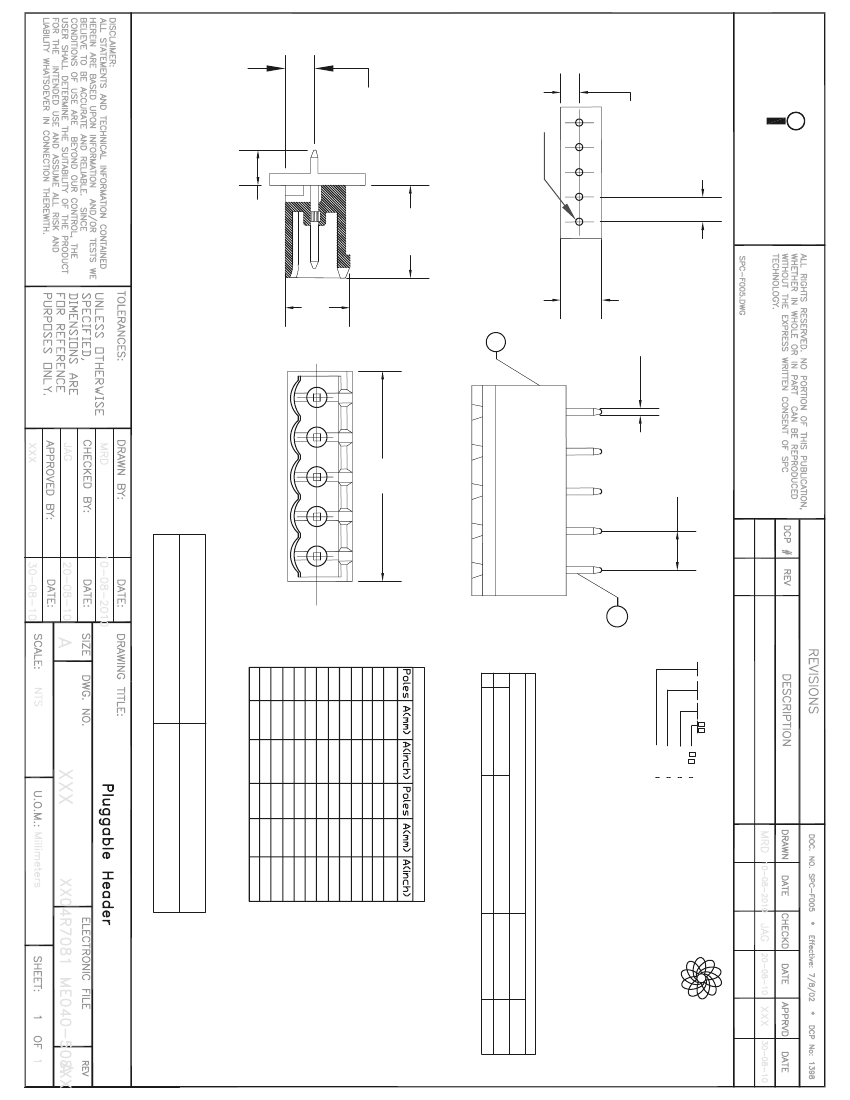

5.08 ±0.1 (0.200")

m

c

ME 040- 508

5.08 ±0.1 (0.200")

508

040

ME

Poles

Pitch 5.08mm

Standard

Type

RoHS

Compliant

1 0.1(0.039")

3.8 ±0.3 (0.150")

2

8.3 ± 0.3 (0327")

Specifications

Current rating

Insulation withstands volt

Insulation resistance

Operation temperature

: 16Amp AC300V

: AC2000V min

: >2000MΩ DC200V

: -40°C to +105°C

CONFIRMED & ACCEPTED BY

Material

ø1.5 (ø0.059")

PCB Layout

Plating/Finish

1

2

Insulating boby

Solder pin

Remarks

1

Polyamide 66(UL94V-0)

Brass

Green

Tin plated

All Materials are lead

free according to EU

Patch : 5.08mm(0.200inch)

12 ±0.3 (0.472")

A ±4.5

3.8 ±0.3 (0.149")

8.3 ±0.3 (0.326")

4.5 ±0.3 (0.177")

2

3

4

5

6

7

8

9

10

11

12

13

14

11.76

16.84

21.92

27.00

32.08

37.16

42.24

47.32

52.40

57.48

62.56

67.64

72.72

0.463

0.663

0.863

1.063

1.263

1.463

1.663

1.863

2.063

2.263

2.463

2.663

2.863

15

16

17

18

19

20

21

22

23

24

25

77.80

82.88

87.96

93.04

98.12

103.20

108.28

113.36

118.44

123.52

128.60

3.063

3.263

3.463

3.663

3.863

4.063

4.263

4.463

4.863

5.063

Part Number Table

Dimensions : Inches (mm)

Description

Pluggable Header

Part Number

ME040-50802

ME040-50803 Related Products

	ME040-50803	ME040-50820	ME040-50821	ME040-50808	ME040-50804	ME040-50802
Description	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),	Strip Terminal Block, 16A, 1 Row(s), 1 Deck(s),
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: UL 94V-0, POLYAMIDE66	STANDARD: UL 94V-0, POLYAMIDE66	STANDARD: UL 94V-0, POLYAMIDE66	STANDARD: UL 94V-0, POLYAMIDE66	STANDARD: UL 94V-0, POLYAMIDE66	STANDARD: UL 94V-0, POLYAMIDE66
Fastening method	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1	1
Rows	1	1	1	1	1	1
Number of channels	3	20	21	8	4	2
Rated current	16 A	16 A	16 A	16 A	16 A	16 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V
safety certificate	UL	UL	UL	UL	UL	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
Is Samacsys	N	N	N	N	N	-
Base Number Matches	1	1	1	1	1	-
