LH543620P-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH543620P-15

LH543620P-15: DescriptionFIFO, 1KX36, 15ns, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132; Categorystorage storage; File Size2MB，37 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH543620P-15 Overview

FIFO, 1KX36, 15ns, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132

LH543620P-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	BQFP,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	15 ns
period time	15 ns
JESD-30 code	S-PQFP-G132
JESD-609 code	e0
length	24.13 mm
memory density	36864 bit
memory width	36
Number of functions	1
Number of terminals	132
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX36
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.57 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.13 mm
Base Number Matches	1

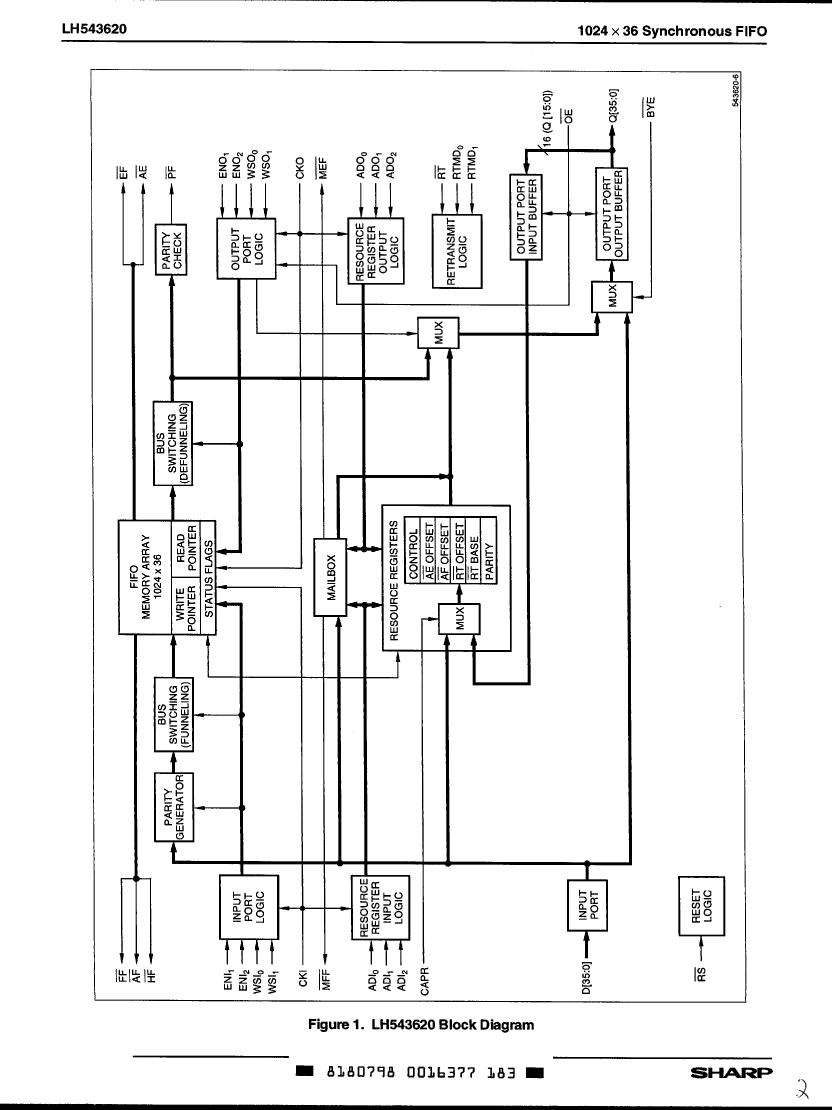

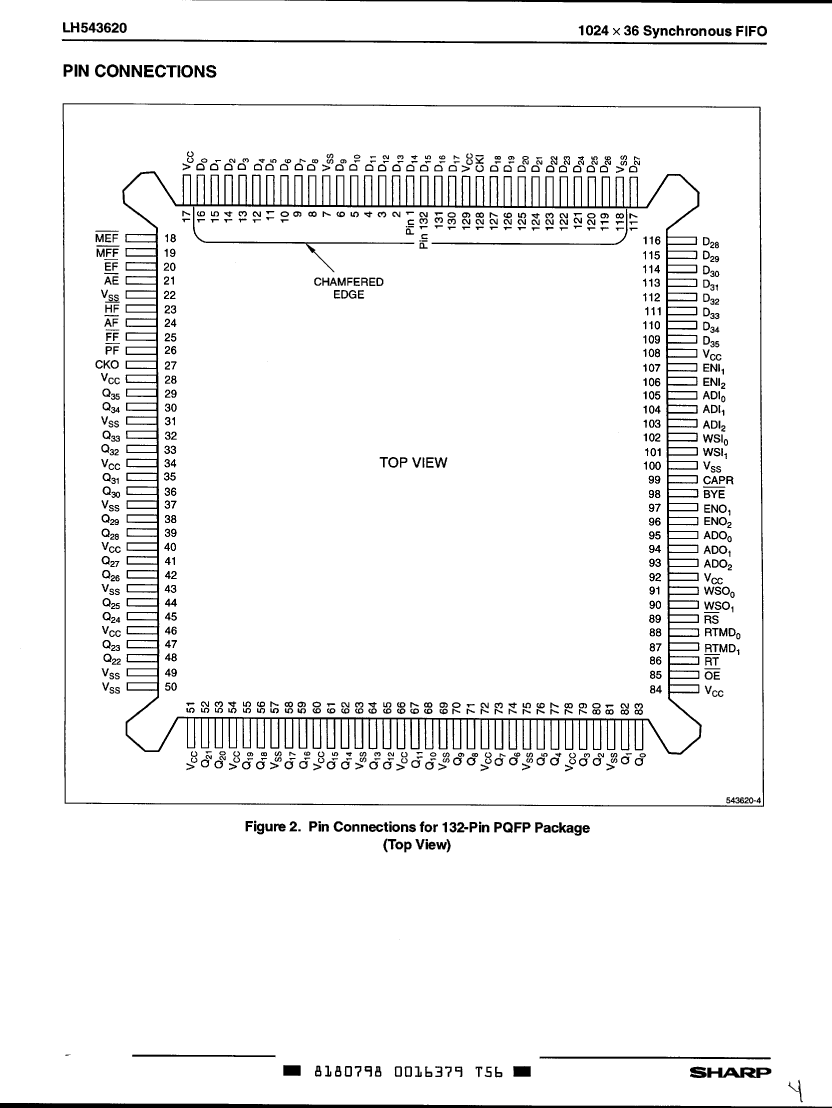

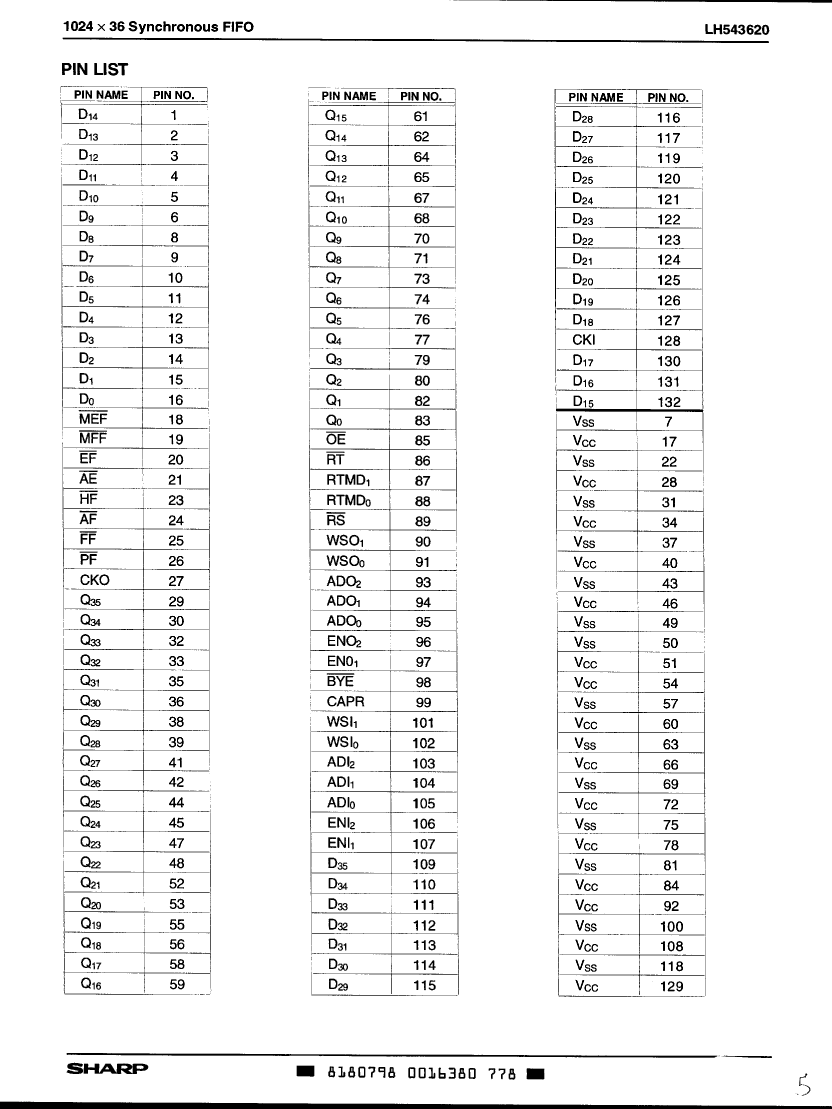

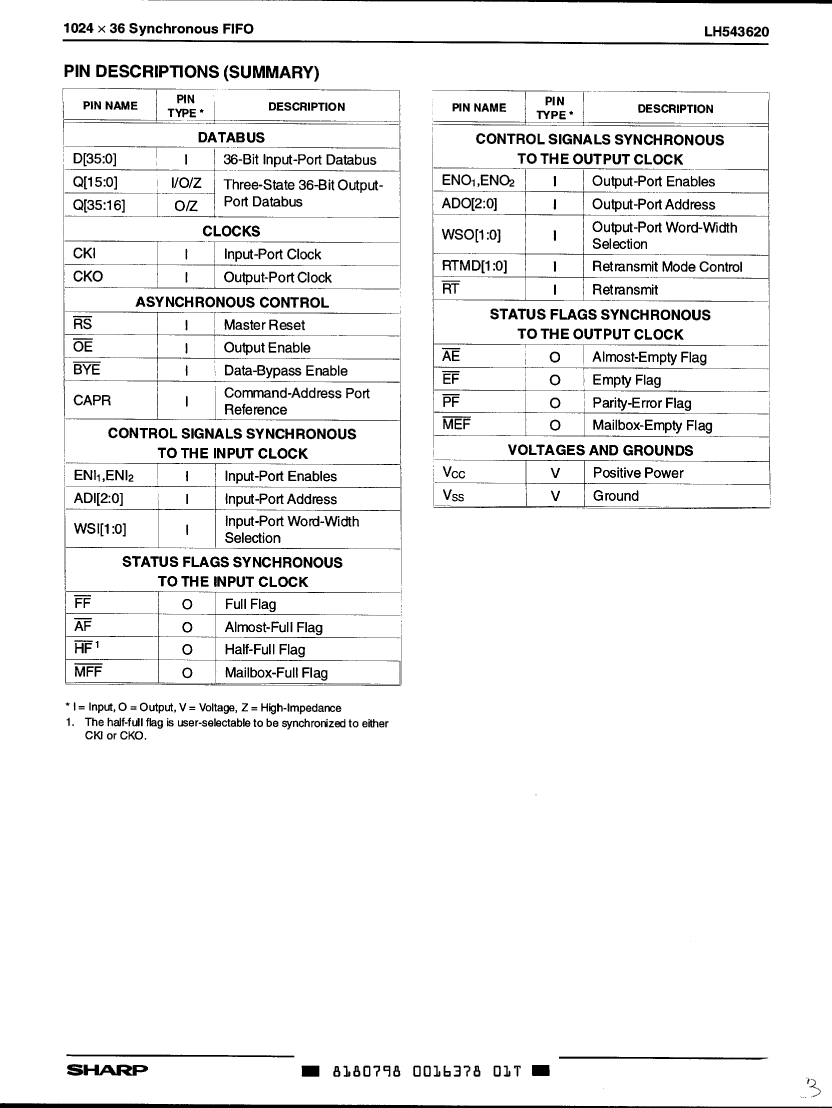

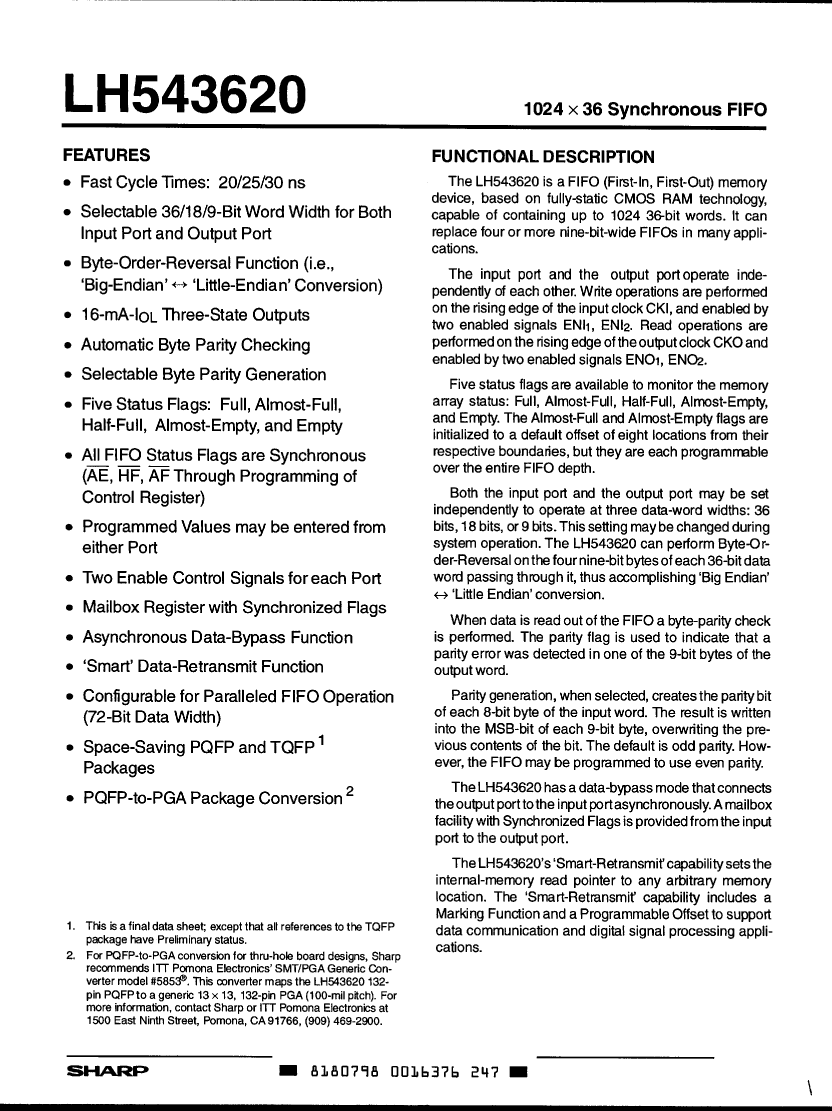

Preview

Download Datasheet

View All

LH543620P-15 Related Products

	LH543620P-15	LH543620Y-25	LH543620Y-20	LH543620Y-30	LH543620Y-15
Description	FIFO, 1KX36, 15ns, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132	FIFO, 1KX36, 25ns, Synchronous, CMOS, CPGA120, PGA-120	FIFO, 1KX36, 20ns, Synchronous, CMOS, CPGA120, PGA-120	FIFO, 1KX36, 30ns, Synchronous, CMOS, CPGA120, PGA-120	FIFO, 1KX36, 15ns, Synchronous, CMOS, CPGA120, PGA-120
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	BQFP,	PGA-120	PGA-120	PGA-120	PGA-120
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	15 ns	25 ns	20 ns	30 ns	15 ns
period time	15 ns	25 ns	20 ns	30 ns	15 ns
JESD-30 code	S-PQFP-G132	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120
JESD-609 code	e0	e0	e0	e0	e0
length	24.13 mm	34.544 mm	34.544 mm	34.544 mm	34.544 mm
memory density	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit
memory width	36	36	36	36	36
Number of functions	1	1	1	1	1
Number of terminals	132	120	120	120	120
word count	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1KX36	1KX36	1KX36	1KX36	1KX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	BQFP	PGA	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, BUMPER	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.7 mm	4.7 mm	4.7 mm	4.7 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	0.635 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	24.13 mm	34.544 mm	34.544 mm	34.544 mm	34.544 mm
Is Samacsys	N	N	N	N	-
Base Number Matches	1	1	1	1	-
