BA527 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> BA527

BA527: DescriptionAudio Amplifier, 0.8W, 1 Channel(s), 1 Func, Bipolar, PSIP9, SIP-9; CategoryAnalog mixed-signal IC Consumption circuit; File Size40KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA527 Overview

Audio Amplifier, 0.8W, 1 Channel(s), 1 Func, Bipolar, PSIP9, SIP-9

BA527 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SIP
package instruction	SIP, SIP9,.05
Contacts	9
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	46 dB
harmonic distortion	0.45%
JESD-30 code	R-PSIP-T9
length	21.8 mm
Number of channels	1
Number of functions	1
Number of terminals	9
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
Nominal output power	0.8 W
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP9,.05
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	7.2 mm
Maximum slew rate	25 mA
Maximum supply voltage (Vsup)	9 V
Minimum supply voltage (Vsup)	2.8 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Audio ICs

6V / 800mW single-channel power

amplifier

BA527

The BA527 is a monolithic power amplifier designed for portable cassette players and radio cassette players. With a

6V power supply, it has a rated output of 800mW into a 4Ω load (THD = 10%). It is a high-grade design that generates

almost no audible switching noise, and is ideal for high-end compact cassette players (including those with radio).

FApplications

Portable cassette recorders and radio cassette recorders

FFeatures

1) Rated power output is 800mW (V

= 6V and a 4Ω

load (THD = 10%). Maximum output is 1300mW.

2) Pin compatible with the Rohm BA526 power amplifi-

er, and can be interchanged to suit the application.

3) Compact 9-pin SIP package that does not require a

heatsink. Allows more compact set designs, and is

easy to mount.

4) High ripple rejection ratio (55dB) and generates al-

most no “pop” noise.

5) Excellent low voltage characteristics (starts operat-

ing at SV

2.8V).

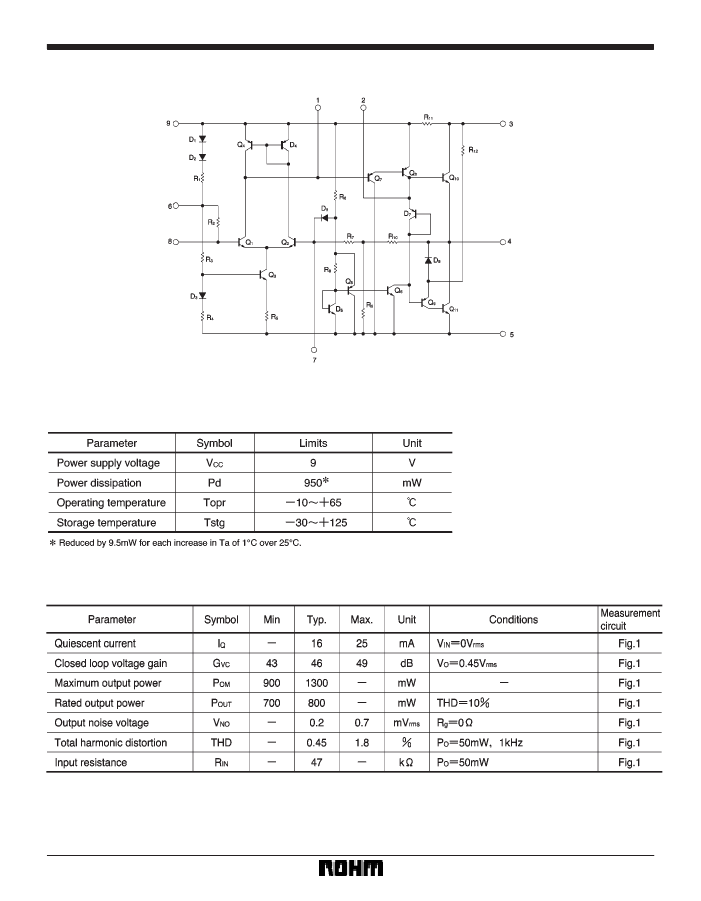

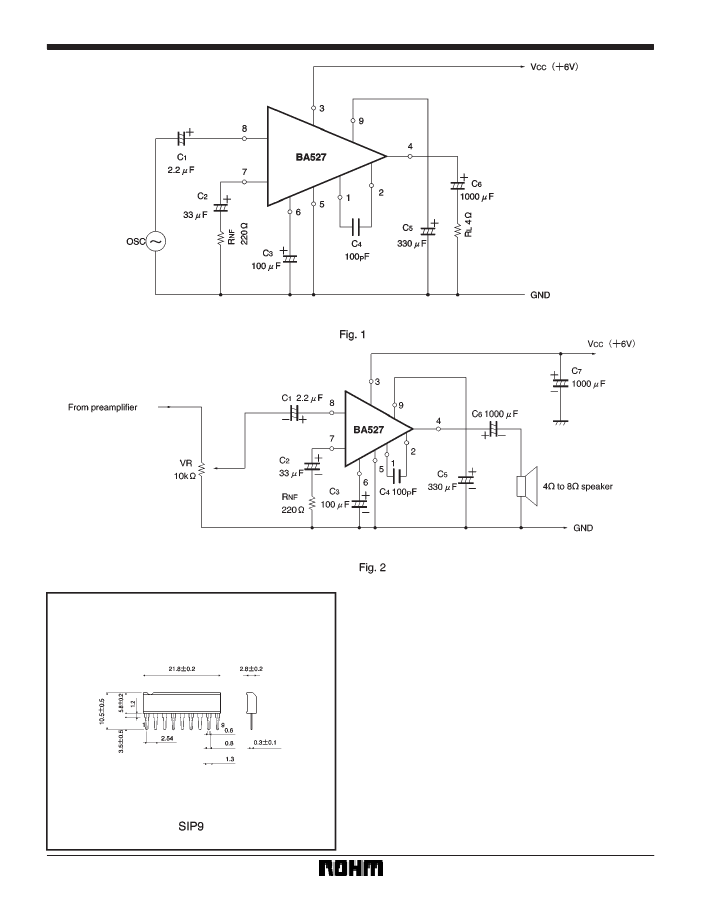

FBlock

diagram

383
