PA2745NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> PA2745NLT

PA2745NLT: DescriptionData Line Filter, 2 Function(s), 5A, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size1MB，6 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA2745NLT Overview

Data Line Filter, 2 Function(s), 5A, ROHS COMPLIANT PACKAGE-4

PA2745NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	0.00675 DC RESISTANCE MAX AVAILABLE
Maximum DC resistance	0.0067 Ω
filter type	DATA LINE FILTER
high	5.6 mm
inductance	130 µH
length	13.2 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	TR
physical size	L13.2XB13.2XH5.6 (mm)/L0.52XB0.52XH0.22 (inch)
Rated current	5 A
width	13.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

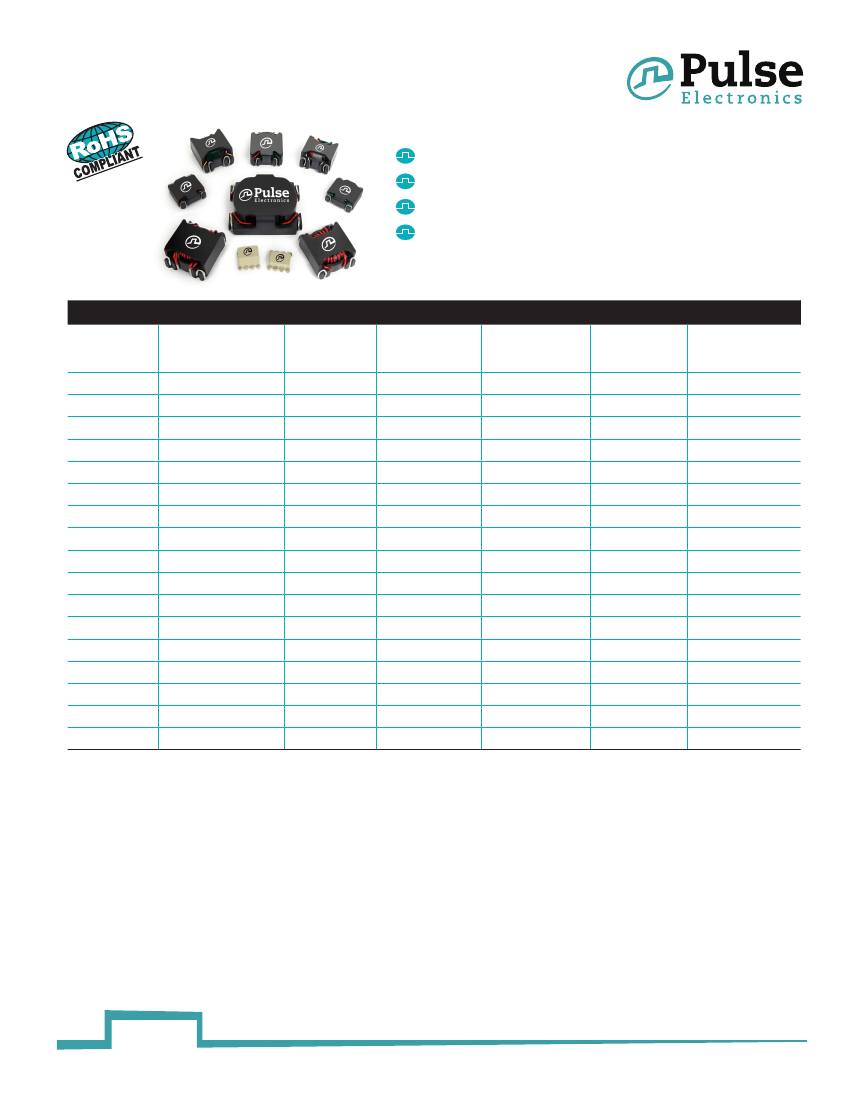

Pulse Jack

SMT Common Mode Chokes

1.0A to 14.0A

Electronics

Wide variety of package sizes available

1Arms to 14Arms current rating

Inductances from 61uH to 10mH

1500Vrms Hi-pot

Electrical Specifications at 25 deg C Temp Range -40 ° C to 130 ° C

Part Number

PA2742NL

PA2741NL

PA2752NL

PA2748NL

PA2743NL

PA2749NL

PA2744NL

PA2751NL

PA2745NL

PA2746NL

PA2750NL

PL2763NL

PA2756NL

PA2757NL

PA2754NL

PA2753NL

PA2755NL

Inductance

per Winding

(uH +30%/-35%)

397

10150

1125

383*

536

280

486

130*

96*

400

61*

484

1030

215

117

Irated

(Arms or Adc)

1.1

1.4

1.8

3.3

3.8

4.2

12.5

DCR per Winding

(mΩ Max)

210

17.1

13.2

6.75

4.3

9.4

2.9

7.7

9.75

3.75

1.95

Leakage Inductance

(uH Min)

0.6

0.3

1.2

0.7

0.4

0.25

1.25

0.15

1.5

0.5

0.15

0.3

Package Name

High Shasta

Low Shasta

LCCI-50

Polecat

LCCI-37

Polecat

LCCI-44LP

Polecat

LCCI-44

Polecat

LCCI-50

HCCI-80

Makeni

LCCI-50

Makeni

Package Size

LxWxH

(mm Max)

9.1 x 8.9 x 7.9

9.1 x 8.9 x 3.8

19.6 x 17.0 x 9.9

12.7 x 13.2 x 5.6

13.0 x 13.0 x 5.6

16.4 x 14.2 x 8.9

13.0 x 13.0 x 5.6

18.2 x 15.0 x 7.6

13.2 x 13.2 x 5.6

18.2 x 15.0 x 10.0

13.5 x 13.5 x 5.6

19.6 x 17.0 x 9.9

27.9 x 25.4 x 12.7

21.1 x 19.1 x 11.2

19.6 x 17.0 x 9.9

21.1 x 19.1 x 11.2

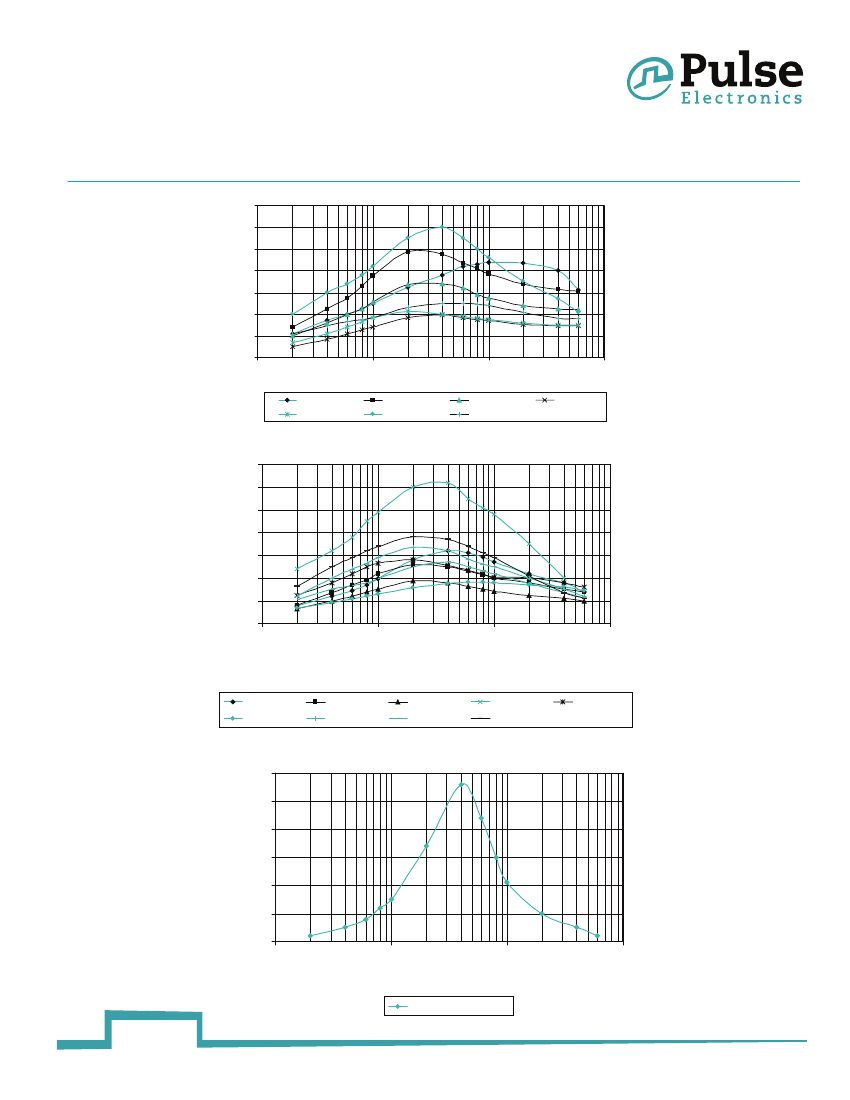

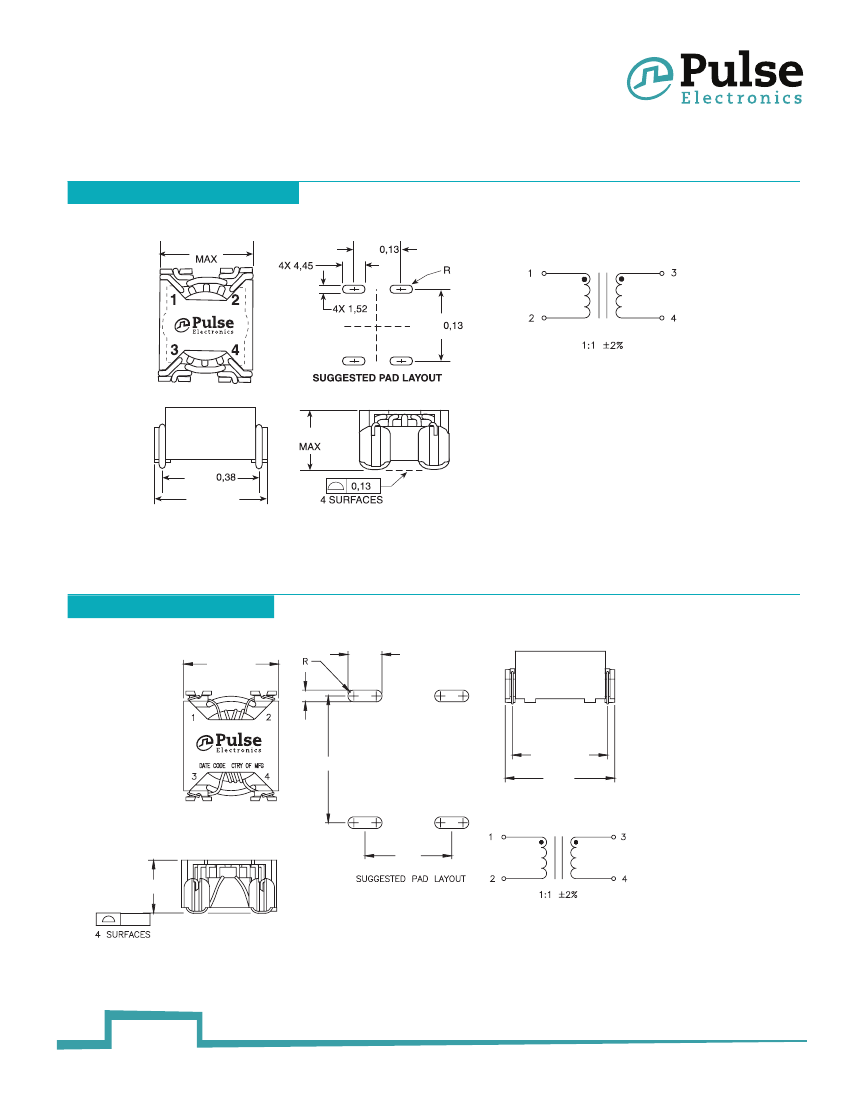

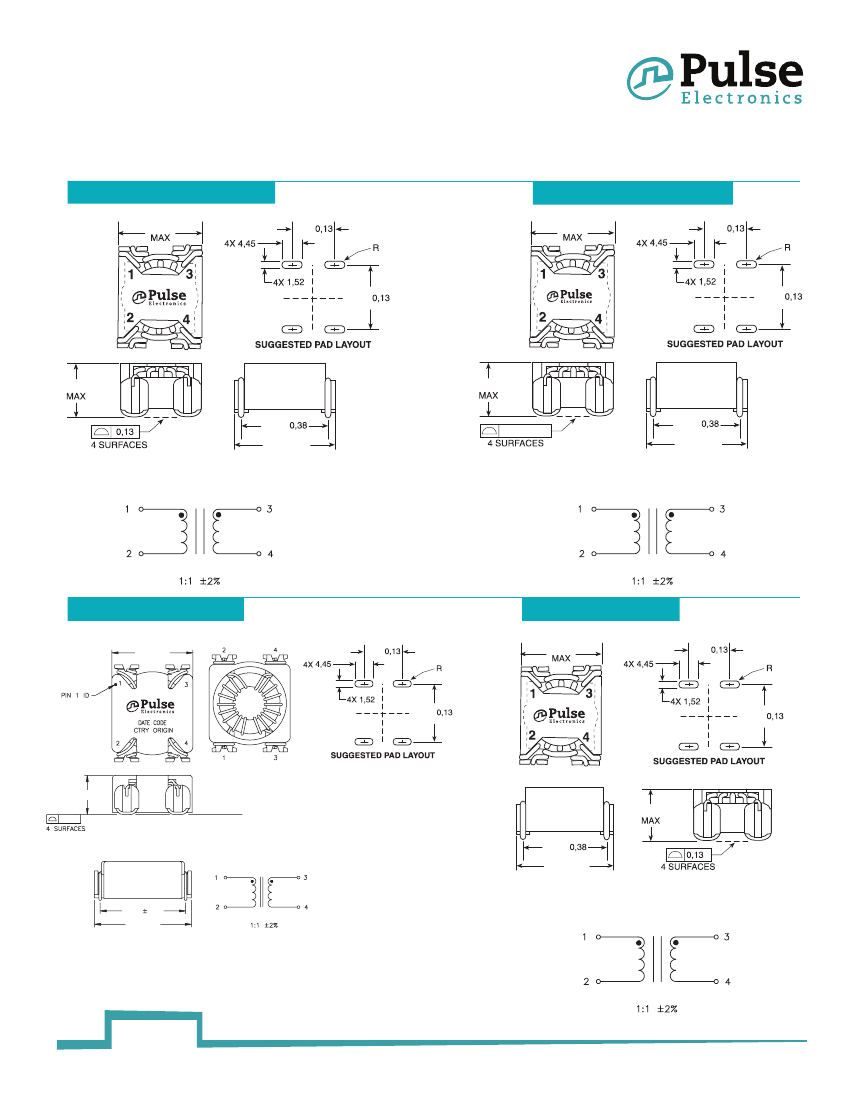

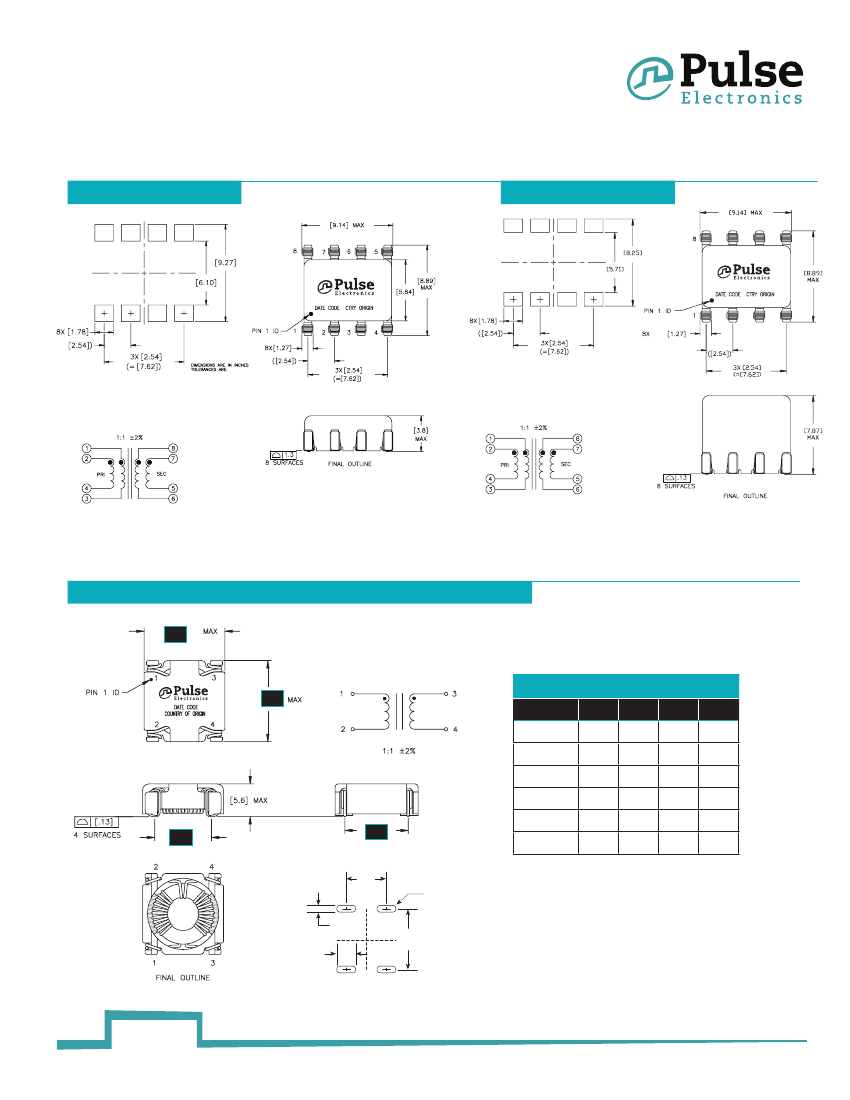

NOTE:

1. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 40C.

2. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range.

3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PA2741NL becomes PA2741NLT). Pulse complies to industry standard tape and reel specification EIA481.

4. Components identified by an asterisk have an inductance tolerance of +/- 35%. All other components are +30/-35%.

pulseelectronics.com

P688.D (4/14)
