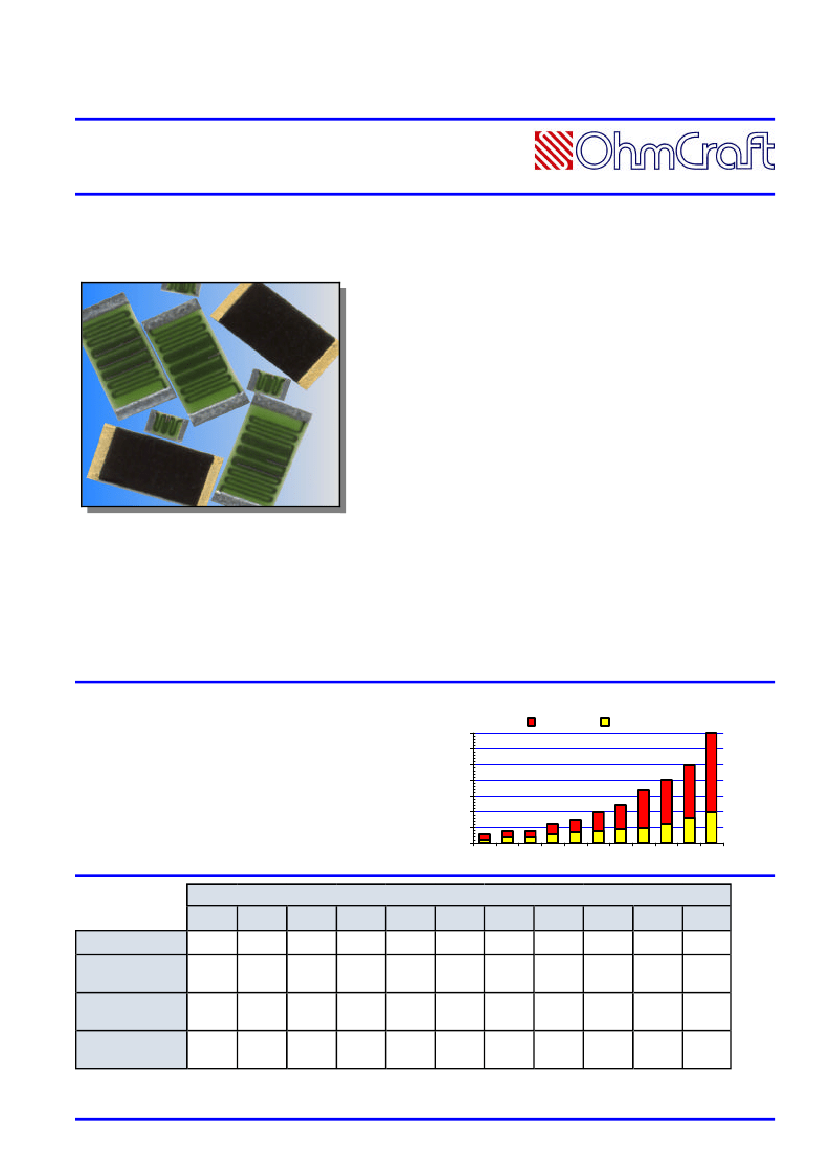

MCH Series

Military Grade High Voltage Chip Resistors

OhmCraft’s revolutionary fine line, thick film technology, called

FineFilm,

provides an

entirely new level of stability and voltage ratings in chip resistors. Our MCH series of resistors meets

the same high standards as our HVC series, but with the added feature of an extended temperature range.

♦

The usual hybrid technologies for manufacturing resistors

depend upon composite materials that have limitations.

Traditional thick-film methods severely limit

performance characteristics and thin-film methods are

limited in attainable ohmic values. The

FineFilm

method

of manufacturing offers the best characteristics of both

methods, plus adds many unique features.

FineFilm

resistors feature a longer, high-aspect ratio trace of lower

resistivity film. The combination of long line, high-

aspect ratio, and higher conductivity film, give

FineFilm

Voltage Ratings to 40,000 Volts

Ohmic Values to 1,000 Gigohms

Ultra High Stability

Tight Tolerances ( to 0.1% )

Low TCR and VCR

Very Low noise

Extended Temperature Range

(-55ºC to +125ºC)

♦

Custom Configurations

resistors unmatched design efficiency, versatility, linearity,

stability and low noise. The

FineFilm

method allows

control of process parameters to very tight tolerances. The

result is chip resistors with outstanding stability and high

voltage ratings.

Using the same method, a complete line of

FineFilm

leaded

resistors, dividers and networks are manufactured. For

information on those products, please refer to the

appropriate data sheets.

Maximum Continuous Voltage:

FineFilm

high voltage chip resistors offer voltage

ratings that are much higher than conventional screen

printed resistors of the same size and resistive value.

3500

3000

Max. Voltage

Maximum Continuous Voltage Ratings

OhmCraft

Conventional

2500

2000

1500

1000

500

0402 0503 0603 0805 1005 1206 1505 2010 2208 2512 3512

Ratings

0402

Max. Power (W)

Max. Voltage

(V)

(In air)

Max. Voltage (V)

(Potted)

Resistance Range

(ohms)

0.040

300

4000

1K-

20G

0503

0.050

350

6000

1K-

200G

0603

0.060

400

6000

1K-

300G

0805

0.200

600

10K

1K-

350G

1005

0.250

750

13K

1K-

450G

Case Size

1206

0.330

1000

16K

1K-

500G

1505

0.330

1200

19K

5K-

750G

2010

1.000

1700

30K

10K-

2208

0.750

2000

35K

5K-

1.5T

2512

2.000

2500

40K

10K-

2.0T

3512

3.000

3500

50K

10K-

2.0T

Note 1: Other standard & custom case sizes are available including: 0403, 0502, 0504, 1004, 1210 & 2510

Note 2: The continuous maximum voltage applied cannot exceed the maximum power rating.

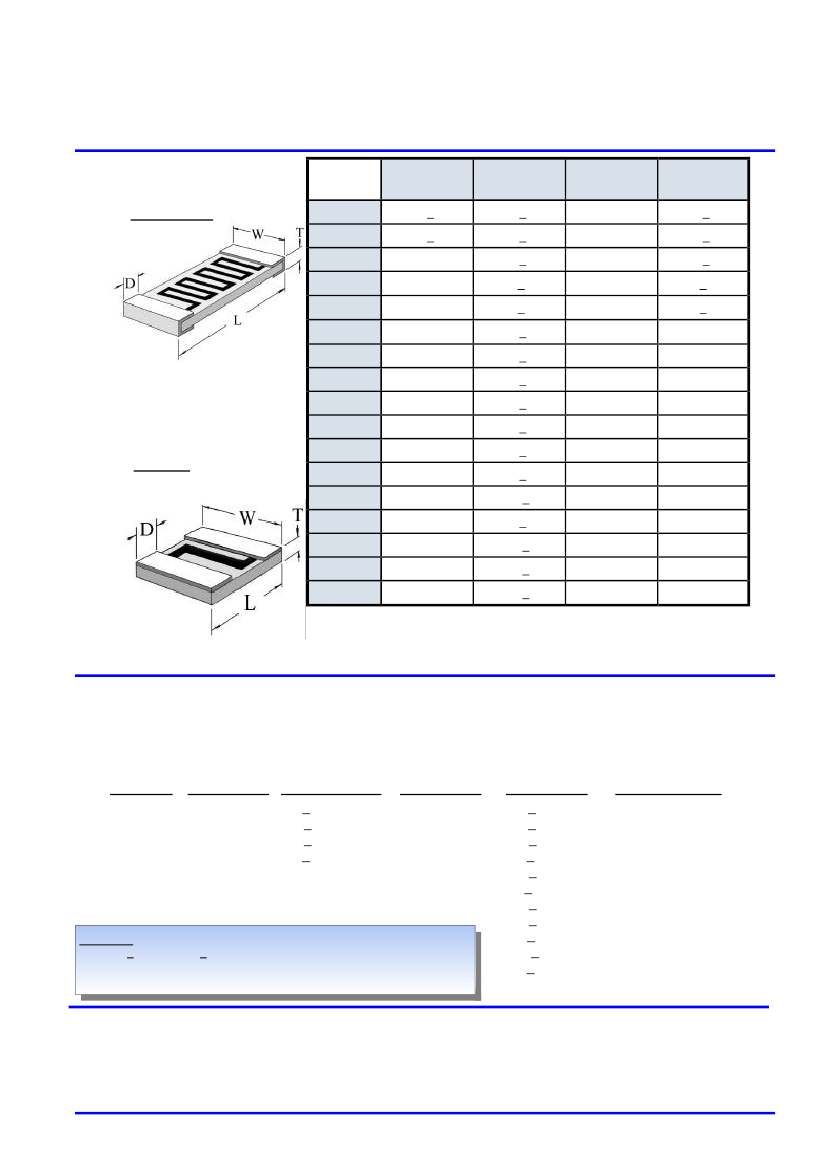

MCH0211

Dimensions

Wrap-around

Type B & U

terminations

Case Size

0402

0403

0502

0503

0504

0603

0805

Length (L)

(mils)

40 + 5

50 (+10,-5)

55 (+10,-5)

50 (+10,-5)

63 (+10,-5)

79 (+10,-5)

100 (+10,-5)

126 (+10,-5)

150 (+10,-5)

200 (+10,-5)

225 (+10,-5)

250 (+10,-5)

350 (+10,-5)

Width (W)

(mils)

20 + 3

30 + 5

25 + 5

30+ 5

40+ 5

31 + 5

50 + 5

40 + 5

50 + 5

63 + 5

98 + 5

50 + 5

100 + 5

75 + 5

100 + 5

125 + 5

Thickness (T)

Max. (mils)

Pad (D)

(mils)

10 (+ 5)

6 (+ 2)

10 (+10,-5)

15 (+10,-5)

20 (+10,-5)

20(+10,-5)

20 (+10,-5)

L = Length

W = Width

T = Thickness

D = Pad dimension

Bondable

Type G & S

terminations

1004

1005

1206

1210

1505

2010

2208

2510

2512

3512

How to build a part number….

Type

Case size

TCR

Value

Tolerance

Termination

MCH

High Voltage See dimension E = + 25ppm/ºC

Chip

table above

H = + 50ppm/ºC

K = + 100ppm/ºC

L = + 200ppm/ºC

Note 1: TCR measured from –55

C to +125

Note 2: Value is dependent on case size.

Note 3: Tolerance is dependent on case size & value.

Resistance value

expressed as a four

digit number where

the first three num-

bers are the signifi-

cant value, and the

forth number is the

number of zeros.

Example:

For a High Voltage, 125 Meg-ohm resistor with case size of 0805,

a TCR of + 50 ppm/C, a +1% tolerance, and wrap-around solderable

terminations - the part number would be:

MCH0805H1256FB

B = + 0.1 %

C = + 0.25 %

D = + 0.5 %

F = + 1.0 %

G = + 2.0%

J = + 5.0 %

K = + 10 %

N = + 15 %

L = + 20 %

M = + 30 %

P = + 50 %

B =

Solderable wrap-around

(solder coated with nickel

barrier)

S =

Solderable single surface

(flip-chip)

G =

Wire Bond able (gold)

U =

Bondable wraparound

(gold)

RHOPOINT COMPONENTS

Hurst Green, Oxted, Surrey, RH8 9AX

Tel: +44 (0) 1883 717988

Fax: +44 (0) 1883 712938

Email: sales@rhopointcomponents.com

Web: www.rhopointcomponents.com

MCH0211
