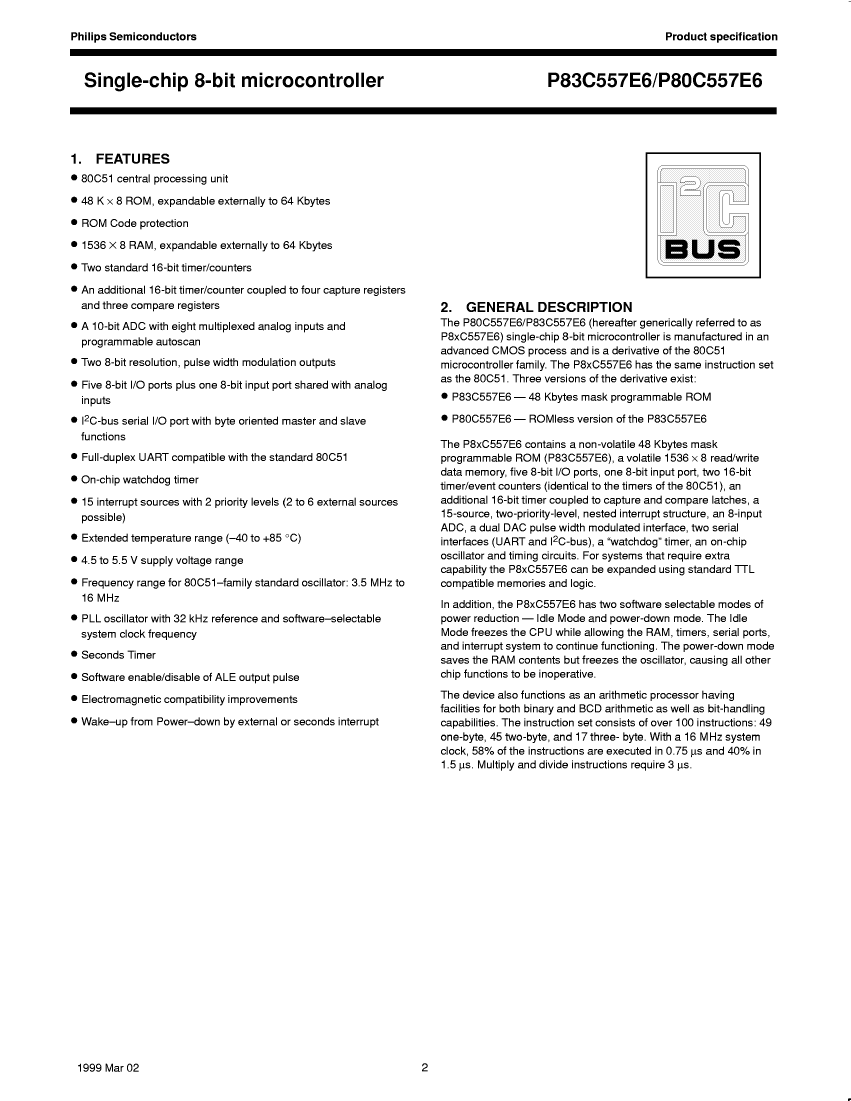

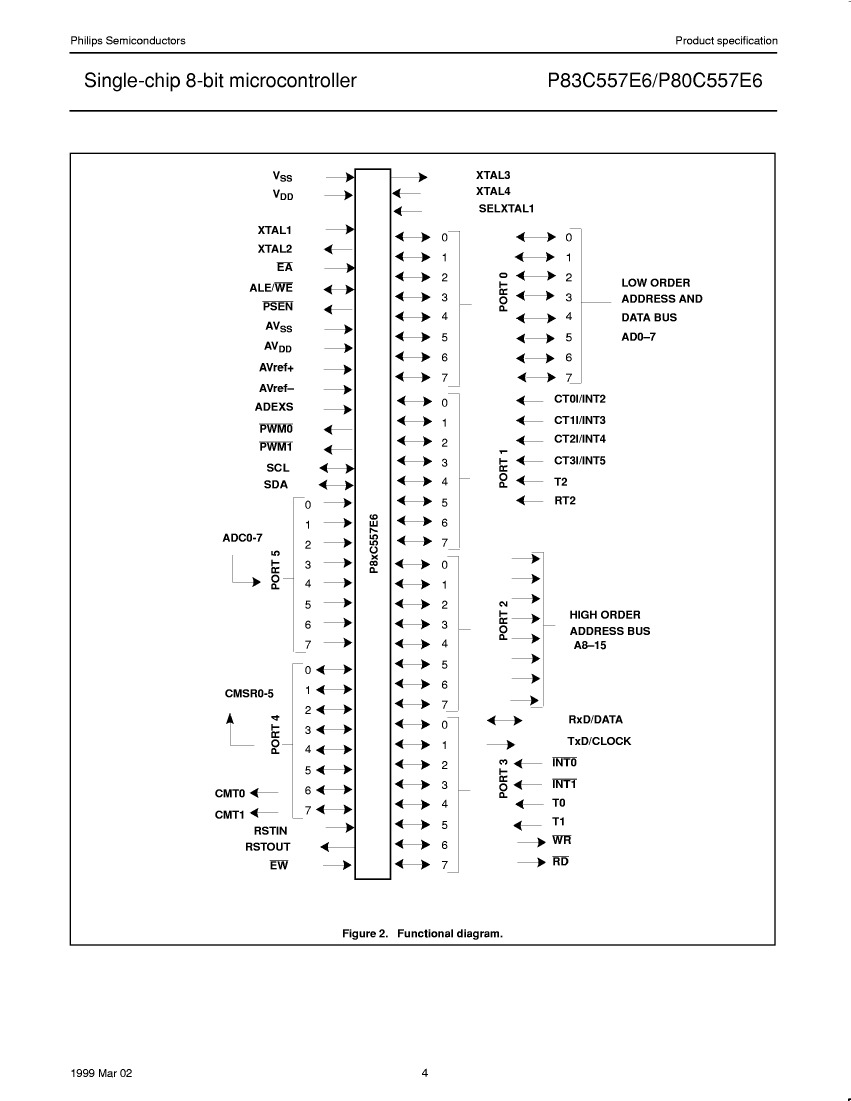

IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, QFP-80, Microcontroller

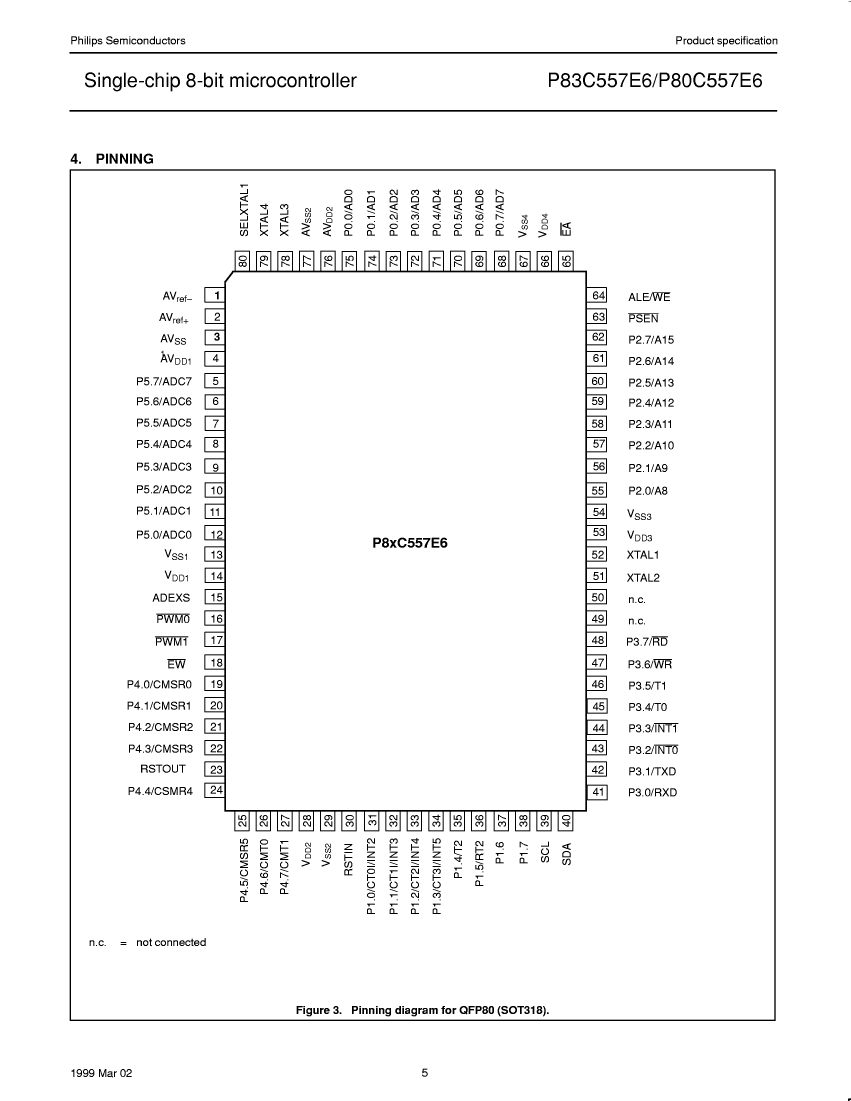

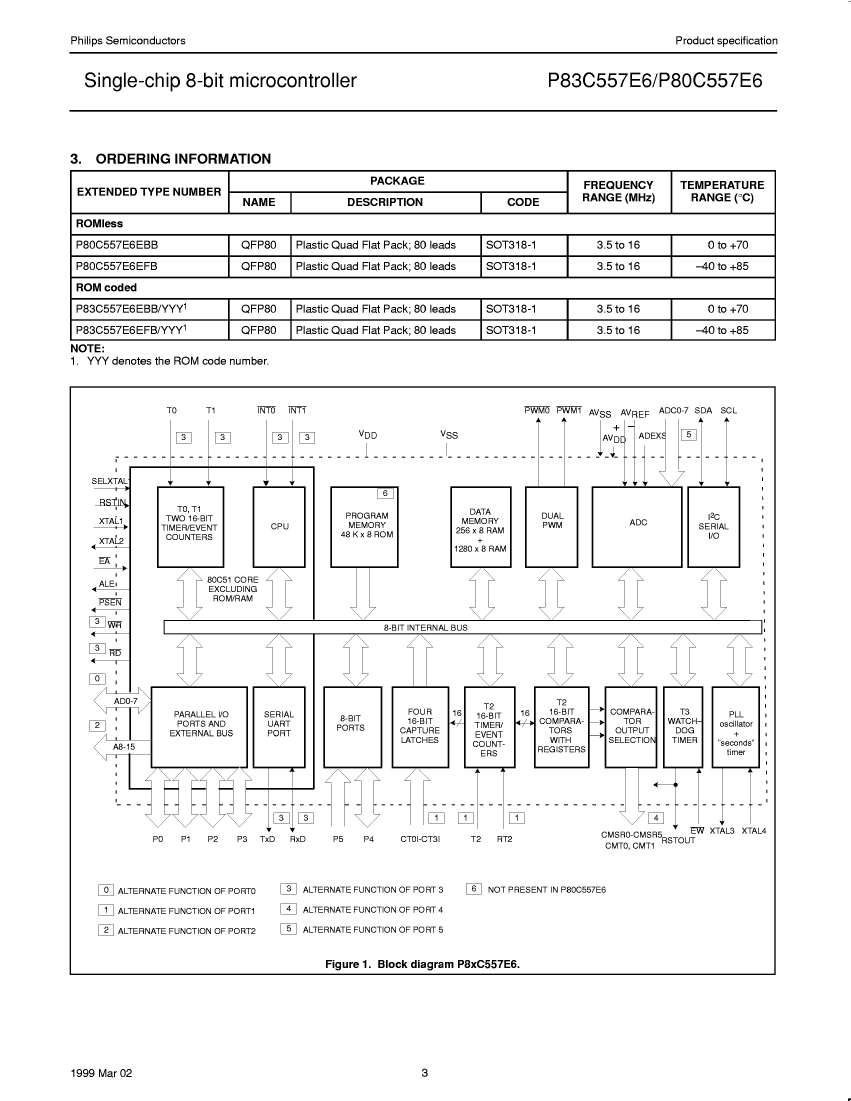

| Parameter Name | Attribute value |
| Parts packaging code | QFP |
| package instruction | QFP, QFP80,.7X.9,32 |
| Contacts | 80 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Has ADC | YES |
| Address bus width | 16 |
| bit size | 8 |
| CPU series | 8051 |
| maximum clock frequency | 16 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| JESD-30 code | R-PQFP-G80 |
| JESD-609 code | e3 |
| length | 20 mm |
| Number of I/O lines | 48 |
| Number of terminals | 80 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Encapsulate equivalent code | QFP80,.7X.9,32 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 1536 |
| rom(word) | 0 |
| Maximum seat height | 3.3 mm |
| speed | 16 MHz |
| Maximum slew rate | 47.2 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | TIN |
| Terminal form | GULL WING |
| Terminal pitch | 0.8 mm |
| Terminal location | QUAD |
| width | 14 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Base Number Matches | 1 |
| P80C557E6EBB | P83C557E6EFB/YYY | P83C557E6EBB/YYY | |
|---|---|---|---|
| Description | IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, QFP-80, Microcontroller | IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, QFP-80, Microcontroller | IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, QFP-80, Microcontroller |
| Parts packaging code | QFP | QFP | QFP |
| package instruction | QFP, QFP80,.7X.9,32 | QFP, QFP80,.7X.9,32 | QFP, QFP80,.7X.9,32 |
| Contacts | 80 | 80 | 80 |
| Reach Compliance Code | compliant | compliant | compliant |
| Is Samacsys | N | N | N |
| Has ADC | YES | YES | YES |
| Address bus width | 16 | 16 | 16 |
| bit size | 8 | 8 | 8 |
| CPU series | 8051 | 8051 | 8051 |
| maximum clock frequency | 16 MHz | 16 MHz | 16 MHz |
| DAC channel | NO | NO | NO |
| DMA channel | NO | NO | NO |
| External data bus width | 8 | 8 | 8 |
| JESD-30 code | R-PQFP-G80 | R-PQFP-G80 | R-PQFP-G80 |
| JESD-609 code | e3 | e3 | e3 |
| length | 20 mm | 20 mm | 20 mm |
| Number of I/O lines | 48 | 48 | 48 |
| Number of terminals | 80 | 80 | 80 |
| Maximum operating temperature | 70 °C | 85 °C | 70 °C |
| PWM channel | YES | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QFP | QFP | QFP |
| Encapsulate equivalent code | QFP80,.7X.9,32 | QFP80,.7X.9,32 | QFP80,.7X.9,32 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | FLATPACK |
| power supply | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 1536 | 1536 | 1536 |
| rom(word) | - | 49152 | 49152 |
| Maximum seat height | 3.3 mm | 3.3 mm | 3.3 mm |
| speed | 16 MHz | 16 MHz | 16 MHz |
| Maximum slew rate | 47.2 mA | 47.2 mA | 47.2 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | INDUSTRIAL | COMMERCIAL |
| Terminal surface | TIN | TIN | TIN |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.8 mm | 0.8 mm | 0.8 mm |
| Terminal location | QUAD | QUAD | QUAD |
| width | 14 mm | 14 mm | 14 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Base Number Matches | 1 | 1 | 1 |
| ROM programmability | - | MROM | MROM |
