IRGPC46 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRGPC46

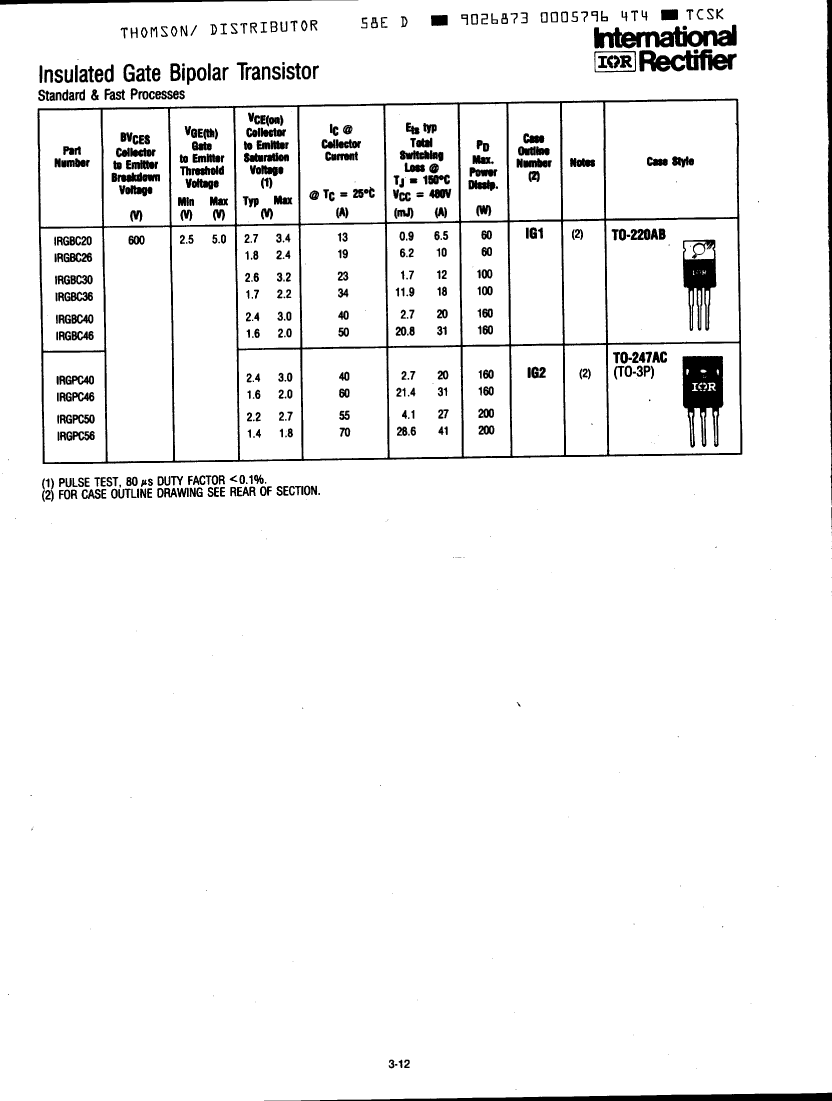

IRGPC46: DescriptionInsulated Gate Bipolar Transistor, 60A I(C), 600V V(BR)CES, N-Channel; CategoryDiscrete semiconductor The transistor; File Size48KB，1 Pages; ManufacturerThomson Consumer Electronics

Download Datasheet Parametric Compare View All

IRGPC46 Overview

Insulated Gate Bipolar Transistor, 60A I(C), 600V V(BR)CES, N-Channel

IRGPC46 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	60 A
Collector-emitter maximum voltage	600 V
Gate emitter threshold voltage maximum	5 V
Gate-emitter maximum voltage	20 V
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	160 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

IRGPC46 Related Products

	IRGPC46	IRGBC20	IRGBC30	IRGBC26	IRGBC36	IRGBC46	IRGPC56	IRGBC40
Description	Insulated Gate Bipolar Transistor, 60A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 13A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 23A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 19A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 34A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 50A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 70A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 40A I(C), 600V V(BR)CES, N-Channel
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	60 A	13 A	23 A	19 A	34 A	50 A	70 A	40 A
Collector-emitter maximum voltage	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
Gate emitter threshold voltage maximum	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Gate-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	160 W	60 W	100 W	60 W	100 W	160 W	200 W	160 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	-	Thomson Consumer Electronics	-	Thomson Consumer Electronics	Thomson Consumer Electronics	Thomson Consumer Electronics	Thomson Consumer Electronics	Thomson Consumer Electronics
