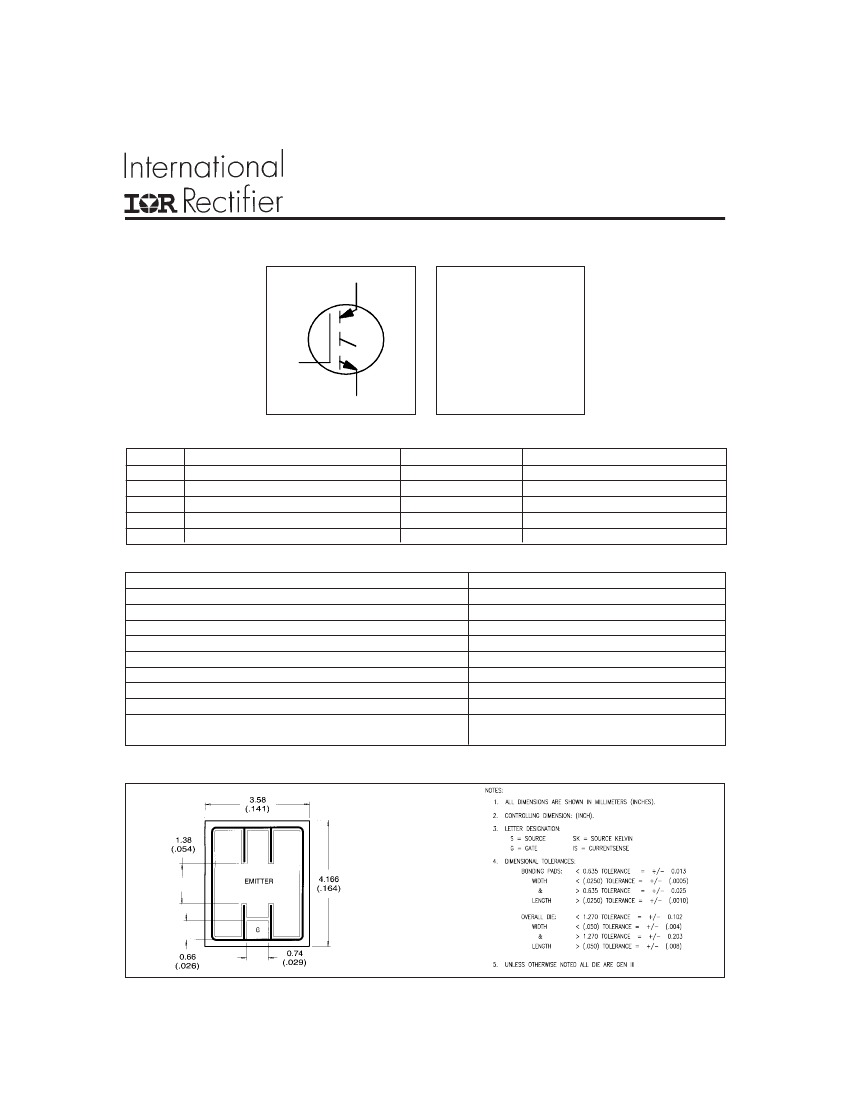

PD- 91771

IRG4CC30UB

IRG4CC30UB IGBT Die in Wafer Form

600 V

Size 3

Ultra-Fast Speed

6" Wafer

Electrical Characteristics ( Wafer Form )

Parameter

CE (on)

(BR)CES

GE(th)

CES

GES

Description

Collector-to-Emitter Saturation Voltage

Colletor-to-Emitter Breakdown Voltage

Gate Threshold Voltage

Zero Gate Voltage Collector Current

Gate-to-Emitter Leakage Current

Guaranteed (Min/Max)

4.5V Max.

600V Min.

3.0V Min., 6.0V Max.

300 µA Max.

± 11µA Max.

Test Conditions

= 10A, T

= 25°C, V

= 15V

= 25°C, I

CES

= 250µA, V

= 0V

= V

, T

=25°C, I

=250µA

= 25°C, V

= 600V

= 25°C, V

= +/- 20V

Mechanical Data

Norminal Backmetal Composition, Thickness:

Norminal Front Metal Composition, Thickness:

Dimensions:

Wafer Diameter:

Wafer thickness:

Relevant Die Mechanical Dwg. Number

Minimum Street Width

Reject Ink Dot Size

Ink Dot Location

Recommended Storage Environment:

Reference Standard IR packaged part ( for design ) : IRG4BC30U

Cr-Ni / V-Ag (1 kA-2kA-2.5kA )

99% Al, 1% Si (3 microns)

0.141" x 0.164"

150mm, with std. < 100 > flat

.015" + / -.003"

01-5225

100 Microns

0.25mm Diameter Minimum

Consistent throughout same wafer lot

Store in original container, in dessicated

nitrogen, with no contamination

Die Outline

10/2/98
