R166262000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R166262000

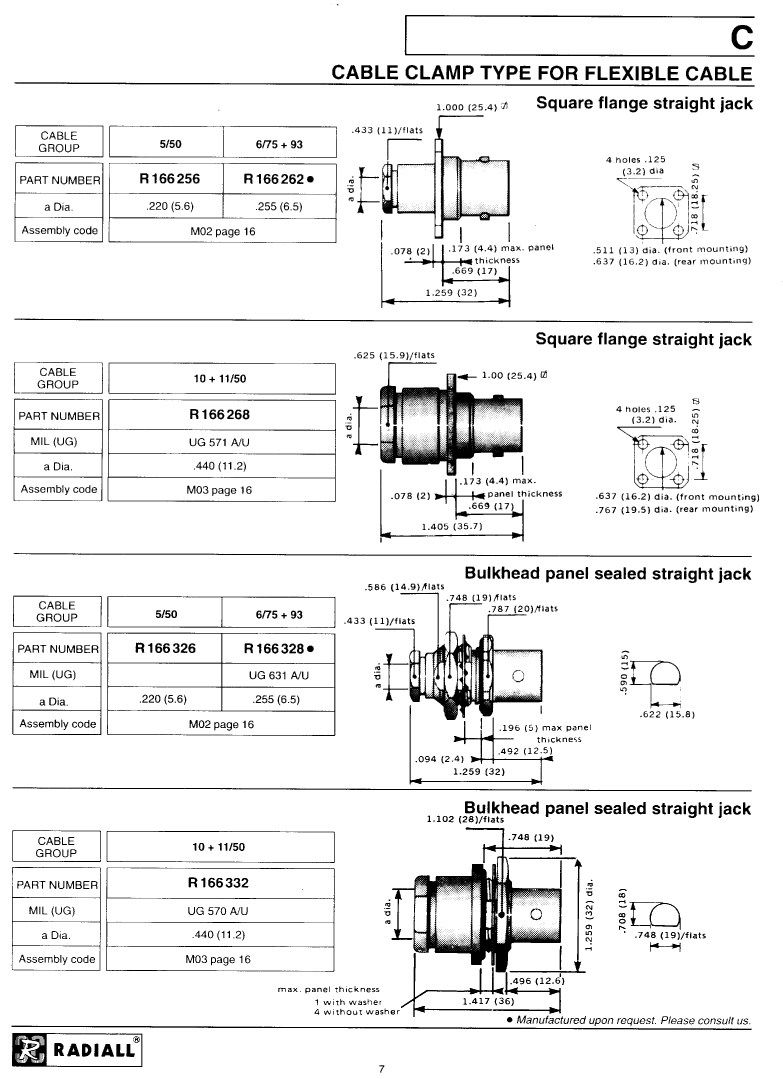

R166262000: DescriptionRF C Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack; CategoryThe connector The connector; File Size148KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

R166262000 Overview

RF C Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack

R166262000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARDS:MIL-C-39012A; MIL-C-3898A; MIL-C-23329A; IEC 169-7, VSWR MAX AT 3 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF C CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	C
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

R166262000 Related Products

	R166262000	R166168000	R166018000	R166218000
Description	RF C Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF C Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF C Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF C Connector, Female, Cable Mount, Clamp Terminal, Jack,
Reach Compliance Code	unknown	compliant	compliant	_compli
Other features	STANDARDS:MIL-C-39012A; MIL-C-3898A; MIL-C-23329A; IEC 169-7, VSWR MAX AT 3 GHZ	STANDARDS:MIL-C-39012A; MIL-C-3898A; MIL-C-23329A; IEC 169-7, VSWR MAX AT 3 GHZ	STANDARDS:MIL-C-39012A; MIL-C-3898A; MIL-C-23329A; IEC 169-7, VSWR MAX AT 3 GHZ	STANDARDS:MIL-C-39012A; MIL-C-3898A; MIL-C-23329A; IEC 169-7, VSWR MAX AT 3 GHZ
Body/casing type	JACK	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	MALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	PTFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO	NO
Termination type	CLAMP	CLAMP	CLAMP	CLAMP
voltage standing wave ratio	1.22	1.22	1.22	1.22
Is it lead-free?	-	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	Radiall	Radiall	Radiall
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
