Features (BLM_P Series)
The chip ferrite beads BLM series is designed to
function nearly as a resistor at noise frequencies,
which greatly reduces the possibility of resonance and
leaves signal wave forms undistorted.
The BLM series is effective in circuits without stable
ground lines because the BLM series does not need a
The BLM_P series can be used in high current circuits
due to its low DC resistance. It can match power lines
to a maximum of 6A DC.
s
Equivalent Circuit
1
(Resistance element becomes dominant
at high frequencies.)
BLM15P Series (0402 Size)
0.25±0.1
1.0±0.05
0.5±0.05
BLM15P Series
(in mm)
Part Number
BLM15PG100SN1
Impedance
(at 100MHz/20°C)
(ohm)
10 (Typ.)
Rated Current
(mA)
1000
DC Resistance (max.)
(ohm)
0.05
Operating
Temperature Range
(°C)
-55 to +125
s
Impedance-Frequency Characteristics
BLM15PG100SN1
20
15
Z
Impedance (Ω)
R
10
5
X
0
1
10
Frequency (MHz)
100
1000
48
0.5±0.05
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C31E13.pdf 05.3.14

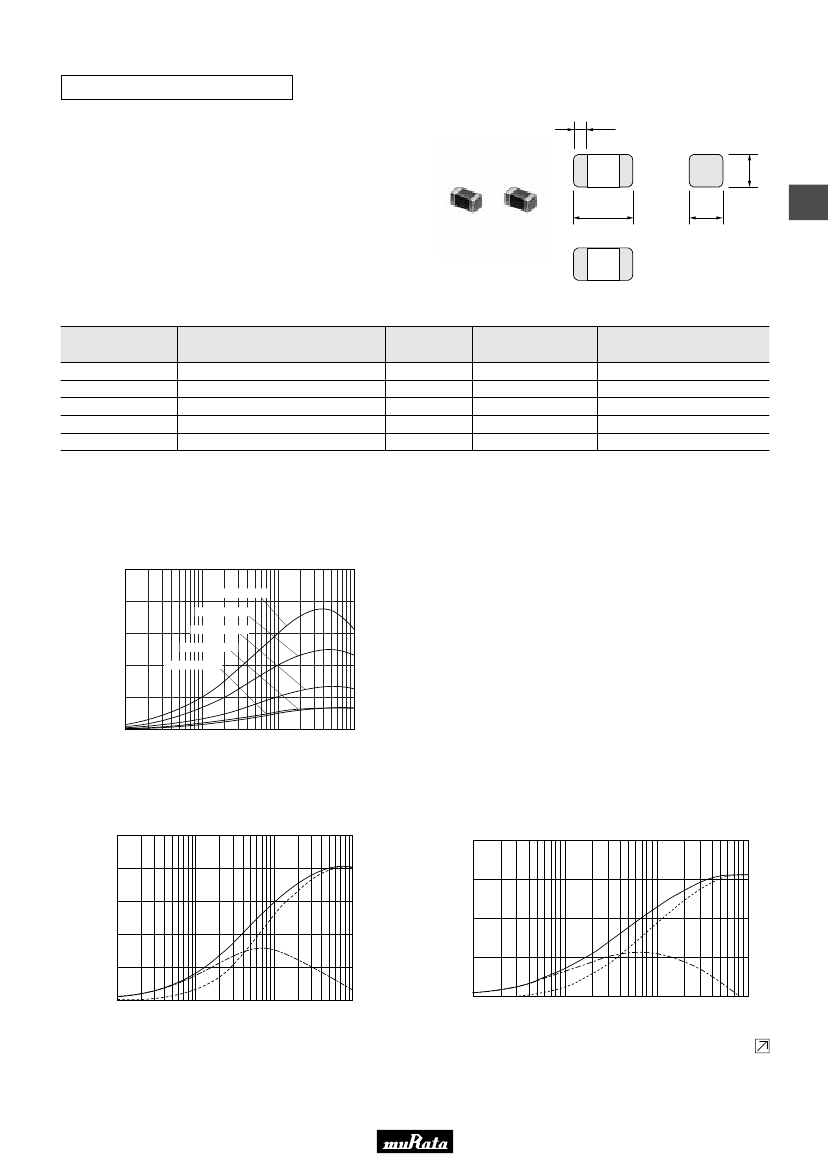

BLM18P Series (0603 Size)
0.4±0.2
0.8±0.15
1.6±0.15
0.8±0.15
1
BLM18P Series
(in mm)
Part Number
BLM18PG300SN1
BLM18PG330SN1
BLM18PG600SN1
BLM18PG121SN1
BLM18PG181SN1
Impedance
(at 100MHz/20°C)
(ohm)
30 (Typ.)
33
±25%
60 (Typ.)
120
±25%
180
±25%
Rated Current
(mA)
1000
3000
500
2000
1500
DC Resistance (max.)
(ohm)
0.05
0.025
0.10
0.05
0.09
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
At rated current higher than 1500mA, derating is required.
Please refer p. 55, "Derating of Rated Current".
s

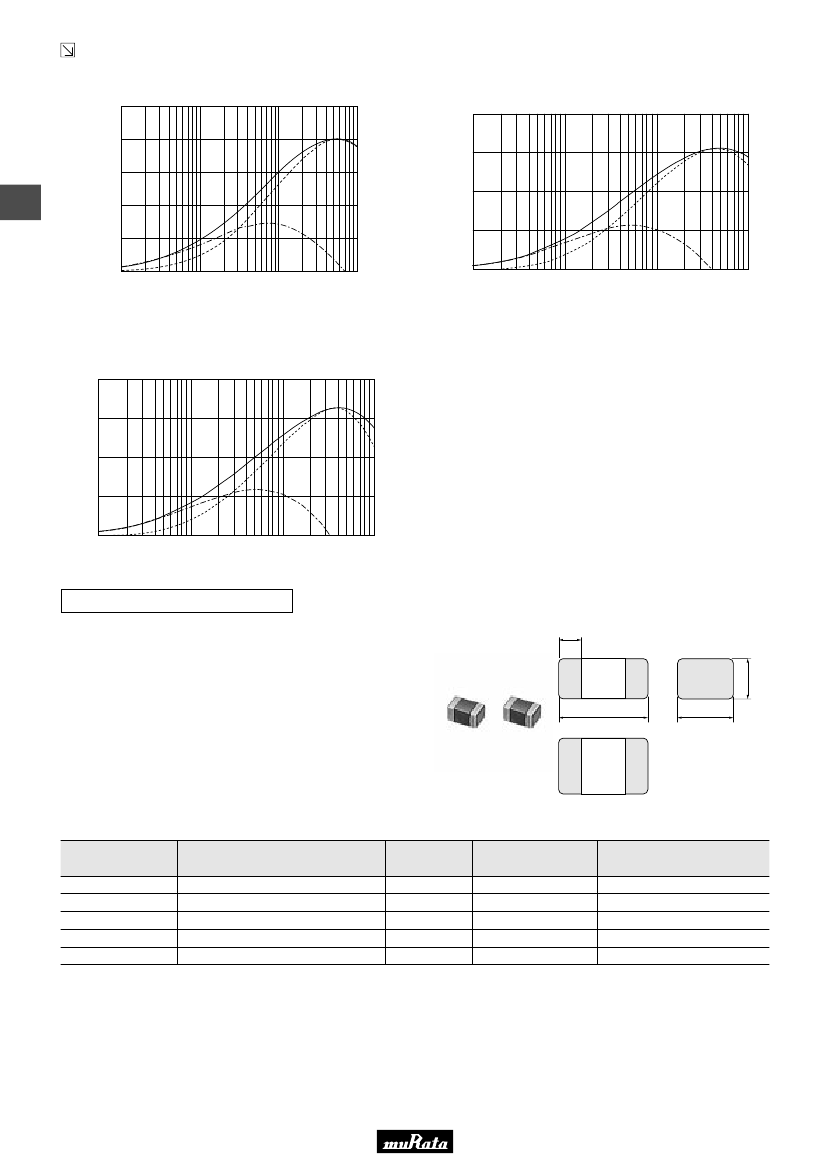

Impedance-Frequency (Typical)
BLM18P Series
300
BLM18PG181SN1
240
BLM18PG121SN1
Impedance (Ω)
180
BLM18PG600SN1
BLM18PG330SN1
120
BLM18PG300SN1
60
0
1
10
100
Frequency (MHz)
1000
s
Impedance-Frequency Characteristics
BLM18PG300SN1
50
60
BLM18PG330SN1
40
Z
Impedance (Ω)
30
R
20
X
Impedance (Ω)
45
Z
30
R
15
10
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
Continued on the following page.
49
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C31E13.pdf 05.3.14
Continued from the preceding page.
s

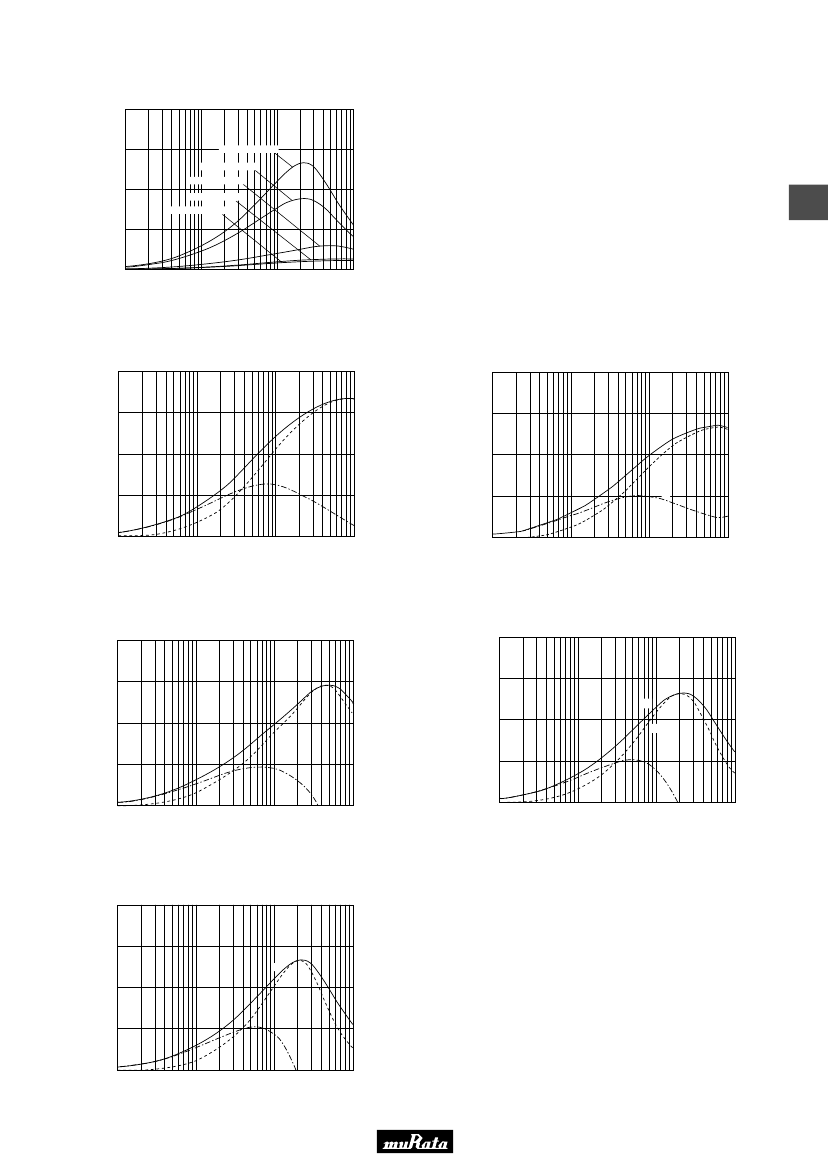

Impedance-Frequency Characteristics
BLM18PG600SN1
100
200
BLM18PG121SN1
80
Z
Impedance (Ω)
60
R
40
X
50
20
X
Impedance (Ω)
150
Z
R
100
1
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
BLM18PG181SN1
280
210
Z
Impedance (Ω)
R
140
70
X
0
1
10
Frequency (MHz)
100
1000

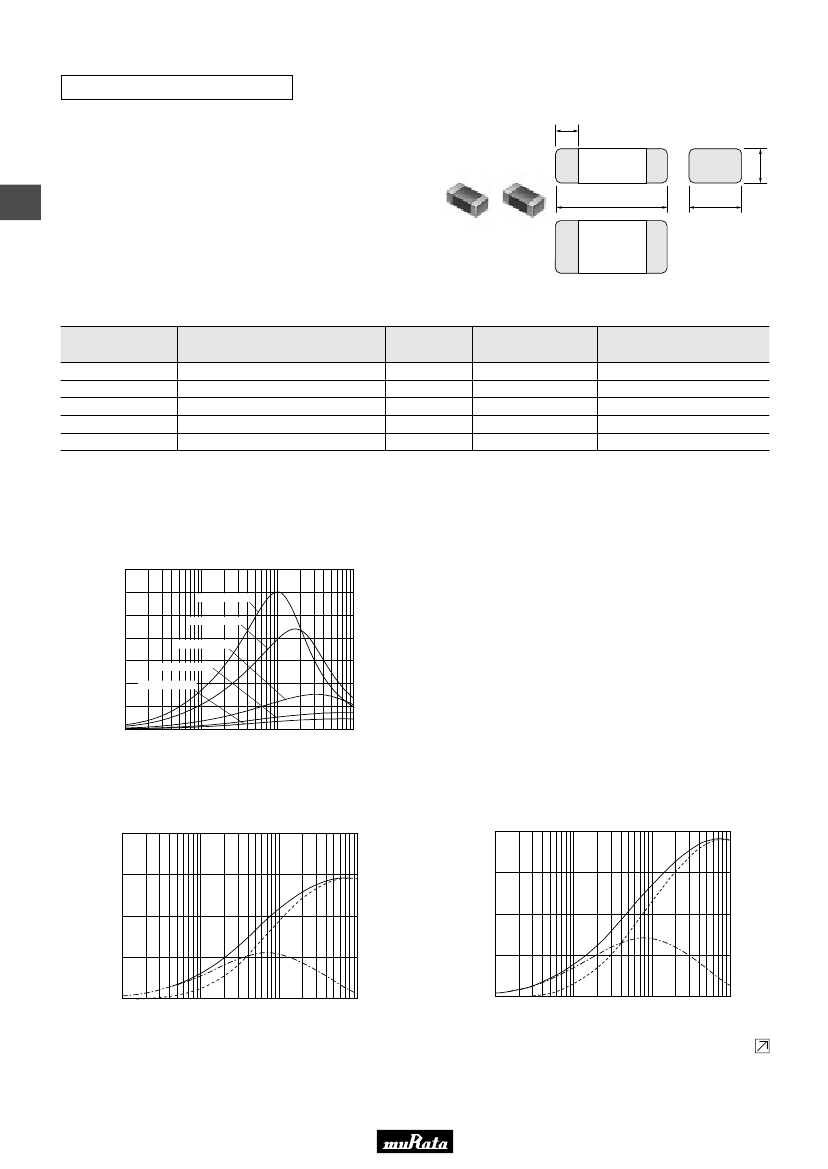

BLM21P Series (0805 Size)
0.5±0.2
2.0±0.2
1.25±0.2
BLM21P Series
EIA CODE : 0805
(in mm)
Part Number
BLM21PG220SN1
BLM21PG300SN1
BLM21PG600SN1
BLM21PG221SN1
BLM21PG331SN1
Impedance
(at 100MHz/20°C)
(ohm)
22
±25%
30 (Typ.)
60
±25%
220
±25%
330
±25%
Rated Current
(mA)
6000
3000
3000
2000
1500
DC Resistance (max.)
(ohm)
0.01
0.015
0.025
0.050
0.09
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
At rated current higher than 1500mA, derating is required.
Please refer p. 55, "Derating of Rated Current".
50
0.85±0.2
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C31E13.pdf 05.3.14
s
Impedance-Frequency (Typical)
BLM21P Series
600
450
Impedance (Ω)
BLM21PG331SN1
BLM21PG221SN1
BLM21PG600SN1
300
BLM21PG300SN1
BLM21PG220SN1
150
1
0
1
10
100
Frequency (MHz)
1000
s
Impedance-Frequency Characteristics
BLM21PG220SN1
40
60
BLM21PG300SN1
30
Z
Impedance (Ω)
Impedance (Ω)
45
R
20
Z
30
R
X
10
15
X
0
1
10
100
Frequency (MHz)
1000
0
1
10
100
Frequency (MHz)
1000
BLM21PG600SN1
120
400
BLM21PG221SN1
90
Impedance (Ω)
Impedance (Ω)
300
Z
60
R
Z
200
R
30
X
0
1
10
100
Frequency (MHz)
1000
100
X
0
1
10
100
Frequency (MHz)
1000
BLM21PG331SN1
600
450
Impedance (Ω)
Z
300
R
150
X
0
1
10
100
Frequency (MHz)
1000
51
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C31E13.pdf 05.3.14
BLM31P Series (1206 Size)
0.7±0.3
1
3.2±0.2
1.6±0.2
in mm
BLM31P Series
Part Number
BLM31PG330SN1
BLM31PG500SN1
BLM31PG121SN1
BLM31PG391SN1
BLM31PG601SN1
Impedance
(at 100MHz/20°C)
(ohm)
33
±25%
50 (Typ.)
120
±25%
390
±25%
600
±25%
Rated Current
(mA)
6000
3000
3000
2000
1500
DC Resistance (max.)
(ohm)
0.01
0.025
0.025
0.05
0.09
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
At rated current higher than 1500mA, derating is required.
