BA5972FP-E2 datasheet, PDF - EEWORLD Datasheet

BA5972FP-E2: DescriptionConsumer Circuit, PDSO28, HSOP-28; CategoryOther integrated circuit (IC) Consumption circuit; File Size191KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

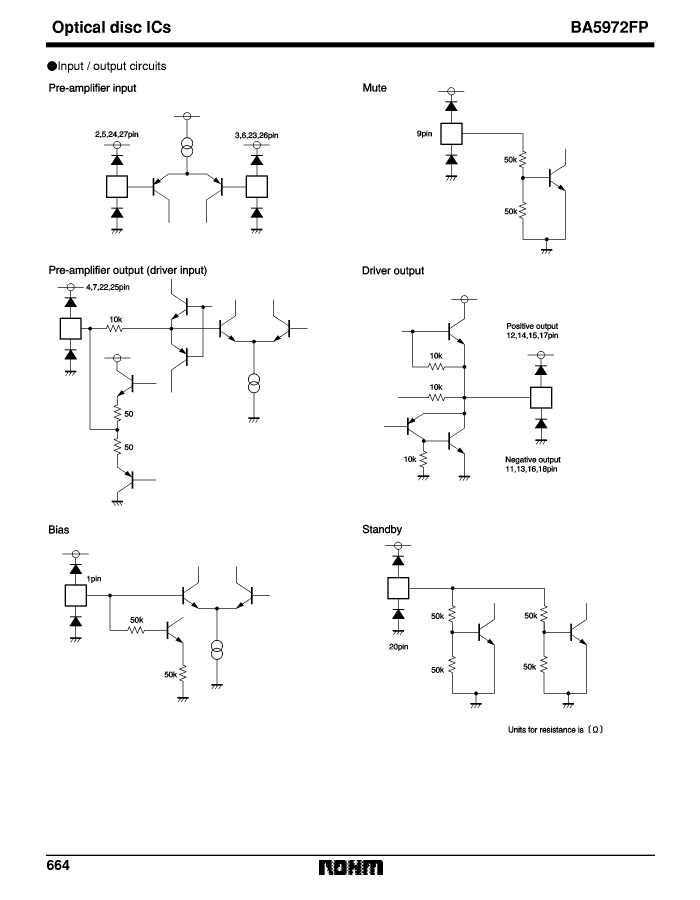

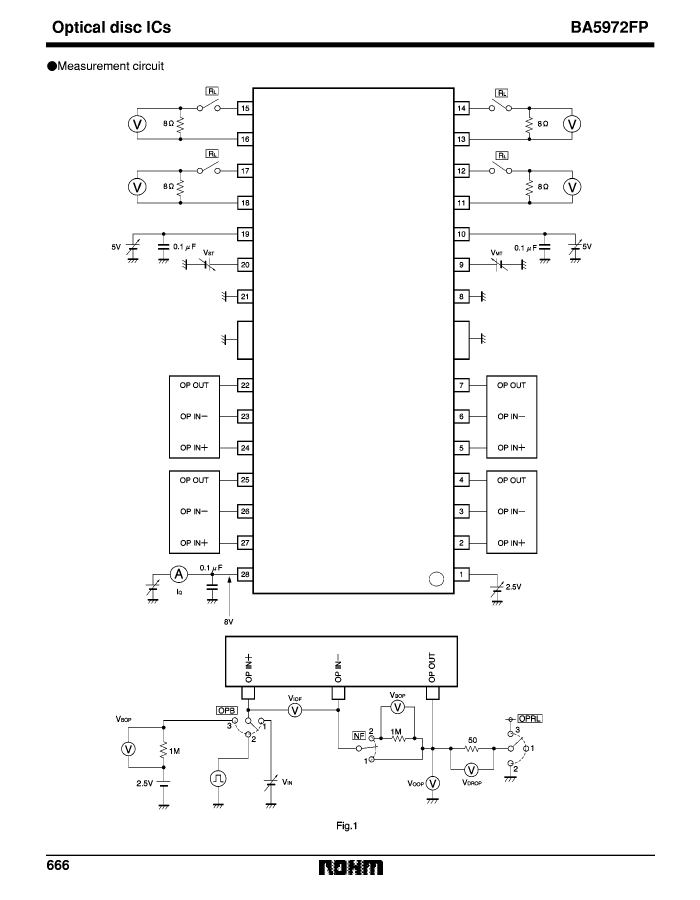

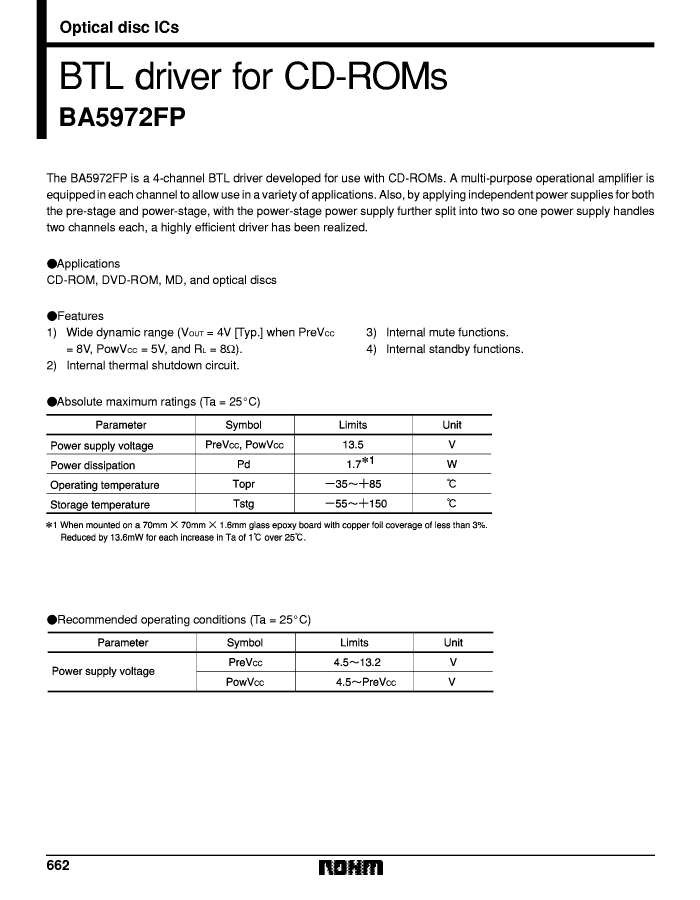

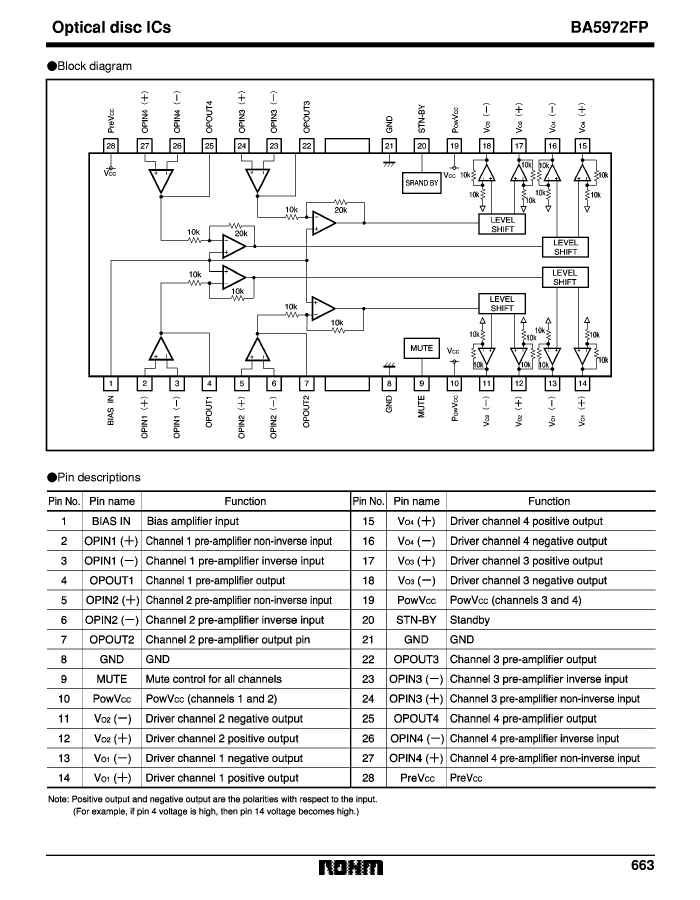

BA5972FP-E2 Overview

Consumer Circuit, PDSO28, HSOP-28

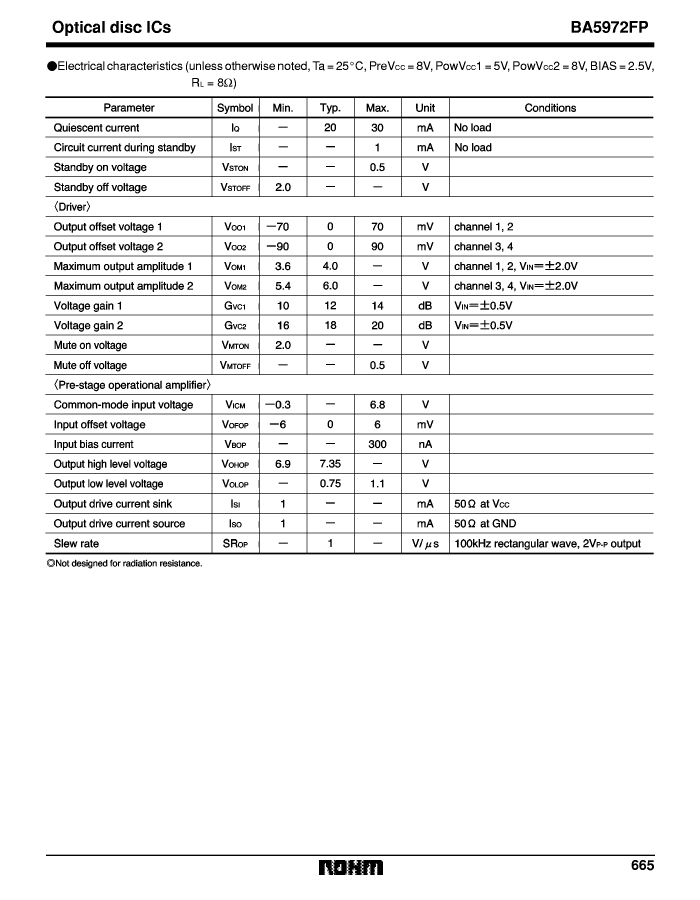

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G28
length	18.5 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.3 mm
Maximum slew rate	30 mA
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1
