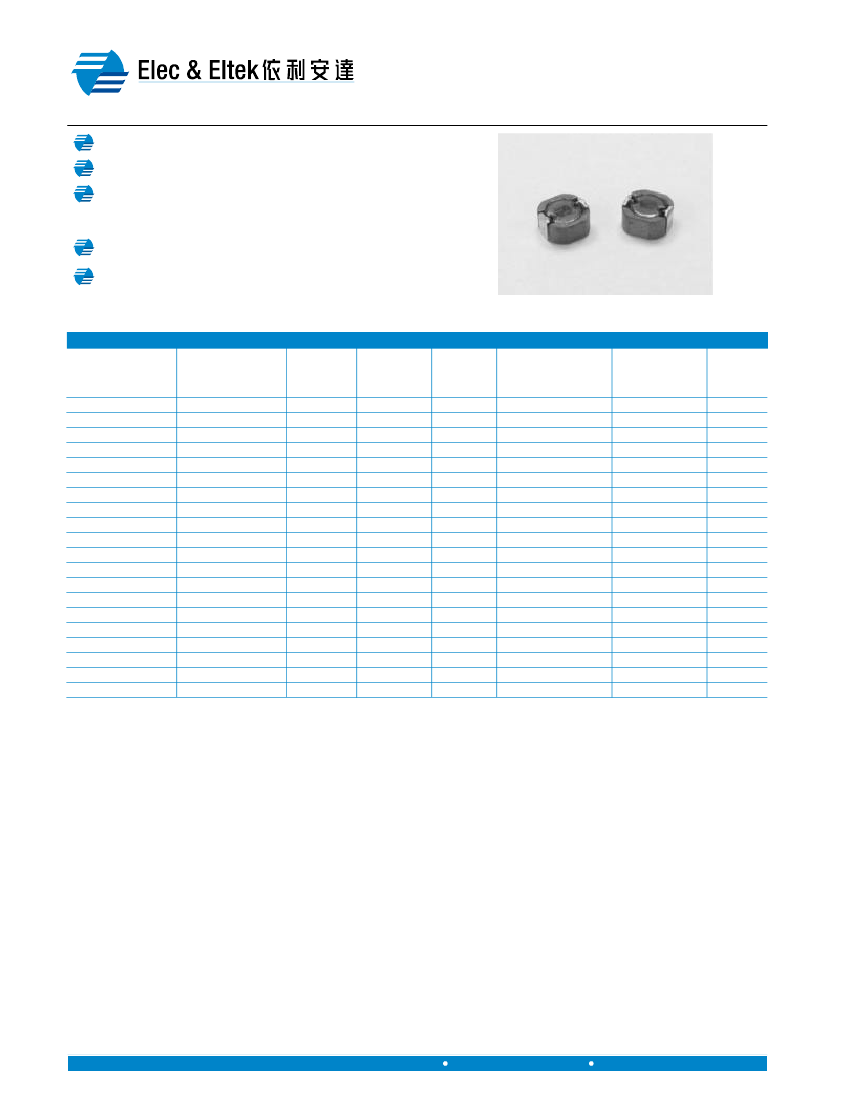

E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SIS6360 Series
S
CHEMATICS
Magnetically Shielded
Miniature in size and high energy storage
Ideal for high current requirements of notebook,
video recorders and other DC-DC conversion
applications
Custom inductance value or tolerance is available
RoHS compliant versions are available
E
LECTRICAL
S
PECIFICATION
@ 25
o
C
Part
Number
SIS6360M-1R0
SIS6360M-1R5
SIS6360M-2R2
SIS6360M-3R6
SIS6360M-4R7
SIS6360M-6R2
SIS6360M-100
SIS6360M-120
SIS6360M-150
SIS6360M-180
SIS6360M-220
SIS6360M-270
SIS6360M-330
SIS6360M-390
SIS6360M-470
SIS6360M-560
SIS6360M-680
SIS6360M-820
SIS6360M-101
SIS6360M-151
RoHS
Part Number
SIS6360M-1R0R
SIS6360M-1R5R
SIS6360M-2R2R
SIS6360M-3R6R
SIS6360M-4R7R
SIS6360M-6R2R
SIS6360M-100R
SIS6360M-120R
SIS6360M-150R
SIS6360M-180R
SIS6360M-220R
SIS6360M-270R
SIS6360M-330R
SIS6360M-390R
SIS6360M-470R
SIS6360M-560R
SIS6360M-680R
SIS6360M-820R
SIS6360M-101R
SIS6360M-151R
Inductance
(uH)
1.0
1.5
2.2
3.6
4.7
6.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
150.0
1
Inductance
Tolerance
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
± 20%
DCR
(m
Ω
Typ)
11
13
16
21
27
32
49
52
62
74
95
120
140
150
185
220
270
330
415
615
Inductance Decrease Temperature Rise
Current(A)
Current(A)
3.59
2.93
2.42
1.89
1.66
1.45
1.14
1.04
0.93
0.85
0.77
0.70
0.63
0.58
0.53
0.48
0.44
0.40
0.36
0.31
4.03
3.63
3.30
2.83
2.45
2.20
1.77
1.70
1.55
1.41
1.23
1.08
0.99
0.95
0.84
0.76
0.69
0.61
0.54
0.42
2
3
Marking
(XYYY)
M1R0
M1R5
M2R2
M3R6
M4R7
M6R2
M100
M120
M150
M180
M220
M270
M330
M390
M470
M560
M680
M820
M101
M151
Notes:
1. Inductance is tested at 100kHz.
2. Rated D.C. current indicates the value of the current when the inductance is 30% typical lower than its initial
Value.
3. Temperature rise current is the value of current when the temperature rising
∆
T=40 C.
o
4. Operating temperature range: -30ºC to +85ºC.
5. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the
operating temperature under worst case operating conditions. Circuit design, component placement, PWB
trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
6. Contact EEMPL for RoHS compliant version availability.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
PI020(02)
Revised in 06/07
E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SIS6360 Series
M
ECHANICAL
D
IMENSIONS
S
CHEMATICS
.248 Max
6.30
.118 Max
3.00
.189
4.80
.024
0.60
.260
6.60
.181
4.60
.244 Max
6.20
XYYY
(Date)
.079
2.00
.102
2.60
Recommended
Pad Layout
Weight (in gram)
:
:
0.5 typ.
2300 / reel
Notes:
inches
mm with higher precedence in mm.
8. Unless otherwise specified, all tolerances are ± .010 .
0.25
9. For available RoHS part number, the part will be marked with “XYYYR”, instead of “XYYY”.
7. All dimensions are specified in
Tape & Reel
S
CHEMATICS
1
2
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
2/F Block A, Merit Industrial Centre,
94 Tokwawan Road, Kowloon,
Hong Kong
Tel: (852) 2765 3888
Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2006, E & E Magnetic Products Limited.
