135-9701-201 datasheet, PDF - EEWORLD Datasheet

135-9701-201: DescriptionRF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size603KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

135-9701-201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	135-9701-201	-	-	View	Buy Now

RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	7 weeks
body width	0.136 inch
subject depth	0.177 inch
body length	0.136 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMCX CONNECTOR
Contact point gender	FEMALE
Contact resistance	8 mΩ
Contact style	COAX
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
maximum insertion force	35.584 N
Insulation resistance	1000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	135
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell surface	GOLD OVER COPPER
Shell material	COPPER ALLOY
Terminal length	0.115 inch
Termination type	SOLDER
Total number of contacts	1
Evacuation force-minimum value	6.2272 N
Base Number Matches	1

U

N

C

O

N

TR

O

LL

ED

C

O

PY

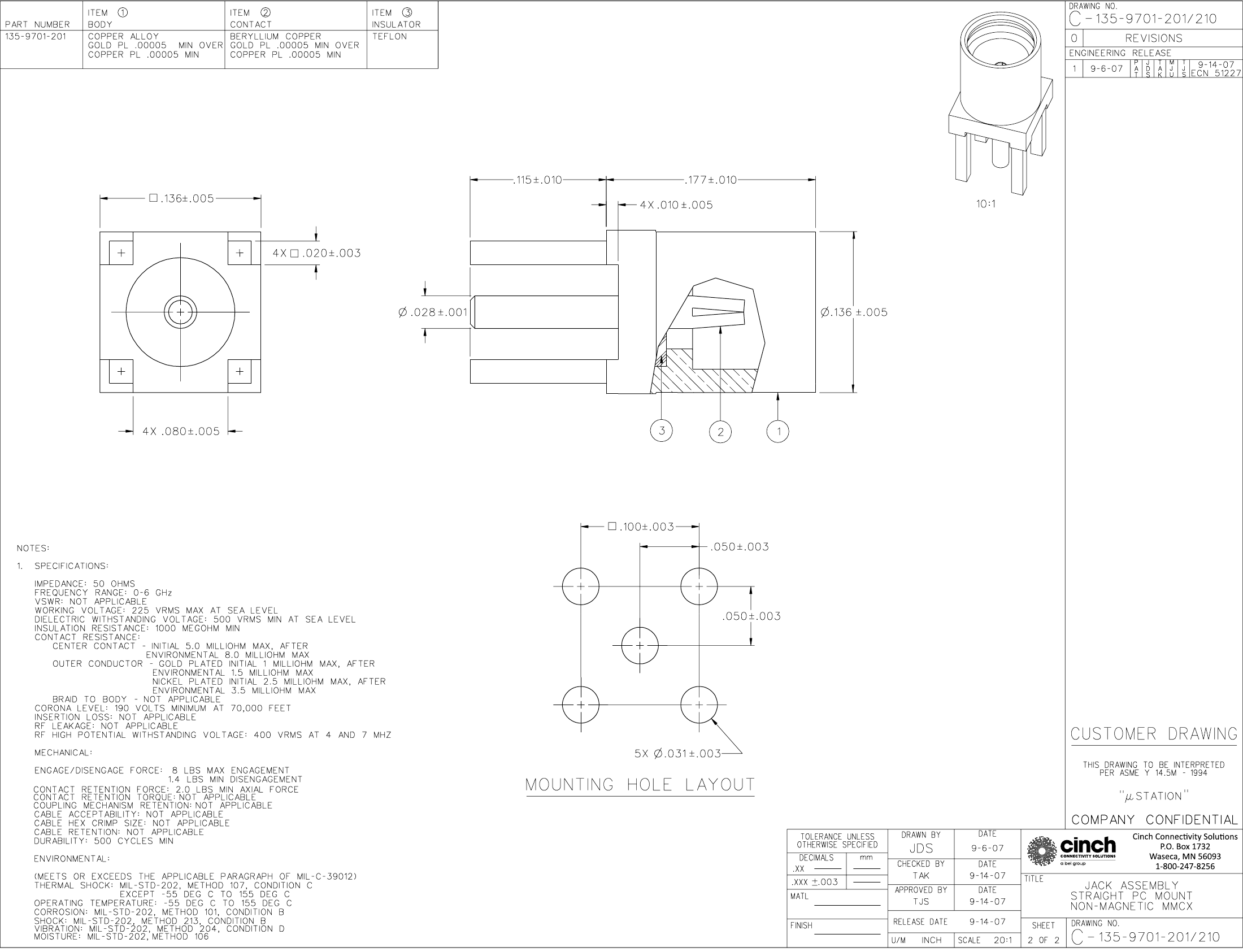

	135-9701-201
Description	RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	7 weeks
body width	0.136 inch
subject depth	0.177 inch
body length	0.136 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMCX CONNECTOR
Contact point gender	FEMALE
Contact resistance	8 mΩ
Contact style	COAX
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
maximum insertion force	35.584 N
Insulation resistance	1000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	135
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell surface	GOLD OVER COPPER
Shell material	COPPER ALLOY
Terminal length	0.115 inch
Termination type	SOLDER
Total number of contacts	1
Evacuation force-minimum value	6.2272 N
Base Number Matches	1
