MC74VHC4066D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74VHC4066D

MC74VHC4066D: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14; CategoryAnalog mixed-signal IC The signal circuit; File Size129KB，12 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74VHC4066D Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14

MC74VHC4066D Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	40 dB
On-state resistance matching specifications	20 Ω
Maximum on-state resistance (Ron)	120 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/12 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	2 V
surface mount	YES
Maximum disconnect time	80 ns
Maximum connection time	80 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

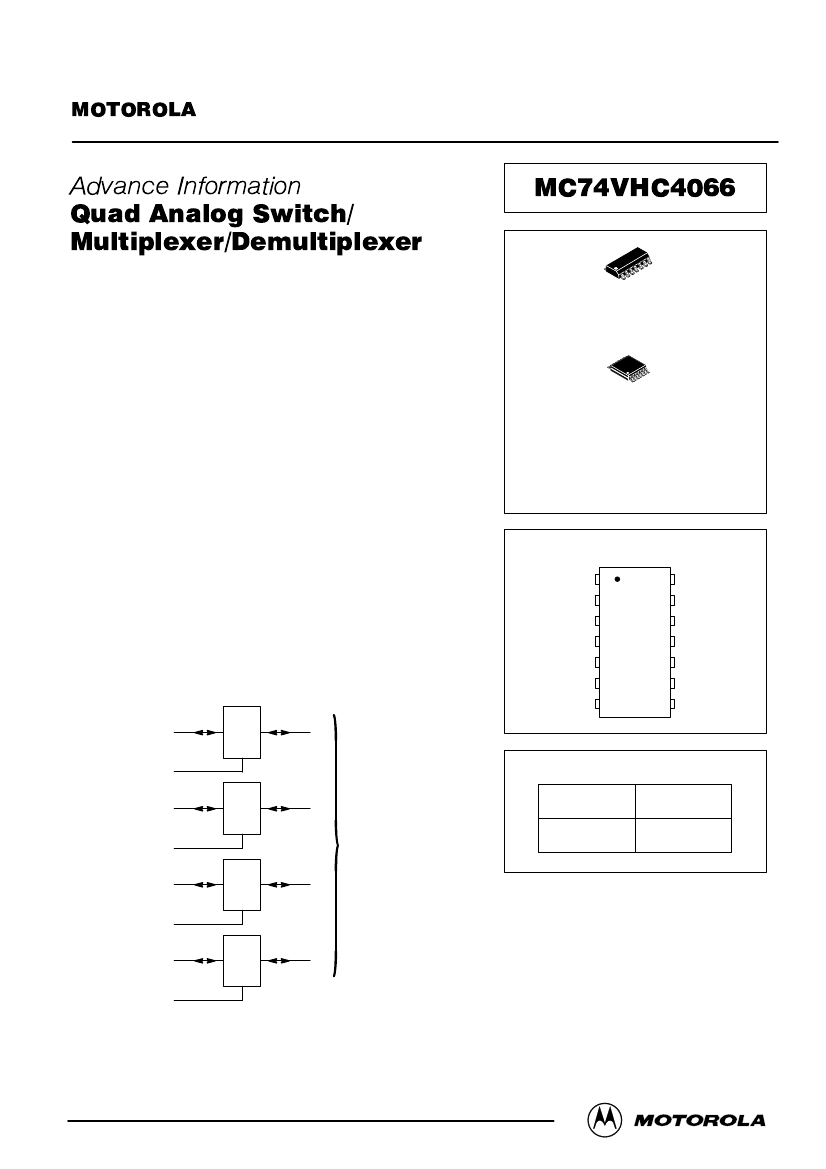

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Order this document

by MC74VHC4066/D

Advance Information

Quad Analog Switch/

Multiplexer/Demultiplexer

MC74VHC4066

High–Performance Silicon–Gate CMOS

The MC74VHC4066 utilizes silicon–gate CMOS technology to

achieve fast propagation delays, low ON resistances, and low OFF–

channel leakage current. This bilateral switch/multiplexer/demultiplexer

controls analog and digital voltages that may vary across the full

power–supply range (from VCC to GND).

The VHC4066 is identical in pinout to the metal–gate CMOS MC14066

and the high–speed CMOS HC4066A. Each device has four independent

switches. The device has been designed so that the ON resistances

(RON) are much more linear over input voltage than RON of metal–gate

CMOS analog switches.

The ON/OFF control inputs are compatible with standard CMOS

outputs; with pullup resistors, they are compatible with LSTTL outputs.

For analog switches with voltage–level translators, see the VHC4316.

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power–Supply Voltage Range (VCC – GND) = 2.0 to 12.0 Volts

Analog Input Voltage Range (VCC – GND) = 2.0 to 12.0 Volts

Improved Linearity and Lower ON Resistance over Input Voltage than

the MC14016 or MC14066

•

Low Noise

•

Chip Complexity: 44 FETs or 11 Equivalent Gates

LOGIC DIAGRAM

D SUFFIX

14–LEAD SOIC PACKAGE

CASE 751A–03

DT SUFFIX

14–LEAD TSSOP PACKAGE

CASE 948G–01

ORDERING INFORMATION

MC74VHCXXXXD

MC74VHCXXXXDT

SOIC

TSSOP

PIN ASSIGNMENT

B ON/OFF

CONTROL

C ON/OFF

CONTROL

GND

VCC

A ON/OFF

CONTROL

D ON/OFF

CONTROL

A ON/OFF CONTROL

B ON/OFF CONTROL

C ON/OFF CONTROL

D ON/OFF CONTROL

FUNCTION TABLE

ANALOG

OUTPUTS/INPUTS

On/Off Control

Input

State of

Analog Switch

Off

ANALOG INPUTS/OUTPUTS = XA, XB, XC, XD

PIN 14 = VCC

PIN 7 = GND

This document contains information on a new product. Specifications and information herein are subject to

change without notice.

07/99

Motorola, Inc. 1999

REV 3
