MT58LC1618EJ-25TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT58LC1618EJ-25TR

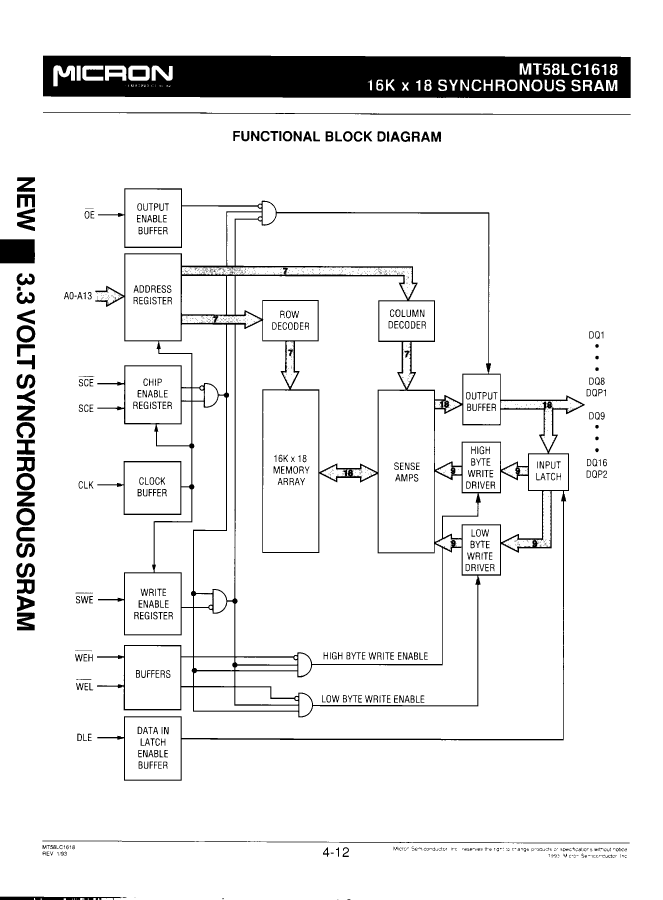

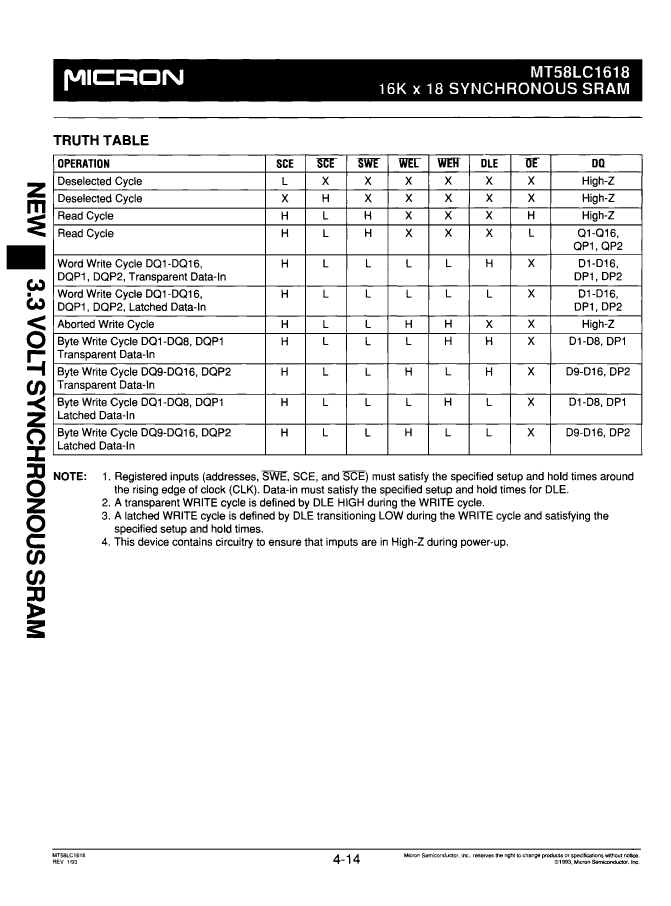

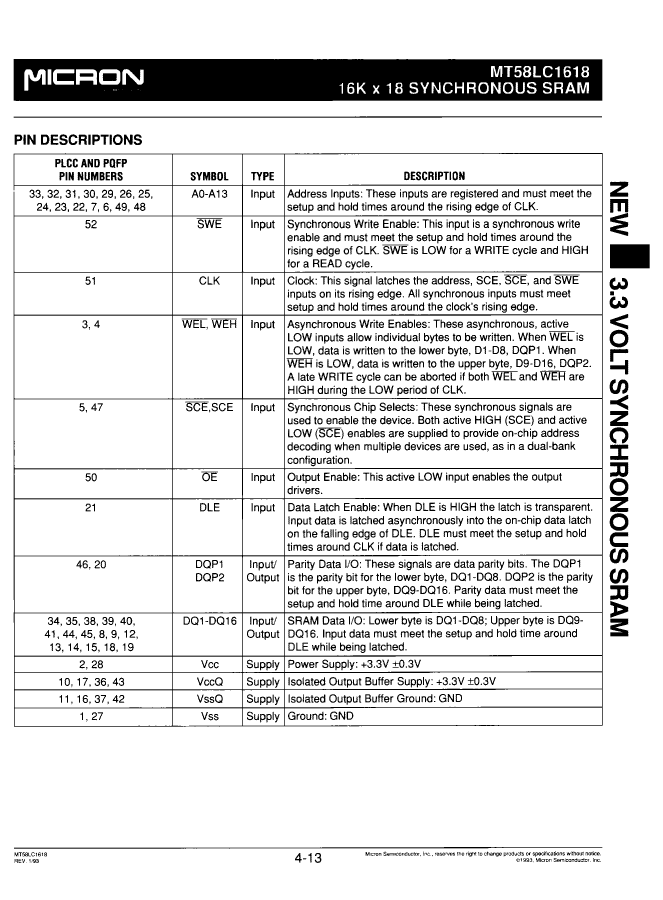

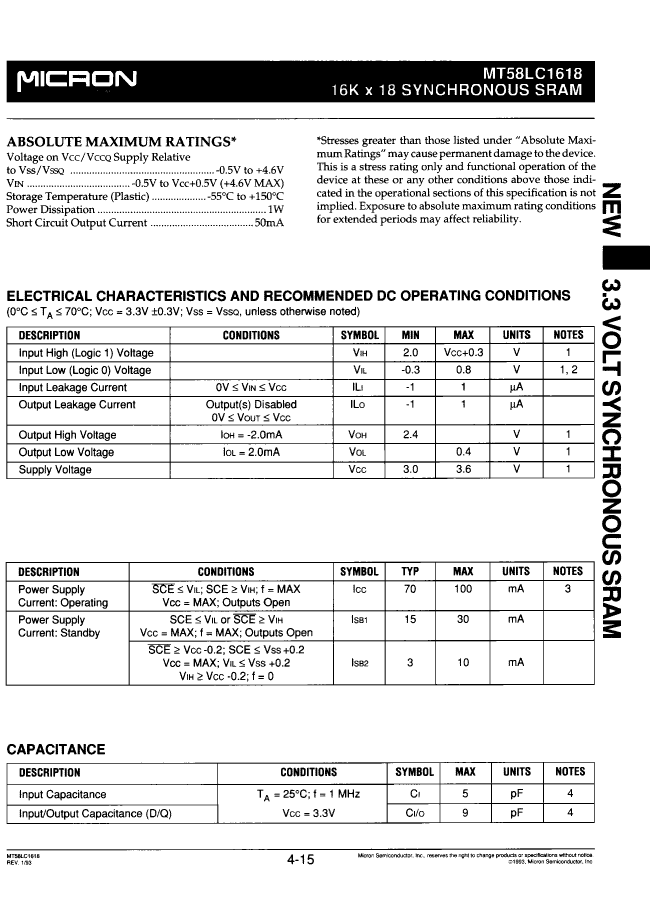

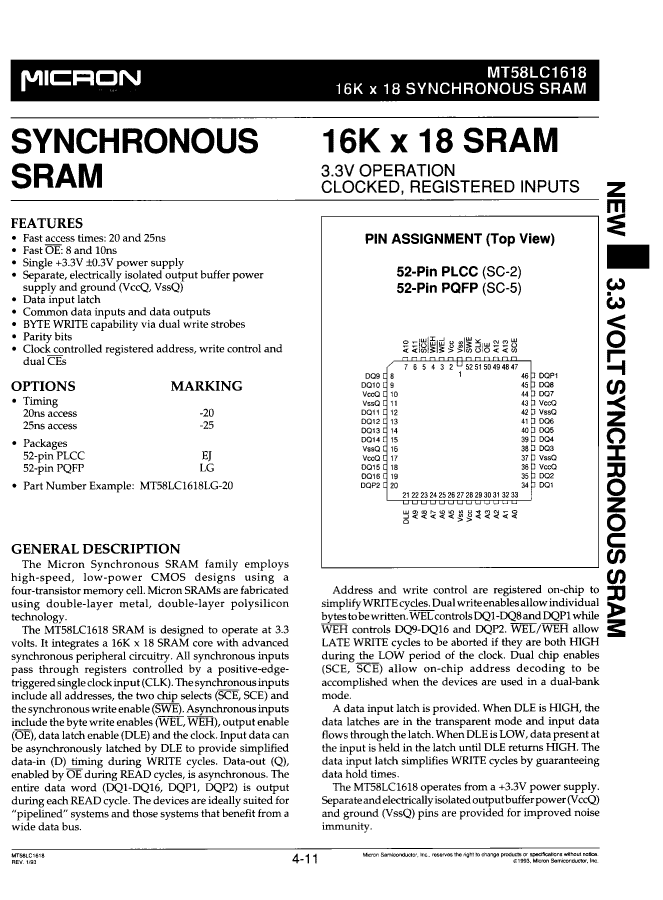

Preview

MT58LC1618EJ-25TR: DescriptionStandard SRAM, 16KX18, CMOS, PQCC52, PLASTIC, LCC-52; Categorystorage storage; File Size342KB，10 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT58LC1618EJ-25TR Overview

Standard SRAM, 16KX18, CMOS, PQCC52, PLASTIC, LCC-52

MT58LC1618EJ-25TR Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	52
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	BYTE WRITE
JESD-30 code	S-PQCC-J52
length	19.1262 mm
memory density	294912 bit
Memory IC Type	STANDARD SRAM
memory width	18
Number of functions	1
Number of ports	1
Number of terminals	52
word count	16384 words
character code	16000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX18
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	19.1262 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MT58LC1618EJ-25TR Related Products

	MT58LC1618EJ-25TR	MT58LC1618EJ-25	MT58LC1618LG-20TR	MT58LC1618EJ-20	MT58LC1618EJ-20TR	MT58LC1618LG-20	MT58LC1618LG-25	MT58LC1618LG-25TR
Description	Standard SRAM, 16KX18, CMOS, PQCC52, PLASTIC, LCC-52	Standard SRAM, 16KX18, 25ns, CMOS, PQCC52, PLASTIC, LCC-52	Standard SRAM, 16KX18, CMOS, PQFP52, PLASTIC, QFP-52	Standard SRAM, 16KX18, 20ns, CMOS, PQCC52, PLASTIC, LCC-52	Standard SRAM, 16KX18, CMOS, PQCC52, PLASTIC, LCC-52	Standard SRAM, 16KX18, 20ns, CMOS, PQFP52, PLASTIC, QFP-52	Standard SRAM, 16KX18, 25ns, CMOS, PQFP52, PLASTIC, QFP-52	Standard SRAM, 16KX18, CMOS, PQFP52, PLASTIC, QFP-52
Parts packaging code	LCC	LCC	QFP	LCC	LCC	QFP	QFP	QFP
package instruction	QCCJ,	PLASTIC, LCC-52	QFP,	PLASTIC, LCC-52	QCCJ,	PLASTIC, QFP-52	PLASTIC, QFP-52	QFP,
Contacts	52	52	52	52	52	52	52	52
Reach Compliance Code	unknown	not_compliant	unknown	not_compliant	unknown	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BYTE WRITE	BYTE WRITE	BYTE WRITE	BYTE WRITE	BYTE WRITE	BYTE WRITE	BYTE WRITE	BYTE WRITE
JESD-30 code	S-PQCC-J52	S-PQCC-J52	S-PQFP-G52	S-PQCC-J52	S-PQCC-J52	S-PQFP-G52	S-PQFP-G52	S-PQFP-G52
length	19.1262 mm	19.1262 mm	14 mm	19.1262 mm	19.1262 mm	14 mm	14 mm	14 mm
memory density	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	18	18	18	18	18	18	18	18
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	52	52	52	52	52	52	52	52
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000	16000	16000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16KX18	16KX18	16KX18	16KX18	16KX18	16KX18	16KX18	16KX18
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QFP	QCCJ	QCCJ	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	2.45 mm	4.57 mm	4.57 mm	2.45 mm	2.45 mm	2.45 mm
Maximum supply voltage (Vsup)	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING	J BEND	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1 mm	1.27 mm	1.27 mm	1 mm	1 mm	1 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	19.1262 mm	19.1262 mm	14 mm	19.1262 mm	19.1262 mm	14 mm	14 mm	14 mm
Maker	-	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
