DP3ED16MX8R8Y5-DP-XX50C: DescriptionEDO DRAM Module, 16MX8, 50ns, CMOS, LEADLESS MODULE, TSOP-32; Categorystorage storage; File Size198KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

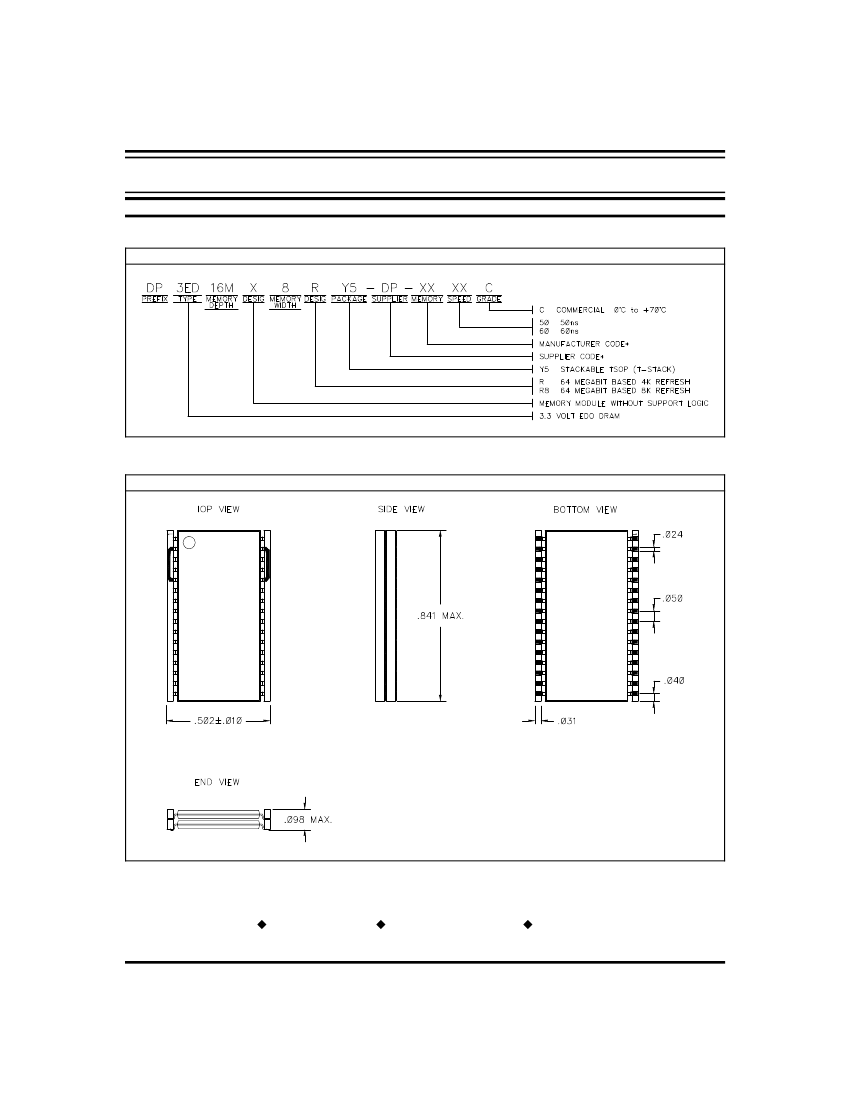

DP3ED16MX8R8Y5-DP-XX50C Overview

EDO DRAM Module, 16MX8, 50ns, CMOS, LEADLESS MODULE, TSOP-32

DP3ED16MX8R8Y5-DP-XX50C Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XDMA-N32
memory density	134217728 bit
Memory IC Type	EDO DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX8
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

16Mx8, 50 - 60ns, TSOP Stack

30A199-00

B

High Density Memory Device

PRELIMINARY

M-Densus

128 Megabit CMOS

3.3V EDO DRAM

DP3ED16MX8Rn5

DESCRIPTION:

The

M-Densus

series is a family of interchangeable memory

modules. The 64 Megabit DRAM is a member of this family

which utilizes the new and innovative space saving TSOP

technology. The module is constructed with two 16 Meg x

4 EDO, 3.3 Volt DRAM’s available in a 128 Megabit

compatible pin-out.

The 64 Megabit based

M-Densus

modules have been

designed to fit in the same footprint as the 16 Meg x 8 DRAM

TSOP monolithic. This allows the memory board designer to

upgrade the memory in their products without redesigning the

memory board, thus saving time and money.

FEATURES:

•

Configurations Available:

128 Megabit: 16 Meg x 8

•

Access Times: 50, 60ns (max.)

•

3.3 Volt Supply

•

Common Data Inputs and Outputs

•

Extended Data Out Capability (EDO)

•

4K/8K 64ms Refresh

•

3 Variations of Refresh:

- RAS only Refresh

- CAS before RAS Refresh

- Hidden Refresh

•

Package: Leadless TSOP Module

PIN NAMES

A0 - A11

A0 - A12*

DQ0 - DQ7

CAS

RAS

WE

OE

V

DD

V

SS

N.C.

Row Address:

A0 - A11

Column Address: A0 - A11

Refresh Address: A0 - A11

Row Address:

A0 - A12

Column Address: A0 - A10

Refresh Address: A0 - A12

Data In / Data Out

Column Address Strobe

Row Address Enable

Data Write Enable

Data Output Enable

Power Supply (+3.3V)

Ground

No Connect

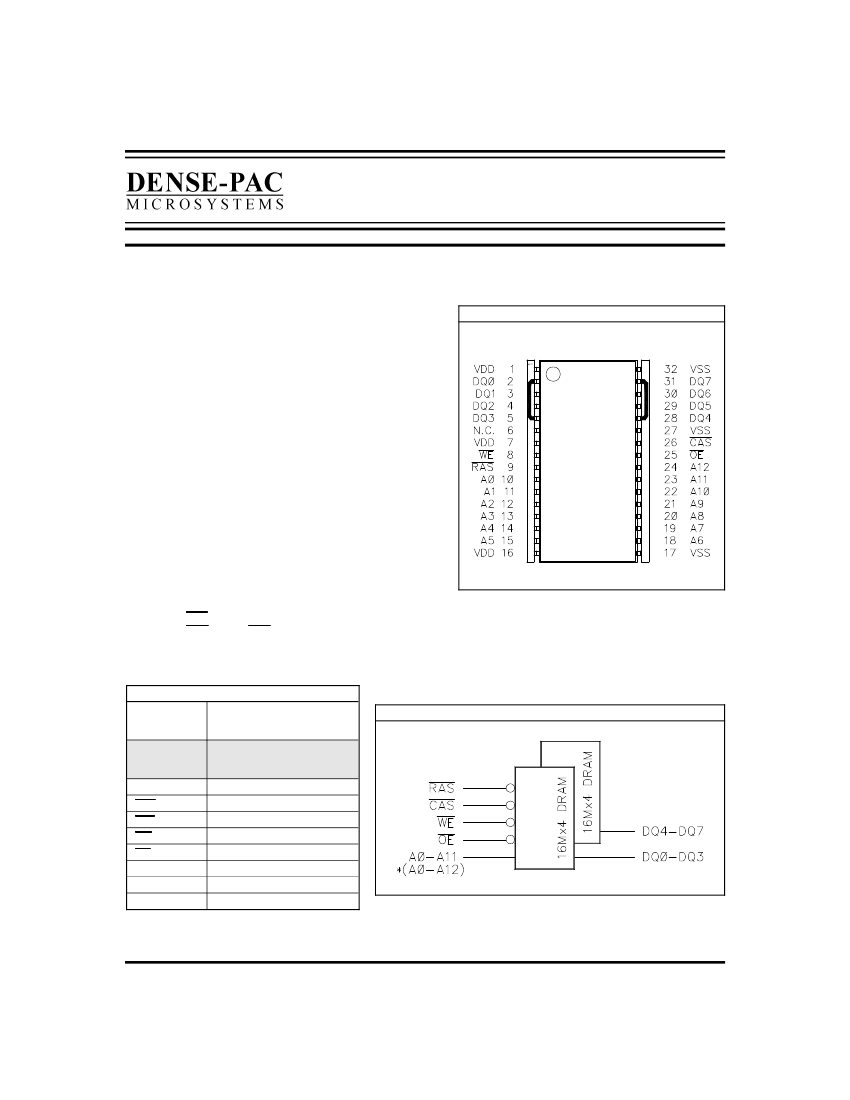

PIN-OUT DIAGRAM

FUNCTIONAL BLOCK DIAGRAM

*

A12 for 8K refresh device.

30A199-00

REV. B

This document contains information on a product that is currently released

to production at Dense-Pac Microsystems, Inc. Dense-Pac reserves the

right to change products or specifications herein without prior notice.

1
