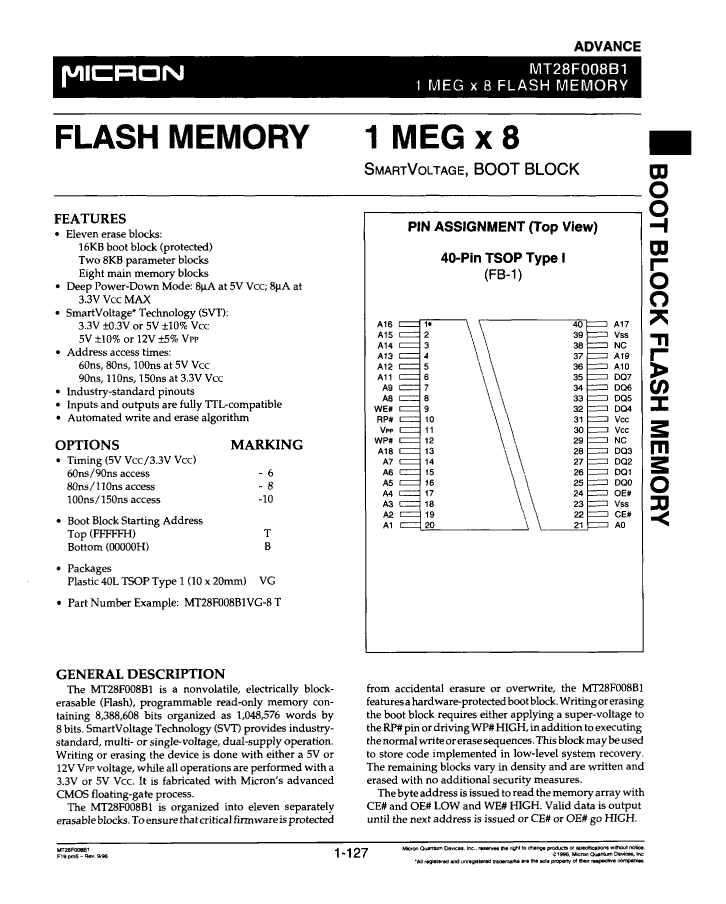

Preview

MT28F008B1VG-8TTR: DescriptionFlash, 1MX8, 110ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40; Categorystorage storage; File Size45KB，1 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F008B1VG-8TTR Overview

Flash, 1MX8, 110ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40

MT28F008B1VG-8TTR Parametric

Parameter Name	Attribute value
Parts packaging code	TSOP1
package instruction	10 X 20 MM, PLASTIC, TSOP1-40
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum access time	110 ns
Other features	USER SELECTABLE 5V OR 12V VPP
startup block	TOP
JESD-30 code	R-PDSO-G40
JESD-609 code	e3
length	18.4 mm
memory density	8388608 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	40
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
type	NOR TYPE
width	10 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MT28F008B1VG-8TTR Related Products

	MT28F008B1VG-8TTR	MT28F008B1VG-10B	MT28F008B1VG-10T	MT28F008B1VG-10TTR	MT28F008B1VG-8BTR	MT28F008B1VG-6BTR	MT28F008B1VG-10BTR
Description	Flash, 1MX8, 110ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 100ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 100ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 100ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 110ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 60ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 100ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Parts packaging code	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1
package instruction	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40
Contacts	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknow	not_compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	110 ns	100 ns	100 ns	100 ns	110 ns	60 ns	100 ns
Other features	USER SELECTABLE 5V OR 12V VPP	SELECTABLE 5V OR 12V VPP	SELECTABLE 5V OR 12V VPP	SELECTABLE 5V OR 12V VPP	USER SELECTABLE 5V OR 12V VPP	SELECTABLE 5V OR 12V VPP	SELECTABLE 5V OR 12V VPP
startup block	TOP	BOTTOM	TOP	TOP	BOTTOM	BOTTOM	BOTTOM
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e3	e3	e3	e3	e3	e0	e3
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm
memory density	8388608 bit	8388608 bi	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	5.5 V	5.5 V	5.5 V	3.6 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	5 V	5 V	5 V	3.3 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	-	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	-
Base Number Matches	1	-	1	1	1	-	-
Maker	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
