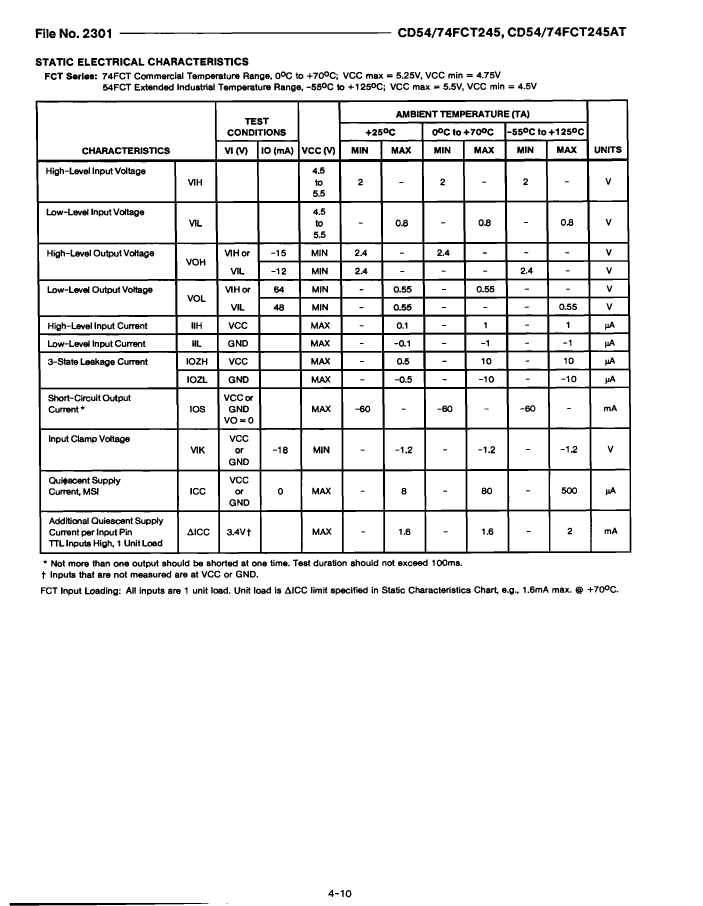

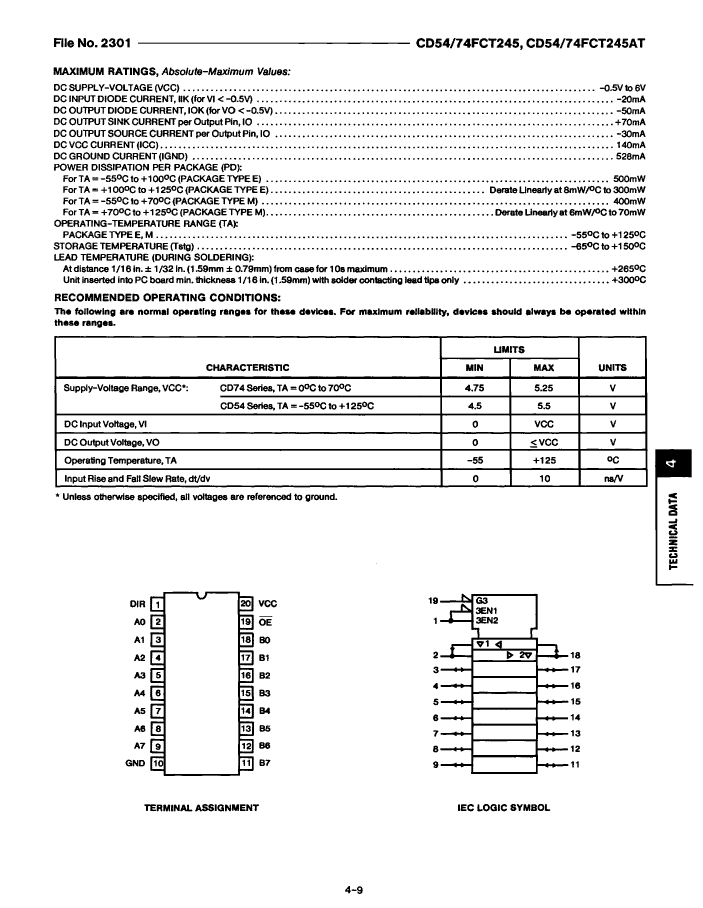

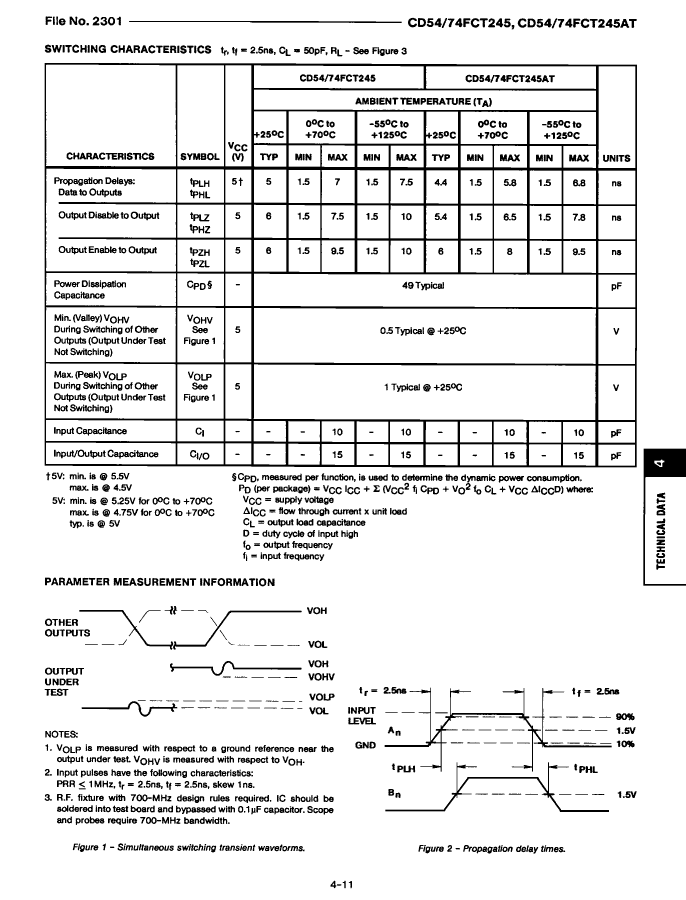

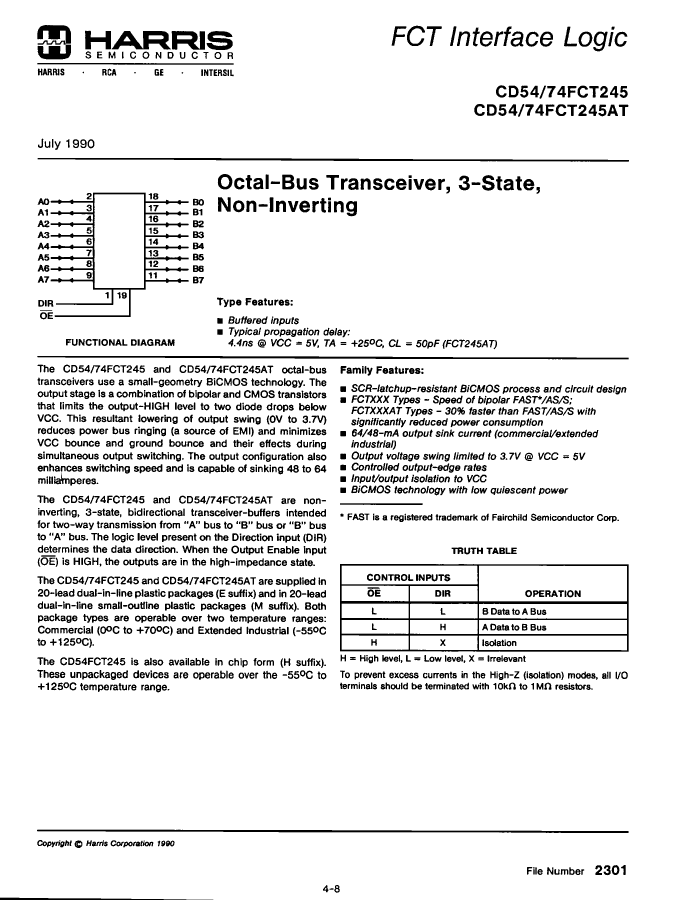

CD54FCT245ATM datasheet, PDF - EEWORLD Datasheet

CD54FCT245ATM: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, BICMOS, PDSO20; Categorylogic logic; File Size147KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

CD54FCT245ATM Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, BICMOS, PDSO20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL; TYPICAL VOLP = 1V AT VCC = 5V,TA = 25 DEGREE C
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	0.5 mA
Prop。Delay @ Nom-Sup	6.8 ns
propagation delay (tpd)	6.8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Base Number Matches	1
