CD74AC00E: DescriptionNAND GATE; Categorylogic logic; File Size562KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74AC00E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74AC00E	-	-	View	Buy Now

CD74AC00E Overview

NAND GATE

CD74AC00E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
Is Samacsys	N
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.012 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	10.2 ns
Certification status	Not Qualified
Schmitt trigger	NO
Minimum supply voltage (Vsup)	1.5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

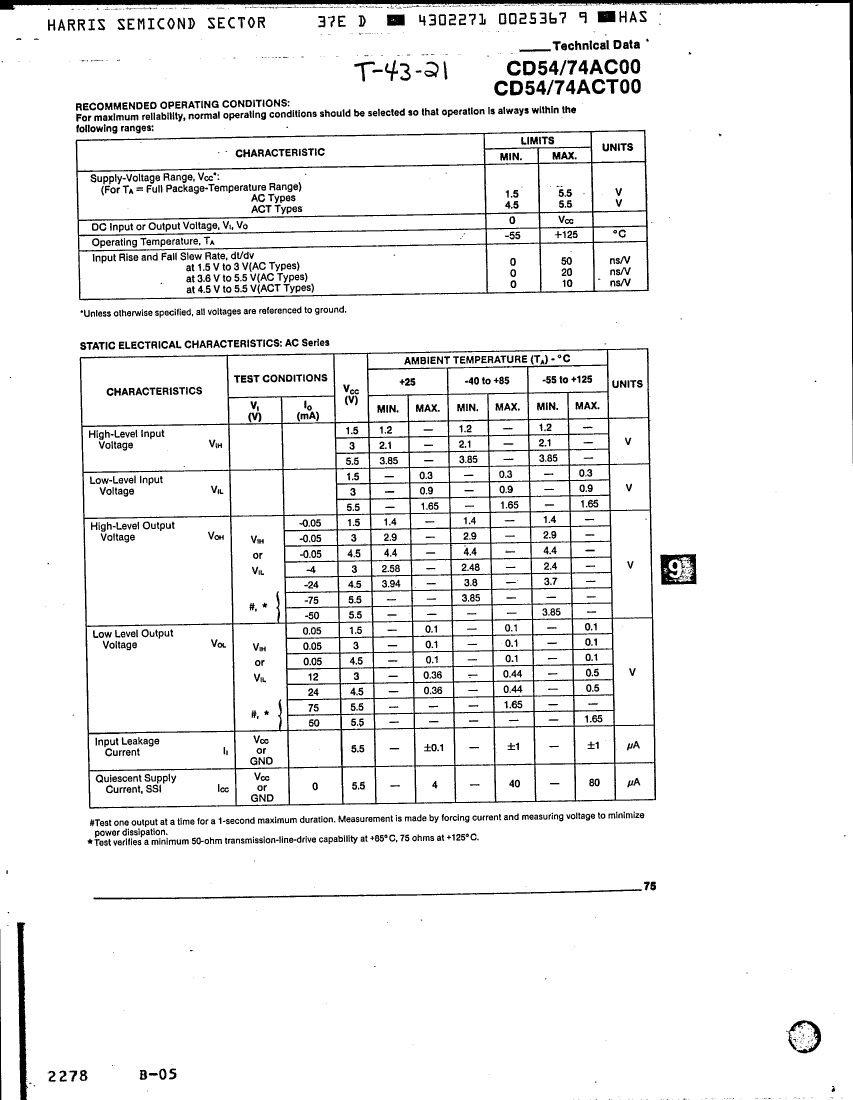

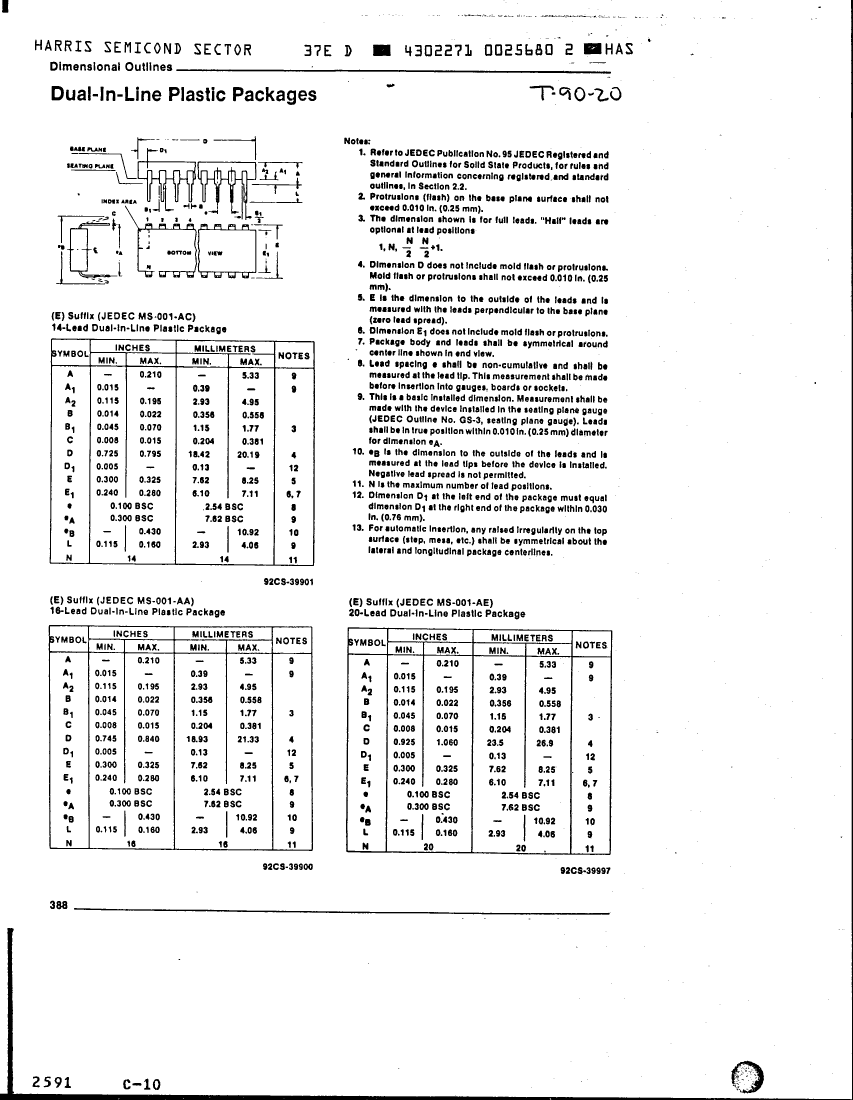

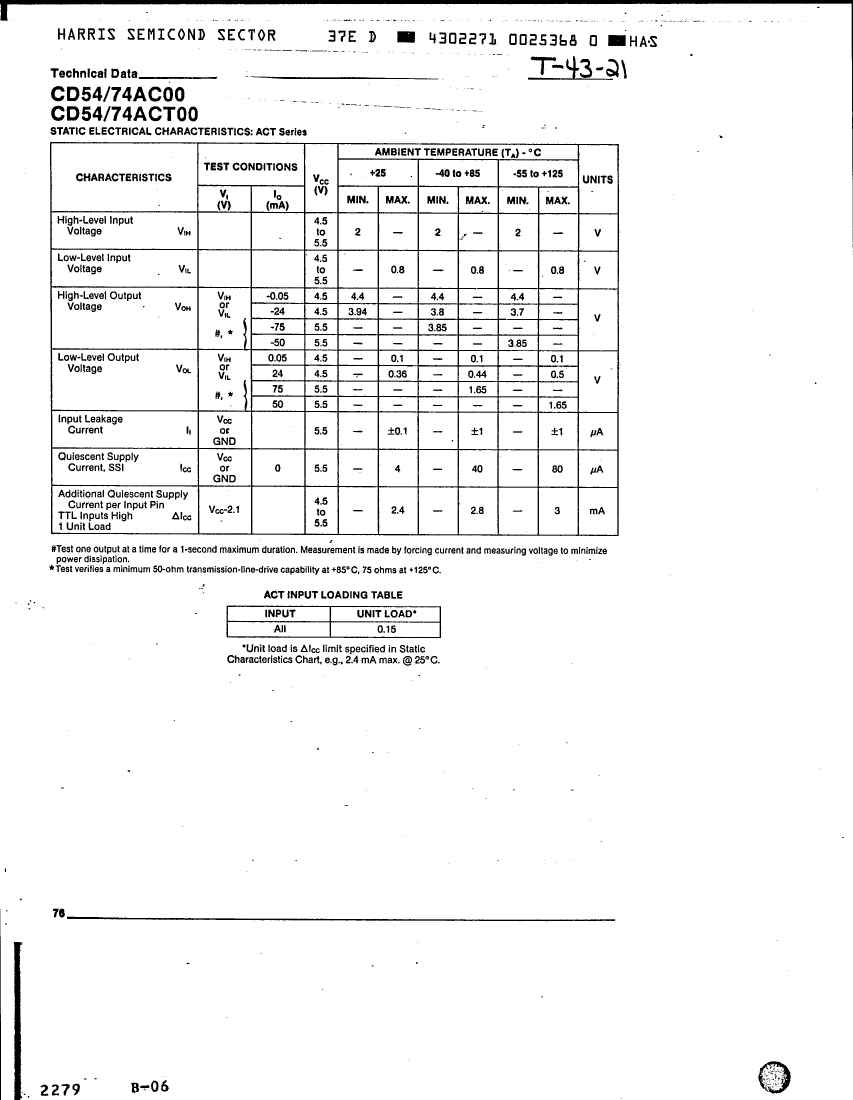

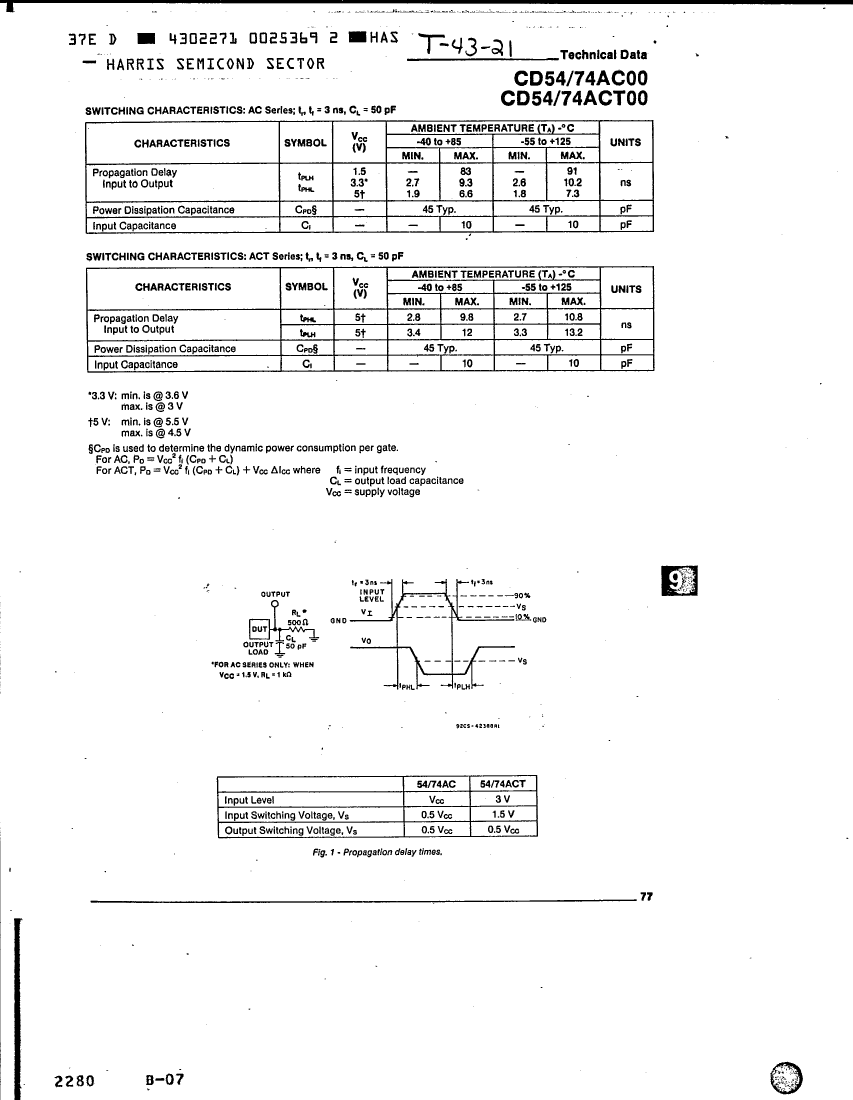

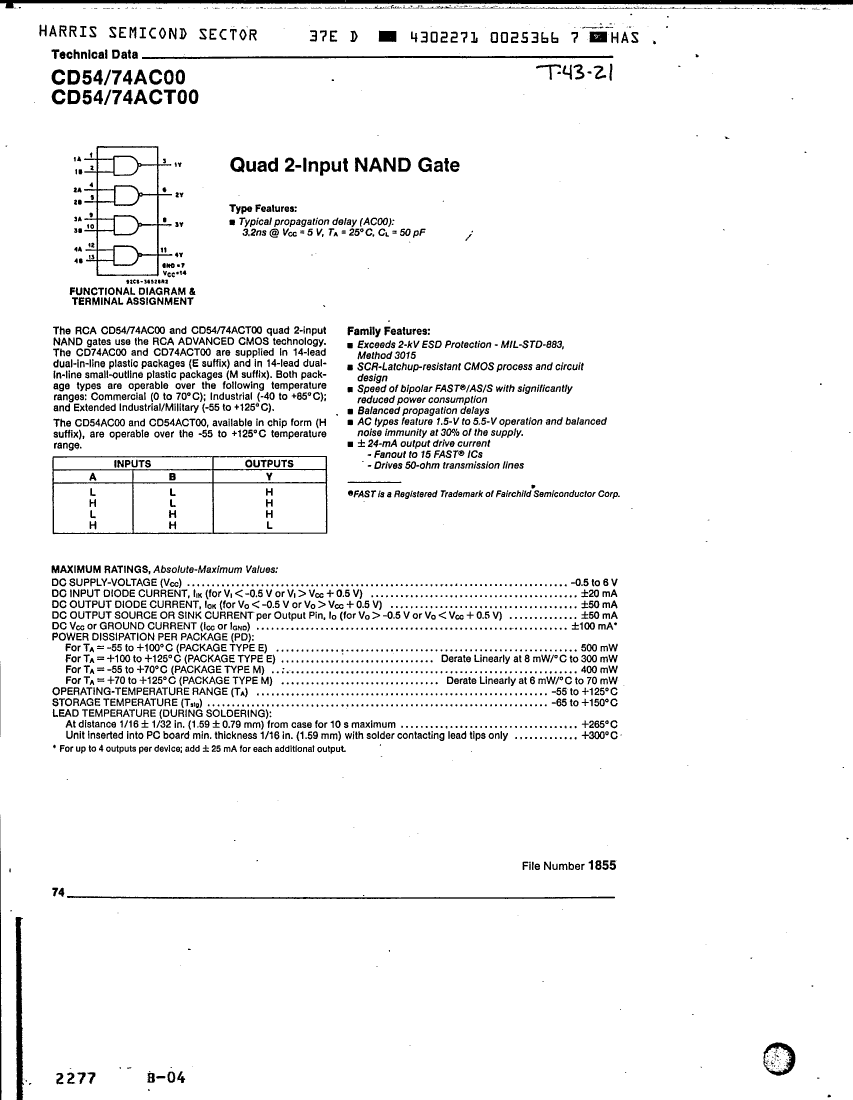

Preview

Download Datasheet

View All

CD74AC00E Related Products

	CD74AC00E	CD74ACT00M	CD74ACT00M96	CD74ACT00E	CD74AC00M	CD74AC00M96	5962-01-399-5372	5962-01-373-6575
Description	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	IC,LOGIC GATE,QUAD 2-INPUT NAND,AC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,QUAD 2-INPUT NAND,AC-CMOS,DIP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.012 A	0.024 A	0.024 A	0.024 A	0.012 A	0.012 A	0.012 A	0.012 A
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	DIP14,.3	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25	SOP14,.25	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	3.3/5 V	5 V	5 V	5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Prop。Delay @ Nom-Sup	10.2 ns	13.2 ns	13.2 ns	13.2 ns	10.2 ns	10.2 ns	10.2 ns	10.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	YES	YES	NO	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
JESD-609 code	e0	e0	e0	e0	e0	e0	-	-
Minimum supply voltage (Vsup)	1.5 V	-	-	-	1.5 V	1.5 V	1.5 V	1.5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Maker	-	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
