SL1710/KG/MPAS Overview

Down Converter, MP16, MS-012AC, SOIC-16

SL1710/KG/MPAS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	LOW NOISE
Characteristic impedance	75 Ω
structure	COMPONENT
Downconversion gain - minimum	44 dB
LO tunable	YES
maximum noise index	19 dB
Maximum operating temperature	80 °C
Minimum operating temperature
Maximum RF input frequency	500 MHz
Minimum RF input frequency	350 MHz
RF/Microwave Device Types	DOWN CONVERTER
Maximum voltage standing wave ratio	1.7
Base Number Matches	1

Preview

Download Datasheet

View All

SL1710

Quadrature Downconverter

Preliminary Information

DS3842

ISSUE 4.1

March 1997

FEATURES

Wide input frequency range (350-500MHz)

On chip oscillator with varactor tuning or SAW

resonator operation capability

Nominal 40dB conversion gain from IF input to I

and Q outputs

AGC amplifier with 18dB gain control range

I to Q phase match 90°C to

2°, gain match

better than 1dB

Low impedance I and Q single ended outputs,

with 15MHz

1dB BW

Divide by 32 prescaler outputs

Suitable for QPSK and up to 64QAM systems

SL1710

The SL1710 is a quadrature downconverter, intended for

use with both Professional and Consumer Digital Satellite

Applications.

The device contains high linearity, low noise amplifiers,

quadrature mixers, plus an on-chip oscillator, operating

between 350MHz and 500MHz, which may be synthesised via

the differential prescaler outputs.

An AGC with 18dB gain control is provided to cope with a

wide range of input signal levels.

I and Q outputs are via low impedance single ended

amplifiers. These may be connected to a dual channel analog

to digital converter such as the PCA916, VP216, VP215 or

VP213, via a suitable anti-alias filter.

Ordering Information

SL1710/KG/MPAS (Tubes)

SL1710/KG/MPAD (Tape and Reel)

AGC

IOUT

VEEA

IFINB

IFIN

VCCA

QOUT

VEEC

VCCB

VCODIS

VCO

VEEB

PSCAL

PSCALB

VCCC

MP16

Fig. 1 Pin allocation top view

ABSOLUTE MAXIMUM RATINGS

Storage temperature

Junction temperature

Supply voltage

Voltage at any other pin

-55°C to +150°C

-29°C to +150°C

-0.3 to 7.0V

-0.3 to +7.0V

APPLICATIONS

Consumer digital satellite decoders

Professional digital satellite decoders

Communication systems

AGC

IFIN

IFINB

AGC

I OUT

AGC

Q OUT

VCODIS

VCOA

VCOB

0 deg

Quadrature

generator

90 deg

÷32

PSCAL

PSCALB

Fig.2. SL1710 block diagram

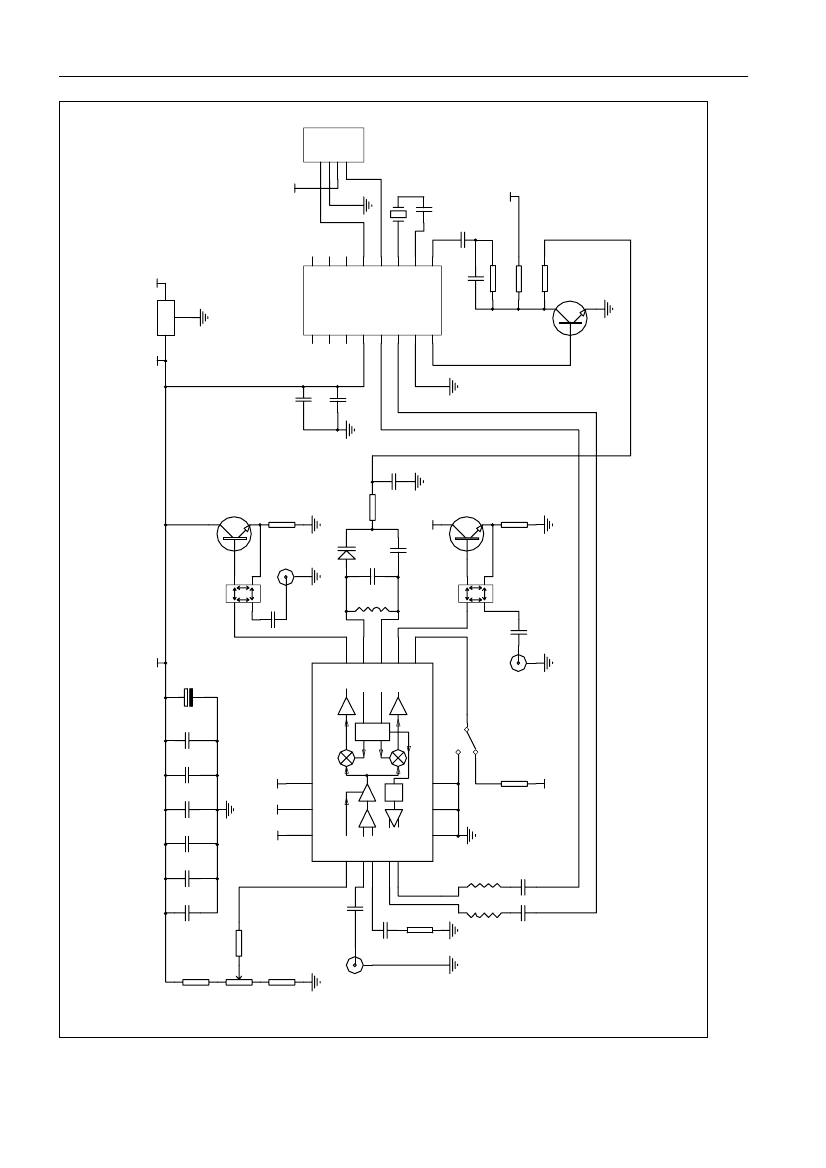

SL1710/KG/MPAS Related Products

	SL1710/KG/MPAS	SL1710/KG/MPAD
Description	Down Converter, MP16, MS-012AC, SOIC-16	Down Converter, MP16, MS-012AC, SOIC-16
Reach Compliance Code	unknown	unknown
Other features	LOW NOISE	LOW NOISE
Characteristic impedance	75 Ω	75 Ω
structure	COMPONENT	COMPONENT
Downconversion gain - minimum	44 dB	44 dB
LO tunable	YES	YES
maximum noise index	19 dB	19 dB
Maximum operating temperature	80 °C	80 °C
Maximum RF input frequency	500 MHz	500 MHz
Minimum RF input frequency	350 MHz	350 MHz
RF/Microwave Device Types	DOWN CONVERTER	DOWN CONVERTER
Maximum voltage standing wave ratio	1.7	1.7
