LF64230FMB45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LF64230FMB45

LF64230FMB45: DescriptionDigital Filter, 32-Bit, CMOS, CQFP132, CERAMIC, FP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size910KB，13 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LF64230FMB45 Overview

Digital Filter, 32-Bit, CMOS, CQFP132, CERAMIC, FP-132

LF64230FMB45 Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP,
Contacts	132
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Is Samacsys	N
boundary scan	NO
maximum clock frequency	22.2222 MHz
External data bus width	32
JESD-30 code	S-CQFP-G132
length	24 mm
low power mode	NO
Number of terminals	132
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	16
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	3.556 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	24 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER
Base Number Matches	1

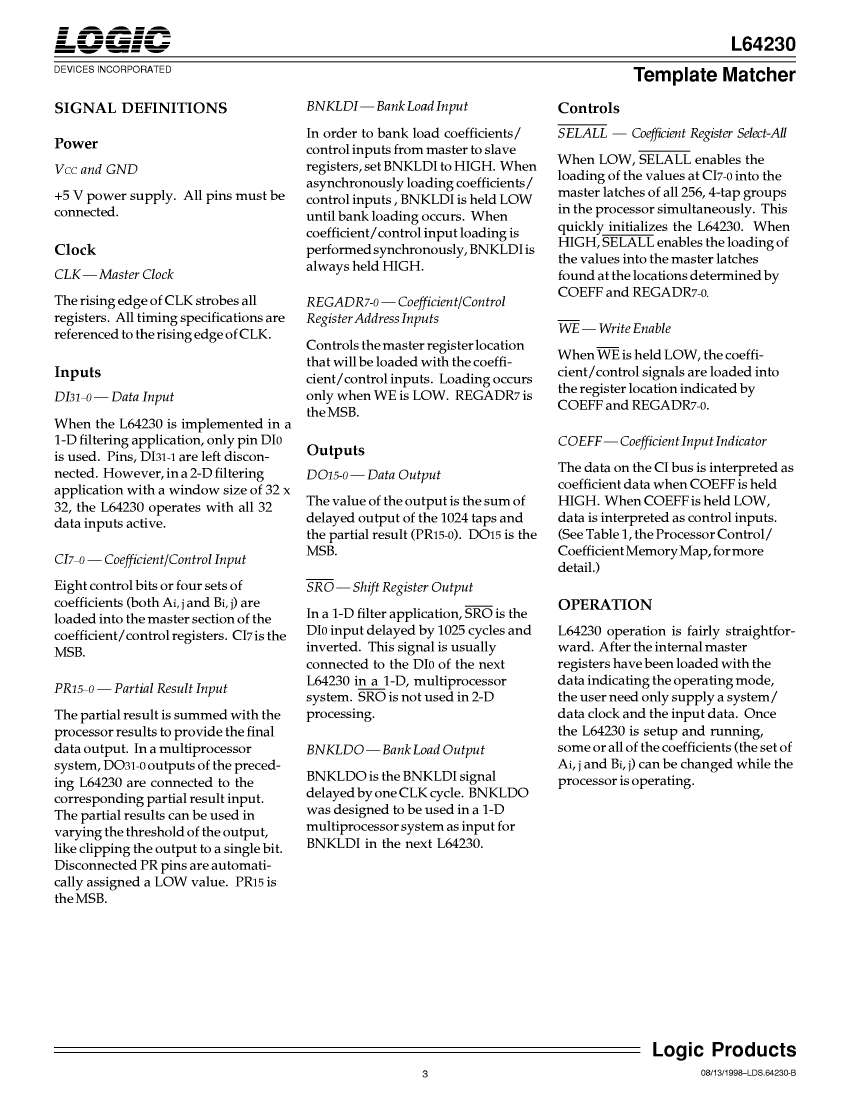

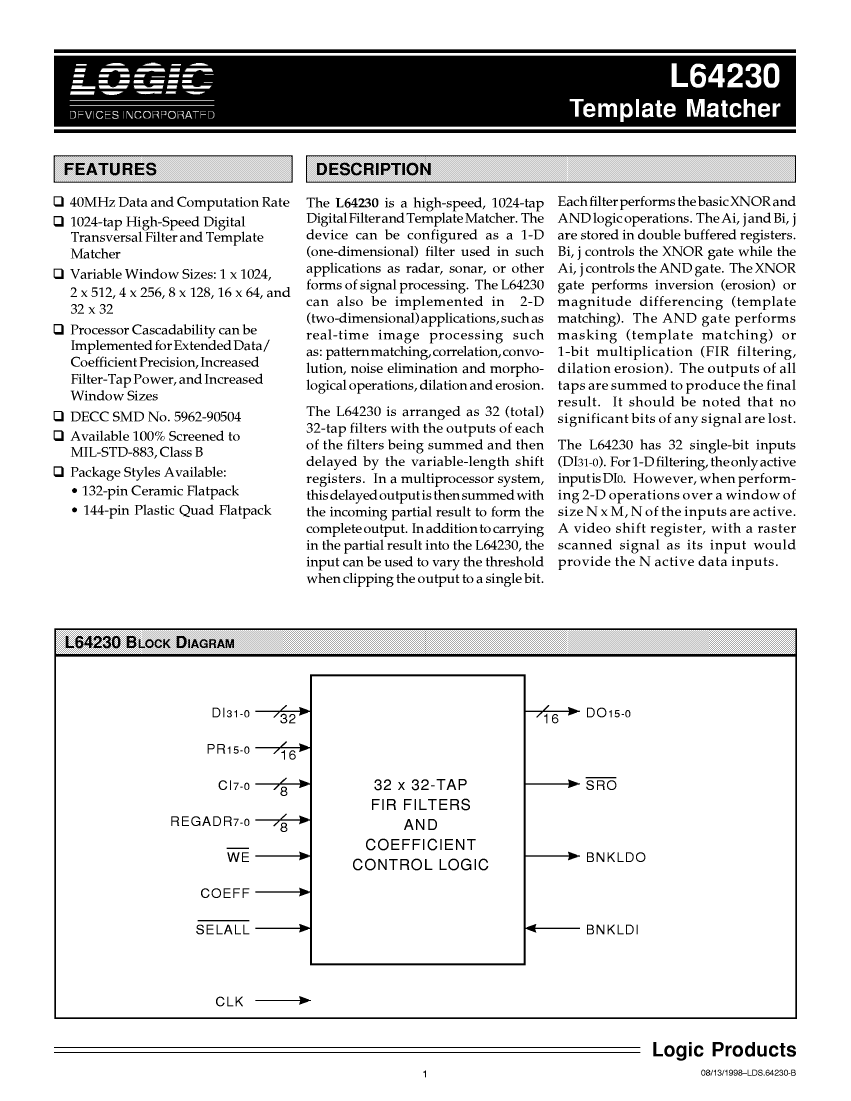

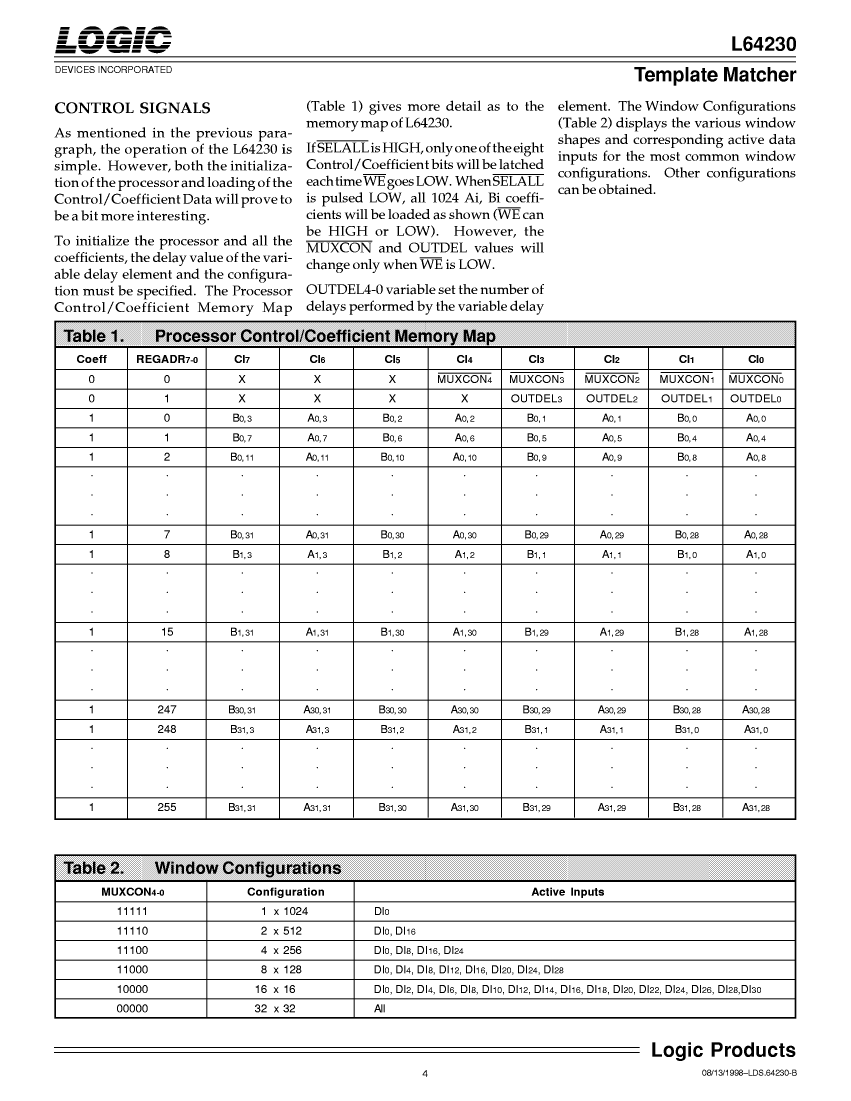

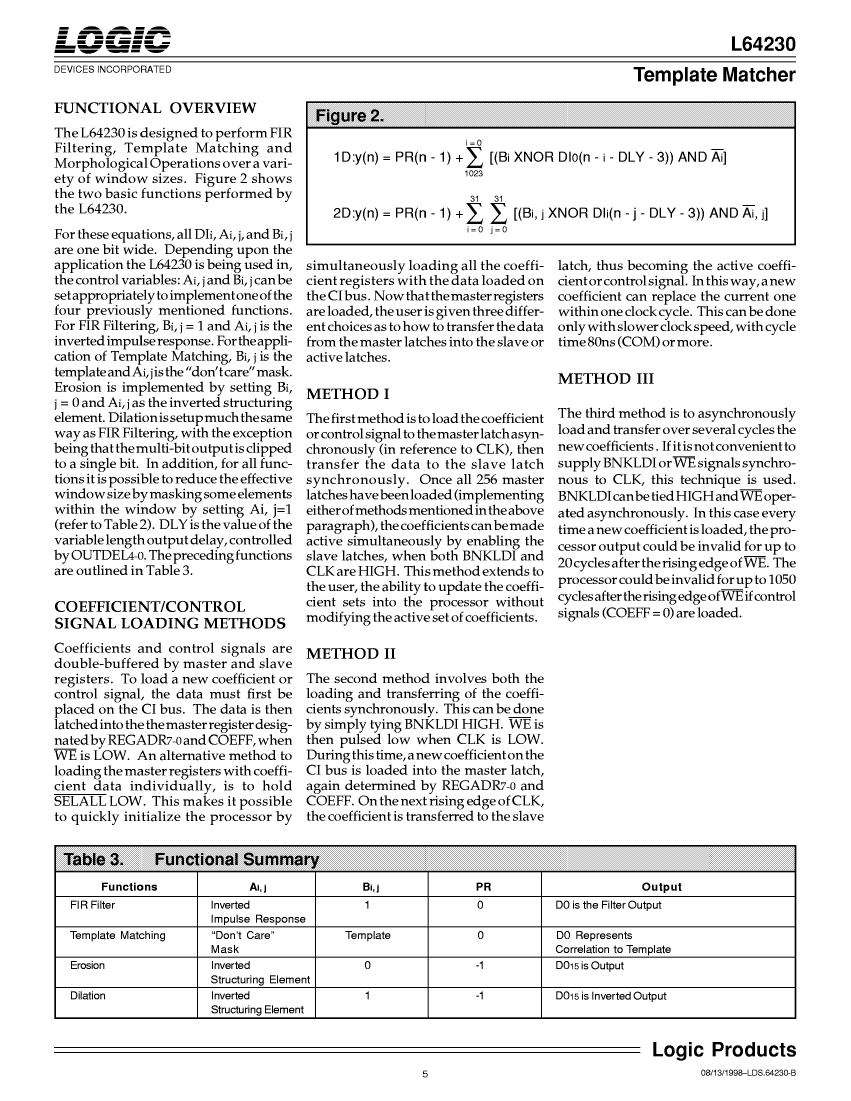

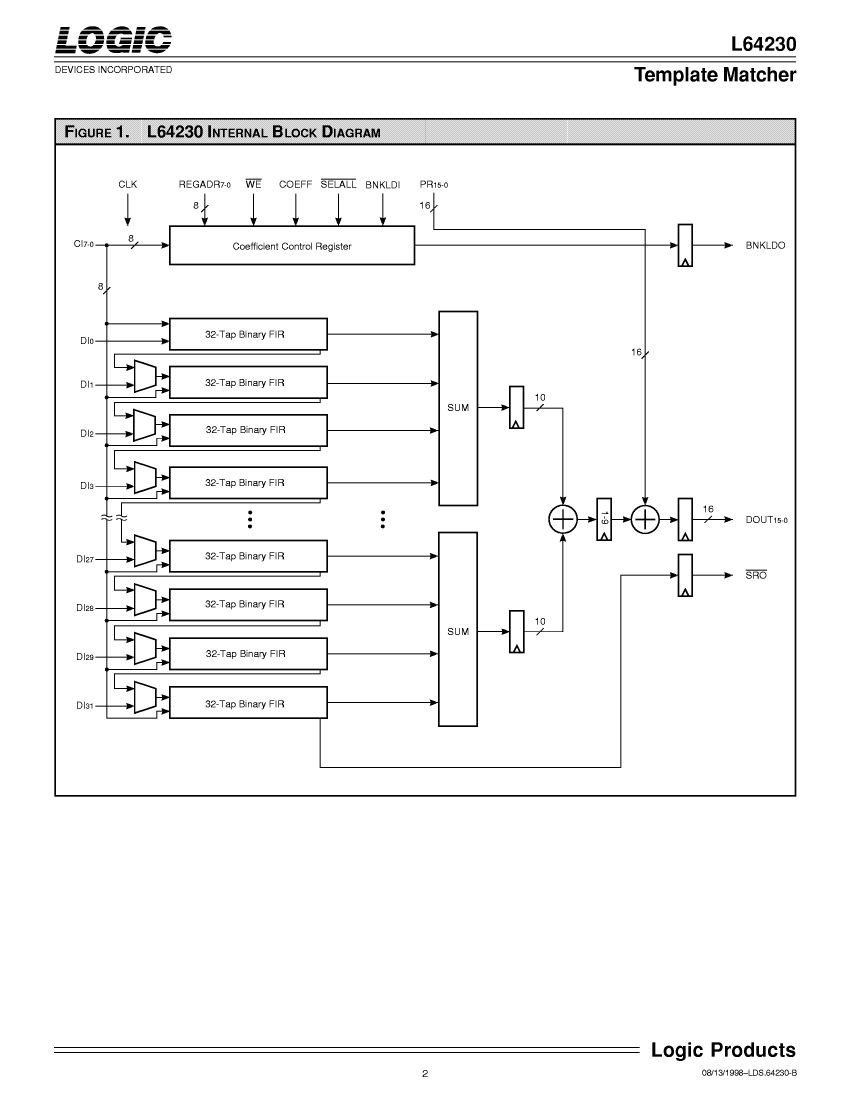

Preview

Download Datasheet

View All

LF64230FMB45 Related Products

	LF64230FMB45	LF64230FMB60	LF64230FMB75	L64230QC50	L64230QC85
Description	Digital Filter, 32-Bit, CMOS, CQFP132, CERAMIC, FP-132	Digital Filter, 32-Bit, CMOS, CQFP132, CERAMIC, FP-132	Digital Filter, 32-Bit, CMOS, CQFP132, CERAMIC, FP-132	Digital Filter, 32-Bit, CMOS, PQFP144, PLASTIC, QFP-144	Digital Filter, 32-Bit, CMOS, PQFP144, PLASTIC, QFP-144
Parts packaging code	QFP	QFP	QFP	QFP	QFP
package instruction	QFP,	QFP,	QFP,	QFP, QFP132,1.2SQ	QFP, QFP132,1.2SQ
Contacts	132	132	132	144	144
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
boundary scan	NO	NO	NO	NO	NO
maximum clock frequency	22.2222 MHz	16.6666 MHz	13.3333 MHz	20 MHz	11.76 MHz
External data bus width	32	32	32	32	32
JESD-30 code	S-CQFP-G132	S-CQFP-G132	S-CQFP-G132	S-PQFP-G144	S-PQFP-G144
length	24 mm	24 mm	24 mm	28 mm	28 mm
low power mode	NO	NO	NO	NO	NO
Number of terminals	132	132	132	144	144
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-
Output data bus width	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.556 mm	3.556 mm	3.556 mm	4.0995 mm	4.0995 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	24 mm	24 mm	24 mm	28 mm	28 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	-
Is Samacsys	N	N	N	N	-
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-	-
Base Number Matches	1	1	1	1	-
