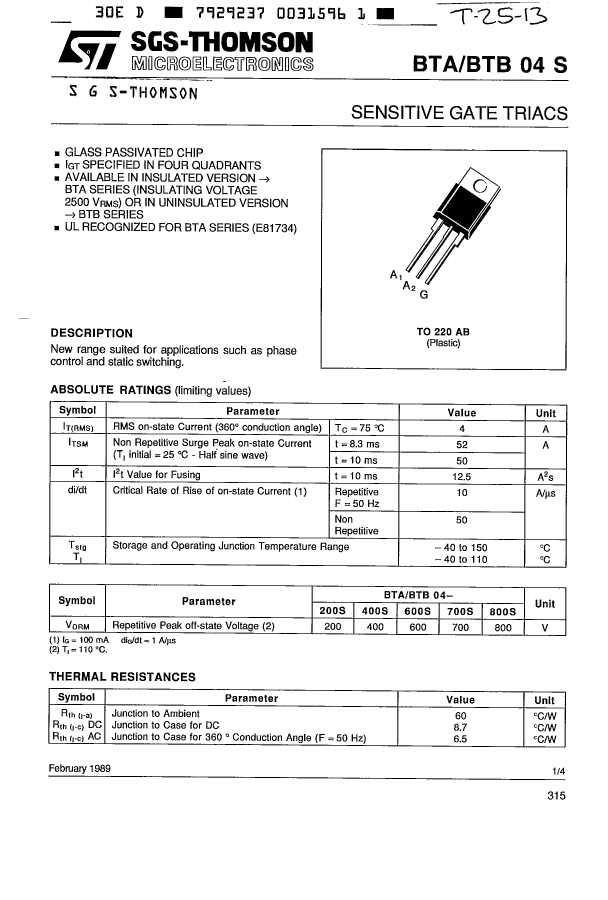

BTA04-200S datasheet, PDF - EEWORLD Datasheet

BTA04-200S: DescriptionTRIAC,200V V(DRM),4A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size185KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

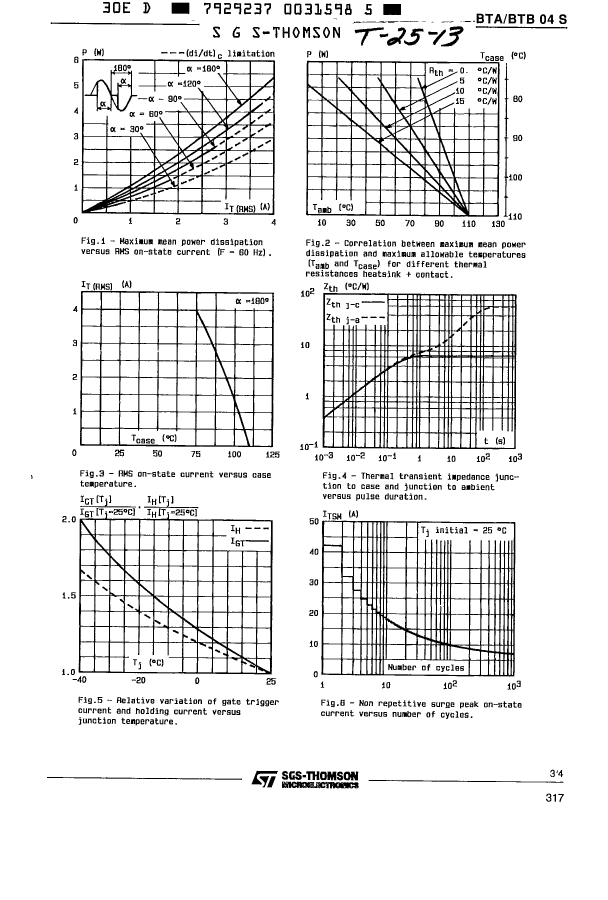

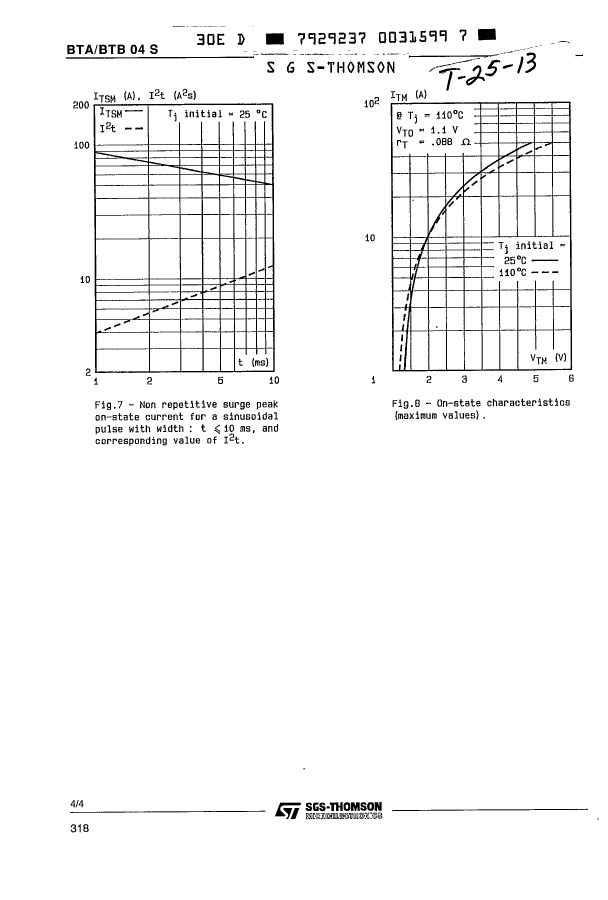

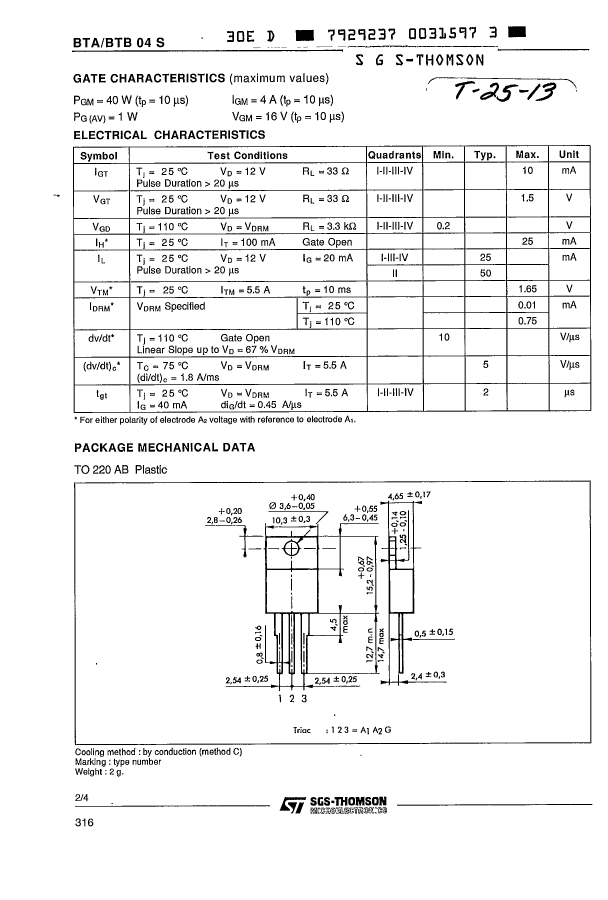

BTA04-200S Overview

TRIAC,200V V(DRM),4A I(T)RMS,TO-220

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	not_compliant
Is Samacsys	N
Critical rise rate of commutation voltage - minimum value	1 V/us
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	25 mA
JESD-609 code	e0
Maximum leakage current	0.75 mA
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1

	BTA04-200S	BTA04-800S	BTB04-200S	BTB04-800S
Description	TRIAC,200V V(DRM),4A I(T)RMS,TO-220	TRIAC,800V V(DRM),4A I(T)RMS,TO-220	TRIAC,200V V(DRM),4A I(T)RMS,TO-220	TRIAC,800V V(DRM),4A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of minimum off-state voltage	10 V/us	10 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	10 mA	10 mA	10 mA	10 mA
Maximum DC gate trigger voltage	2.5 V	1.5 V	2.5 V	1.5 V
Maximum holding current	25 mA	25 mA	25 mA	25 mA
JESD-609 code	e0	e0	e0	e0
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	4 A	4 A	4 A	4 A
Off-state repetitive peak voltage	200 V	800 V	200 V	800 V
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC
Maker	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
