MKS2966-6-0-1616 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MKS2966-6-0-1616

MKS2966-6-0-1616: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKS2966-6-0-1616 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle

MKS2966-6-0-1616 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZATION AVAILABLE
body width	0.295 inch
subject depth	0.917 inch
body length	1.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
MIL compliance	NO
Manufacturer's serial number	MKS2950
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.7592 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

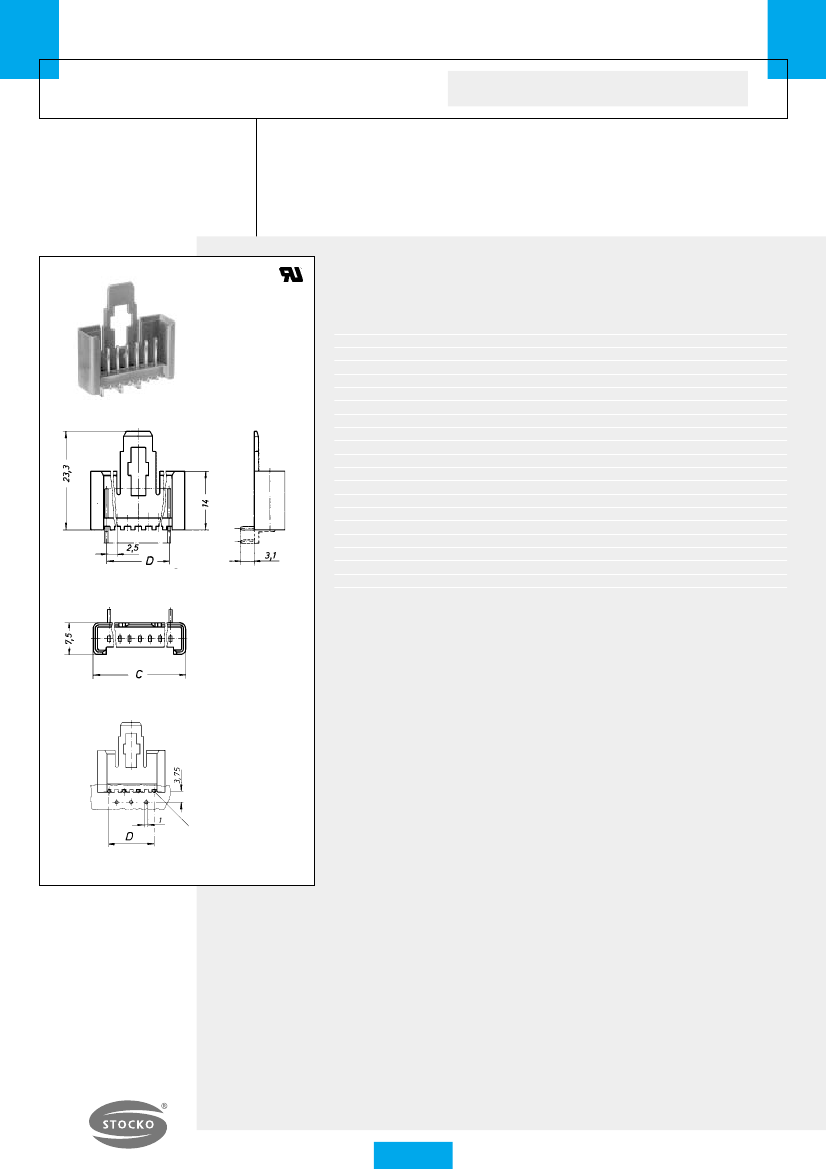

Serie / Series

Rastlasche

S tiftwannen, liegend, mit Rastlasche

MKS 2950

horizontal

Pin connectors with snap-in locking device for horiz ontal connections

Serie MKS 2950, Lötstifte versetzt, Rastlasche auf Platinenseite

Series MKS 2950, solder pins staggered, snap-in locking device on board side

Polzahl

Positions

Artikel-Nummer

Part number

MKS

2951 - 6 - 0 - 202

2952 - 6 - 0 - 202

2953 - 6 - 0 - 303

2954 - 6 - 0 - 404

2955 - 6 - 0 - 505

2956 - 6 - 0 - 606

2957 - 6 - 0 - 707

2958 - 6 - 0 - 808

2959 - 6 - 0 - 909

2960 - 6 - 0 - 1010

2961 - 6 - 0 - 1111

2962 - 6 - 0 - 1212

2963 - 6 - 0 - 1313

2964 - 6 - 0 - 1414

2965 - 6 - 0 - 1515

2966 - 6 - 0 - 1616

2967 - 6 - 0 - 1717

2968 - 6 - 0 - 1818

2970 - 6 - 0 - 2020

Abmessungen C

Dimensions C

9,7

7,9

12,2

14,7

17,2

19,7

22,2

24,7

27,2

29,7

32,2

34,7

37,2

39,7

42,2

44,7

47,2

49,7

54,7

Abmessungen D

Dimensions D

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

47,5

* nur geeignet für Federleisten MKF 13216/13316 und MKH 5132

* only suitable for connectors MKF 13216/13316 and MKH 5132

1. Contact

Bauteilseite

/ Component side
