SSI-LXR22015ID datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SSI-LXR22015ID

SSI-LXR22015ID: DescriptionSingle Color LED, High Intensity Red, Diffused Red,; CategoryLED optoelectronic/LED photoelectric; File Size109KB，1 Pages; ManufacturerLumex; Websitehttps://www.lumex.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SSI-LXR22015ID Overview

Single Color LED, High Intensity Red, Diffused Red,

SSI-LXR22015ID Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
color	HIGH INTENSITY RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED RED
Nominal luminous intensity	50.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	43.8 mm
method of packing	BULK
peak wavelength	635 nm
shape	ROUND
surface mount	NO
Terminal pitch	10 mm
perspective	140 deg
Base Number Matches	1

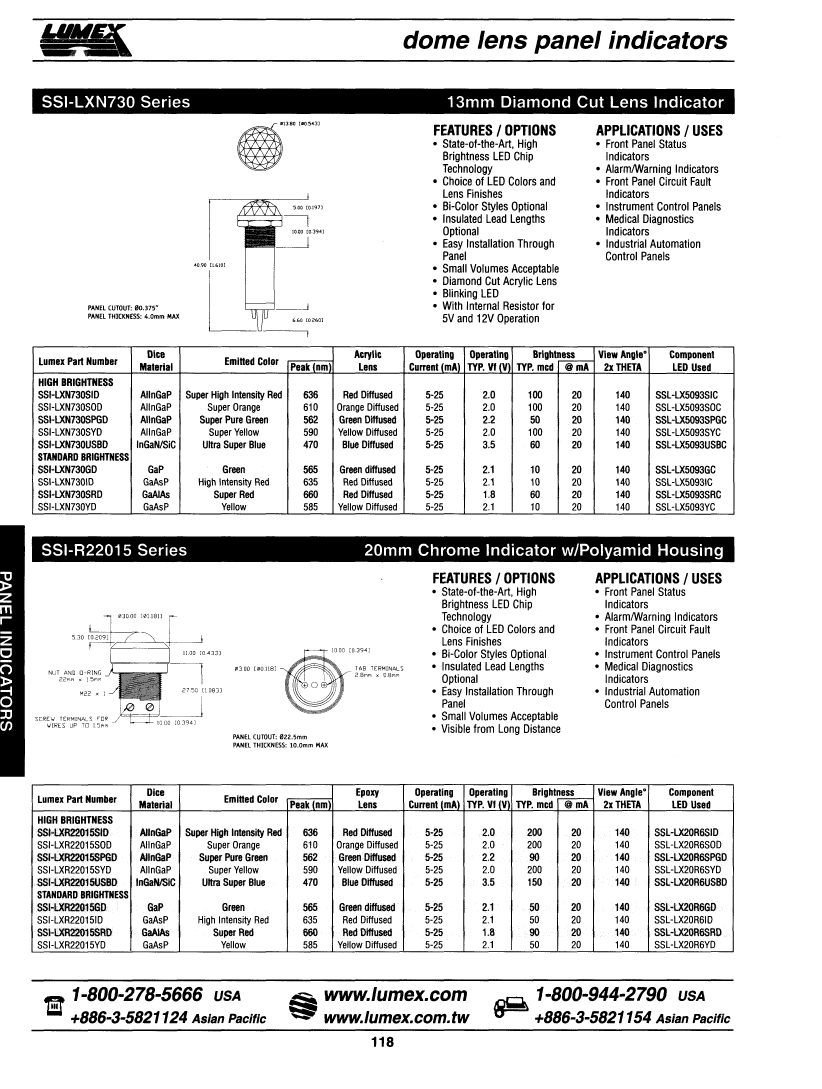

Preview

Download Datasheet

View All

SSI-LXR22015ID Related Products

	SSI-LXR22015ID	SSI-LXR22015YD	SSI-LXR22015SID	SSI-LXR22015SPGD	SSI-LXR22015USBD	SSI-LXR22015SYD	SSI-LXR22015SOD	SSI-LXR22015SRD	SSI-LXN730SPGD
Description	Single Color LED, High Intensity Red, Diffused Red,	Single Color LED, Yellow, Diffused,	Single Color LED, Super High Intensity Red, Diffused Red,	Single Color LED, Super Pure Green, Diffused Green,	Single Color LED, Ultra Super Blue, Diffused Blue,	Single Color LED, Super Yellow, Diffused Yellow,	Single Color LED, Super Orange, Diffused Orange,	Single Color LED, Super Red, Diffused Red,	Single Color LED, Super Pure Green, Diffused Green, T-4, 13mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	HIGH INTENSITY RED	YELLOW	SUPER HIGH INTENSITY RED	SUPER PURE GREEN	ULTRA SUPER BLUE	SUPER YELLOW	SUPER ORANGE	SUPER RED	SUPER PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Lens type	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED GREEN	DIFFUSED BLUE	DIFFUSED YELLOW	DIFFUSED ORANGE	DIFFUSED RED	DIFFUSED GREEN
Nominal luminous intensity	50.0 mcd	50.0 mcd	200.0 mcd	90.0 mcd	150.0 mcd	200.0 mcd	200.0 mcd	90.0 mcd	50.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	1
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	43.8 mm	43.8 mm	43.8 mm	43.8 mm	43.8 mm	43.8 mm	43.8 mm	43.8 mm	34.3 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635 nm	585 nm	636 nm	562 nm	470 nm	590 nm	610 nm	660 nm	562 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
perspective	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg
Terminal pitch	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	-
Base Number Matches	1	1	1	1	1	-	-	-	-
Maker	-	Lumex	Lumex	Lumex	Lumex	Lumex	Lumex	Lumex	Lumex
