SW04HHR400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SW04HHR400

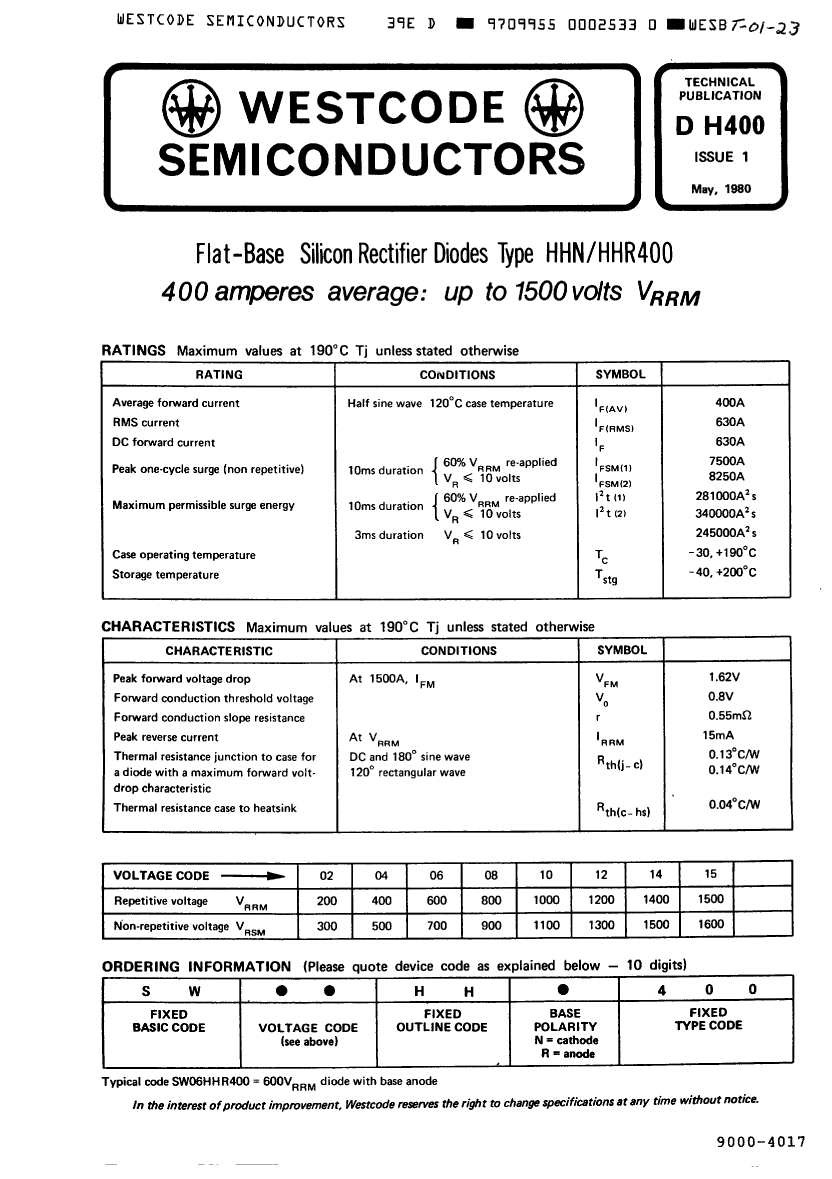

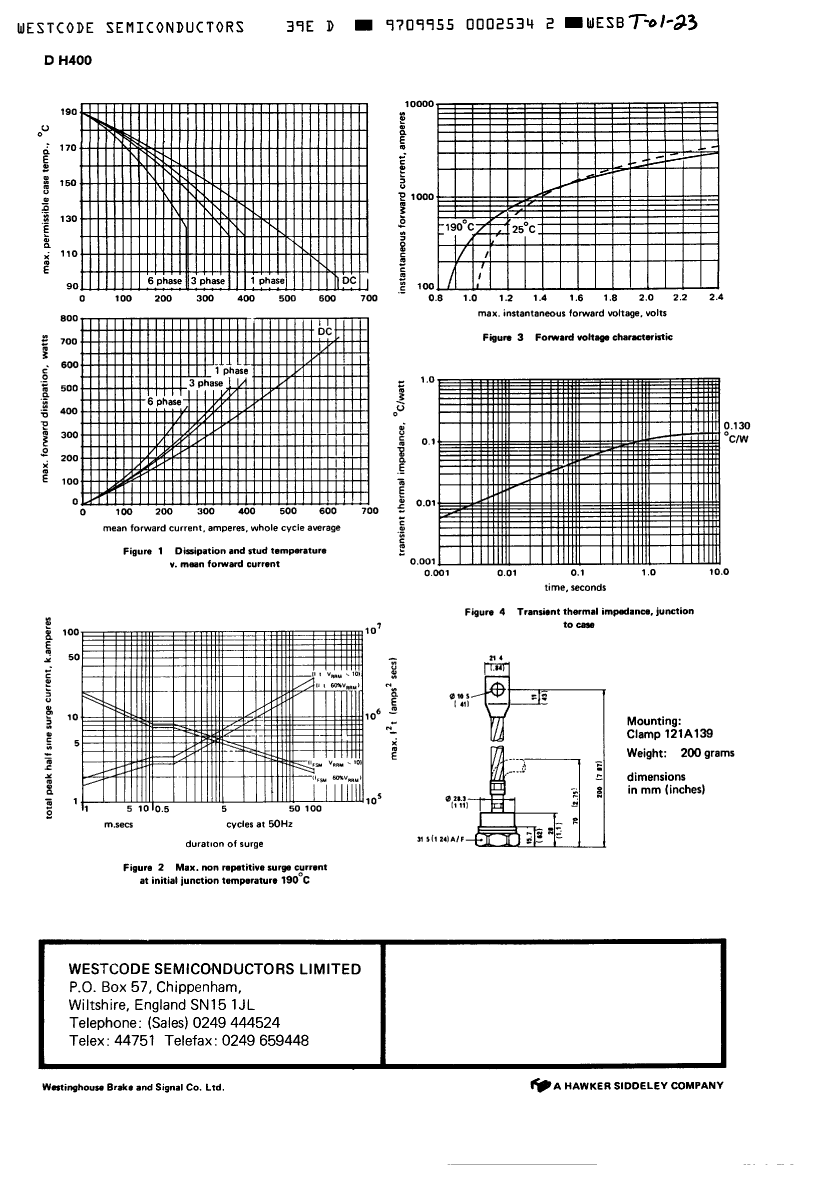

SW04HHR400: DescriptionDIODE 400 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size109KB，2 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

SW04HHR400 Overview

DIODE 400 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode

SW04HHR400 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-H1
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.62 V
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	8250 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	190 °C
Maximum output current	400 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

SW04HHR400 Related Products

	SW04HHR400	SW10HHN400	SW06HHN400	SW15HHN400	SW08HHN400	SW12HHN400	SW10HHR400	SW12HHR400
Description	DIODE 400 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 1000 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 600 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 1500 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 800 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 1200 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 1000 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 400 A, 1200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	8250 A	8250 A	8250 A	8250 A	8250 A	8250 A	8250 A	8250 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1
Maximum operating temperature	190 °C	190 °C	190 °C	190 °C	190 °C	190 °C	190 °C	190 °C
Maximum output current	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	1000 V	600 V	1500 V	800 V	1200 V	1000 V	1200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	-	-	IXYS	IXYS	IXYS	IXYS	IXYS
