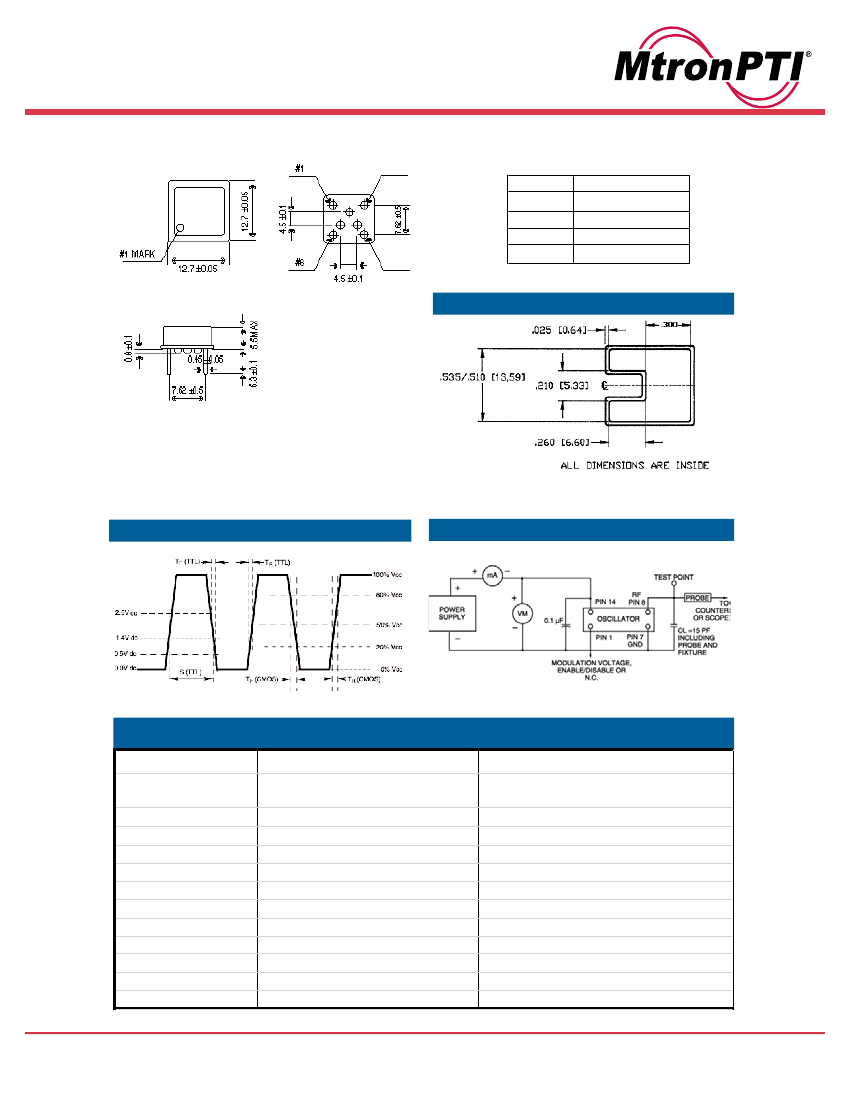

K3500G Series
8 pin DIP, 3.3 Volt, CMOS, Clock Oscillator
THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.
3.3V Crystal Clock Oscillators
PLEASE REFER TO THE M3H PRODUCT SERIES.
4-pin Package, Compatible with 8-pin DIL
1.0MHz to 70MHz Frequency Range
CMOS Compatible
Tight Symmetry (45/55%) Available
Tri-State Option Available
±100ppm Stability Standard - K3500GC
½½½
½½½
½½½
½½½
K3500G Series
½
½½½
½½½½½½½½½½
½
½
½½½
½½
½
½½½½½½
½
½½
½½½
½
½½½
½½½
½
½½
½½
½
½½
½½½
Tighter Stabilities Available
±25ppm Stability:- K3500GA
±50ppm Stability:- K3500GB
Case Ground for EMI Protection
½½½½½
E L E C T R I C A L S P E C I F I C AT I O N S
MODEL
Frequency Range (MHz)
Frequency Stability (ppm)
Overall
0°C to 70°C
-40°C to 85°C
Temperature Range (°C)
Operating
Storage
Supply Voltage (V)
Supply Current (mA)
Output CMOS
-40°C to +85°C
-55°C to +125°C
+3.3 ±5%
<30
0.9 VCC
0.1 VCC
Up to 80MHz 50pF; >80MHz 30pF
<10
40/60
10ps RMS @ 100MHz
<10
Inclusive of calibration, temperature, voltage, load, shock,vibration, aging
±25
N/A
±50
±50
±100
±100
K3500GA
K3500GB
1.0 to 125
K3500GC
“0” Level (VOL)
“1” Level (VOH)
Load
TR & TF (ns)
Symmetry (%)
Jitter (Typical)
Start up Time (ms)
PA R T N U M B E R I N G G U I D E
K3500GXXXX -
Specify Frequency
“Blank” = Fixed Frequency
“E” = Tri-State
“Blank” = 0oC to 70oC Operating Temperature
“M” = -40oC to 85oC Operating Temperature
“Blank” = 40/60% Symmetry
“S” = 45/55 Symmetry
“A”
±25ppm Frequency Stability (Available 0/70
o
C only)
“B” =
±50 ppm Frequency Stability
“C” =
±100ppm Frequency Stability
“D” = ±20ppm Frequency Stability
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
2553 N. Edgington Street, Franklin Park, IL 60131
Phone: 847.451.1000 Fax: 847.451.7585
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
800-888-1499 or www.champtech.com
Revision: 03-02-07
1
K3500G Series
8 pin DIP, 3.3 Volt, CMOS, Clock Oscillator
THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.
3.3V
PLEASE REFER TO THE M3H PRODUCT SERIES.
Crystal Clock Oscillators
PIN
1
2
3
4
FUNCTION
N/C / Tri-State
Ground
Output
+ VCC
K3500G Series
SHIPPING TUBE CROSS SECTION
OUTPUT WAVEFORM
TEST CIRCUIT DIAGRAM
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
TEST METHODS
Temperature Cycle
Mechanical Shock
Vibration
Humidity Steady State
Thermal Shock
Electrostatic Discharge
Solderability
Hermeticity
Resistance to Soldering
Lead Integrity
Marking Permanence
Life Test
REFERENCE PROCEDURES
MIL-STD-833, Mtd 1010, Cond. B
MIL-STD-883, Mtd 2002, Cond. B
MIL-STD 883, Mtd 2007, Cond. B
MIL-STD-202, Mtd 103
MIL-STD-883, Mtd 1011.7 Cond. B
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 2022.2
MIL-STD-883, Mtd 1014.8, Cond. A1
DESCRIPTION
-55°C to +125°C; Air-to-Air; 100 cycles; 10
min. dwell
1500 g’s
20-2000 Hz; 0.06 inch; 15g’s; 3 planes
40°C; 90%-95% R.H.; 56 days
100°C to 0°C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Mass spectro. 2 x 10-8 atmos. CC/sec He
MIL-STD-202, Mtd 210D, Cond. J
235°C; 30 seconds
MIL-STD-883, Mtd 2004.5, Cond. A, B1 Lead tension & bend stress
MIL-STD-883, Mtd 2015.8
MIL-STD-883, Mtd 1005.6
Resistance to solvents
125
°C, powered, 1000 hours minimum
MtronPTI reserves the
Edgington Street, Franklin Park, IL
described herein without notice. No liability is assumed as a result of their use or application.
2553 N.
right to make changes to the product(s) and service(s)
60131
Phone: 847.451.1000 Fax: 847.451.7585
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
800-888-1499 or www.champtech.com
Revision: 03-02-07
2
