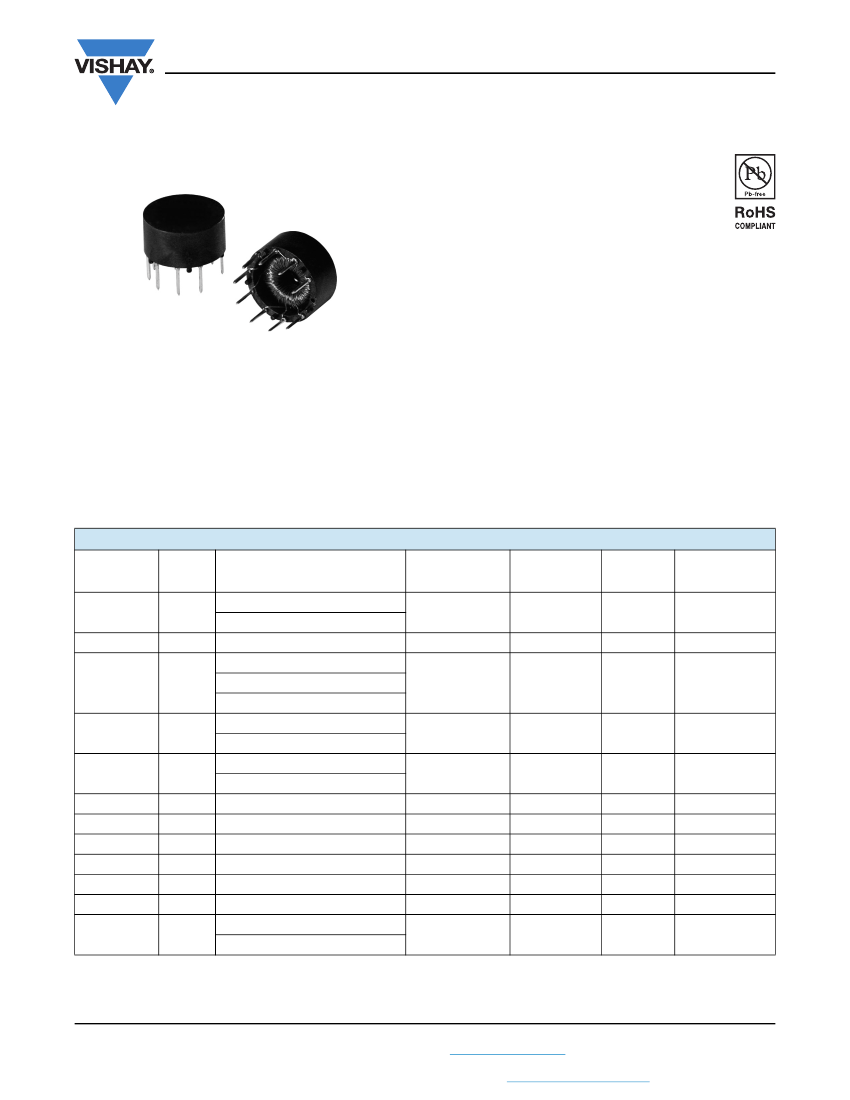

TC
www.vishay.com
Vishay Dale
Through Hole Transformers Converter
FEATURES
• Designed especially for low-power solid state
circuits
• Designed for mounting on printed circuit boards
• Miniature size for minimum space
• High conversion efficiency from DC input to filtered DC
output
• Compliant to RoHS Directive 2011/65/EU
APPLICATIONS
Power supply for gas discharge display, battery-operated
portable instruments, operational amplifier power supplies
MECHANICAL SPECIFICATIONS
Coil:
Secured to bottom of case with epoxy
ELECTRICAL SPECIFICATIONS
Transformer Power Rating:
3 W
Isolation, Primary-Secondary:
500 V, 60 Hz. Operating
characteristics may be varied to suit specific applications by
appropriate selection of circuit components
Terminals:
0.025" [0.635 mm] square, solder plated
OPERATING TEMPERATURE RANGE
- 20 °C to + 80 °C. Intended for use in enclosed commercial
and industrial applications
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
TC-10-01B
TC-10-02B
INPUT
(V
DC
)
3.6
5
OUTPUT
+ 7.2 ± 0.2 V
DC
at 150 MW
- 7.2 ± 0.2 V
DC
at 150 MW
200 ± 10 V
DC
at 250 MW
200 ± 10 V
DC
at 250 MW
TC-10-03B
5
+ 15 ± 0.4 V
DC
at 125 MW
- 15 ± 0.4 V
DC
at 125 MW
TC-10-04B
5
+ 15 ± 0.4 V
DC
at 500 MW
- 15 ± 0.4 V
DC
at 500 MW
+ 170 ± 5.1 V
DC
at 850 MW
+ 32 ± 1.0 V
DC
at 510 MW
+ 35 ± 1.0 V
DC
at 610 MW
16.3 ± 0.4 V
DC
at 330 MW
± 15 ± 0.4 V
DC
at 1 W
160 ± 5 V
DC
at 1.5 W
14.2 ± 0.7 V
DC
at 3 W
+ 24 ± 0.5 V
DC
at 2 W
170 ± 5.1 V
DC
at 850 MW
32 ± 1.0 V
DC
at 510 MW
8
75 %
3
1
11
60 %
2
2
FREQUENCY
REFERENCE
(kHz)
7.5
11
CIRCUIT
EFFECTIVE
50 %
50 %
TEST
CIRCUIT
1
2
(1)
SCHEMATIC
NUMBER
1
4
TC-10-05B
TC-10-06B
TC-10-07B
TC-10-08B
TC-10-09B
TC-10-10B
TC-10-11B
TC-10-12B
5
5
7.5
12
12
12
12
24
11
11
7
7.5
10
10
10
11
75 %
70 %
65 %
72 %
75 %
70 %
80 %
70 %
4
4
(1)
5
3
6
5
5
4
5
5
(1)
1
1
3
1
1
5
Note
(1)
Specifications relate to transformer when operated in applicable test circuit and at specified load power.
Revision: 02-Mar-12
Document Number: 34077
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TC
www.vishay.com
Vishay Dale

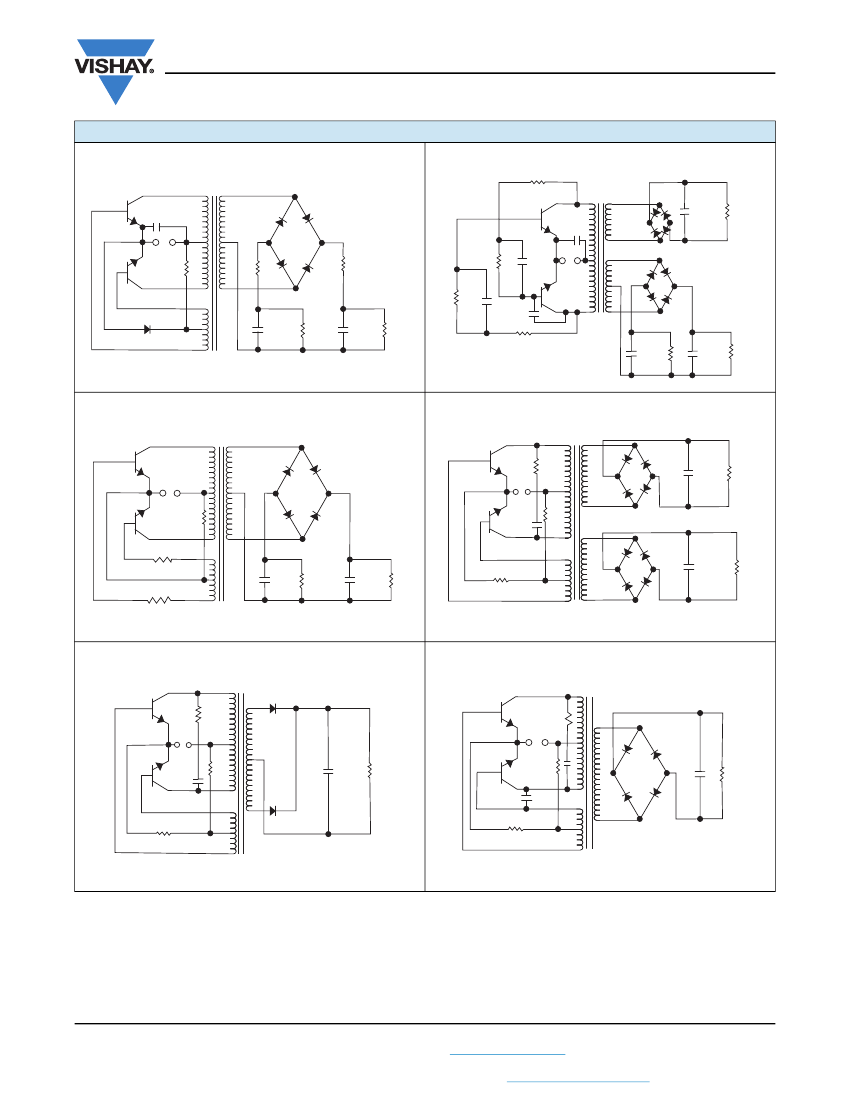

TEST CIRCUITS
TEST CIRCUIT NUMBER 1
1
2N4400
4.7 μF
-
+
2
8
10
Ω
1 kΩ
INPUT
3.9 kΩ
2N4400
3
4
5
1N4148
6
9
7
1N4148 (4)
TEST CIRCUIT NUMBER 2
+ 200 V
470
Ω
1
8
1N4004
(4)
0.22 μF
9
4
1N4150 (4)
5
+ 7.2 V
1 kΩ
1 kΩ
0.1 μF
0.003 μF
470
Ω
10 μF
RL
10 μF
RL
2N4401
3
6
- 15 V
+ 15 V
2N4401
10 μF
0.1 μF -
+
RL
10
Ω
- 7.2 V
3.3 μF
1 kΩ
INPUT2
3.3 μF
TEST CIRCUIT NUMBER 3
TEST CIRCUIT NUMBER 4
1
7
1N4004 (4)
2.2 μF RL
1
7
1N4150 (4)
Q
- +
INPUT
Q
9
- 15 V
4 μF
RL
+ 15 V
4 μF
RL
RF
(1)
- +
INPUT
RS
2
8
2
8
RS
3
4
0.47 μF
5
6
10
RL
9
1N4150 (4)
3
RF
1N4150
RF
4
5
6
TEST CIRCUIT NUMBER 5
1
Q
- +
INPUT
Q
RS
3
4
RF
5
6
9
D
0.003 μF
7
(2)
TEST CIRCUIT NUMBER 6
D
2N2102
-
+
(3)
1
8
2
0.2 μF
RL
3
4
9
5
180
Ω
6
1N4004 (4)
2
8
C1
RL
INPUT
2.2 kΩ
2N2102
Notes
• Omit winding 4, 5, 6 and associated circuit to test TC-10-028.
• Omit winding 7, 8 and associated circuit to test TC-10-068.
(1)
RC network may be required to suppress spurious oscillations. R = 100
,
C = 0.001 μF.
(2)
RC network may be required to suppress spurious oscillations.
(3)
RC network may be required to suppress spurious oscillations. R = 10
,
C = 0.004 μF.
Revision: 02-Mar-12
Document Number: 34077
2
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
